NSN 5325-00-294-9799 MS51830104L, MS51830-104L, MS51830CA104L

Product Details | SCREW THREAD INSERT

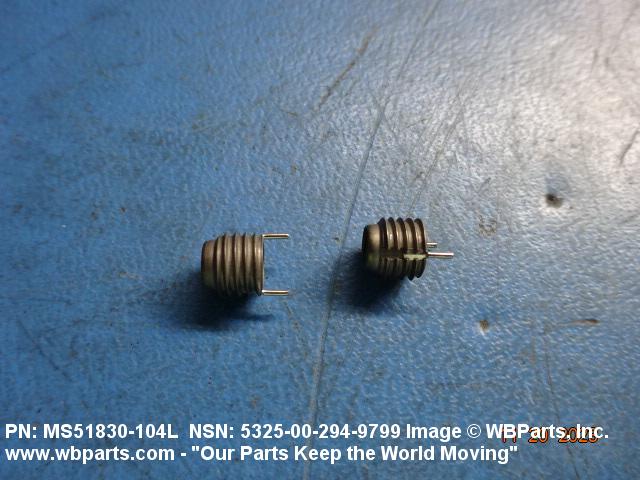

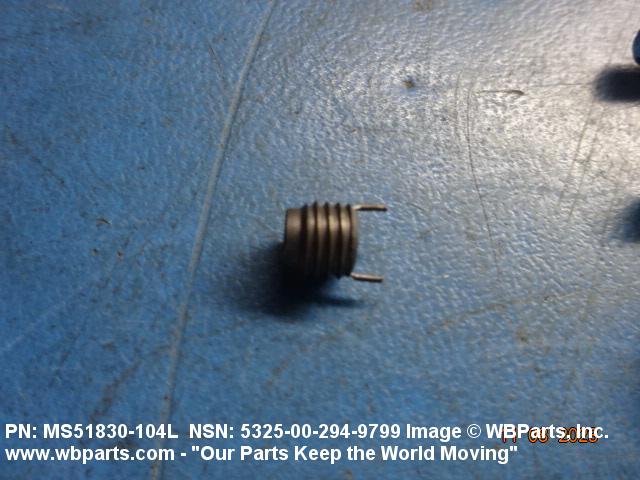

5325-00-294-9799 A cylindrical item which may have wrenching and/or driving facilities and/or shoulders. It is designed to be inserted in a drilled, tapped or a pretapped hole, or molded or pressed into soft material to reduce the size of a tapped hole; to provide threads; to add strength, and/or to prevent stripping. It is one of the following: (1) a one-piece, flanged or unflanged, internally threaded item which may have external threads, and/or serrations around the periphery of the collar, designed to engage a serrated lock ring which is not included with the item; (2) a one-piece precision coiled wire; (3) a two-piece item consisting of an internally threaded cylinder and a mating externally threaded part; or (4) a one-piece internally threaded item whose outside diameter is tapered and/or knurled and/or with fin(s). The internal thread of the item may have a locking feature. Excludes items having a sleeve on on its under portion which can be clinched or crimped. Excludes BUSHING,MACHINE THREAD; NUT,PLAIN,KNURLED; NUT,PLAIN,ROUND; NUT,PLAIN,CLINCH and NUT,SELF-LOCKING,CLINCH. See also NUT,PLAIN,PLATE

Part Alternates: MS51830104L, MS51830-104L, MS51830CA104L, 401469502714, 401-4695027-14, 5325-00-294-9799, 00-294-9799, 5325002949799, 002949799

Hardware and Abrasives | Fastening Devices

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
53	03 OCT 1973	00-294-9799	11444 ( INSERT, SCREW THREAD )

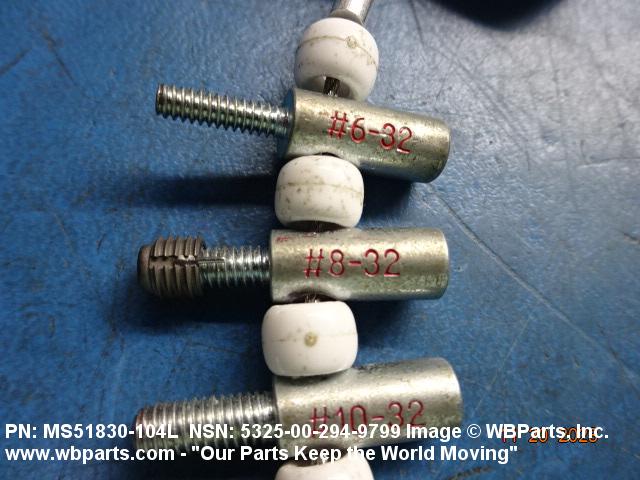

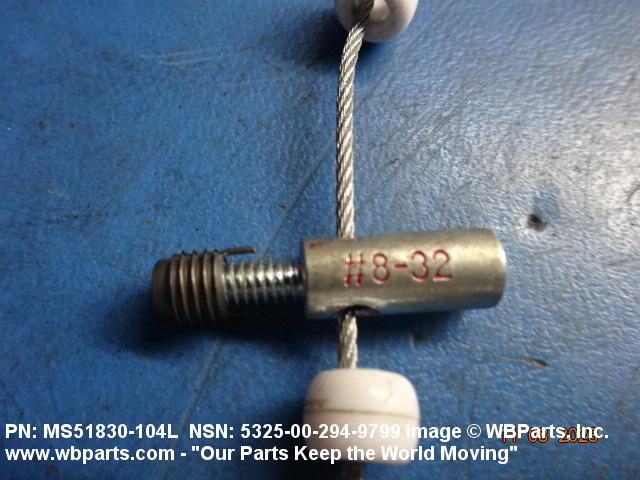

Drawings & Photos | NSN 5325-00-294-9799

Part Number	Request Date	QTY	Origin
MS51830CA104L	2024-11-306	20	United States
MS51830104L	2024-10-299	16	United States
MS51830CA104L	2024-10-276	20	United States
MS51830CA104L	2024-08-240	40	United States
MS51830104L	2024-02-51	2350	United States
5325-00-294-9799	2023-10-299	200	United States
5325-00-294-9799	2023-10-299	200	United States
5325-00-294-9799	2023-10-282	200	United States
MS51830CA104L	2023-09-264	6	US
5325-00-294-9799	2023-06-153	4200	United States
MS51830CA104L	2022-11-325	22	United States
5325-00-294-9799	2022-08-243	1827	DIBBS
5325-00-294-9799	2021-11-319	2462	DIBBS
5325-00-294-9799	2021-11-307	2462	DIBBS
MS51830104L	2021-06-174	750	United States
MS51830104L	2021-06-153	360	US
5325-00-294-9799	2021-05-126	2462	DIBBS
5325-00-294-9799	2021-04-115	2462	DIBBS
5325-00-294-9799	2020-11-306	2462	DIBBS
5325-00-294-9799	2020-10-294	2516	DIBBS
5325-00-294-9799	2019-12-349	1203	DIBBS
MS51830CA104L	2019-11-317	30	United States
5325-00-294-9799	2019-10-276	1506	DIBBS
MS51830104L	2019-09-248	10800	United States
5325-00-294-9799	2019-08-240	854	DIBBS
MS51830CA104L	2019-08-213	63	United States
5325-00-294-9799	2019-07-205	1500	DIBBS
MS51830104L	2018-10-289	10	United States
MS51830104L	2018-09-260	24	United States
MS51830104L	2018-09-249	12	United States
MS51830104L	2018-08-240	23	United States
MS51830CA104L	2018-08-233	1	United States
MS51830104L	2018-03-72	2000	US
MS51830CA104L	2018-01-17	6	United States
MS51830CA104L	2018-01-17	8	United States
MS51830104L	2017-08-220	20	Germany
MS51830104L	2017-06-166	60	United States
5325-00-294-9799	2017-02-52	3126	DIBBS
MS51830-104L	2017-01-11	176	United Arab Emirates
5325-00-294-9799	2016-12-344	2522	DIBBS
5325-00-294-9799	2016-12-336	2522	DIBBS
MS51830104L	2016-08-222	75	United States
MS51830104L	2015-09-271	500	India
MS51830CA104L	2015-09-257	4	US
MS51830104L	2015-09-251	680	United States
MS51830-104L	2015-06-156	32	United States
MS51830104L	2015-03-86	2750	United States
MS51830104L	2014-09-246	200	us
MS51830104L	2014-07-196	2500	US
MS51830104L	2013-11-310	24	United States
MS51830104L	2013-01-30	5000	US
MS51830CA104L	2013-01-07	170	CN
MS51830-104L	2012-05-146	76	CR
MS51830CA104L	2012-02-33	3300	United States
MS51830104L	2011-12-361	4	United States
5325-00-294-9799	2011-12-336	100	US
MS51830104L	2011-10-293	25	United States
MS51830CA104L	2011-10-293	25	United States
MS51830104L	2011-09-271	200	United States
MS51830CA104L	2011-09-245	12	US
MS51830104L	2011-05-151	180	United States
MS51830104L	2011-03-90	260	United States
5325-00-294-9799	2011-03-89	2200	US
MS51830104L	2011-03-73	30	Australia
MS51830104L	2010-12-356	1	Italy
5325-00-294-9799	2010-12-348	15	US
5325-00-294-9799	2010-11-334	50	US
5325-00-294-9799	2010-11-334	40	US
MS51830104L	2010-10-279	1	US
5325-00-294-9799	2010-09-259	10	RO
MS51830104L	2010-06-165	250	US
MS51830104L	2010-06-165	500	US
MS51830104L	2010-02-33	32	United States
MS51830104L	2009-12-350	2500	US
5325-00-294-9799	2009-12-344	3287	DIBBS
5325-00-294-9799	2009-11-310	432	Italy
5325-00-294-9799	2009-11-310	2606	DIBBS
MS51830104L	2009-10-282	10	US
MS51830104L	2009-10-278	1750	United Kingdom
5325-00-294-9799	2009-09-246	500	India
MS51830104L	2009-08-239	200	United Kingdom
5325-00-294-9799	2009-04-118	210	Greece
5325-00-294-9799	2009-01-14	1000	IL
MS51830104L	2008-12-346	3000	United States
MS51830104L	2008-10-276	2500	US
5325-00-294-9799	2008-06-177	2200	US
MS51830104L	2008-06-172	300	United States
5325-00-294-9799	2008-04-121	182	DIBBS
MS51830104L	2008-03-80	2400	US
MS51830104L	2008-02-60	2133	United States
MS51830104L	2008-02-60	4500	United States
MS51830104L	2008-02-56	1350	US
MS51830CA104L	2008-01-31	16	US
MS51830104L	2008-01-23	3000	US
MS51830104L	2007-11-324	50	US
MS51830104L	2006-06-157	50	United States

Cross Reference | NSN 5325-00-294-9799

Part Number	Cage Code	Manufacturer
401-4695027-14	80064	NAVAL SHIP SYSTEMS COMMAND
MS51830-104L	D9182	BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT
MS51830CA104L	96906	MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS

Request a Quote

What Our Customers Say

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

Compare

NSNs for Compare ( up to 4 ): Add 5325-00-294-9799

Compare

Related Products | NSN 5325-00-294-9799

5325-00-295-9176, 5325-00-296-5053, 5325-00-296-8253, 5325-00-296-8845, 5325-00-297-0503

Technical Data | NSN 5325-00-294-9799

Characteristic	Specifications
MATERIAL	IRON ALLOY 660 OVERALL
MATERIAL DOCUMENT AND CLASSIFICATION	AMS 5737 ASSN STD SINGLE MATERIAL RESPONSE OVERALL
SURFACE TREATMENT	PASSIVATE OVERALL
SURFACE TREATMENT DOCUMENT AND CLASSIFICATION	QQ-P-35 FED SPEC SINGLE TREATMENT RESPONSE OVERALL
STYLE DESIGNATOR	H25 GROOVED KEYLOCK

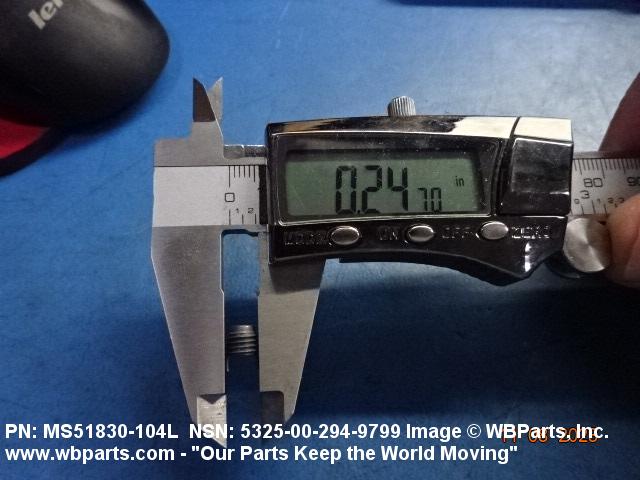

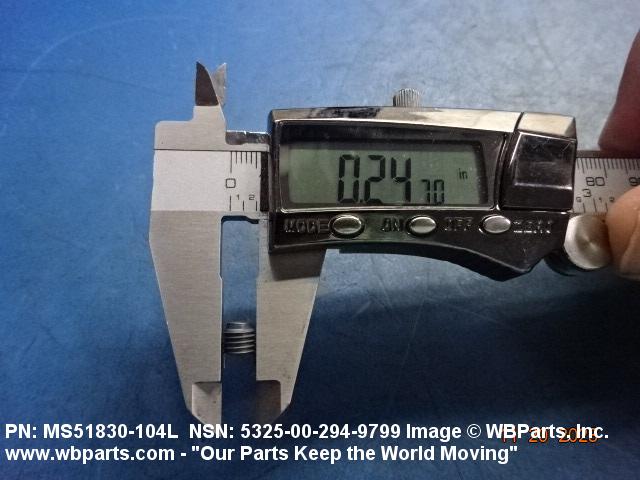

LENGTH	0.205 INCHES MINIMUM AND 0.235 INCHES MAXIMUM

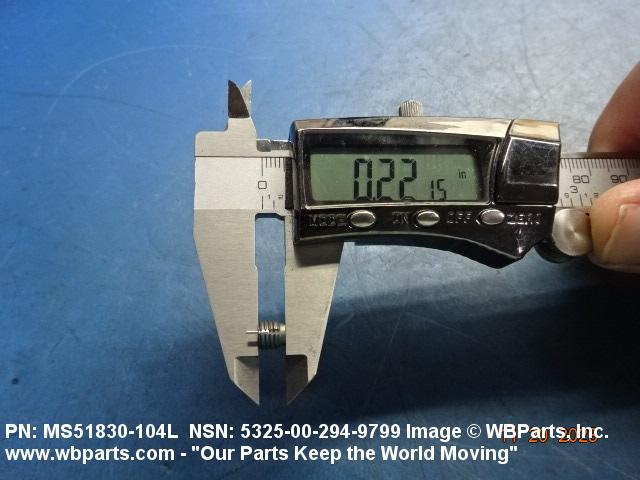

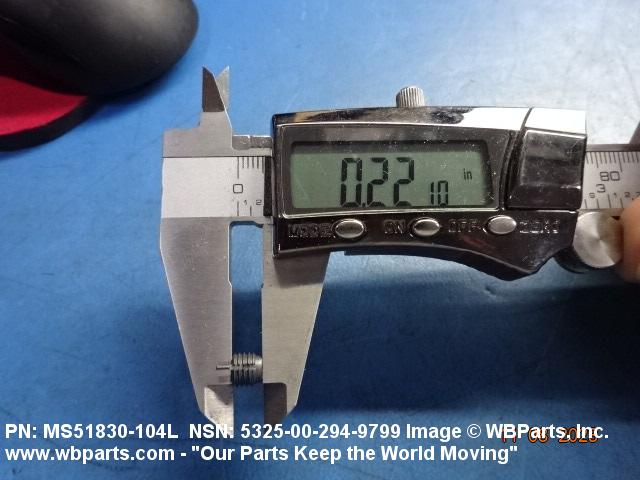

FULL INTERNAL THREAD LENGTH	0.220 INCHES NOMINAL
INSERT SIZE	0.250-28 UNF 2A
THREAD SERIES DESIGNATOR	UNJC
NOMINAL THREAD SIZE	0.164 INCHES
THREAD QUANTITY PER INCH	32
THREAD CLASS	3B
FEATURES PROVIDED	INDIVIDUALLY KEYED
MANUFACTURERS CODE	96906
DEFINITIVE GOVERNMENT SPEC/STD REFERENCE	MS51830CA104L

Restrictions/Controls & Freight Information | NSN 5325-00-294-9799

Restrictions
Freight

Category	Code	Description
Shelf-Life Code:	0	Nondeteriorative
Hazardous Material Indicator Code	N	There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials
Demilitarization Code:	A	Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:	U	UNCLASSIFIED
Precious Metals Indicator Code:	A	Item does not contain precious metal
Criticality Code:	X	The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.
Automatic Data Processing Equipment:	0	Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9)

Category	Code	Description
NMF Description	093486	BOLTS,NUTS OR SCREWS, NOI (SUB 3)
Less than car load rating
Less than truck load rating	W	Rating Variable
Water commodity Code	713	unknown
Originating Activity Code	KZ	Defense Supply Center Philadelphia Philadelphia, PA 19101
Air Dimension Code	A	Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity	B	Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials.
Air Special Handling	Z	No special handling required.
Special Handling Code	9	unknonwn
HAZMAT
Type of Cargo	Z	No special type of cargo code applicable

Management | NSN 5325-00-294-9799

Category	Code	Description
Materiel Category and Inventory Manager	T	Industrial Supplies (DLA/GSA Items)
Appropriation and Budget Activity	2	Stock Fund Secondary Items
Management Inventory Segment	2	NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable.
Specific Group/Generic Code	0	Medical Materiel
Weapons Systems/End Item or Homogeneous Group	00	DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item
Accounting Requirements Code	X	Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DA	Department of the Army
Service Organization	A	U.S. Army
Reparability	Z	This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item.
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	Q EA : Each

Category	Code	Description
Budget Code	9	General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors.
Fund Code	SF	Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point.
Materiel Management Aggregation Code	SX	SX:AF SICA RESIDUAL MMAC-OC-ALC
Price Validation	V	The current standard price has been validated. The item has been analyzed in conjunction with the Zero Overpricing Program and is in the accepted price range. The item was procured under open competition and under the competitive arena the price is considered fair and reasonable. ZOP or Standard price challenges are permissible but must be supported by adequate justification.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DF	Department of the Air Force
Service Organization	F	U.S. Air Force
Reparability	N	Stock Fund (except Munitions)
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	Q EA : Each

Category	Code	Description
Stores Account Code	1	Marine Corps Stock Fund Account Item.
Combat Essentiality Code	5	Critical Repair Part to a Combat Essential End Item. Those parts or components whose failure in a combat essential end item will render the end item inoperative or reduce its effectiveness below the minimum acceptable level of efficiency.
Materiel Management Code	B	All CommoditiesDefense Logistics Agency, (DLA,)
Echelon Management Code	2	ICP/DSSC Marine Corps-managed Recoverability Code D items and Defense Logistics Agency (DLA)/TACOM/GSA) items which the integrated manager has not decontrolled.
Echelon Identification Code	B	Consumable Repair Parts
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DM	U.S. Marine Corps
Service Organization	M	U.S. Marine Corps
Reparability	Z	Nonreparable item. When unserviceable, condemn and dispose at the level indicated by the first digit of the maintenance code.
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	Q EA : Each

Category	Code	Description
Cognizance Codes	9B	Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DN	Department of the Navy
Service Organization	N	U.S. Navy
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	Q EA : Each
