NSN 5325-00-291-9808 00-291-9808, 002919808
Product Details | SNAP FASTENER STUD
5325-00-291-9808 A component of a FASTENER, SNAP; which is designed for insertion into a SOCKET, SNAP FASTENER. It may be furnished with POST, SNAP FASTENER or CLINCH PLATE, SNAP FASTENER. Excludes STUD, SNAPSLIDE FASTENER.
Part Alternates: 5325-00-291-9808, 00-291-9808, 5325002919808, 002919808
Hardware and Abrasives | Fastening Devices
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 01 JAN 1963 | 00-291-9808 | 16550 ( STUD, SNAP FASTENER ) |

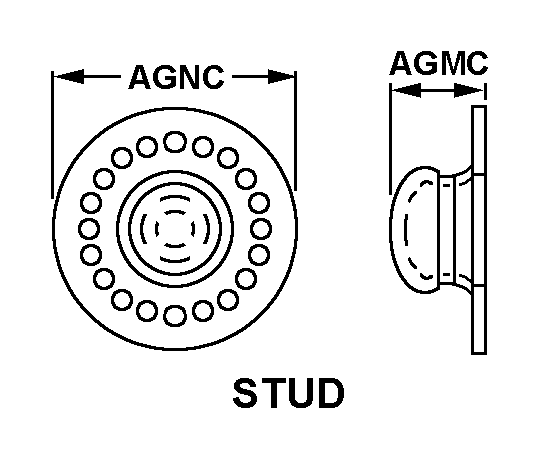

Drawings & Photos | NSN 5325-00-291-9808
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5325-00-291-9808
Technical Data | NSN 5325-00-291-9808
| Characteristic | Specifications |
|---|---|
| MATERIAL | COPPER ALLOY OVERALL |
| SNAP FASTENER STUD STYLE | 18 STUD |
| STUD OVERALL LENGTH | 0.172 INCHES NOMINAL |
| STUD BASE DIAMETER | 0.547 INCHES NOMINAL |
| STUD RETENTION METHOD | EYELET |
Restrictions/Controls & Freight Information | NSN 5325-00-291-9808
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
