NSN 5325-00-291-9366 MS3548911, MS35489-11, MS35489118S

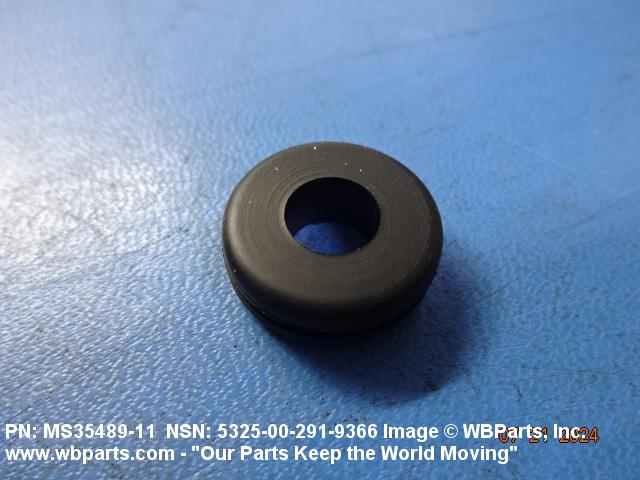

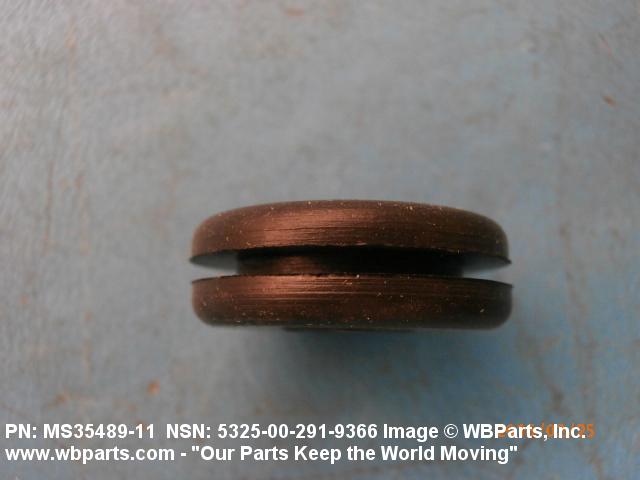

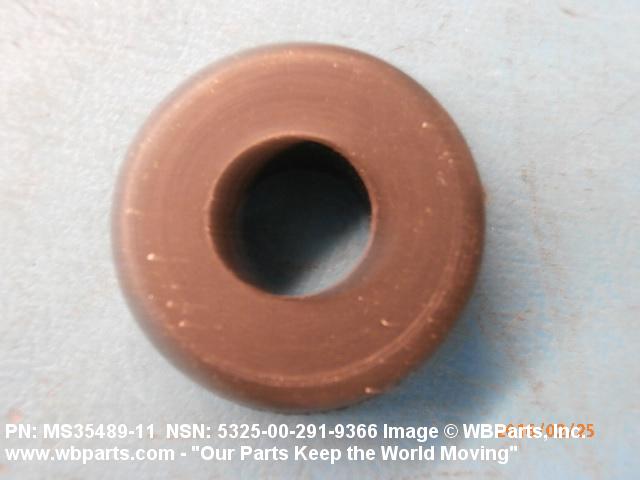

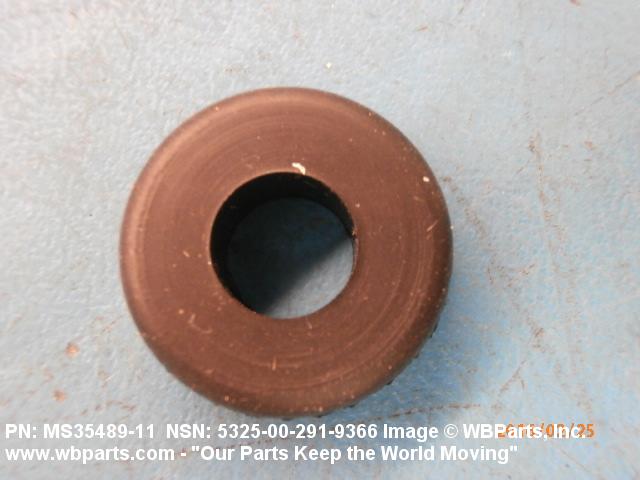

Product Details | NONMETALLIC GROMMET
5325-00-291-9366 An item of any peripheral shape having flanges or groove(s) on its outer perimeter to provide a self-retaining characteristic when inserted in a hole, clamp, or the like. Designed for the purpose of protecting and/or insulating wires, cables and other items passing through it. Excludes BUSHING, NONMETALLIC; BUMPER; and INSULATOR BUSHING.
Part Alternates: MS3548911, MS35489-11, MS35489118S, MS35489-118S, MS3548911S, MS35489-11S, MS3549011, MS35490-11, A100371, AN931610, AN931-6-10, ES585C004, G1889, Z225811, Z2258-11, Z22589, Z2258-9, 6Z48776, 6Z4877-6, 80138400, 801384-00, 8027331, 85312300, 853123-00, 86012317, 860123-17, 944.87.31.011, 9448731011, 0740877, 10119090, 11731, 18062, 18-062, 2100010040, 210-001-0040, 2281, 243113B7, 24-3113B7, 3010084, 34680300, 4138300039, 4138300-039, 41613111, 416131-11, 41614111, 416141-11, 523369, 5325-00-291-9366, 00-291-9366, 5325002919366, 002919366
Hardware and Abrasives | Fastening Devices
Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
---|---|---|---|
53 | 01 JAN 1963 | 00-291-9366 | 33729 ( GROMMET, NONMETALLIC ) |
Demand History | NSN 5325-00-291-9366
Part Number | Request Date | QTY | Origin |
---|---|---|---|
MS3548911 | 2024-09-263 | 300 | United States |
MS3548911 | 2024-09-263 | 300 | United States |
MS3548911 | 2024-09-263 | 300 | United States |
MS3548911 | 2024-06-164 | 250 | United States |
MS3548911 | 2023-12-354 | 400 | United States |
MS3548911 | 2023-12-352 | 250 | United States |
5325-00-291-9366 | 2022-03-88 | 10 | US |
5325-00-291-9366 | 2020-03-71 | 5 | Indonesia |
5325-00-291-9366 | 2019-05-143 | 1200 | DIBBS |
5325-00-291-9366 | 2019-03-90 | 714 | DIBBS |
MS3548911 | 2019-03-63 | 20 | China |
MS35489-11 | 2019-02-42 | 100 | Lebanon |
MS3548911 | 2018-09-268 | 25 | US |
5325-00-291-9366 | 2017-10-291 | 100 | Thailand |
MS3548911 | 2017-04-94 | 1 | TH |
5325-00-291-9366 | 2015-08-237 | 300 | United States |
MS3548911 | 2015-08-231 | 60 | United States |
MS3548911 | 2015-07-211 | 10 | Egypt |
MS35489-11 | 2015-05-138 | 1 | United States |
MS35489-11 | 2015-05-138 | 1 | United States |
5325-00-291-9366 | 2014-06-154 | 515 | DIBBS |
MS3549011 | 2014-03-65 | 2 | US |
5325-00-291-9366 | 2014-02-44 | 816 | DIBBS |
5325-00-291-9366 | 2013-01-04 | 797 | DIBBS |
MS3548911 | 2010-12-361 | 25 | United States |
MS3548911 | 2010-09-273 | 50 | US |
5325-00-291-9366 | 2008-10-297 | 1437 | DIBBS |
5325-00-291-9366 | 2008-10-282 | 845 | DIBBS |
5325-00-291-9366 | 2008-09-255 | 1091 | DIBBS |
5325-00-291-9366 | 2008-09-254 | 583 | DIBBS |
5325-00-291-9366 | 2008-07-196 | 392 | DIBBS |
5325-00-291-9366 | 2008-06-173 | 82 | US |
5325-00-291-9366 | 2008-06-173 | 82 | us |
MS3548911 | 2008-06-155 | 150 | us |
5325-00-291-9366 | 2008-04-95 | 10 | US |
5325-00-291-9366 | 2008-03-84 | 1 | us |
Cross Reference | NSN 5325-00-291-9366
Part Number | Cage Code | Manufacturer |
---|---|---|
0740877 | S3002 | GENERAL DYNAMICS EUROPEAN,LAND-SYSTEMS-MOWAG GMBH |
11731 | 71294 | PANTASOTE INC ELASTOMER PRODUCTS DIV |
18-062 | 77969 | RUBBERCRAFT CORPORATION OF CALIFORNIA, LTD |
210-001-0040 | 95542 | NORTHROP GRUMMAN SYSTEMS CORPORATION |
2281 | D9182 | BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT |
24-3113B7 | 61510 | THERMO KING CORPORATION DBA PHOENIX GLOBAL DISTIRBUTION. |
3010084 | 001JK | EMBRAER S/A |
3010084 | FB459 | EMBRAER AVIATION INTERNATIONAL |
3010084 | S4956 | EMBRAER EMPRESA BRASILEIRA DE AERONAUTICA SA |
34680300 | 56183 | TX TECHNOLOGY CORP. DBA CHATLOS SYSTEMS |
4138300-039 | 05869 | RAYTHEON COMPANY DBA RAYTHEON |
4138300-039 | 82577 | RAYTHEON COMPANY DBA RAYTHEON |
416131-11 | 96214 | RAYTHEON COMPANY DBA RAYTHEON |
416141-11 | 96214 | RAYTHEON COMPANY DBA RAYTHEON |
523369 | 07464 | BADGER FIRE PROTECTION INC |
523369 | 6L214 | BADGER FIRE PROTECTION INC |
5325002919366 | SCY13 | E.C.A ETABLISSEMENT CENTRALD'APPROVISIONNEMENT DES |
6Z4877-6 | 80063 | US ARMY COMMUNICATIONS & ELECTRONICS MATERIEL READINESS |
801384-00 | 32345 | DEFENSE REDUCTION AGENCY |
8027331 | 18876 | U S ARMY AVIATION AND MISSILE COMMAND |
853123-00 | 32345 | DEFENSE REDUCTION AGENCY |
860123-17 | 06481 | NORTHROP GRUMMAN SYSTEMS CORPORATION |
860123-17 | 13973 | LITTON SYSTEMS INC. DIV NAVIGATION SYSTEMS DIVISION |
944.87.31.011 | S4080 | PILATUS AIRCRAFT LTD |
A100371 | 94364 | SIGNET SYSTEMS INC |
AN931-6-10 | 88044 | AERONAUTICAL STANDARDS GROUP DEPT OF NAVY AND AIR FORCE |
AN931-6-10 | 99237 | AIRFORCE-NAVY AERONAUTICAL DESIGN STANDARD |
ES585C004 | 95093 | NORTHROP GRUMMAN-CANADA LTD |
G1889 | 79497 | WESTERN RUBBER CO |
MS35489-11 | 96906 | MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS |
MS35489-118S | D9182 | BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT |
MS35489-11S | D9182 | BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT |
MS35490-11 | 96906 | MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS |
Z2258-11 | 76385 | MINOR RUBBER CO., INC. DIV MINOR RUBBER CO INC |
Z2258-9 | 76385 | MINOR RUBBER CO., INC. DIV MINOR RUBBER CO INC |
Request a Quote
What Our Customers Say
Compare
Related Products | NSN 5325-00-291-9366
Technical Data | NSN 5325-00-291-9366
Characteristic | Specifications |
---|---|
MATERIAL | RUBBER SYNTHETIC OVERALL |
MATERIAL DOCUMENT AND CLASSIFICATION | ASTM D2000 BG515A14B24C32E036F19Z ASSN STD SINGLE MATERIAL RESPONSE OVERALL |
COLOR | BLACK OVERALL |
GROMMET STYLE | 1 ROUND |
HOLE DIAMETER | 0.375 INCHES NOMINAL |

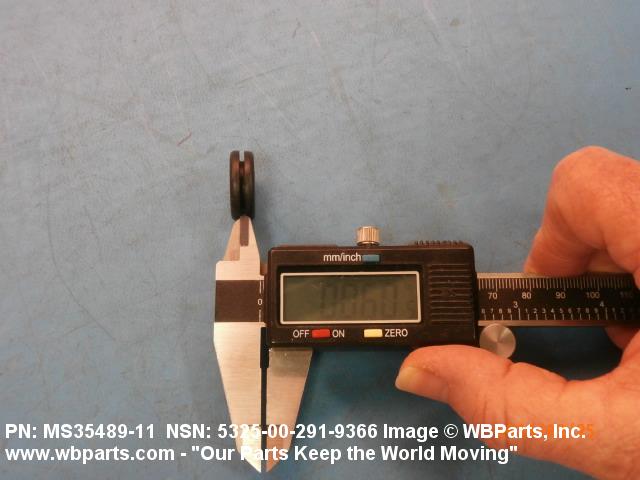

GROOVE WIDTH | 0.062 INCHES NOMINAL |

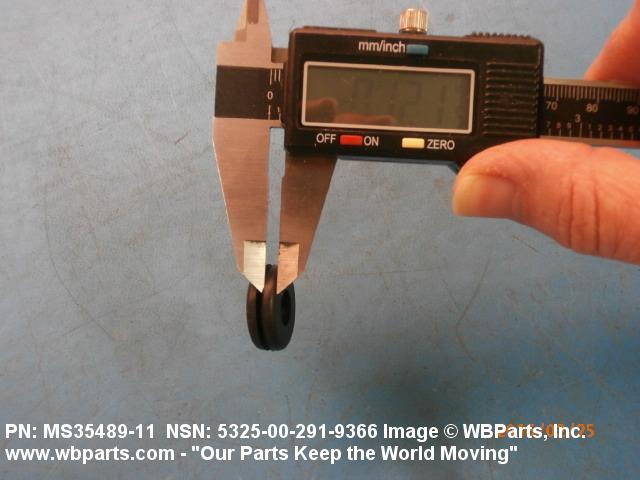

FLANGE THICKNESS | 0.125 INCHES NOMINAL |

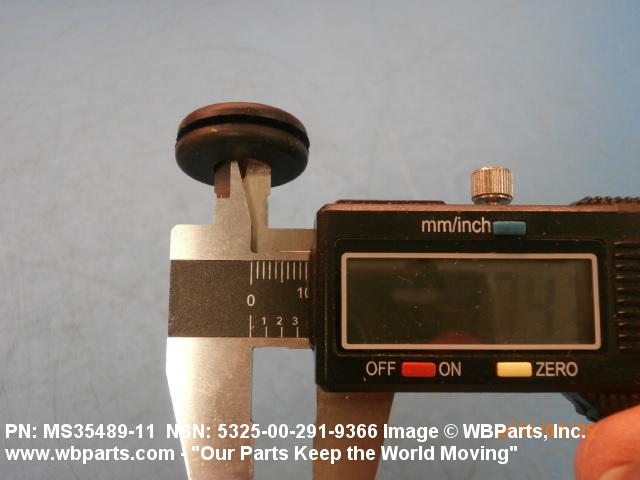

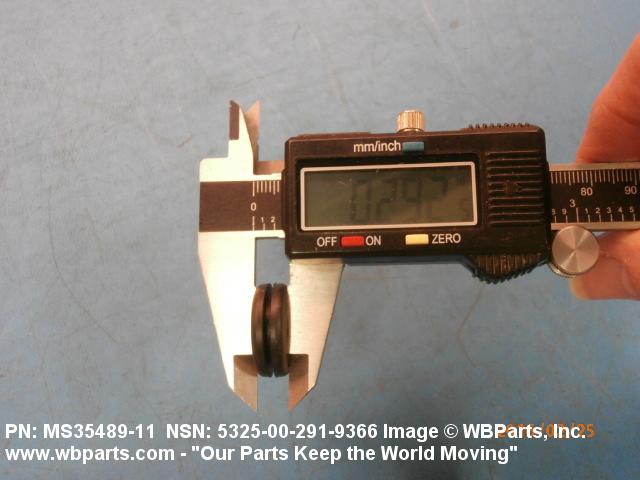

OVERALL HEIGHT | 0.312 INCHES NOMINAL |

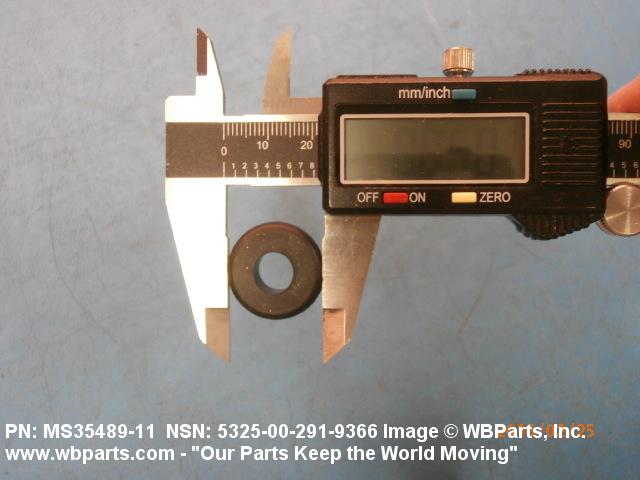

LARGE FLANGE OUTSIDE DIAMETER | 0.875 INCHES NOMINAL |
GROOVE OUTSIDE DIAMETER | 0.625 INCHES NOMINAL |
GROMMET CONSTRUCTION TYPE | SOLID |
NONMETALLIC HARDNESS RATING | 45.0 MINIMUM SHORE DUROMETER A AND 55.0 MAXIMUM SHORE DUROMETER A |
FEATURES PROVIDED | COOLANT RESISTANT AND OIL RESISTANT |
TEST DATA DOCUMENT | 81348-MIL-G-3036 SPECIFICATION OR 96906-MS35489-11 STANDARD |
MANUFACTURERS CODE | 96906 |
DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | MS35489-11 |
Restrictions/Controls & Freight Information | NSN 5325-00-291-9366
Category | Code | Description |
---|---|---|
Shelf-Life Code: | S | 60 months |
Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
Controlled Inventory Item Code: | U | UNCLASSIFIED |
Precious Metals Indicator Code: | A | Item does not contain precious metal |
Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
Category | Code | Description |
---|---|---|
NMF Description | 156600 | PLASTIC/RUBBER ARTICLE VIZ: |
Less than car load rating | ||
Less than truck load rating | W | Rating Variable |
Water commodity Code | 713 | unknown |
Originating Activity Code | XX | |
Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
Air Special Handling | Z | No special handling required. |
Special Handling Code | 9 | unknonwn |
HAZMAT | ||
Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5325-00-291-9366
Category | Code | Description |
---|---|---|
Materiel Category and Inventory Manager | T | Industrial Supplies (DLA/GSA Items) |
Appropriation and Budget Activity | 2 | Stock Fund Secondary Items |
Management Inventory Segment | 2 | NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable. |
Specific Group/Generic Code | B | Rotary Wing Aircraft |
Weapons Systems/End Item or Homogeneous Group | BJ | AH-64 Airframe |
Accounting Requirements Code | X | Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items. |
Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
Agency | DA | Department of the Army |
Service Organization | A | U.S. Army |
Reparability | Z | This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item. |
Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
Controlled Item Code | U | UNCLASSIFIED |
Shelf Life Code | S | 60 months |
Purchasing | QTY UOM |

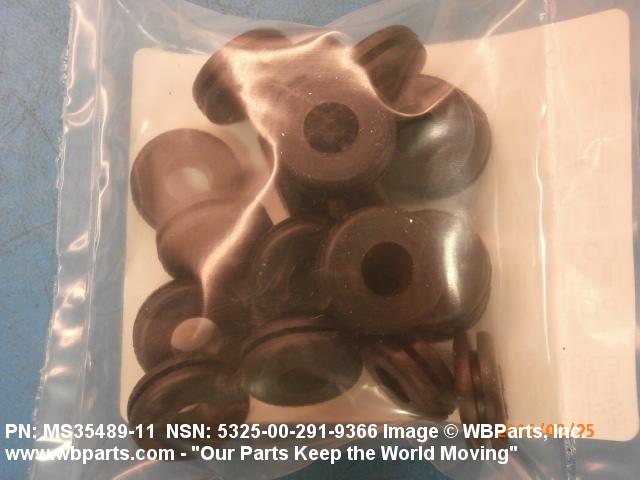

1 PG : Package |
Category | Code | Description |
---|---|---|
Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
Materiel Management Aggregation Code | SX | SX:AF SICA RESIDUAL MMAC-OC-ALC |
Price Validation | V | The current standard price has been validated.
|
Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
Agency | DF | Department of the Air Force |
Service Organization | F | U.S. Air Force |
Reparability | N | Stock Fund (except Munitions) |
Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
Controlled Item Code | U | UNCLASSIFIED |
Shelf Life Code | S | 60 months |
Purchasing | QTY UOM |
1 PG : Package |
Category | Code | Description |
---|---|---|
Stores Account Code | 1 | Marine Corps Stock Fund Account Item. |
Combat Essentiality Code | 2 | Non-Critical Repair Part. Repair parts or major components whose failure in an end item will not render the end item inoperative or reduce its effectiveness below the minimum acceptable level of efficiency, and which do not fit the definition of Code 3 or 4 items. |
Materiel Management Code | B | All CommoditiesDefense Logistics Agency, (DLA,) |
Echelon Management Code | 2 | ICP/DSSC Marine Corps-managed Recoverability Code D items and Defense Logistics Agency (DLA)/TACOM/GSA) items which the integrated manager has not decontrolled. |
Echelon Identification Code | B | Consumable Repair Parts |
Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
Agency | DM | U.S. Marine Corps |
Service Organization | M | U.S. Marine Corps |
Reparability | Z | Nonreparable item. When unserviceable, condemn and dispose at the level indicated by the first digit of the maintenance code. |
Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
Controlled Item Code | U | UNCLASSIFIED |
Shelf Life Code | S | 60 months |
Purchasing | QTY UOM |
1 PG : Package |
Category | Code | Description |
---|---|---|
Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
Agency | DN | Department of the Navy |
Service Organization | N | U.S. Navy |
Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
Controlled Item Code | U | UNCLASSIFIED |
Shelf Life Code | S | 60 months |
Purchasing | QTY UOM |
1 PG : Package |
