NSN 5325-00-290-4497 MS124736, MS124756, MS21208F420

Product Details | SCREW THREAD INSERT

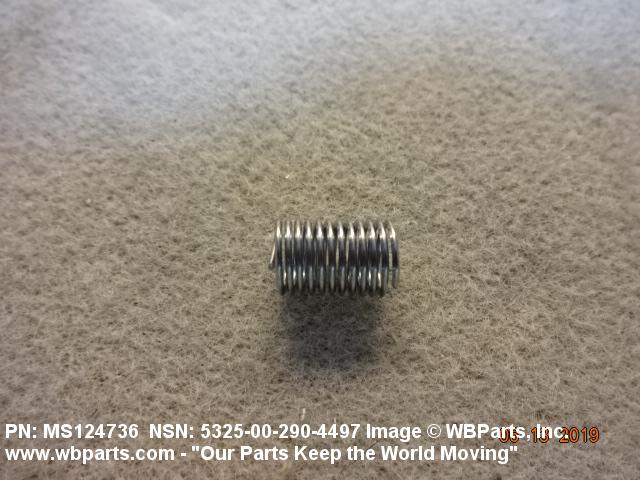

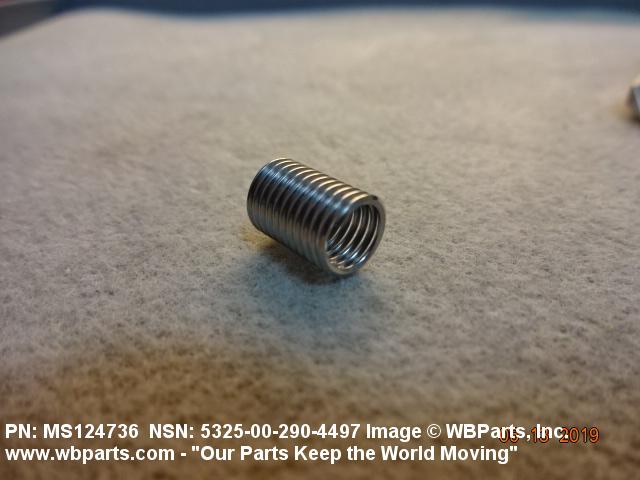

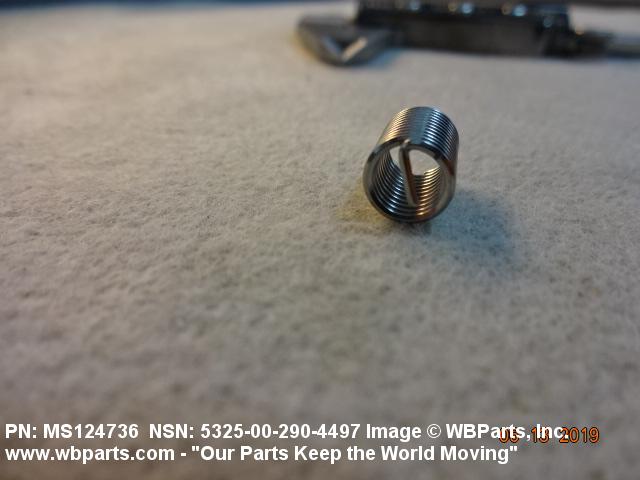

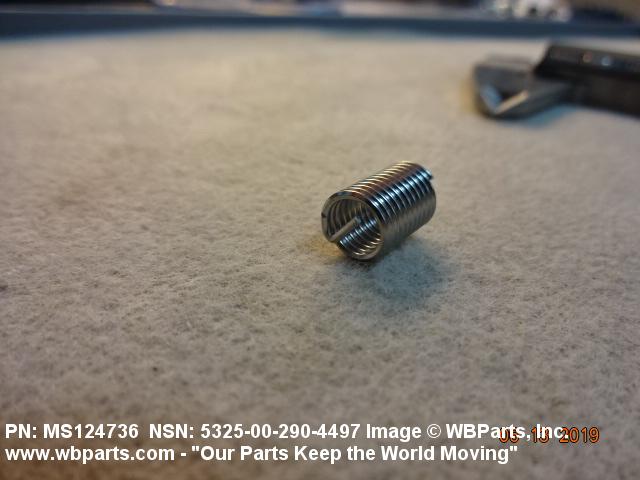

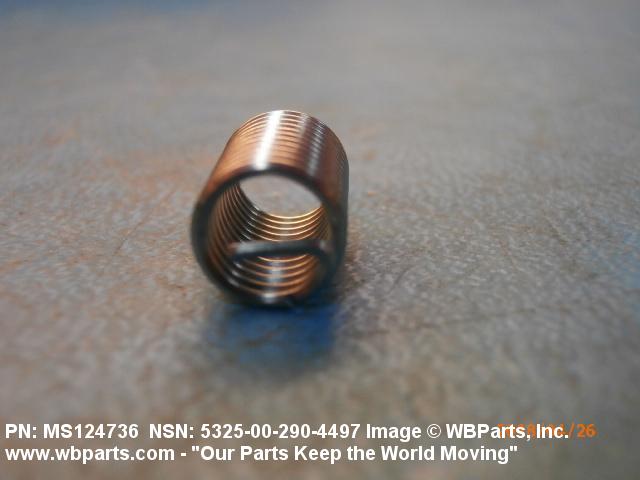

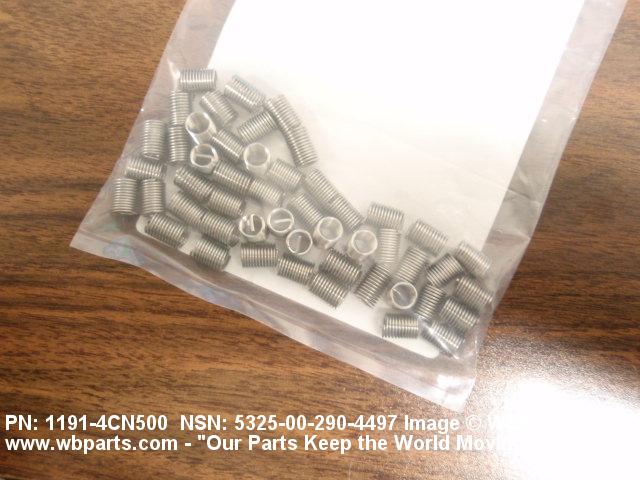

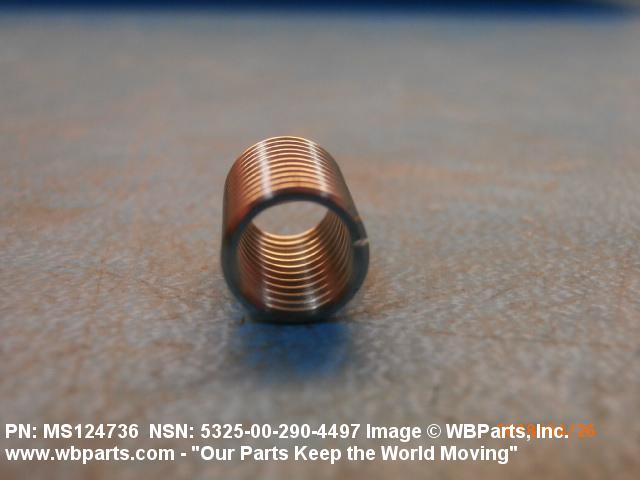

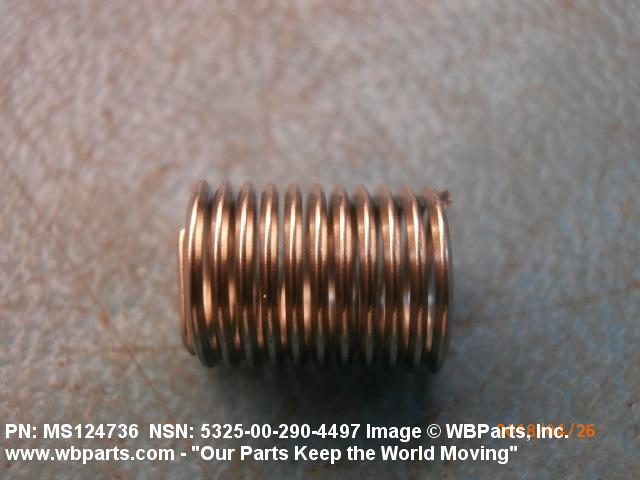

5325-00-290-4497 A cylindrical item which may have wrenching and/or driving facilities and/or shoulders. It is designed to be inserted in a drilled, tapped or a pretapped hole, or molded or pressed into soft material to reduce the size of a tapped hole; to provide threads; to add strength, and/or to prevent stripping. It is one of the following: (1) a one-piece, flanged or unflanged, internally threaded item which may have external threads, and/or serrations around the periphery of the collar, designed to engage a serrated lock ring which is not included with the item; (2) a one-piece precision coiled wire; (3) a two-piece item consisting of an internally threaded cylinder and a mating externally threaded part; or (4) a one-piece internally threaded item whose outside diameter is tapered and/or knurled and/or with fin(s). The internal thread of the item may have a locking feature. Excludes items having a sleeve on on its under portion which can be clinched or crimped. Excludes BUSHING,MACHINE THREAD; NUT,PLAIN,KNURLED; NUT,PLAIN,ROUND; NUT,PLAIN,CLINCH and NUT,SELF-LOCKING,CLINCH. See also NUT,PLAIN,PLATE

Part Alternates: MS124736, MS124756, MS21208F420, MS21208-F4-20, MS21208F4-20, SP793, STD1315, BACS13P4C4, 10160082 , 11914CN0500, 1191-4CN0500, 11914CN500, 1191-4CN500, 133109, 208F40500, 208F4-0500, 41693686, 416936-86, 6454021, 645402-1, 6702592, 81628400, 816284-00, 858519, 890437, 89043700, 890437-00, 5325-00-290-4497, 00-290-4497, 5325002904497, 002904497

Hardware and Abrasives | Fastening Devices

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
53	01 JAN 1963	00-290-4497	11444 ( INSERT, SCREW THREAD )

Drawings & Photos | NSN 5325-00-290-4497

Part Number	Request Date	QTY	Origin
MS124736	2024-07-192	250	Japan
5325-00-290-4497	2019-07-207	50	United States
5325-00-290-4497	2019-06-157	50	United States
5325-00-290-4497	2019-05-142	3	United States
MS124736	2018-11-312	100	US
MS124736	2018-11-310	332	Israel
MS124736	2018-04-96	14	United States
6454021	2017-12-345	10	US
6454021	2017-12-345	20	US
6454021	2017-12-345	30	US
MS124736	2017-06-165	1	Australia
MS124736	2017-06-165	1	Australia
MS124736	2016-09-273	28	United States
MS124736	2016-06-173	1	Kenya
MS124736	2015-08-222	50	United States
MS124736	2015-04-119	58	United States
MS124736	2015-04-111	42	United States
5325-00-290-4497	2014-04-98	16059	DIBBS
5325-00-290-4497	2013-10-294	1000	Ukraine
5325-00-290-4497	2013-06-171	20	CN
11914CN0500	2013-06-162	465	US
MS21208F420	2013-05-140	50	US
5325-00-290-4497	2012-01-11	21469	DIBBS
5325-00-290-4497	2011-07-182	6241	DIBBS
MS124736	2011-03-68	1	US
5325-00-290-4497	2011-01-27	240	HK
11914CN500	2010-10-281	50	Poland
5325-00-290-4497	2010-05-141	2126	DIBBS
5325-00-290-4497	2010-05-141	4924	DIBBS
5325-00-290-4497	2009-03-71	10001	DIBBS
MS124736	2009-03-69	150	US
MS124736	2008-09-250	150	US
MS124736	2008-08-217	52	United States
MS124736	2007-11-333	100	DE

Cross Reference | NSN 5325-00-290-4497

Part Number	Cage Code	Manufacturer
1191-4CN0500	01556	EMHART TEKNOLOGIES LLC DBA EMHART FASTENING TEKNOLOGIES
1191-4CN0500	D9182	BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT
1191-4CN500	01556	EMHART TEKNOLOGIES LLC DBA EMHART FASTENING TEKNOLOGIES
133109	06848	HONEYWELL INTERNATIONAL INC. DBA HONEYWELL
208F4-0500	12360	ALBANY FASTENERS PAWTUCKET FASTENERS DIV
416936-86	96214	RAYTHEON COMPANY DBA RAYTHEON
645402-1	99551	GOODRICH CORPORATION DIV POWER TRANSMISSION SYSTEMS
6702592	24617	GENERAL MOTORS CORP
6702592	73342	ALLISON TRANSMISSION, INC.
816284-00	32345	DEFENSE REDUCTION AGENCY
858519	19203	PICATINNY ARSENAL
890437	19203	PICATINNY ARSENAL
890437-00	32345	DEFENSE REDUCTION AGENCY
BACS13P4C4	81205	THE BOEING COMPANY DBA BOEING
MS124736	96906	MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS
MS124756	D9182	BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT
MS21208-F4-20	D9182	BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT
MS21208F4-20	96906	MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS
SP793	94592	FLUID CONDITIONING PRODUCTS, INC.
STD1315	80254	TEXTRON LYCOMING INC WILLIAMSPORT PLANT
STD1315	R1120	SATAIR A/S

Request a Quote

What Our Customers Say

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

Compare

NSNs for Compare ( up to 4 ): Add 5325-00-290-4497

Compare

Related Products | NSN 5325-00-290-4497

5325-00-290-4499, 5325-00-290-4500, 5325-00-290-4501, 5325-00-290-4502, 5325-00-290-4503

Technical Data | NSN 5325-00-290-4497

Characteristic	Specifications
MATERIAL	STEEL CORROSION RESISTING OVERALL
MATERIAL DOCUMENT AND CLASSIFICATION	AMS 7245 ASSN STD SINGLE MATERIAL RESPONSE OVERALL
STYLE DESIGNATOR	H1 COIL

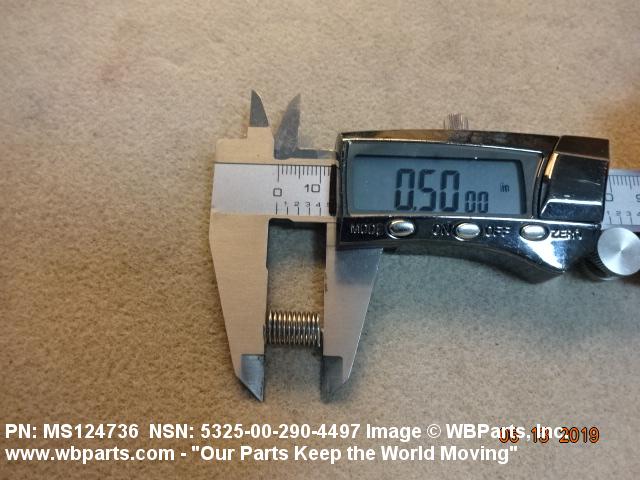

LENGTH	0.500 INCHES NOMINAL

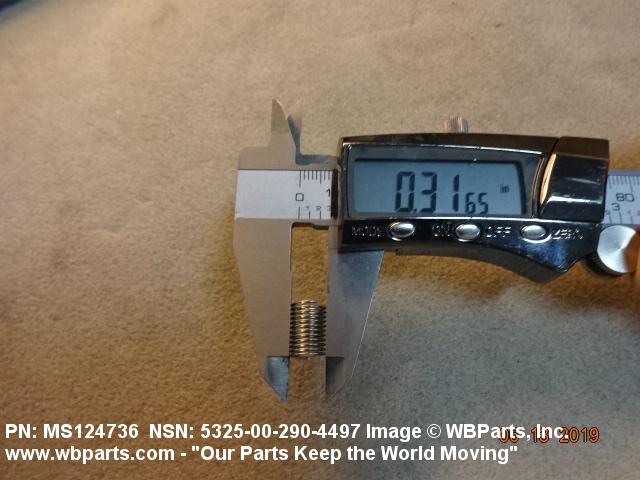

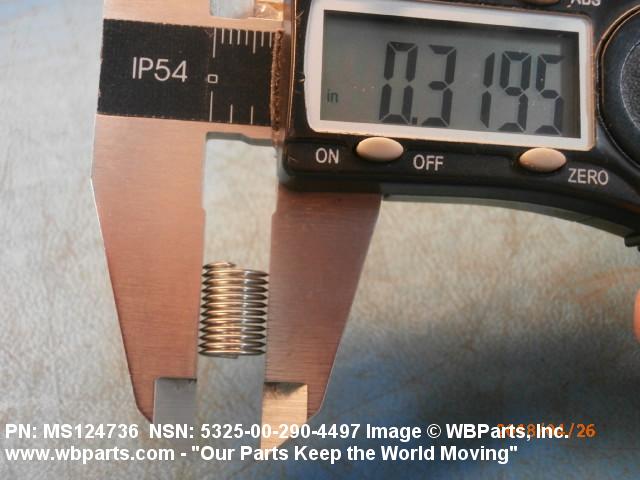

INSERT SIZE	0.306 IN. MIN,0.326 IN. MAX FREE OD
THREAD SERIES DESIGNATOR	UNF

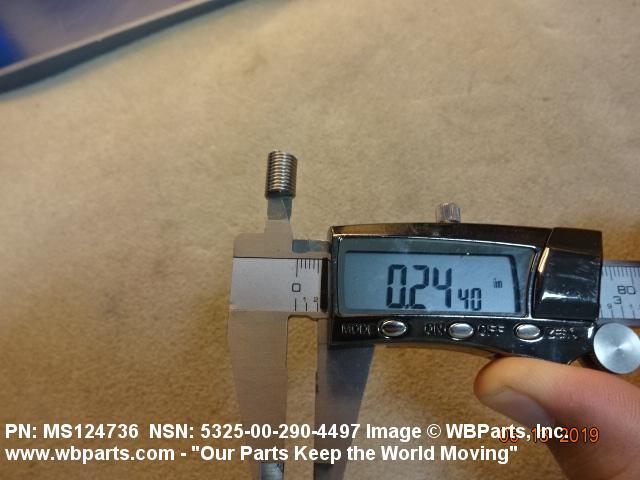

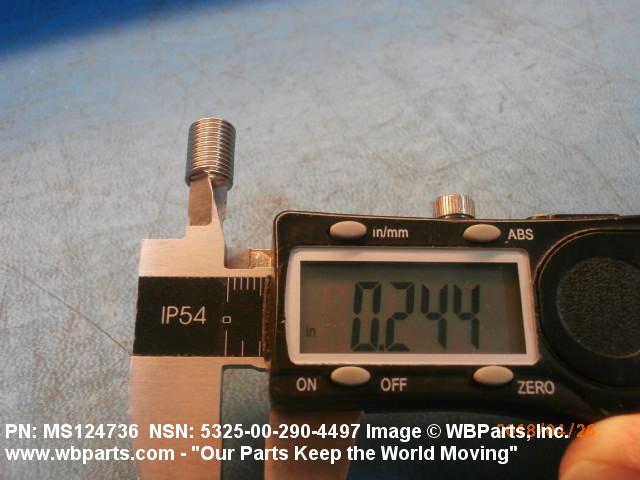

NOMINAL THREAD SIZE	0.250 INCHES

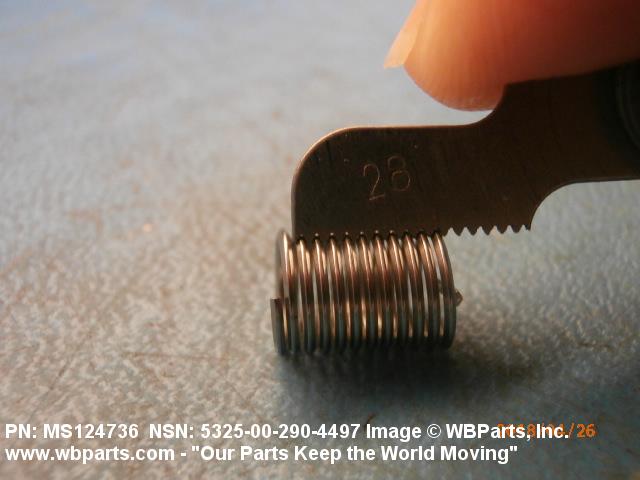

THREAD QUANTITY PER INCH	28
THREAD CLASS	3B
THREAD DIRECTION	RIGHT-HAND

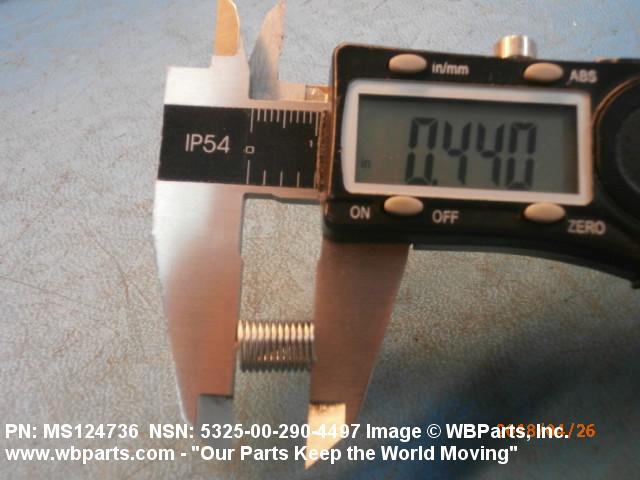

THREAD LENGTH	0.380 INCHES NOMINAL
MANUFACTURERS CODE	96906
DEFINITIVE GOVERNMENT SPEC/STD REFERENCE	MS124736
