Product Details | TURNLOCK FASTENER RECEPTACLE

5325-00-282-7467 A threaded or tempered item used to secure the STUD, TURNLOCK FASTENER or STUD ASSEMBLY, TURNLOCK FASTENER by engaging with the cross pin, cam lead threads, or eared nut of the STUD, TURNLOCK FASTENER and securing it by means of its thread locking or spring action.

Part Alternates: CP1062C0982, CP10-6-2C098-2, 1079142, 107914-2, 70-100135-1, 99871C098, 9M6C098, 5325-00-282-7467, 00-282-7467, 5325002827467, 002827467, 701001351

Hardware and Abrasives | Fastening Devices

Supply Group (FSG) NSN Assign. NIIN
53 01 JAN 1963 00-282-7467

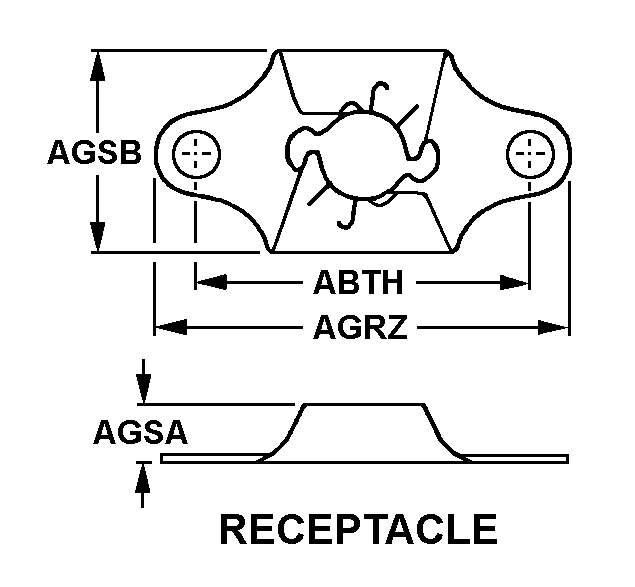

Drawings & Photos | NSN 5325-00-282-7467


Demand History | NSN 5325-00-282-7467

Part Number Request Date QTY Origin
99871C098 2022-04-96 100 US
107914-2 2019-02-36 508 DIBBS
70-100135-1 2019-02-36 508 DIBBS
99871C098 2019-02-36 508 DIBBS
9M6C098 2019-02-36 508 DIBBS
CP10-6-2C098-2 2019-02-36 508 DIBBS
5325-00-282-7467 2013-06-178 500 US
5325-00-282-7467 2013-01-17 1017 DIBBS
5325-00-282-7467 2012-06-181 249 DIBBS
5325-00-282-7467 2011-06-181 143 DIBBS
5325-00-282-7467 2010-08-239 1400 DIBBS
99871C098 2010-05-132 500 us
5325-00-282-7467 2010-04-100 162 DIBBS

Cross Reference | NSN 5325-00-282-7467

Part Number Cage Code Manufacturer
107914-2 37695 RAYTHEON COMPANY DBA RAYTHEON
70-100135-1 04655 GENERAL DYNAMICS C4 SYSTEMS, INC.
99871C098 60119 MONADNOCK COMPANY THE DBA LISI AEROSPACE
9M6C098 76301 BOEING COMPANY, THE DBA BOEING
CP10-6-2C098-2 25500 LOCKHEED MARTIN CORPORATION DBA LOCKHEED MARTIN

Request a Quote

What Our Customers Say

Compare

NSNs for Compare ( up to 4 ): Add 5325-00-282-7467

Technical Data | NSN 5325-00-282-7467

Characteristic Specifications
MATERIAL STEEL OVERALL
SURFACE TREATMENT CADMIUM OVERALL
TURNLOCK RECEPTACLE STYLE 2 RECEPTACLE
CENTER TO CENTER DISTANCE BETWEEN MOUNTING HOLES 0.750 INCHES NOMINAL
RECEPTACLE OVERALL LENGTH 1.000 INCHES NOMINAL
RECEPTACLE HEIGHT 0.188 INCHES NOMINAL
RECEPTACLE WIDTH 0.516 INCHES NOMINAL
MOUNTING STYLE 2 PLAIN W/MOUNTING HOLE
TURNLOCK MOUNTING HOLE DIAMETER 0.468 INCHES NOMINAL
MANUFACTURERS CODE 60119
DESIGN CONTROL REFERENCE 99871C098

Restrictions/Controls & Freight Information | NSN 5325-00-282-7467

Category Code Description
Shelf-Life Code:0Nondeteriorative
Hazardous Material Indicator CodeNThere is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials
Demilitarization Code:ANon-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:UUNCLASSIFIED
Precious Metals Indicator Code:UPrecious metal type is unknown
Criticality Code:X The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.
Category Code Description
No Freight Information
