Product Details | TURNLOCK FASTENER STUD

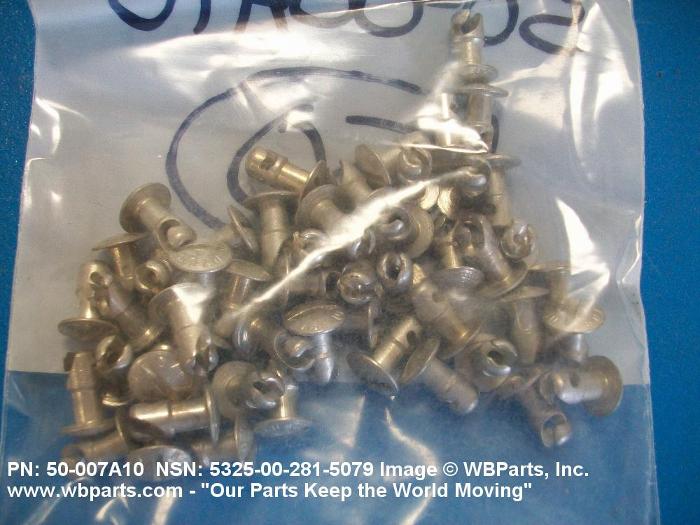

5325-00-281-5079 A pinlike item designed to turn within and be held in place by an EYELET, TURNLOCK FASTENER; RING, RETAINING; or the surface of the item it fastens. It is provided with either a cam slot, cam lead threads, or a hold for accommodating a pin. Securing is accomplished by mating with a LOCKSPRING, TURNLOCK FASTENER or RECEPTACLE, TURNLOCK FASTENER. It has either provisions to accommodate a knob or extension or has a head which has provisions to facilitate turning.

Part Alternates: A3 1-2T10, A312T10, A3-1-2T10, A35T10, A3-5T10, GS520B710, GS520B7-10, 709728-010, 1135729, 113572-9, 238-102-049, 50007A10, 50-007A10, 5325-00-281-5079, 00-281-5079, 5325002815079, 002815079, 238102049, 709728010

Hardware and Abrasives | Fastening Devices

Supply Group (FSG) NSN Assign. NIIN
53 01 JAN 1963 00-281-5079

Drawings & Photos | NSN 5325-00-281-5079


Demand History | NSN 5325-00-281-5079

Part Number Request Date QTY Origin
50007A10 2015-09-271 1 United States
50007A10 2011-07-194 50 United States
5325-00-281-5079 2010-10-282 24 CR

Cross Reference | NSN 5325-00-281-5079

Part Number Cage Code Manufacturer
113572-9 88818 KEARFOTT CORPORATION DBA KEARFOTT
238-102-049 A1997 ELETTRONICA SPA
238-102-049 C3141 ELETTRONICA GMBH
50-007A10 97499 BELL HELICOPTER TEXTRON INC.
709728-010 56232 LOCKHEED MARTIN CORPORATION DBA LOCKHEED MARTIN
A3 1-2T10 72794 SOUTHCO HONEOYE FALLS AEROSPACE FASTENERS DIVISION
A3-1-2T10 72794 SOUTHCO HONEOYE FALLS AEROSPACE FASTENERS DIVISION
A3-5T10 72794 SOUTHCO HONEOYE FALLS AEROSPACE FASTENERS DIVISION
GS520B7-10 26512 NORTHROP GRUMMAN SYSTEMS CORPORATION DIV NORTHROP GRUMMAN AEROSPACE

Request a Quote

What Our Customers Say

Compare

NSNs for Compare ( up to 4 ): Add 5325-00-281-5079

Technical Data | NSN 5325-00-281-5079

Characteristic Specifications
MATERIAL STEEL OR STEEL COMP 8620 OVERALL
MATERIAL DOCUMENT AND CLASSIFICATION AISI ASSN STD SINGLE MATERIAL RESPONSE OR SAE ASSN STD SINGLE MATERIAL RESPONSE OVERALL
SURFACE TREATMENT CADMIUM OVERALL
SURFACE TREATMENT DOCUMENT AND CLASSIFICATION QQ-P-416,TYPE 1,CLASS 2 FED SPEC SINGLE TREATMENT RESPONSE OVERALL
TURNLOCK STUD SHANK STYLE 1 STUD SHANK
GRIP LENGTH 0.330 INCHES NOMINAL
SHANK NECK LENGTH 0.210 INCHES NOMINAL
STUD SHANK MAJOR DIAMETER 0.212 INCHES MINIMUM AND 0.217 INCHES MAXIMUM
TURNLOCK STUD HEAD STYLE 2 FILLISTER
DIAMETER 0.370 INCHES MINIMUM AND 0.375 INCHES MAXIMUM
SECURING DEVICE TYPE RING
DRIVE TYPE SLOTTED
MATERIAL ACCOMMODATED THICKNESS 0.091 INCHES MINIMUM AND 0.100 INCHES MAXIMUM
