NSN 5325-00-276-6091 MS3548919, MS35489-19, MS35489195
Product Details | NONMETALLIC GROMMET
5325-00-276-6091 An item of any peripheral shape having flanges or groove(s) on its outer perimeter to provide a self-retaining characteristic when inserted in a hole, clamp, or the like. Designed for the purpose of protecting and/or insulating wires, cables and other items passing through it. Excludes BUSHING, NONMETALLIC; BUMPER; and INSULATOR BUSHING.
Part Alternates: MS3548919, MS35489-19, MS35489195, MS35489-195, AN9311116, AN931-11-16, B1057, B-1057, D10734411, D10734-4-11, MILB3036, MIL-B-3036, MILG3036, MIL-G-3036, TE1305, Z2267, Z-2267, 002402, 54546, 7517, 9481016-79, 11142A, 14049, 199341, 19934-1, 2010009000, 201-0009-000, 2273, 34474, 434172, 50109, 508P108, 523368, 5325-00-276-6091, 00-276-6091, 5325002766091 , 002766091, 948101679
Hardware and Abrasives | Fastening Devices
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 01 JAN 1963 | 00-276-6091 | 33729 ( GROMMET, NONMETALLIC ) |

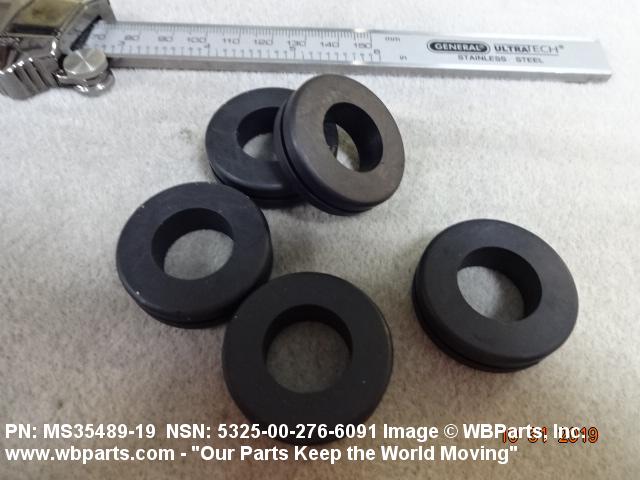

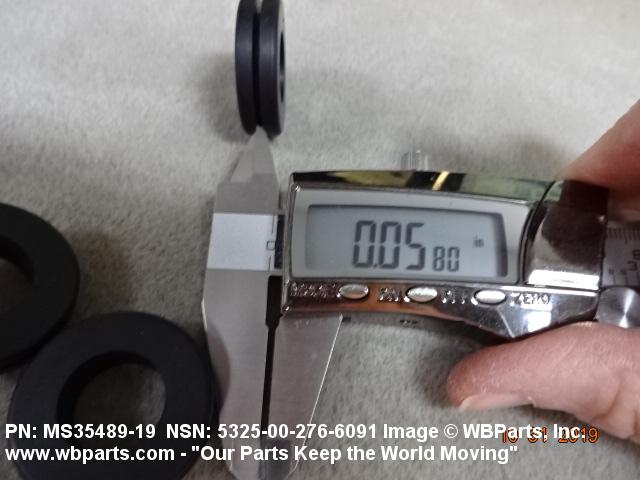

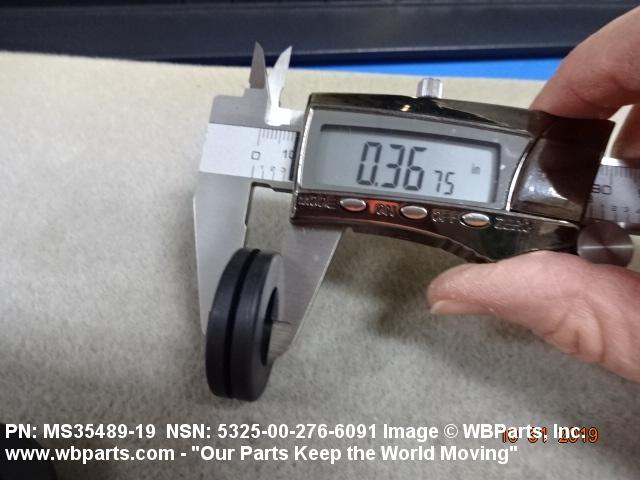

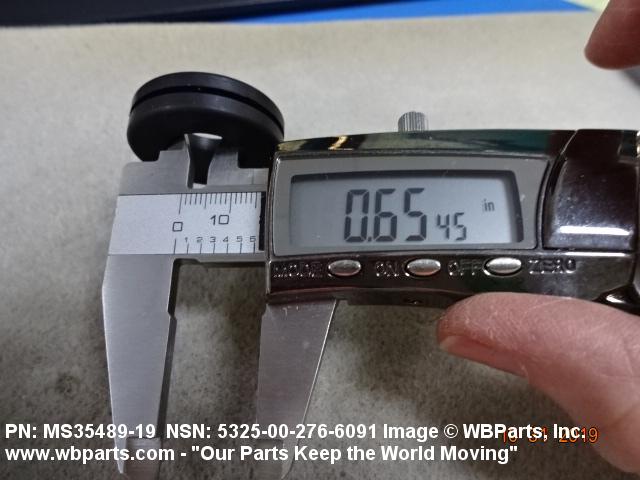

Drawings & Photos | NSN 5325-00-276-6091
Demand History | NSN 5325-00-276-6091
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| MS3548919 | 2024-07-199 | 4 | Japan |
| 50109 | 2024-07-183 | 50 | Japan |
| MS3548919 | 2023-04-110 | 4 | US |
| 5325-00-276-6091 | 2021-05-123 | 408 | DIBBS |
| MS3548919 | 2021-03-74 | 300 | United States |
| 5325-00-276-6091 | 2019-06-157 | 1000 | DIBBS |
| MS35489-19 | 2019-03-60 | 5 | UK |
| MS3548919 | 2018-11-313 | 174 | US |
| 5325-00-276-6091 | 2018-11-305 | 872 | DIBBS |
| MS3548919 | 2018-04-100 | 10 | PK |
| MS3548919 | 2018-04-95 | 10 | Pakistan |
| 5325-00-276-6091 | 2017-12-341 | 519 | DIBBS |
| 5325-00-276-6091 | 2015-08-234 | 39 | Pakistan |
| MS35489-19 | 2015-05-138 | 1 | United States |
| MS35489-19 | 2015-05-138 | 1 | United States |
| MS35489-19 | 2015-04-91 | 20 | Greece |
| MS35489-19 | 2014-05-135 | 2 | PH |
| MS3548919 | 2013-07-197 | 6 | US |
| 34474 | 2012-03-82 | 3 | United States |
| B1057 | 2011-12-364 | 2 | |
| MS3548919 | 2010-12-361 | 25 | United States |
| MS3548919 | 2009-03-61 | 1000 | PL |
| MS3548919 | 2008-11-322 | 300 | US |
| 54546 | 2008-06-168 | 6 | us |
| 5325-00-276-6091 | 2008-05-137 | 500 | US |
Cross Reference | NSN 5325-00-276-6091
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 002402 | 76385 | MINOR RUBBER CO., INC. DIV MINOR RUBBER CO INC |
| 11142A | 71294 | PANTASOTE INC ELASTOMER PRODUCTS DIV |
| 14049 | 73842 | GOODYEAR TIRE AND RUBBER CO THE |
| 14049 | 75183 | JOHNSON RUBBER CO THE |
| 19934-1 | 75377 | KURZ & ROOT GENERATOR COMPANY LLC |
| 201-0009-000 | 13499 | ROCKWELL COLLINS, INC. DBA GOVERNMENT SYSTEMS |
| 2273 | 70485 | ATLANTIC INDIA RUBBER CO INC |
| 34474 | 81795 | ALLIANZ SWEEPER COMPANY |
| 434172 | 77294 | PIPER AIRCRAFT INC. |
| 50109 | K0347 | STANLEY W F AND CO LTD |
| 508P108 | 44940 | CUMMINS POWER GENERATION INC. |
| 523368 | 07464 | BADGER FIRE PROTECTION INC |
| 523368 | 6L214 | BADGER FIRE PROTECTION INC |
| 5325002766091 | SCY13 | E.C.A ETABLISSEMENT CENTRALD'APPROVISIONNEMENT DES |
| 54546 | 76385 | MINOR RUBBER CO., INC. DIV MINOR RUBBER CO INC |
| 7517 | 72653 | GC/WALDOM INC |
| 9481016-79 | 36221 | DEW ENGINEERING AND DEVELOPMENT ULC |
| AN931-11-16 | 88044 | AERONAUTICAL STANDARDS GROUP DEPT OF NAVY AND AIR FORCE |
| B-1057 | 94223 | SPAENAUR INC DBA SPAENAUR INC. |
| D10734-4-11 | 00742 | AIR PRODUCTS AND CHEMICALS, INC. DBA AIR PRODUCTS |
| MIL-B-3036 | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| MIL-G-3036 | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| MS35489-19 | 96906 | MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS |
| MS35489-19 | D9182 | BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT |
| MS35489-195 | 96906 | MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS |
| TE1305 | 5RQL2 | DRS ENVIRONMENTAL SYSTEMS, INC. DBA D R S |
| TE1305 | 90598 | ENGINEERED AIR SYSTEMS INC. DBA DRS SUSTAINMENT SYSTEMS |
| Z-2267 | 76385 | MINOR RUBBER CO., INC. DIV MINOR RUBBER CO INC |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5325-00-276-6091
Related Products | NSN 5325-00-276-6091
Technical Data | NSN 5325-00-276-6091
| Characteristic | Specifications |
|---|---|
| MATERIAL | RUBBER SYNTHETIC OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | ASTM D2000 BG515A14B24C32E036F19Z ASSN STD SINGLE MATERIAL RESPONSE OVERALL |
| COLOR | BLACK OVERALL |
| GROMMET STYLE | 1 ROUND |

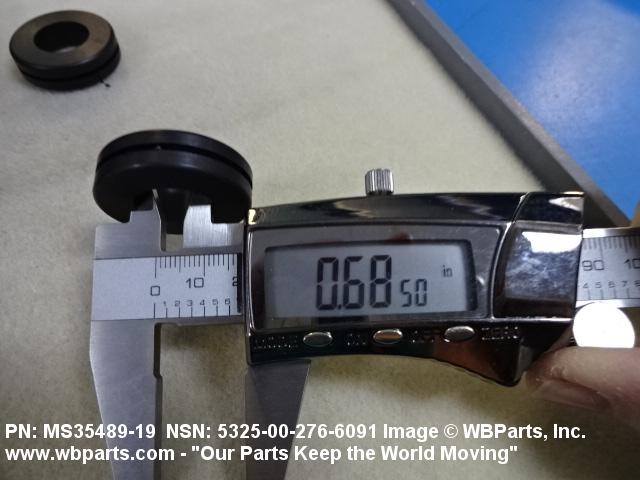

| HOLE DIAMETER | 0.672 INCHES MINIMUM AND 0.704 INCHES MAXIMUM |

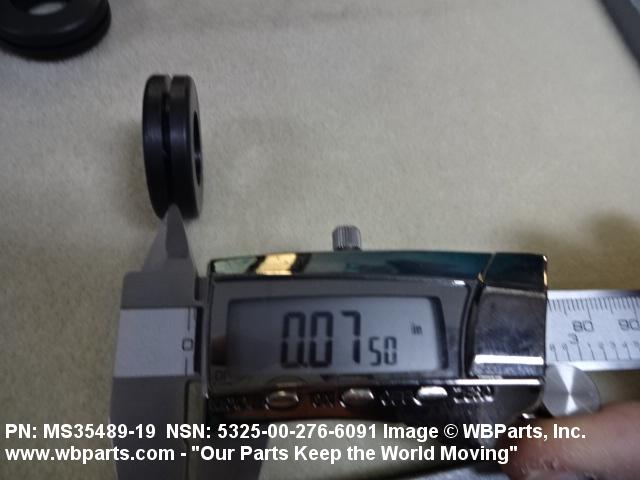

| GROOVE WIDTH | 0.046 INCHES MINIMUM AND 0.078 INCHES MAXIMUM |

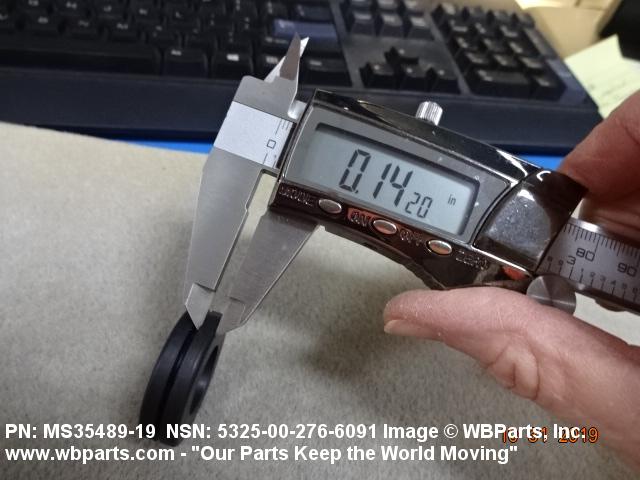

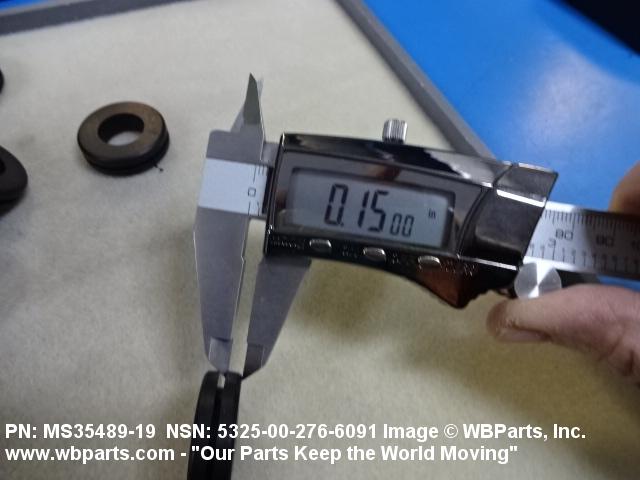

| FLANGE THICKNESS | 0.125 INCHES MINIMUM AND 0.187 INCHES MAXIMUM |

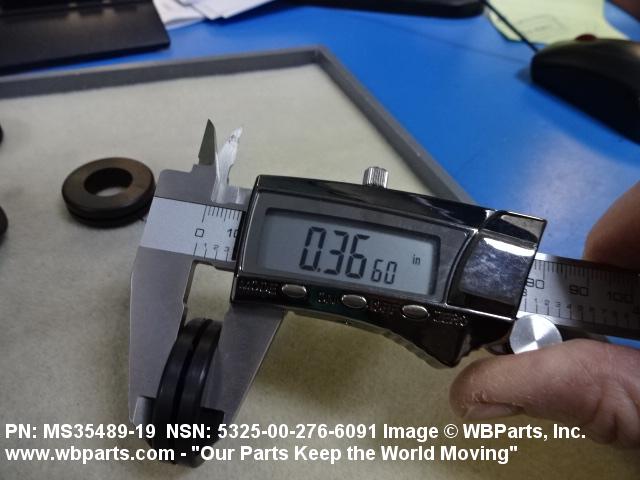

| OVERALL HEIGHT | 0.359 INCHES MINIMUM AND 0.391 INCHES MAXIMUM |

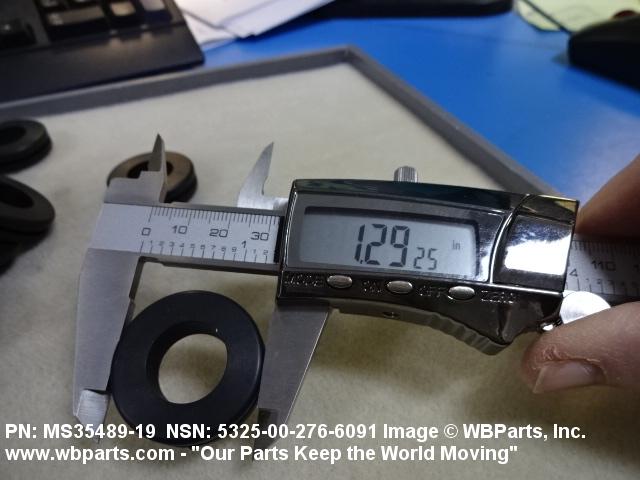

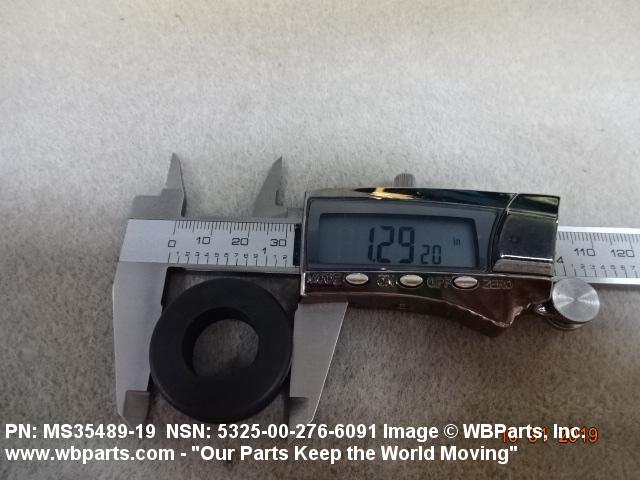

| LARGE FLANGE OUTSIDE DIAMETER | 1.281 INCHES MINIMUM AND 1.343 INCHES MAXIMUM |
| GROOVE OUTSIDE DIAMETER | 0.984 INCHES MINIMUM AND 1.016 INCHES MAXIMUM |
| GROMMET CONSTRUCTION TYPE | SOLID |
| NONMETALLIC HARDNESS RATING | NOT RATED |
| FEATURES PROVIDED | COOLANT RESISTANT AND OIL RESISTANT |
| MANUFACTURERS CODE | 81349 |
| NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | MILG3036 |
| MANUFACTURERS CODE | 96906 |
| DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | MS35489-19 |
Restrictions/Controls & Freight Information | NSN 5325-00-276-6091
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | Q | 36 months |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 156600 | PLASTIC/RUBBER ARTICLE VIZ: |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 713 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5325-00-276-6091
Army
Air Force
Navy
Marines| Category | Code | Description |
|---|---|---|
| Materiel Category and Inventory Manager | T | Industrial Supplies (DLA/GSA Items) |
| Appropriation and Budget Activity | 2 | Stock Fund Secondary Items |
| Management Inventory Segment | 2 | NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable. |
| Specific Group/Generic Code | 0 | Medical Materiel |
| Weapons Systems/End Item or Homogeneous Group | 00 | DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item |
| Accounting Requirements Code | X | Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DA | Department of the Army |
| Service Organization | A | U.S. Army |
| Reparability | Z | This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item. |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | Q | 36 months |
| Purchasing | QTY UOM |
1 PG : Package |
| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Price Validation | N | The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
|
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Materiel Management Aggregation Code | SX | SX:AF SICA RESIDUAL MMAC-OC-ALC |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | Q | 36 months |
| Purchasing | QTY UOM |
1 PG : Package |
| Category | Code | Description |
|---|---|---|
| Stores Account Code | 1 | Marine Corps Stock Fund Account Item. |
| Combat Essentiality Code | 5 | Critical Repair Part to a Combat Essential End Item. Those parts or components whose failure in a combat essential end item will render the end item inoperative or reduce its effectiveness below the minimum acceptable level of efficiency. |
| Materiel Management Code | B | All CommoditiesDefense Logistics Agency, (DLA,) |
| Echelon Management Code | 2 | ICP/DSSC Marine Corps-managed Recoverability Code D items and Defense Logistics Agency (DLA)/TACOM/GSA) items which the integrated manager has not decontrolled. |
| Echelon Identification Code | B | Consumable Repair Parts |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DM | U.S. Marine Corps |
| Service Organization | M | U.S. Marine Corps |
| Reparability | Z | Nonreparable item. When unserviceable, condemn and dispose at the level indicated by the first digit of the maintenance code. |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | Q | 36 months |
| Purchasing | QTY UOM |
1 PG : Package |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Special Material Content | 9 | Non-Hazardous or Non-Sensitive Item, does not require hazardous or special handling, packaging or precautions |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | Q | 36 months |
| Purchasing | QTY UOM |
1 PG : Package |
