NSN 5325-00-276-6099 MS3548993, MS35489-93, MS3548993X
Product Details | NONMETALLIC GROMMET
5325-00-276-6099 An item of any peripheral shape having flanges or groove(s) on its outer perimeter to provide a self-retaining characteristic when inserted in a hole, clamp, or the like. Designed for the purpose of protecting and/or insulating wires, cables and other items passing through it. Excludes BUSHING, NONMETALLIC; BUMPER; and INSULATOR BUSHING.
Part Alternates: MS3548993, MS35489-93, MS3548993X, MS35489-93X, AN931C47, AN931C4-7, KA325PC54, L45427PT24, L4-5427PT24, MILB3036, ZA3591001PT24, ZA359-1001PT24, Z247, 114053, 114053ADX, 12Z1200280, 12Z12002-80, 22003110604PC54, 2200-3110604PC54, 2554, 2592, 4029K10001, 4029K10-001, 5325-00-276-6099, 00-276-6099, 5325008357289 , 5325002766099, 002766099
Hardware and Abrasives | Fastening Devices
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 01 JAN 1963 | 00-276-6099 | 33729 ( GROMMET, NONMETALLIC ) |

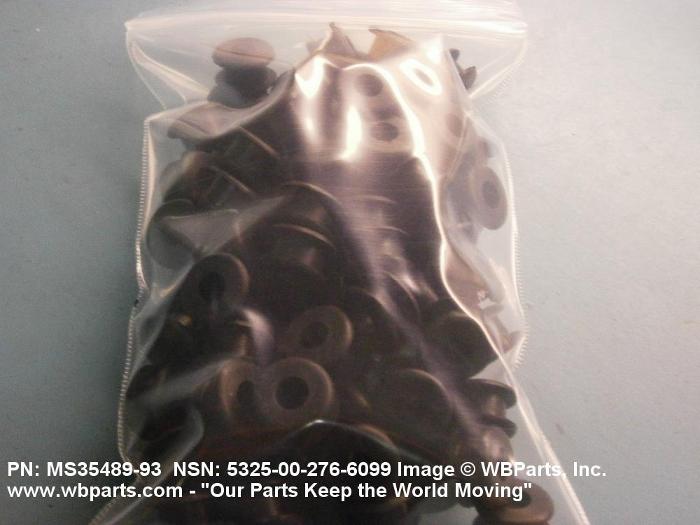

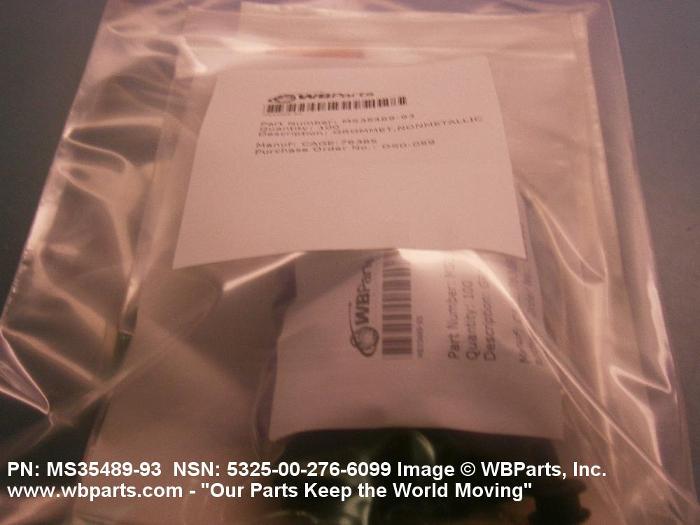

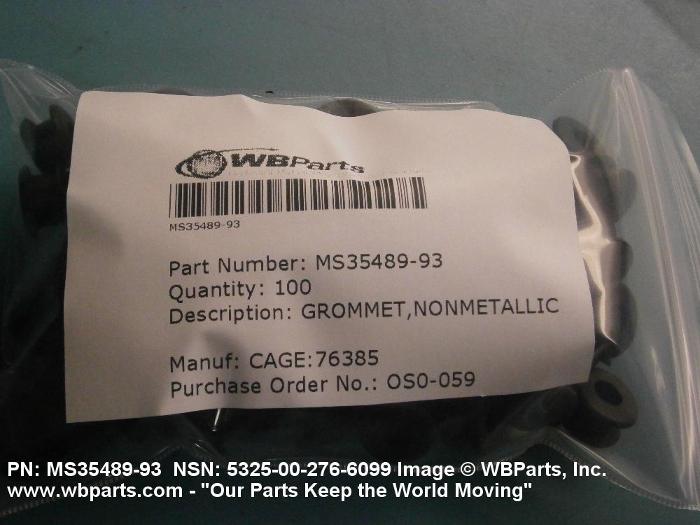

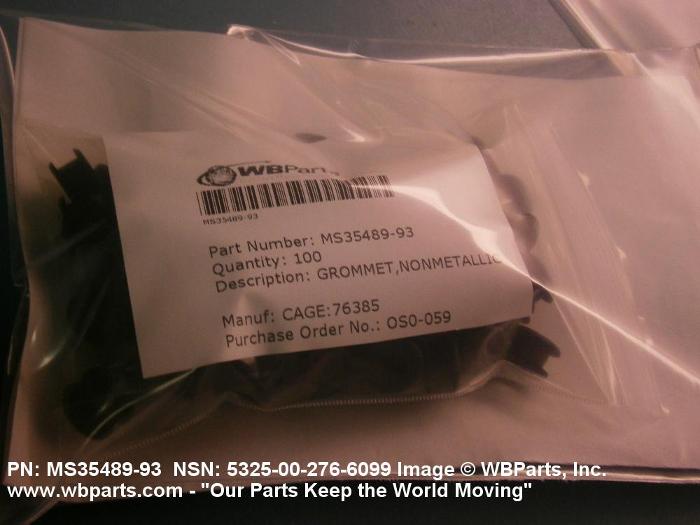

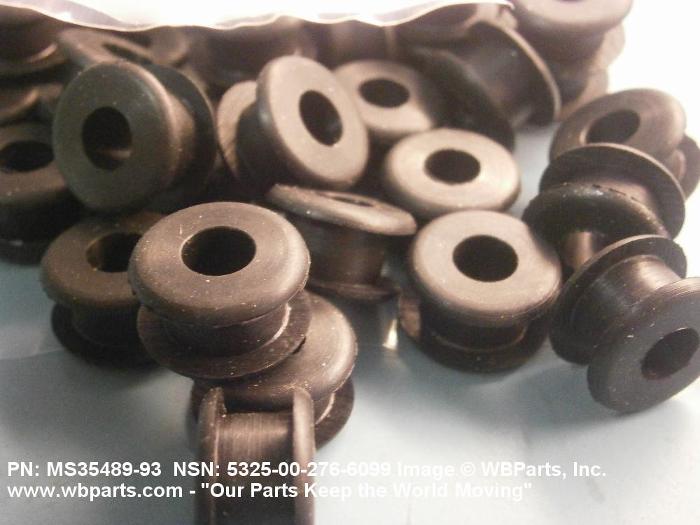

Drawings & Photos | NSN 5325-00-276-6099
Demand History | NSN 5325-00-276-6099
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5325-00-276-6099 | 2022-03-81 | 8 | US |
| 5325-00-276-6099 | 2022-02-58 | 400 | DIBBS |
| 5325-00-276-6099 | 2021-12-363 | 400 | DIBBS |
| MS3548993 | 2020-01-29 | 66 | IN |
| 5325-00-276-6099 | 2019-07-185 | 400 | DIBBS |
| 5325-00-276-6099 | 2016-11-312 | 715 | DIBBS |
| 5325-00-276-6099 | 2014-04-93 | 5000 | DIBBS |
| AN931C47 | 2014-01-08 | 1 | South Africa |
| MS3548993X | 2013-08-221 | 4 | United States |
| MS3548993 | 2012-05-150 | 100 | Greece |
| 5325-00-276-6099 | 2011-04-92 | 50 | CN |
| 5325-00-276-6099 | 2009-09-244 | 2 | Taiwan |
| 5325-00-276-6099 | 2009-08-233 | 2 | Taiwan |
| 5325-00-276-6099 | 2008-03-70 | 2955 | DIBBS |
Cross Reference | NSN 5325-00-276-6099
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 114053 | 73734 | FEDERAL SCREW PRODUCTS INC. |
| 114053ADX | 1VN02 | AIRDALE EXPRESS LLC |
| 12Z12002-80 | 10001 | NAVAIR AND NAVSEA MANAGED ORIGINAL DESIGN ACTIVITY DWG NOT |
| 2200-3110604PC54 | 80064 | NAVAL SHIP SYSTEMS COMMAND |
| 2554 | 70485 | ATLANTIC INDIA RUBBER CO INC |
| 2592 | 91265 | PARKER-HANNIFIN, CORPORATION DBA TECHSEAL DIVISION |
| 4029K10-001 | 97424 | AMETEK, INC. DIV AEROSPACE & DEFENSE |
| 5325008357289 | SCY13 | E.C.A ETABLISSEMENT CENTRALD'APPROVISIONNEMENT DES |
| AN931C4-7 | 88044 | AERONAUTICAL STANDARDS GROUP DEPT OF NAVY AND AIR FORCE |
| AN931C4-7 | D9182 | BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT |
| KA325PC54 | 04220 | GPE CONTROLS, INC DBA SHAND & JURS |
| L4-5427PT24 | 49956 | RAYTHEON COMPANY DBA RAYTHEON |
| MILB3036 | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| MS35489-93 | 96906 | MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS |
| MS35489-93X | D9182 | BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT |
| Z247 | 76385 | MINOR RUBBER CO., INC. DIV MINOR RUBBER CO INC |
| ZA359-1001PT24 | 81543 | ALCO PHOTO SUPPLY CORP |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5325-00-276-6099
Related Products | NSN 5325-00-276-6099
Technical Data | NSN 5325-00-276-6099
| Characteristic | Specifications |
|---|---|
| MATERIAL | RUBBER SYNTHETIC OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | ASTM D2000 BG515A14B24C32E036F19Z ASSN STD SINGLE MATERIAL RESPONSE OVERALL |
| COLOR | BLACK OVERALL |
| GROMMET STYLE | 1 ROUND |
| HOLE DIAMETER | 0.234 INCHES MINIMUM AND 0.266 INCHES MAXIMUM |
| GROOVE WIDTH | 0.234 INCHES MINIMUM AND 0.266 INCHES MAXIMUM |
| FLANGE THICKNESS | 0.031 INCHES MINIMUM AND 0.093 INCHES MAXIMUM |
| OVERALL HEIGHT | 0.359 INCHES MINIMUM AND 0.391 INCHES MAXIMUM |
| LARGE FLANGE OUTSIDE DIAMETER | 0.594 INCHES MINIMUM AND 0.656 INCHES MAXIMUM |
| GROOVE OUTSIDE DIAMETER | 0.422 INCHES MINIMUM AND 0.454 INCHES MAXIMUM |
| GROMMET CONSTRUCTION TYPE | SOLID |
| NONMETALLIC HARDNESS RATING | NOT RATED |
| FEATURES PROVIDED | COOLANT RESISTANT AND OIL RESISTANT |
| MANUFACTURERS CODE | 88044 |
| DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | AN931C4-7 |
| MANUFACTURERS CODE | 81349 |
| NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | MILB3036 |
Restrictions/Controls & Freight Information | NSN 5325-00-276-6099
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | Q | 36 months |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 095190 | HARDWARE, NOI |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 846 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5325-00-276-6099
Army
Air Force
Navy
Marines| Category | Code | Description |
|---|---|---|
| Materiel Category and Inventory Manager | T | Industrial Supplies (DLA/GSA Items) |
| Appropriation and Budget Activity | 2 | Stock Fund Secondary Items |
| Management Inventory Segment | 2 | NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable. |
| Specific Group/Generic Code | B | Rotary Wing Aircraft |
| Weapons Systems/End Item or Homogeneous Group | BK | CH-47 |
| Accounting Requirements Code | X | Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DA | Department of the Army |
| Service Organization | A | U.S. Army |
| Reparability | Z | This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item. |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | Q | 36 months |
| Purchasing | QTY UOM |
Q EA : Each |
| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Materiel Management Aggregation Code | SX | SX:AF SICA RESIDUAL MMAC-OC-ALC |
| Price Validation | V | The current standard price has been validated.
|
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | Q | 36 months |
| Purchasing | QTY UOM |
Q EA : Each |
| Category | Code | Description |
|---|---|---|
| Stores Account Code | 1 | Marine Corps Stock Fund Account Item. |
| Combat Essentiality Code | 5 | Critical Repair Part to a Combat Essential End Item. Those parts or components whose failure in a combat essential end item will render the end item inoperative or reduce its effectiveness below the minimum acceptable level of efficiency. |
| Materiel Management Code | B | All CommoditiesDefense Logistics Agency, (DLA,) |
| Echelon Management Code | 2 | ICP/DSSC Marine Corps-managed Recoverability Code D items and Defense Logistics Agency (DLA)/TACOM/GSA) items which the integrated manager has not decontrolled. |
| Echelon Identification Code | B | Consumable Repair Parts |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DM | U.S. Marine Corps |
| Service Organization | M | U.S. Marine Corps |
| Reparability | Z | Nonreparable item. When unserviceable, condemn and dispose at the level indicated by the first digit of the maintenance code. |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | Q | 36 months |
| Purchasing | QTY UOM |
Q EA : Each |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | Q | 36 months |
| Purchasing | QTY UOM |
Q EA : Each |
