NSN 5325-00-276-6089 MS3548916, MS35489-16, MS3548916S

Product Details | NONMETALLIC GROMMET

5325-00-276-6089 An item of any peripheral shape having flanges or groove(s) on its outer perimeter to provide a self-retaining characteristic when inserted in a hole, clamp, or the like. Designed for the purpose of protecting and/or insulating wires, cables and other items passing through it. Excludes BUSHING, NONMETALLIC; BUMPER; and INSULATOR BUSHING.

Part Alternates: MS3548916, MS35489-16, MS3548916S, MS35489-16S, A3692, BACG20AF9B1, L165217, L1652-17, MILG3036, 7878, 944.87.31.016, 9448731016, 94622116, 946221-16, 10M628, 113017, 113017ADX, 12Z1200264, 12Z12002-64, 209117, 209-1-17, 2109D13, 2295, 33G1714, 3591001P6, 359-1001P6, 523371, 5325-00-276-6089, 00-276-6089, 5325002766089, 002766089

Hardware and Abrasives | Fastening Devices

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
53	01 JAN 1963	00-276-6089	33729 ( GROMMET, NONMETALLIC )

Drawings & Photos | NSN 5325-00-276-6089

Part Number	Request Date	QTY	Origin
5325-00-276-6089	2024-04-10	1500	IL
5325-00-276-6089	2019-05-23	5000	DIBBS
5325-00-276-6089	2019-03-18	2178	DIBBS
5325-00-276-6089	2019-01-23	13	India
5325-00-276-6089	2018-11-01	2447	DIBBS
5325-00-276-6089	2018-10-16	6000	DIBBS
5325-00-276-6089	2018-08-26	6000	DIBBS
5325002766089	2018-03-19	200	US
MS3548916	2018-01-11	1	United States
5325-00-276-6089	2017-06-12	709013	DIBBS
5325-00-276-6089	2017-04-18	1	DIBBS-RFPs
5325-00-276-6089	2017-03-13	918354	DIBBS
MS35489-16	2016-04-27	8	UY
MS3548916	2015-09-08	4	Malaysia
5325-00-276-6089	2013-09-10	25	Canada
MS35489-16	2012-03-07	211	China
MS35489-16	2011-08-17	24	US
MS3548916	2010-12-27	25	United States

Cross Reference | NSN 5325-00-276-6089

Part Number	Cage Code	Manufacturer
10M628	07426	WARWICK ELECTRONICS INC PACIFIC MERCURY DIV
113017	73734	FEDERAL SCREW PRODUCTS INC.
113017ADX	1VN02	AIRDALE EXPRESS LLC
12Z12002-64	10001	NAVAIR AND NAVSEA MANAGED ORIGINAL DESIGN ACTIVITY DWG NOT
209-1-17	04655	GENERAL DYNAMICS C4 SYSTEMS, INC.
2109D13	0AHP5	CURTISS-WRIGHT CONTROLS, INC DIV FLIGHT SYSTEMS
2295	70485	ATLANTIC INDIA RUBBER CO INC
33G1714	10001	NAVAIR AND NAVSEA MANAGED ORIGINAL DESIGN ACTIVITY DWG NOT
33G1714	53711	NAVAL SEA SYSTEMS COMMAND
359-1001P6	3B150	RAYTHEON TECHNICAL SERVICES COMPANY LLC
359-1001P6	49956	RAYTHEON COMPANY DBA RAYTHEON
523371	07464	BADGER FIRE PROTECTION INC
523371	6L214	BADGER FIRE PROTECTION INC
5325002766089	SCY13	E.C.A ETABLISSEMENT CENTRALD'APPROVISIONNEMENT DES
7878	14370	CONTINENTAL RUBBER WORKS
944.87.31.016	S4080	PILATUS AIRCRAFT LTD
946221-16	06481	NORTHROP GRUMMAN SYSTEMS CORPORATION
A3692	46522	DCM MANUFACTURING INC.
BACG20AF9B1	81205	THE BOEING COMPANY DBA BOEING
L1652-17	46717	PETTIBONE LLC
MILG3036	81349	MILITARY SPECIFICATIONS PROMULGATED BY MILITARY
MS35489-16	96906	MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS
MS35489-16S	96906	MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS

Request a Quote

What Our Customers Say

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

Compare

NSNs for Compare ( up to 4 ): Add 5325-00-276-6089

Compare

Related Products | NSN 5325-00-276-6089

5325-00-276-6090, 5325-00-276-6091, 5325-00-276-6092, 5325-00-276-6095, 5325-00-276-6096

Technical Data | NSN 5325-00-276-6089

Characteristic	Specifications
MATERIAL	RUBBER SYNTHETIC OVERALL
MATERIAL DOCUMENT AND CLASSIFICATION	ASTM D2000 BG515A14B24C32E036F19Z ASSN STD SINGLE MATERIAL RESPONSE OVERALL
COLOR	BLACK OVERALL
GROMMET STYLE	1 ROUND

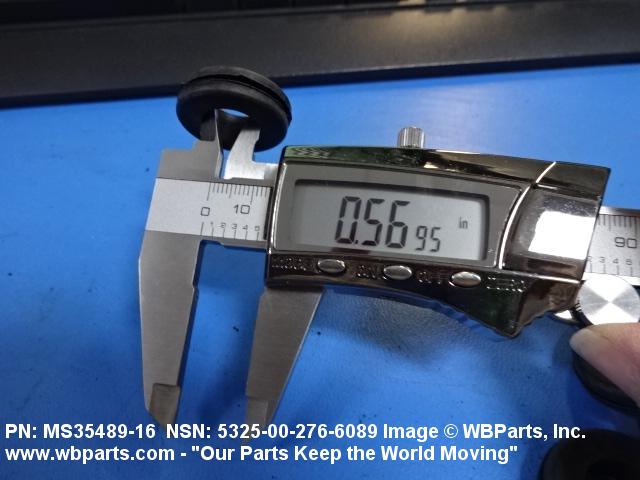

HOLE DIAMETER	0.546 INCHES MINIMUM AND 0.578 INCHES MAXIMUM

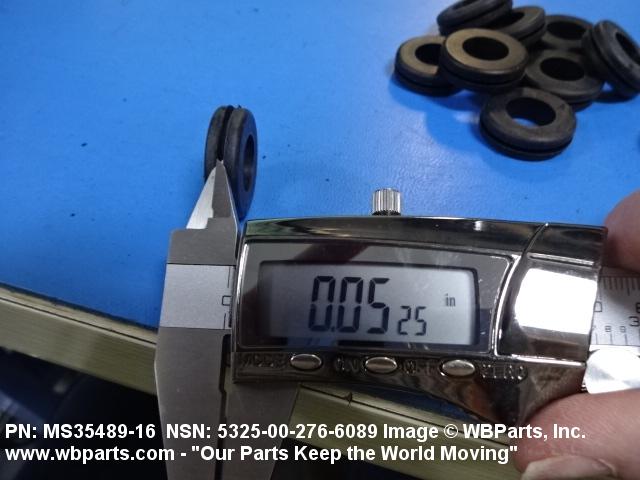

GROOVE WIDTH	0.046 INCHES MINIMUM AND 0.078 INCHES MAXIMUM
FLANGE THICKNESS	0.094 INCHES MINIMUM AND 0.156 INCHES MAXIMUM

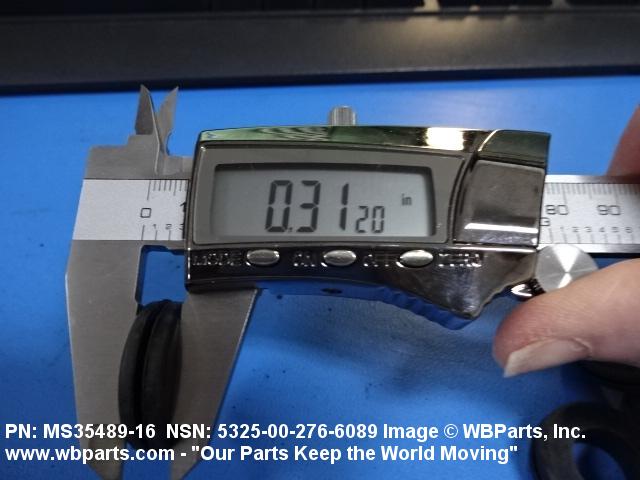

OVERALL HEIGHT	0.296 INCHES MINIMUM AND 0.328 INCHES MAXIMUM

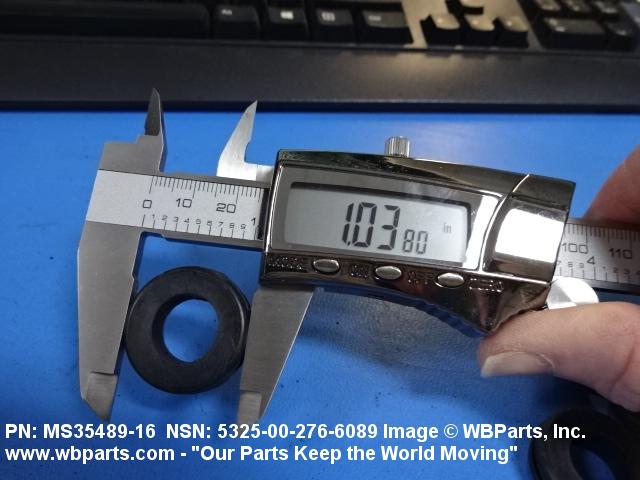

LARGE FLANGE OUTSIDE DIAMETER	1.031 INCHES MINIMUM AND 1.093 INCHES MAXIMUM
