Product Details | SNAP FASTENER STUD

5325-00-276-5662 A component of a FASTENER, SNAP; which is designed for insertion into a SOCKET, SNAP FASTENER. It may be furnished with POST, SNAP FASTENER or CLINCH PLATE, SNAP FASTENER. Excludes STUD, SNAPSLIDE FASTENER.

Part Alternates: 117233, 5325-00-276-5662, 00-276-5662, 5325002765662, 002765662

Hardware and Abrasives | Fastening Devices

Supply Group (FSG) NSN Assign. NIIN
53 01 JAN 1963 00-276-5662

Drawings & Photos | NSN 5325-00-276-5662


Cross Reference | NSN 5325-00-276-5662

Part Number Cage Code Manufacturer
117233 24617 GENERAL MOTORS CORP
117233 7X677 GENERAL MOTORS LLC DBA GENERAL MOTORS

Request a Quote

What Our Customers Say

Compare

NSNs for Compare ( up to 4 ): Add 5325-00-276-5662

Technical Data | NSN 5325-00-276-5662

Characteristic Specifications
MATERIAL COPPER ALLOY OVERALL
SURFACE TREATMENT NICKEL OVERALL

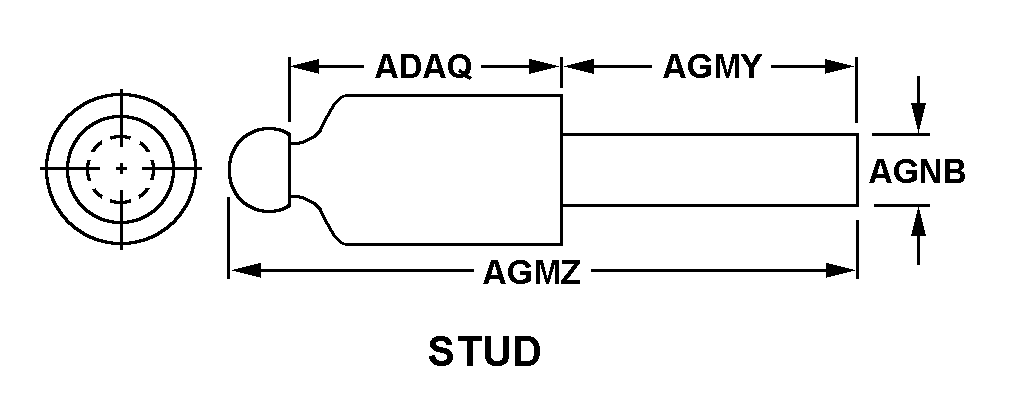

SNAP FASTENER STUD STYLE 15 STUD
BODY LENGTH 0.422 INCHES NOMINAL
STUD SHANK LENGTH 0.250 INCHES NOMINAL
STUD OVERALL LENGTH 0.672 INCHES NOMINAL
STUD SHANK DIAMETER 0.136 INCHES NOMINAL
STUD RETENTION METHOD RIVET
SPECIAL FEATURES COLOR BLACK
MANUFACTURERS CODE 24617
DESIGN CONTROL REFERENCE 117233
