NSN 5325-00-276-4271 MS2797767N, MS27977-67N, MS2797769N

Product Details | SNAP FASTENER STUD

5325-00-276-4271 A component of a FASTENER, SNAP; which is designed for insertion into a SOCKET, SNAP FASTENER. It may be furnished with POST, SNAP FASTENER or CLINCH PLATE, SNAP FASTENER. Excludes STUD, SNAPSLIDE FASTENER.

Part Alternates: MS2797767N, MS27977-67N, MS2797769N, MS27977-69N, AN22748L, AN227-48L, 4995548L, 49955-48L, 5325-00-276-4271, 00-276-4271, 5325002764271, 002764271

Hardware and Abrasives | Fastening Devices

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
53	01 JAN 1963	00-276-4271	16550 ( STUD, SNAP FASTENER )

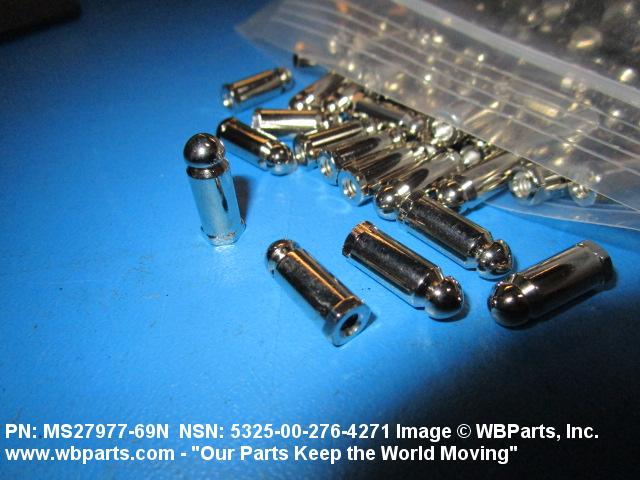

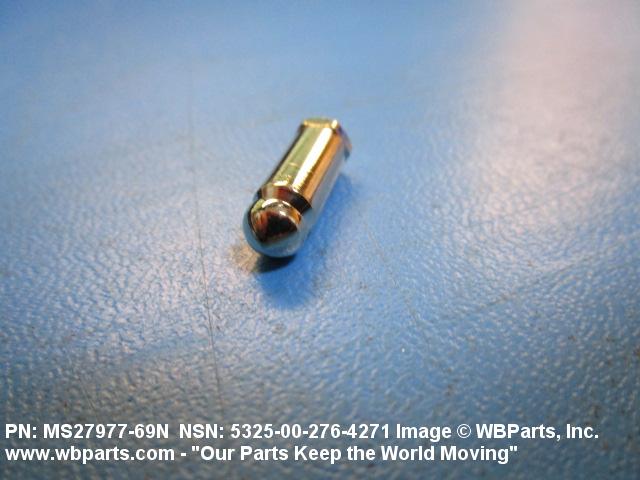

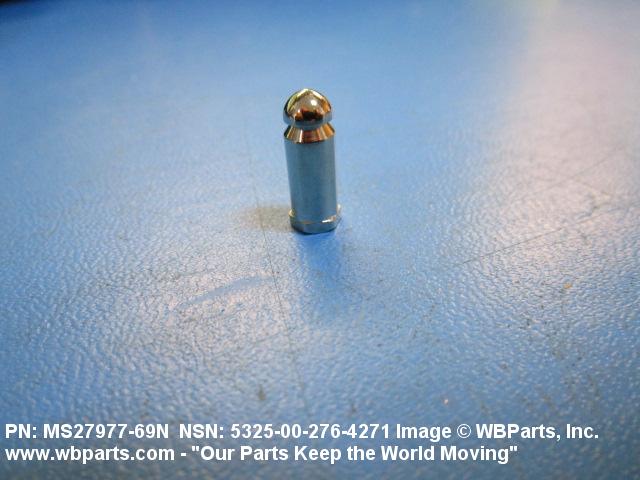

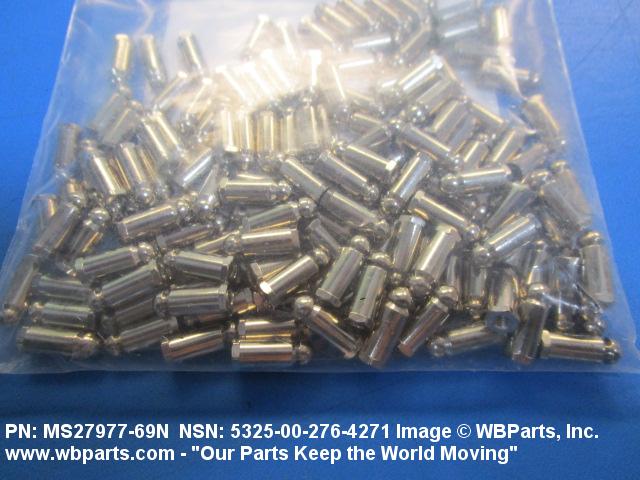

Drawings & Photos | NSN 5325-00-276-4271

Part Number	Request Date	QTY	Origin
5325-00-276-4271	2021-10-304	140	MY
5325-00-276-4271	2021-10-301	140	Malaysia
5325-00-276-4271	2021-08-231	140	Malaysia
5325-00-276-4271	2014-03-82	741	DIBBS
5325-00-276-4271	2012-11-324	762	DIBBS
MS2797769N	2010-07-202	1000	US
5325-00-276-4271	2009-02-58	1000	DIBBS
AN22748L	2008-05-142	125	United States

Cross Reference | NSN 5325-00-276-4271

Part Number	Cage Code	Manufacturer
49955-48L	80205	NATIONAL AEROSPACE STANDARDS COMMITTEE AEROSPACE INDUSTRIES
AN227-48L	88044	AERONAUTICAL STANDARDS GROUP DEPT OF NAVY AND AIR FORCE
MS27977-67N	96906	MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS
MS27977-69N	96906	MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS

Request a Quote

What Our Customers Say

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

Compare

NSNs for Compare ( up to 4 ): Add 5325-00-276-4271

Compare

Related Products | NSN 5325-00-276-4271

5325-00-276-4272, 5325-00-276-4273, 5325-00-276-4274, 5325-00-276-4276, 5325-00-276-4277

Technical Data | NSN 5325-00-276-4271

Characteristic	Specifications
MATERIAL	COPPER ALLOY OVERALL
SURFACE TREATMENT	NICKEL OVERALL
SNAP FASTENER STUD STYLE	17 STUD

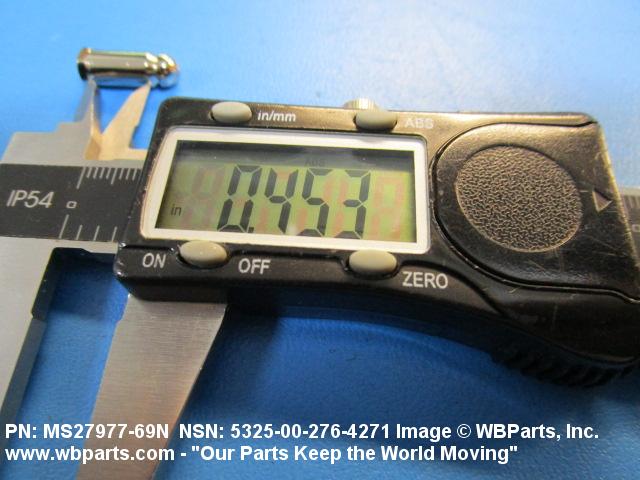

BODY LENGTH	0.500 INCHES NOMINAL

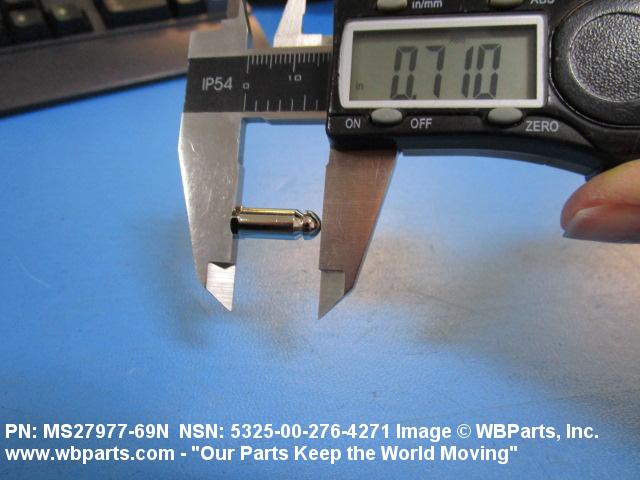

STUD OVERALL LENGTH	0.766 INCHES NOMINAL

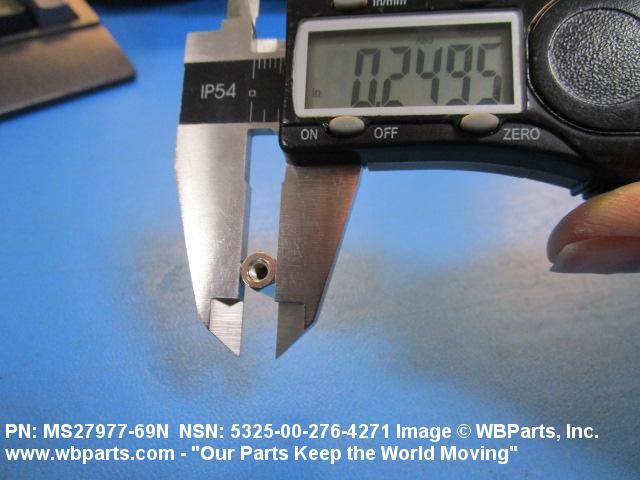

STUD BASE WIDTH ACROSS FLATS	0.344 INCHES NOMINAL
STUD RETENTION METHOD	SCREW BASE
THREAD SIZE AND SERIES/TYPE DESIGNATOR	0.138-32 UNC
MANUFACTURERS CODE	88044
DEFINITIVE GOVERNMENT SPEC/STD REFERENCE	AN227-48L

Restrictions/Controls & Freight Information | NSN 5325-00-276-4271

Restrictions
Freight

Category	Code	Description
Shelf-Life Code:	0	Nondeteriorative
Hazardous Material Indicator Code	N	There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials
Demilitarization Code:	A	Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:	U	UNCLASSIFIED
Precious Metals Indicator Code:	U	Precious metal type is unknown
Criticality Code:	X	The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.

Category	Code	Description
NMF Description	066440	FASTENERS CURTAIN/SNAP METAL
Less than car load rating
Less than truck load rating	W	Rating Variable
Water commodity Code	713	unknown
Originating Activity Code	XX
Air Dimension Code	A	Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity	B	Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials.
Air Special Handling	Z	No special handling required.
Special Handling Code	9	unknonwn
HAZMAT
Type of Cargo	Z	No special type of cargo code applicable

Management | NSN 5325-00-276-4271

Air Force
Navy

Category	Code	Description
Budget Code	9	General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors.
Fund Code	SF	Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point.
Materiel Management Aggregation Code	SX	SX:AF SICA RESIDUAL MMAC-OC-ALC
Price Validation	V	The current standard price has been validated. The item has been analyzed in conjunction with the Zero Overpricing Program and is in the accepted price range. The item was procured under open competition and under the competitive arena the price is considered fair and reasonable. ZOP or Standard price challenges are permissible but must be supported by adequate justification.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DF	Department of the Air Force
Service Organization	F	U.S. Air Force
Reparability	N	Stock Fund (except Munitions)
Acquisition Advice Codes	Z	INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	Q EA : Each

Category	Code	Description
Cognizance Codes	9B	Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DN	Department of the Navy
Service Organization	N	U.S. Navy
Acquisition Advice Codes	Z	INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	Q EA : Each
