NSN 5325-00-270-8911 AR5-5, AR55, 295300
Product Details | POSITIVE LOCK RECEPTACLE
5325-00-270-8911 A platelike item used to secure the STUD, POSITIVE LOCK by means of spring jaws which grip the circumferential groove of the stud. It may incorporate a quick release for the stud which may be actuated by a screwhead, thumbscrew or remote control.
Part Alternates: AR5-5, AR55, 295300, 5325-00-270-8911, 00-270-8911, 5325002708911, 002708911
Hardware and Abrasives | Fastening Devices
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 01 JAN 1963 | 00-270-8911 | 18015 ( RECEPTACLE, POSITIVE LOCK ) |
Drawings & Photos | NSN 5325-00-270-8911
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5325-00-270-8911
Technical Data | NSN 5325-00-270-8911
| Characteristic | Specifications |
|---|---|
| MATERIAL | ALUMINUM ALLOY OVERALL |
| SURFACE TREATMENT | ANODIZE OVERALL |

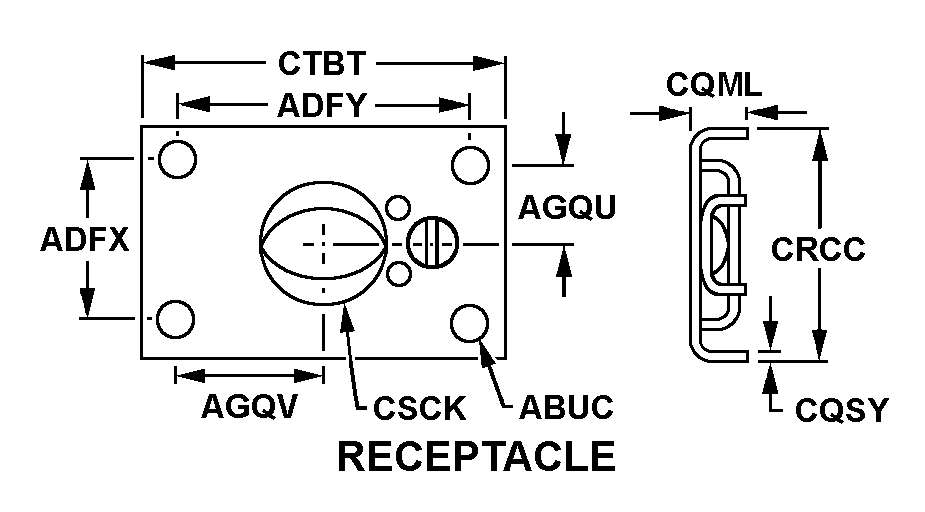

| POSITIVE LOCK RECEPTACLE STYLE | 3 RECEPTACLE |
| MOUNTING HOLE DIAMETER | 0.191 INCHES NOMINAL |
| CENTER TO CENTER DISTANCE BETWEEN MOUNTING HOLES ALONG WIDTH | 2.250 INCHES NOMINAL |
| CENTER TO CENTER DISTANCE BETWEEN MOUNTING HOLES ALONG LENGTH | 1.875 INCHES NOMINAL |
| DISTANCE FROM STUD HOLE CENTER TO MOUNTING HOLE CENTER | 1.125 INCHES NOMINAL |
| DISTANCE FROM STUD HOLE CENTER TO MOUNTING HOLE CENTER ALONG LENGTH | 0.938 INCHES NOMINAL |
| POSITIVE LOCK RECEPTACLE HEIGHT | 0.420 INCHES NOMINAL |
| RECEPTACLE MATERIAL THICKNESS | 0.091 INCHES NOMINAL |
| POSITIVE LOCK RECEPTACLE WIDTH | 2.880 INCHES NOMINAL |
| RECEPTACLE HOLE DIAMETER | 0.562 INCHES NOMINAL |
| POSITIVE LOCK RECEPTACLE LENGTH | 3.310 INCHES NOMINAL |
| MOUNTING HOLE TYPE | COUNTERSUNK |
| VERTICAL LOAD RATING | ANY ACCEPTABLE |
