Product Details | PANEL FASTENER INSERT

5325-00-269-1365 An insert which must have a hole that may be internally threaded with a flange on one end. It may have an undercut on the end opposite the flange to provide a shoulder to allow for mating with another insert. Pre-assembled items will consist of an expansion sleeve and a body which may be flared. Internally threaded items may have a self-locking feature. Excludes INSERT, SCREW THREAD.

Part Alternates: S104D63210, S104D632-10, STSDF004B10AST, 5325-00-269-1365, 00-269-1365, 5325002691365, 002691365

Hardware and Abrasives | Fastening Devices

Supply Group (FSG) NSN Assign. NIIN
53 20 JUL 1973 00-269-1365

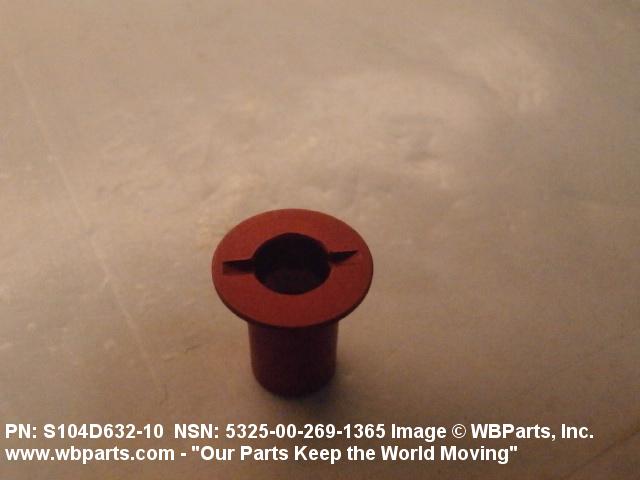

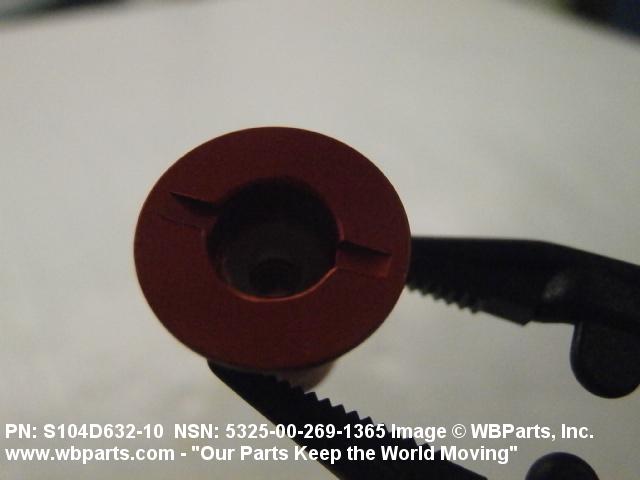

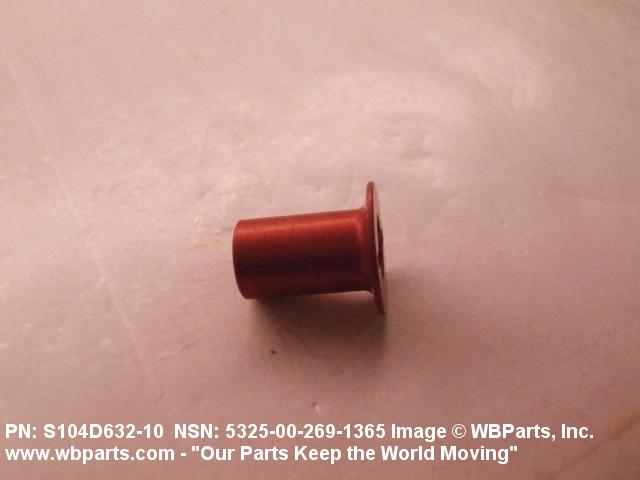

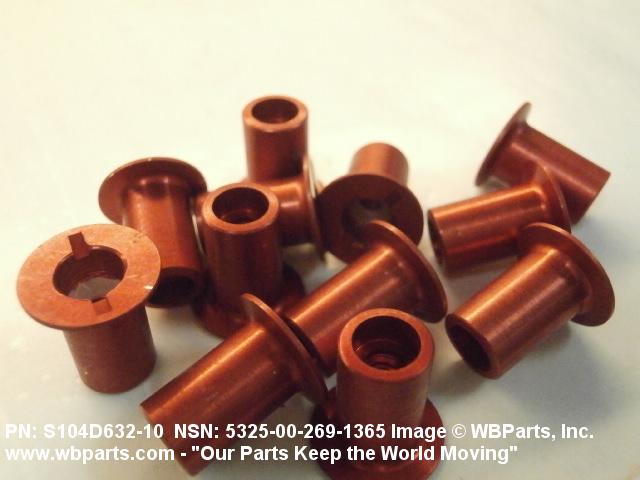

Drawings & Photos | NSN 5325-00-269-1365


Demand History | NSN 5325-00-269-1365

Part Number Request Date QTY Origin
5325-00-269-1365 2013-04-119 1000 DIBBS
S104D63210 2013-04-112 100 United States
5325-00-269-1365 2013-03-84 285 DIBBS
5325-00-269-1365 2012-10-290 285 DIBBS
5325-00-269-1365 2012-10-289 285 DIBBS
5325-00-269-1365 2012-08-215 42 DIBBS
5325-00-269-1365 2012-04-107 42 DIBBS
STSDF004B10AST 2012-03-62 30 United States

Cross Reference | NSN 5325-00-269-1365

Part Number Cage Code Manufacturer
S104D632-10 29372 ALCOA GLOBAL FASTENERS, INC. DBA ALCOA FASTENING SYSTEMS
STSDF004B10AST 98897 LOCKHEED MARTIN CORPORATION DBA LOCKHEED MARTIN AERONAUTICS

Request a Quote

What Our Customers Say

Compare

NSNs for Compare ( up to 4 ): Add 5325-00-269-1365

Technical Data | NSN 5325-00-269-1365

Characteristic Specifications
MATERIAL ALUMINUM ALLOY 2024 OVERALL
MATERIAL DOCUMENT AND CLASSIFICATION QQ-A-250/6,T4 FED SPEC SINGLE MATERIAL RESPONSE OVERALL
SURFACE TREATMENT ANODIZE OVERALL
SURFACE TREATMENT DOCUMENT AND CLASSIFICATION MIL-A-8625 MIL SPEC SINGLE TREATMENT RESPONSE OVERALL
INSERT STYLE 7 FLUSH FLANGE

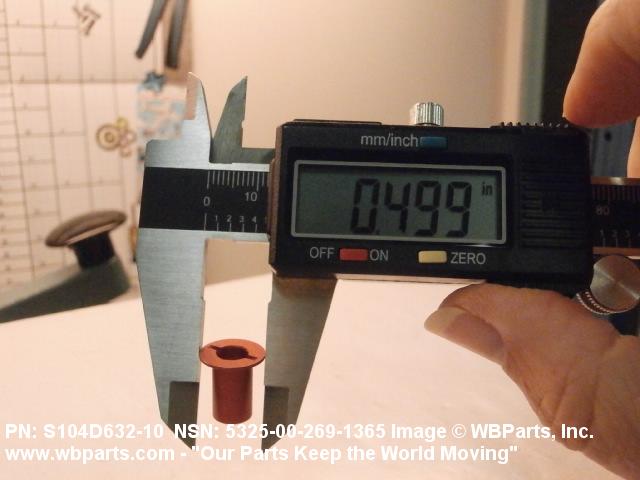

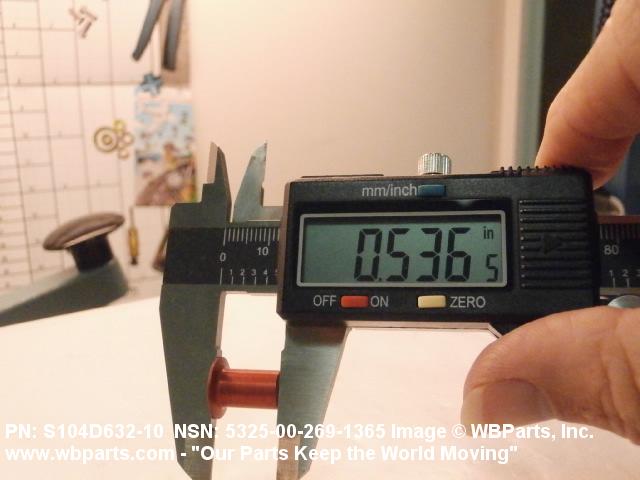

FLANGE DIAMETER 0.500 INCHES NOMINAL

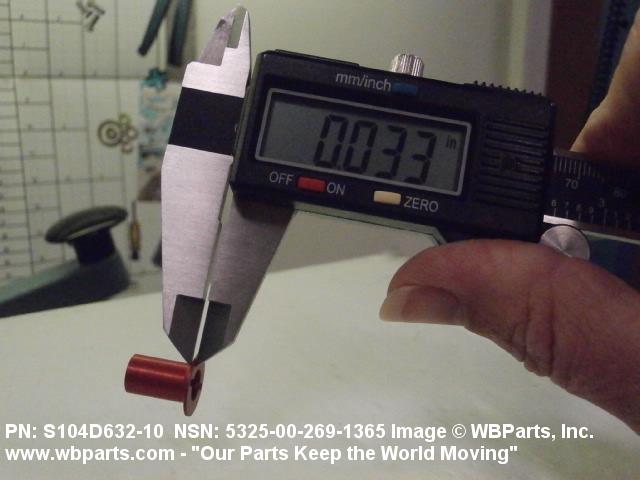

FLANGE THICKNESS 0.023 INCHES NOMINAL

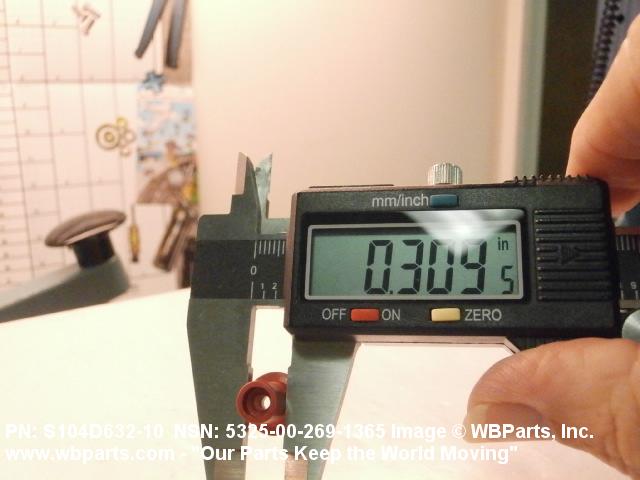

BODY DIAMETER 0.309 INCHES NOMINAL

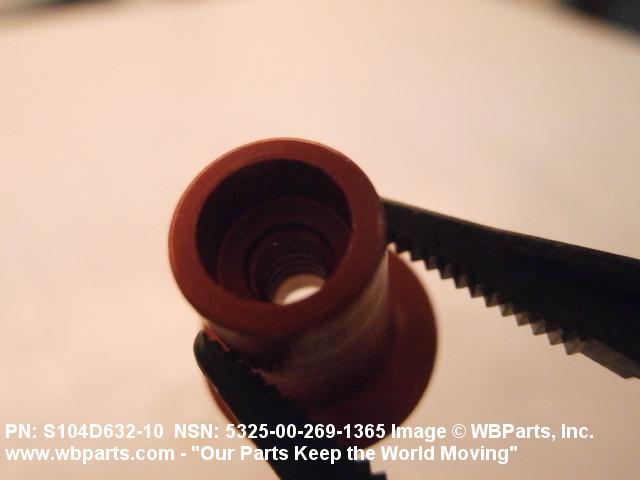

HOLE TYPE THREADED
THREAD SIZE AND SERIES/TYPE DESIGNATOR 0.138-32 UNJC
FEATURES PROVIDED GROMMET
SPECIAL FEATURES 0.620 IN. LG
MANUFACTURERS CODE 98897
MFR SOURCE CONTROLLING REFERENCE STSDF004B10AST

Restrictions/Controls & Freight Information | NSN 5325-00-269-1365

Category Code Description
Shelf-Life Code:0Nondeteriorative
Hazardous Material Indicator CodeNThere is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials
Demilitarization Code:ANon-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:UUNCLASSIFIED
Precious Metals Indicator Code:UPrecious metal type is unknown
Criticality Code:X The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.
Category Code Description
NMF Description 066440 FASTENERS CURTAIN/SNAP METAL
Less than car load rating
Less than truck load rating W Rating Variable
Water commodity Code 713 unknown
Originating Activity Code KZ Defense Supply Center Philadelphia
Philadelphia, PA 19101
Air Dimension Code A Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity B Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials.
Air Special Handling Z No special handling required.
Special Handling Code 9 unknonwn
HAZMAT
Type of Cargo Z No special type of cargo code applicable

Management | NSN 5325-00-269-1365

Category Code Description
Budget Code9 General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors.
Price ValidationN The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
  • The price has not been analyzed or reviewed for accuracy.
  • ZOP or Standard price challenges are permissible, but must be supported with adequate justification. However, if coded for Local Purchase (LP) or Fabrication/Manufacture as indicated with an (LM) Acquisition Advice Code of ?L? or?F?,the case must be evaluated locally where purchased or fabricated.
Fund CodeSFStock fund applicable to items managed for the Air Force by the respective Inventory Control Point.
Materiel Management Aggregation CodeSXSX:AF SICA RESIDUAL MMAC-OC-ALC
Source of SupplySMSDefense Logistics Agency
Enterprise Business Systems
AgencyDFDepartment of the Air Force
Service OrganizationFU.S. Air Force
ReparabilityNStock Fund (except Munitions)
Acquisition Advice CodesDDoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item CodeUUNCLASSIFIED
Shelf Life Code0Nondeteriorative
Purchasing QTY
UOM
Q
EA : Each
