NSN 5325-00-231-3181 NAS183246, NAS1832-4-6, 00-231-3181
Product Details | PANEL FASTENER INSERT

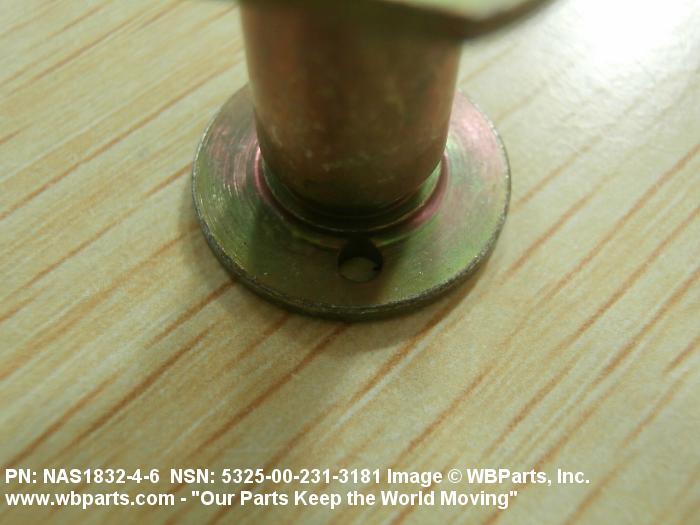

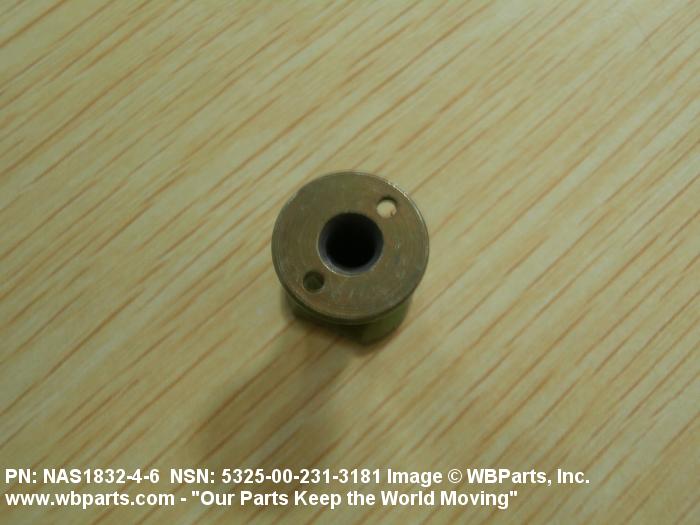

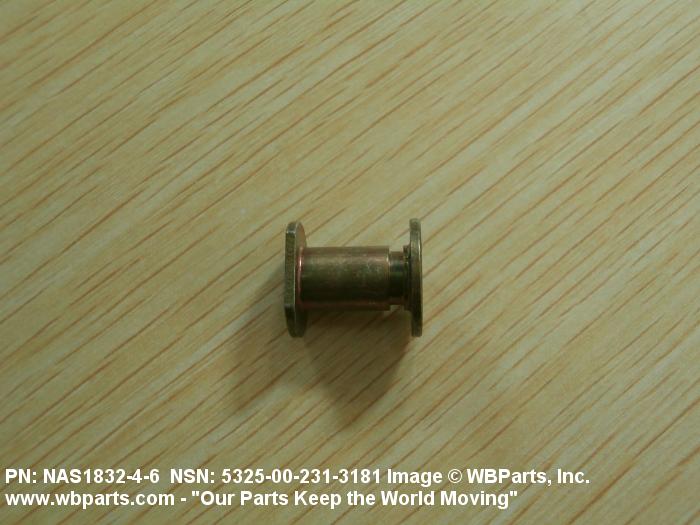

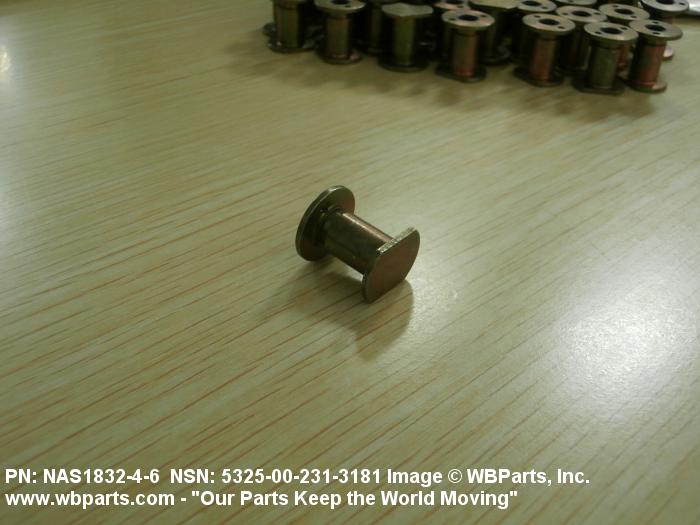

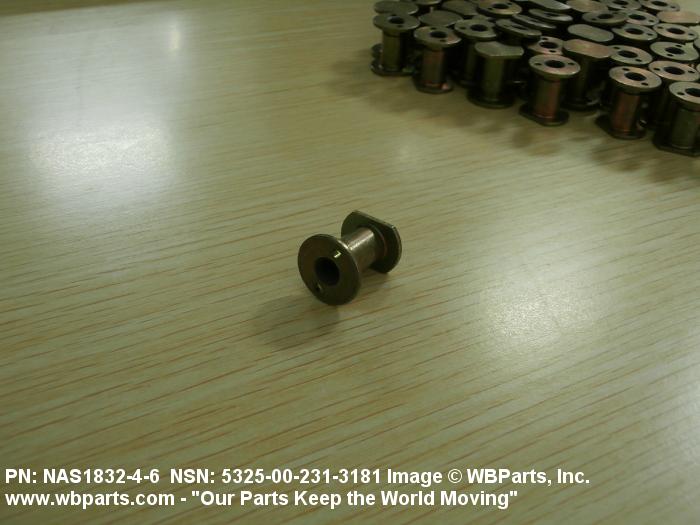

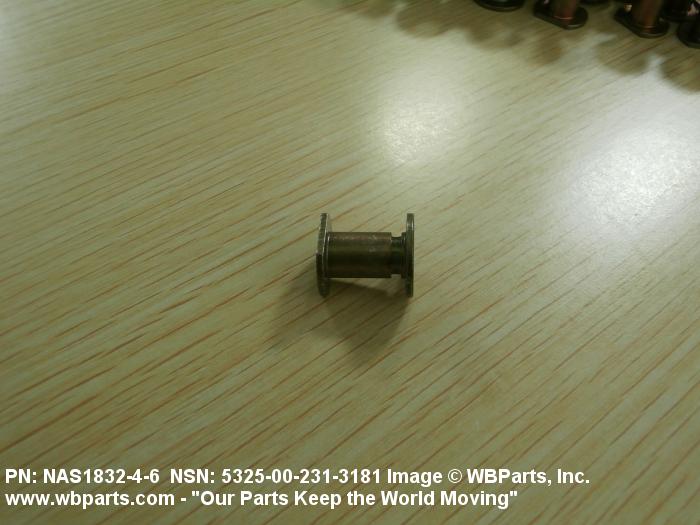

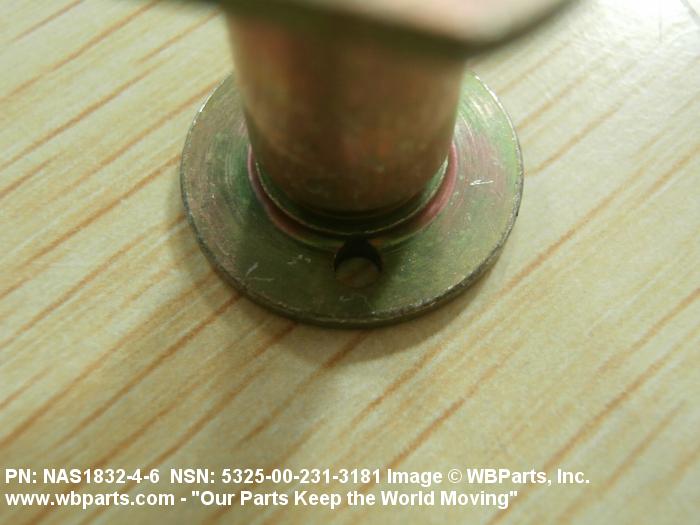

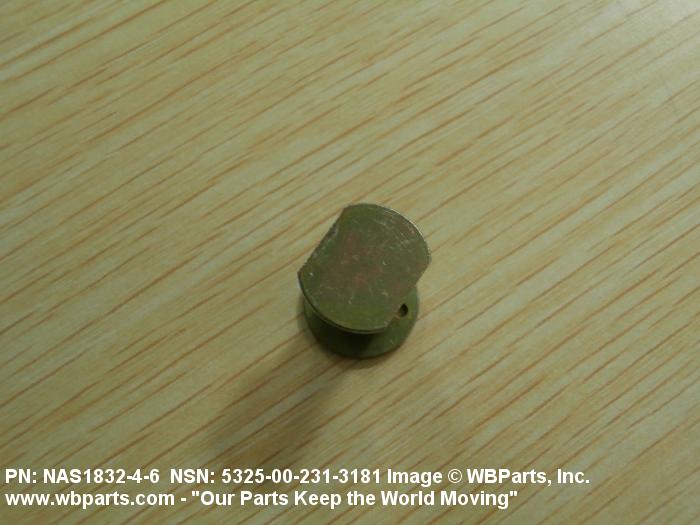

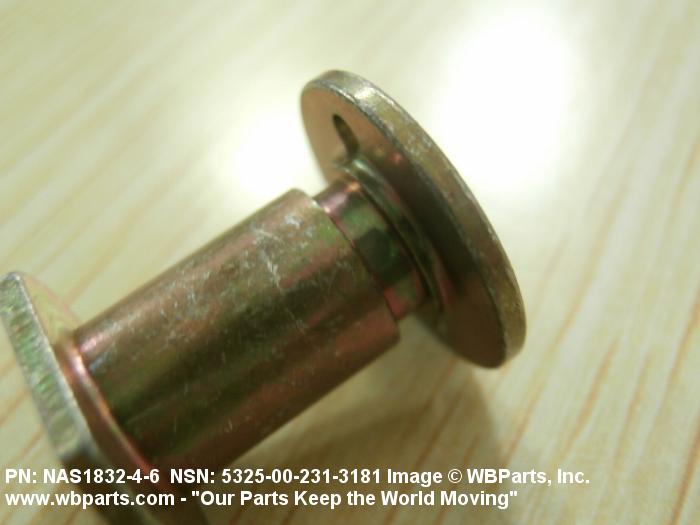

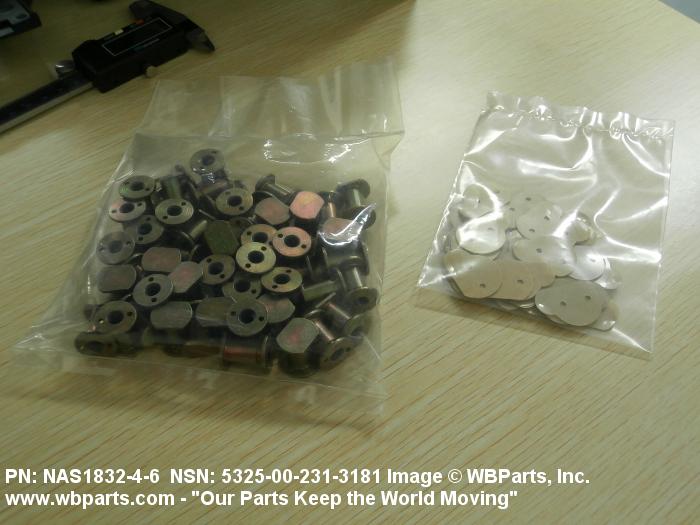

5325-00-231-3181 An insert which must have a hole that may be internally threaded with a flange on one end. It may have an undercut on the end opposite the flange to provide a shoulder to allow for mating with another insert. Pre-assembled items will consist of an expansion sleeve and a body which may be flared. Internally threaded items may have a self-locking feature. Excludes INSERT, SCREW THREAD.
Part Alternates: NAS183246, NAS1832-4-6, 5325-00-231-3181, 00-231-3181, 5325002313181, 002313181
Hardware and Abrasives | Fastening Devices
Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
---|---|---|---|
53 | 23 MAY 1973 | 00-231-3181 | 37444 ( INSERT, PANEL FASTENER ) |
Demand History | NSN 5325-00-231-3181
Part Number | Request Date | QTY | Origin |
---|---|---|---|
5325-00-231-3181 | 2024-10-305 | 240 | DIBBS |
5325-00-231-3181 | 2016-05-131 | 365 | DIBBS |
NAS183246 | 2014-10-286 | 50 | United States |
Cross Reference | NSN 5325-00-231-3181
Part Number | Cage Code | Manufacturer |
---|---|---|
NAS1832-4-6 | 80205 | NATIONAL AEROSPACE STANDARDS COMMITTEE AEROSPACE INDUSTRIES |
Request a Quote
What Our Customers Say
Compare
NSNs for Compare ( up to 4 ): Add 5325-00-231-3181
Related Products | NSN 5325-00-231-3181
Technical Data | NSN 5325-00-231-3181
Characteristic | Specifications |
---|---|
MATERIAL | STEEL COMP 1006 OR STEEL COMP 1008 OR STEEL COMP 1010 OR STEEL COMP 1012 OR STEEL COMP 1015 OR STEEL COMP 1016 OR STEEL COMP 1017 OR STEEL COMP 1018 OR STEEL COMP 1019 OR STEEL COMP 1020 OR STEEL COMP 1021 OR STEEL COMP 1022 OR STEEL COMP 1025 OR STEEL COMP 1030 OR STEEL COMP 1035 OR STEEL COMP 1040 OVERALL |
MATERIAL DOCUMENT AND CLASSIFICATION | 66 FED STD ALL MATERIAL RESPONSES OVERALL |
SURFACE TREATMENT | CADMIUM AND CHROMATE OVERALL |
SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | QQ-P-416,TY 2,CL 2 FED SPEC SINGLE TREATMENT RESPONSE OVERALL |
INSERT STYLE | 19 PROTRUDING FLANGE |

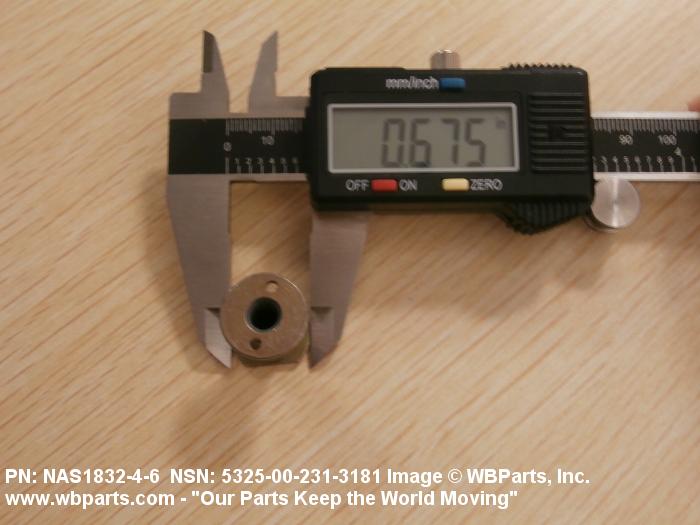

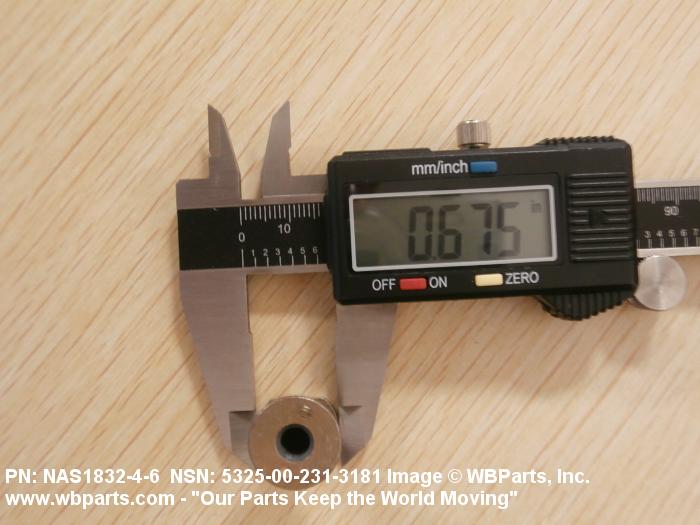

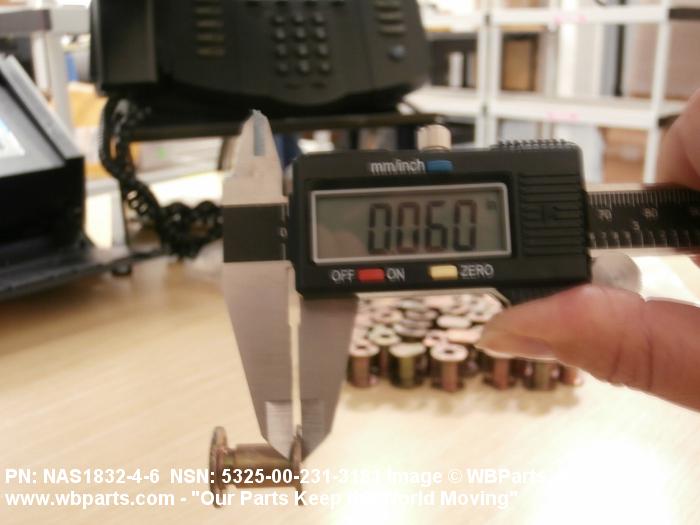

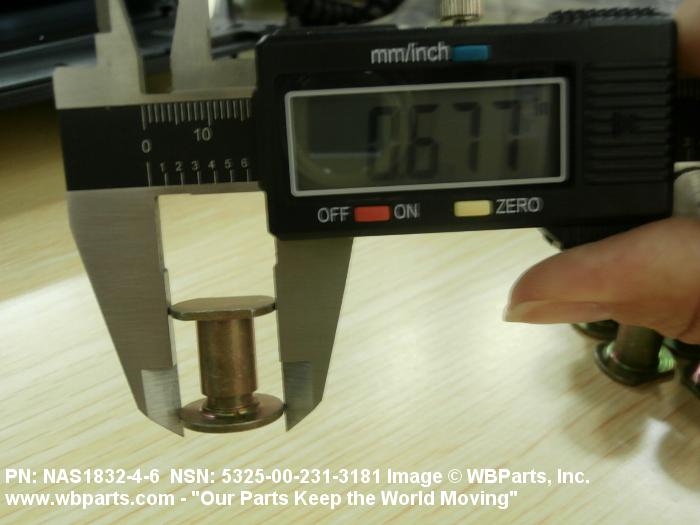

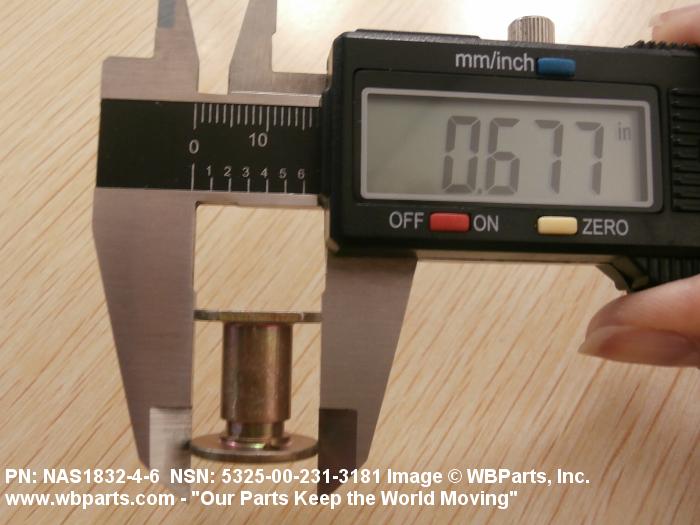

FLANGE DIAMETER | 0.675 INCHES MINIMUM AND 0.685 INCHES MAXIMUM |

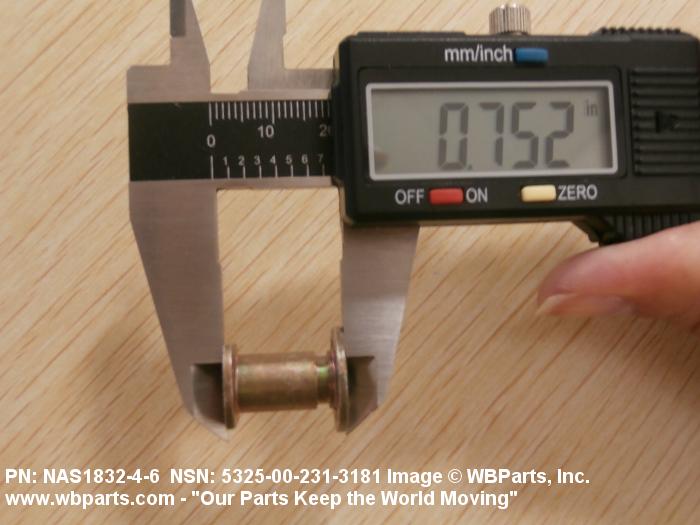

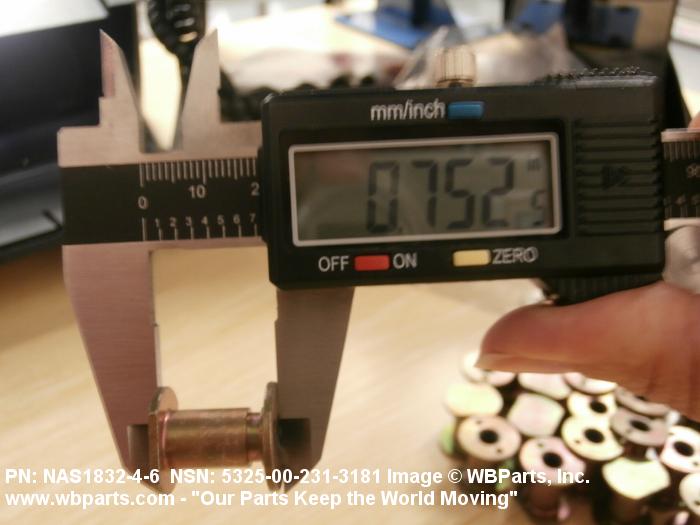

OVERALL LENGTH | 0.750 INCHES NOMINAL |

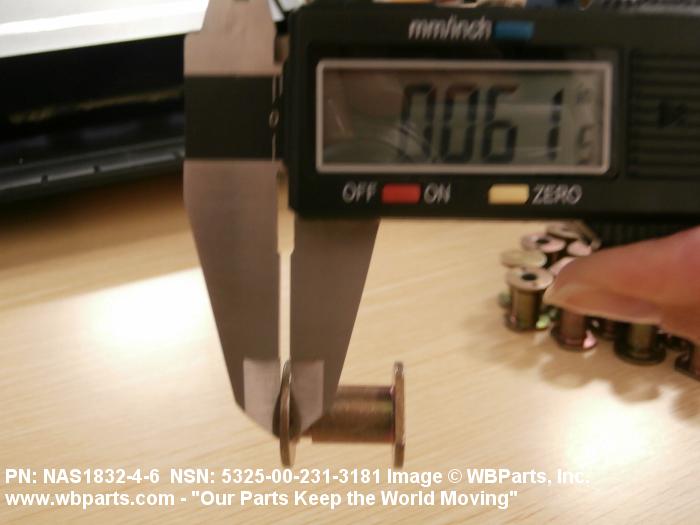

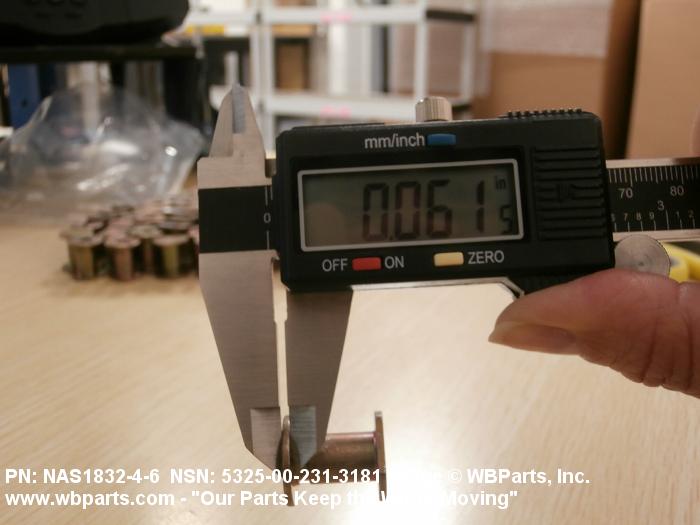

FLANGE THICKNESS | 0.060 INCHES NOMINAL |
HOLE TYPE | THREADED |
THREAD SIZE AND SERIES/TYPE DESIGNATOR | 0.250-28 UNJF |
FEATURES PROVIDED | POTTING HOLE OR POTTING SLOT |
SPECIFICATION/STANDARD DATA | 80205-NAS1832 PROFESSIONAL/INDUSTRIAL ASSOCIATION STANDARD |
Restrictions/Controls & Freight Information | NSN 5325-00-231-3181
Category | Code | Description |
---|---|---|
Shelf-Life Code: | 0 | Nondeteriorative |
Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
Controlled Inventory Item Code: | U | UNCLASSIFIED |
Precious Metals Indicator Code: | A | Item does not contain precious metal |
Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
Category | Code | Description |
---|---|---|
NMF Description | 066440 | FASTENERS CURTAIN/SNAP METAL |
Less than car load rating | ||
Less than truck load rating | W | Rating Variable |
Water commodity Code | 713 | unknown |
Originating Activity Code | KZ | Defense Supply Center Philadelphia Philadelphia, PA 19101 |
Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
Air Special Handling | Z | No special handling required. |
Special Handling Code | 9 | unknonwn |
HAZMAT | ||
Type of Cargo | Z | No special type of cargo code applicable |
