NSN 5325-00-202-1579 872640, 00-202-1579, 002021579
Product Details | POSITIVE LOCK STUD
5325-00-202-1579 A quick disconnecting item with a circumferential groove at one end that is inserted into a RECEPTACLE, POSITIVE LOCK for positive fastening.
Part Alternates: 872640, 5325-00-202-1579, 00-202-1579, 5325002021579, 002021579
Hardware and Abrasives | Fastening Devices
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 01 JAN 1963 | 00-202-1579 | 18014 ( STUD, POSITIVE LOCK ) |
Drawings & Photos | NSN 5325-00-202-1579
Cross Reference | NSN 5325-00-202-1579
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 872640 | 56232 | LOCKHEED MARTIN CORPORATION DBA LOCKHEED MARTIN |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5325-00-202-1579
Related Products | NSN 5325-00-202-1579
Technical Data | NSN 5325-00-202-1579
| Characteristic | Specifications |
|---|---|
| MATERIAL | ALUMINUM ALLOY OVERALL |
| POSITIVE LOCK STUD HEAD STYLE | 1 STUD HEAD |
| HEAD DIAMETER | 0.313 INCHES NOMINAL |
| SHOULDER HEIGHT | 0.186 INCHES NOMINAL |
| UNDERCUT DIAMETER | 0.288 INCHES NOMINAL |
| MAJOR DIAMETER LENGTH | 0.262 INCHES NOMINAL |
| UNDERCUT LENGTH | 0.031 INCHES NOMINAL |
| END OVERALL LENGTH | 0.612 INCHES NOMINAL |

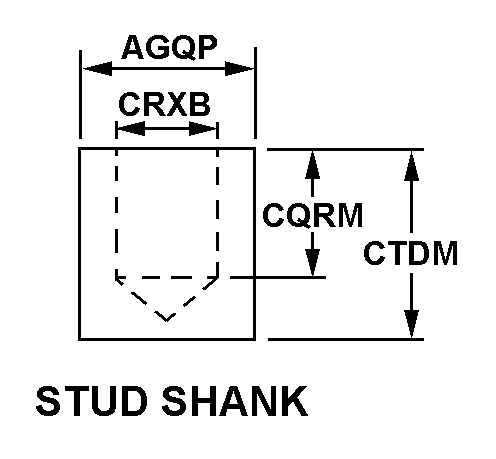

| POSITIVE LOCK STUD SHANK STYLE | 4 STUD SHANK |
| SHANK MAJOR DIAMETER | 0.312 INCHES NOMINAL |
| STUD SHANK HOLE DEPTH | 0.312 INCHES NOMINAL |
| STUD SHANK HOLE DIAMETER | 0.187 INCHES NOMINAL |
| STUD SHANK OVERALL HEIGHT | 0.356 INCHES NOMINAL |
| MANUFACTURERS CODE | 56232 |
| DESIGN CONTROL REFERENCE | 872640 |
Restrictions/Controls & Freight Information | NSN 5325-00-202-1579
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 066440 | FASTENERS CURTAIN/SNAP METAL |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 713 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
