NSN 5325-00-202-1604 MS35489111, MS35489-111, AN931C1630
Product Details | NONMETALLIC GROMMET
5325-00-202-1604 An item of any peripheral shape having flanges or groove(s) on its outer perimeter to provide a self-retaining characteristic when inserted in a hole, clamp, or the like. Designed for the purpose of protecting and/or insulating wires, cables and other items passing through it. Excludes BUSHING, NONMETALLIC; BUMPER; and INSULATOR BUSHING.
Part Alternates: MS35489111, MS35489-111, AN931C1630, AN931C16-30, MILG3036, MIL-G-3036, Z3219, Z-3219, 114073, 114073ADX, 2573, 85434000, 854340-00, 5325-00-202-1604, 00-202-1604, 5325002021604, 002021604
Hardware and Abrasives | Fastening Devices
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 01 JAN 1963 | 00-202-1604 | 33729 ( GROMMET, NONMETALLIC ) |

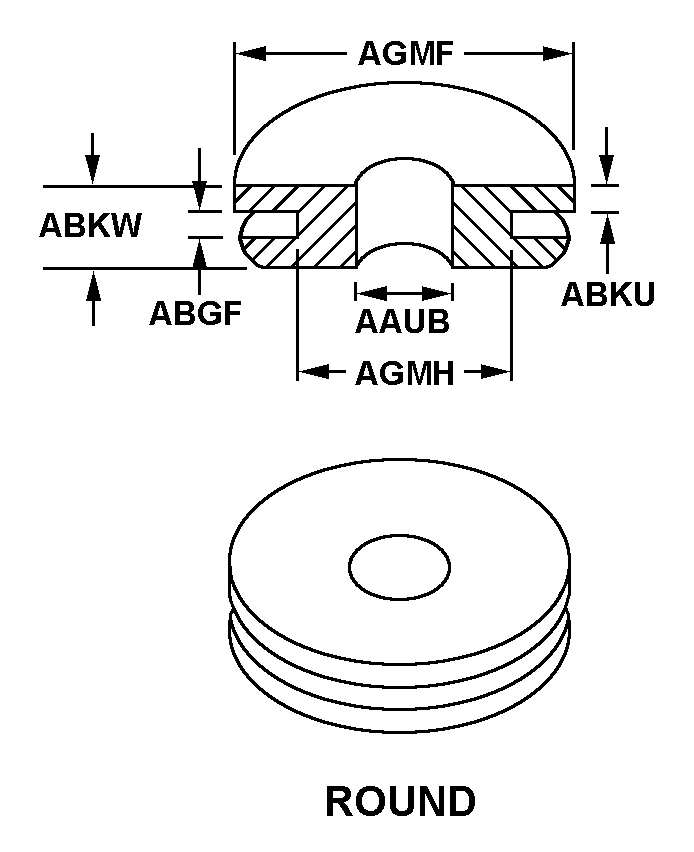

Drawings & Photos | NSN 5325-00-202-1604
Demand History | NSN 5325-00-202-1604
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5325-00-202-1604 | 2022-09-254 | 566 | DIBBS |
| 5325-00-202-1604 | 2020-03-82 | 226 | DIBBS |
| 5325-00-202-1604 | 2019-01-23 | 112 | DIBBS |
| 5325-00-202-1604 | 2014-08-215 | 375 | DIBBS |
| 5325-00-202-1604 | 2013-12-338 | 315 | DIBBS |
Cross Reference | NSN 5325-00-202-1604
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 114073 | 73734 | FEDERAL SCREW PRODUCTS INC. |
| 114073ADX | 1VN02 | AIRDALE EXPRESS LLC |
| 2573 | 70485 | ATLANTIC INDIA RUBBER CO INC |
| 854340-00 | 32345 | DEFENSE REDUCTION AGENCY |
| AN931C16-30 | 88044 | AERONAUTICAL STANDARDS GROUP DEPT OF NAVY AND AIR FORCE |
| MIL-G-3036 | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| MS35489-111 | 80205 | NATIONAL AEROSPACE STANDARDS COMMITTEE AEROSPACE INDUSTRIES |
| MS35489-111 | 96906 | MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS |
| Z-3219 | 76385 | MINOR RUBBER CO., INC. DIV MINOR RUBBER CO INC |
