NSN 5325-00-178-8116 MS51830103L, MS51830-103L, K900006

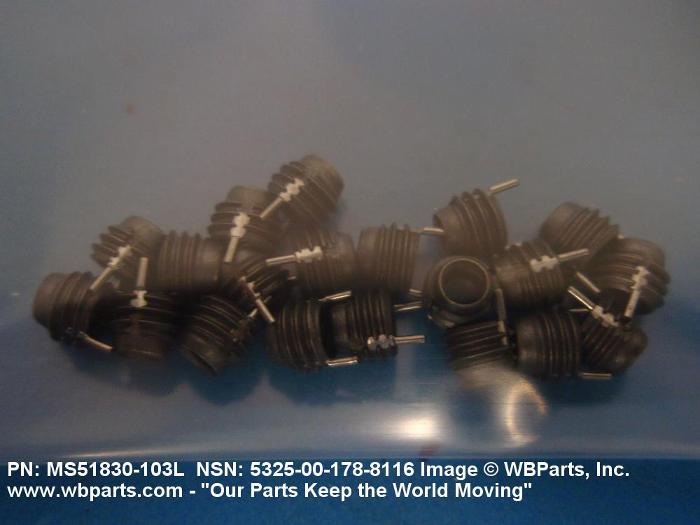

Product Details | SCREW THREAD INSERT
5325-00-178-8116 A cylindrical item which may have wrenching and/or driving facilities and/or shoulders. It is designed to be inserted in a drilled, tapped or a pretapped hole, or molded or pressed into soft material to reduce the size of a tapped hole; to provide threads; to add strength, and/or to prevent stripping. It is one of the following: (1) a one-piece, flanged or unflanged, internally threaded item which may have external threads, and/or serrations around the periphery of the collar, designed to engage a serrated lock ring which is not included with the item; (2) a one-piece precision coiled wire; (3) a two-piece item consisting of an internally threaded cylinder and a mating externally threaded part; or (4) a one-piece internally threaded item whose outside diameter is tapered and/or knurled and/or with fin(s). The internal thread of the item may have a locking feature. Excludes items having a sleeve on on its under portion which can be clinched or crimped. Excludes BUSHING,MACHINE THREAD; NUT,PLAIN,KNURLED; NUT,PLAIN,ROUND; NUT,PLAIN,CLINCH and NUT,SELF-LOCKING,CLINCH. See also NUT,PLAIN,PLATE
Part Alternates: MS51830103L, MS51830-103L, K900006, K9000-06, KNCAL0632, KNCL0632, 7904962-08, 87529200, 875292-00, 10356124 , 15890226-5 , 4144000193, 4144000-193, 5325-00-178-8116, 00-178-8116, 5325001788116, 5340001788116 , 790496208, 001788116, 158902265
Hardware and Abrasives | Fastening Devices
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 05 MAY 1969 | 00-178-8116 | 11444 ( INSERT, SCREW THREAD ) |
Drawings & Photos | NSN 5325-00-178-8116
Demand History | NSN 5325-00-178-8116
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| MS51830103L | 2024-10-282 | 1000 | Israel |
| MS51830103L | 2022-07-188 | 2200 | US |
| 5325-00-178-8116 | 2021-07-189 | 5 | US |
| MS51830103L | 2021-06-174 | 401 | United States |
| MS51830103L | 2021-06-153 | 243 | US |
| MS51830103L | 2020-10-280 | 768 | Germany |
| 5325-00-178-8116 | 2020-09-274 | 768 | Germany |
| MS51830103L | 2019-12-345 | 110 | US |
| MS51830103L | 2017-11-319 | 450 | India |
| KNCL0632 | 2017-07-206 | 120 | United States |
| 87529200 | 2014-06-170 | 160 | US |
| MS51830103L | 2014-05-142 | 10 | US |
| MS51830103L | 2014-04-99 | 500 | India |
| MS51830-103L | 2012-05-146 | 8 | CR |
| KNCL0632 | 2012-04-111 | 450 | IL |
| 5325-00-178-8116 | 2012-03-79 | 1000 | US |
| MS51830103L | 2011-03-73 | 12 | Australia |
| 5325-00-178-8116 | 2010-12-348 | 10 | US |
| MS51830103L | 2010-10-286 | 25 | US |
| MS51830103L | 2010-09-259 | 25 | RO |
| MS51830103L | 2010-08-235 | 500 | India |
| MS51830103L | 2010-05-132 | 1000 | India |
| MS51830103L | 2010-03-74 | 22 | United States |
| MS51830103L | 2010-03-70 | 22 | US |
| MS51830103L | 2009-12-340 | 3000 | IL |
| MS51830103L | 2009-08-224 | 200 | US |
| KNCL0632 | 2009-05-126 | 150 | United States |
| MS51830103L | 2009-01-07 | 170 | United States |
| MS51830103L | 2009-01-07 | 4200 | United States |
| MS51830103L | 2008-11-317 | 170 | United States |
| MS51830103L | 2008-11-317 | 4200 | United States |
| 5325-00-178-8116 | 2008-03-70 | 2313 | DIBBS |
| MS51830103L | 2007-04-94 | 240 | US |
Cross Reference | NSN 5325-00-178-8116
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 15890226-5 | F6151 | SAFRAN |
| 15890226-5 | FAQ15 | SAGEM DEFENSE SECURITE - GROUPESAFRAN |
| 4144000-193 | D9182 | BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT |
| 5340001788116 | SCY13 | E.C.A ETABLISSEMENT CENTRALD'APPROVISIONNEMENT DES |
| 7904962-08 | D9182 | BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT |
| 875292-00 | 32345 | DEFENSE REDUCTION AGENCY |
| K9000-06 | 29372 | ALCOA GLOBAL FASTENERS, INC. DBA ALCOA FASTENING SYSTEMS |
| K9000-06 | 75237 | ALCOA GLOBAL FASTENERS, INC. DBA ALCOA FASTENING SYSTEMS |
| KNCAL0632 | D9182 | BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT |
| KNCL0632 | 29372 | ALCOA GLOBAL FASTENERS, INC. DBA ALCOA FASTENING SYSTEMS |
| KNCL0632 | D0680 | ALCOA FASTENING SYSTEMS FAIRCHILDFASTENERS EUROPE - CAMLOC |
| MS51830-103L | 96906 | MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS |
