NSN 5325-00-171-4882 S111512, S1115-12, FDT0003003
Product Details | TURNLOCK FASTENER STUD
5325-00-171-4882 A pinlike item designed to turn within and be held in place by an EYELET, TURNLOCK FASTENER; RING, RETAINING; or the surface of the item it fastens. It is provided with either a cam slot, cam lead threads, or a hold for accommodating a pin. Securing is accomplished by mating with a LOCKSPRING, TURNLOCK FASTENER or RECEPTACLE, TURNLOCK FASTENER. It has either provisions to accommodate a knob or extension or has a head which has provisions to facilitate turning.
Part Alternates: S111512, S1115-12, FDT0003003, FD-T0003-003, 20120, 2-0-120, 23104215, 2310-4215, 600117P5, 625003-347, 650756, 6518389, 721699-027, 82-11-120-16, 9176184, 5325-00-171-4882, 00-171-4882, 5325001714882, 001714882, 625003347, 821112016, 721699027
Hardware and Abrasives | Fastening Devices
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 01 JAN 1963 | 00-171-4882 | 18421 ( STUD, TURNLOCK FASTENER ) |

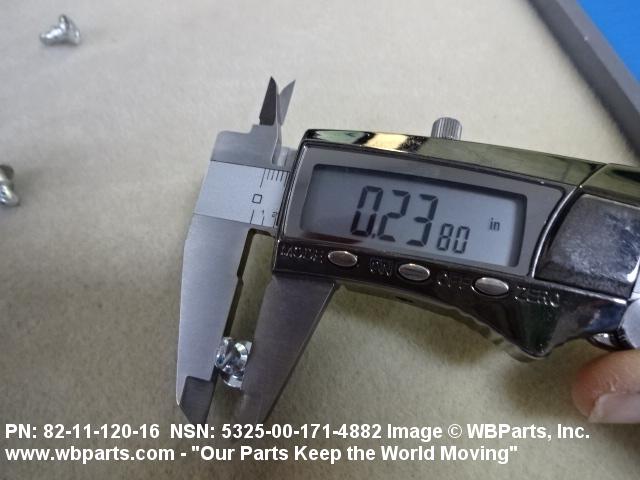

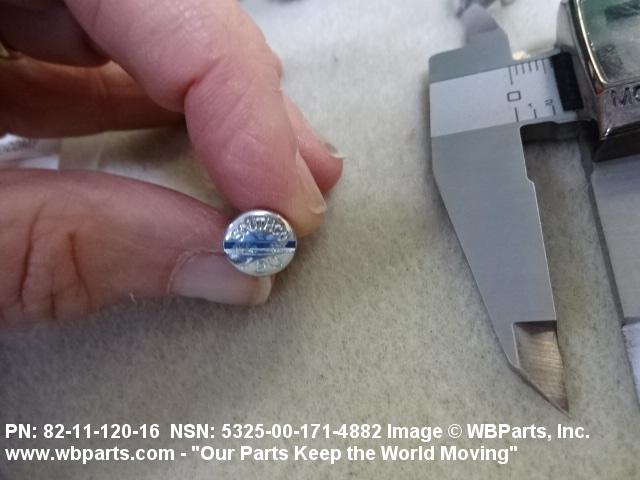

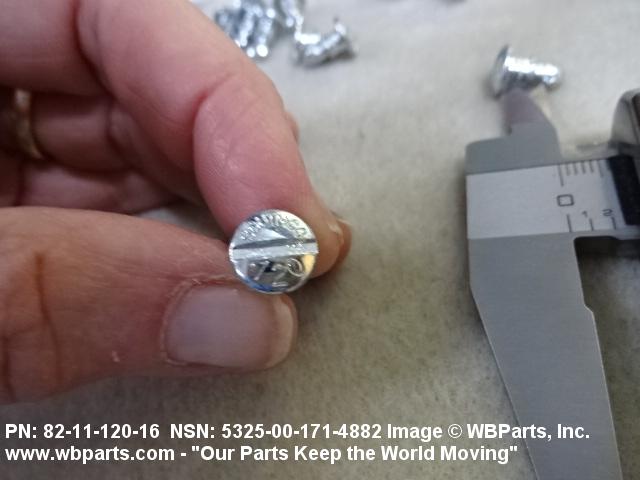

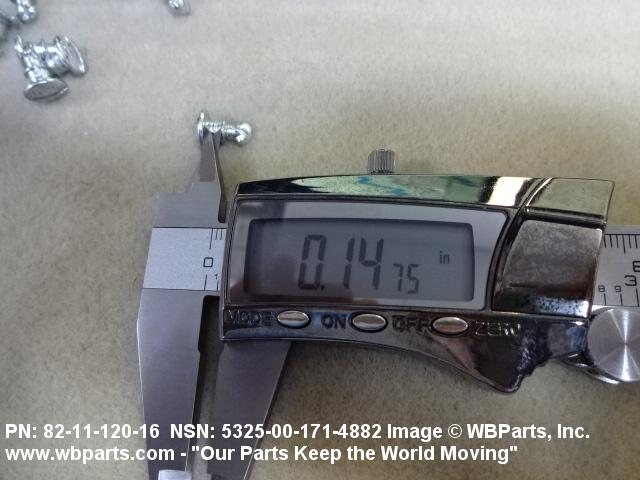

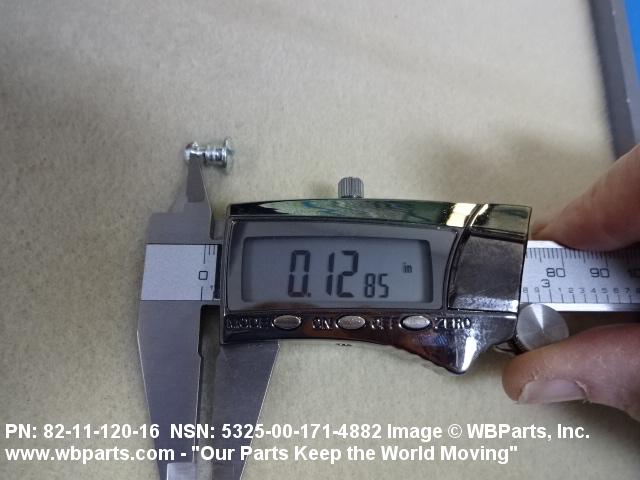

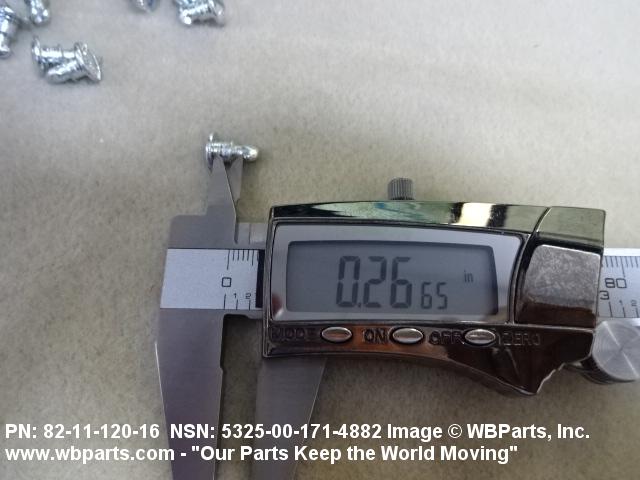

Drawings & Photos | NSN 5325-00-171-4882
Demand History | NSN 5325-00-171-4882
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 2-0-120 | 2017-11-333 | 8 | AE |
| 5325-00-171-4882 | 2017-11-333 | 8 | MANUAL |
| S1115-12 | 2017-05-131 | 200 | Philippines |
| S1115-12 | 2017-05-123 | 200 | US |
| S1115-12 | 2017-03-81 | 200 | Philippines |
| 5325-00-171-4882 | 2017-02-32 | 200 | Philippines |
| 5325-00-171-4882 | 2011-08-214 | 1 | United States |
| S111512 | 2011-06-173 | 10 | United States |
Cross Reference | NSN 5325-00-171-4882
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 2-0-120 | 75618 | SOUTHCO INC NEW YORK DIV |
| 2-0-120 | 94222 | SOUTHCO, INC. |
| 2310-4215 | 77885 | SEEBURG CORP THE SEEBURG PRODUCTS DIV |
| 600117P5 | 94117 | BAE SYSTEMS INFORMATION AND ELECTRONIC SYSTEMS INTEGRATION INC. |
| 625003-347 | 12436 | BAE SYSTEMS NATIONAL SECURITY SOLUTIONS INC. |
| 650756 | 12436 | BAE SYSTEMS NATIONAL SECURITY SOLUTIONS INC. |
| 6518389 | 24617 | GENERAL MOTORS CORP |
| 6518389 | 73342 | ALLISON TRANSMISSION, INC. |
| 721699-027 | 82577 | RAYTHEON COMPANY DBA RAYTHEON |
| 82-11-120-16 | 94222 | SOUTHCO, INC. |
| 9176184 | 18876 | U S ARMY AVIATION AND MISSILE COMMAND |
| FD-T0003-003 | 33875 | RAYTHEON E-SYSTEMS INC |
| S1115-12 | 71379 | CESSNA AIRCRAFT COMPANY |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5325-00-171-4882
Related Products | NSN 5325-00-171-4882
Technical Data | NSN 5325-00-171-4882
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL COMP 1008 OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | ASTM A569 ASSN STD SINGLE MATERIAL RESPONSE OVERALL |
| SURFACE TREATMENT | CHROMATE AND ZINC OVERALL |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | MIL-C-87115 MIL SPEC SINGLE TREATMENT RESPONSE OVERALL |
| TURNLOCK STUD SHANK STYLE | 8 STUD SHANK |
| GRIP LENGTH | 0.265 INCHES NOMINAL |
| SHANK NECK LENGTH | 0.147 INCHES NOMINAL |
| STUD SHANK MAJOR DIAMETER | 0.240 INCHES NOMINAL |
| TURNLOCK STUD HEAD STYLE | 2 FILLISTER |
| DIAMETER | 0.375 INCHES NOMINAL |
| SECURING DEVICE TYPE | RING |
| DRIVE TYPE | SLOTTED |
| MATERIAL ACCOMMODATED THICKNESS | 0.110 INCHES MINIMUM AND 0.129 INCHES MAXIMUM |
| MANUFACTURERS CODE | 75618 |
| DESIGN CONTROL REFERENCE | 2-0-120 |
Restrictions/Controls & Freight Information | NSN 5325-00-171-4882
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 066440 | FASTENERS CURTAIN/SNAP METAL |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 713 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5325-00-171-4882
Army
Navy| Category | Code | Description |
|---|---|---|
| Materiel Category and Inventory Manager | T | Industrial Supplies (DLA/GSA Items) |
| Appropriation and Budget Activity | 2 | Stock Fund Secondary Items |
| Management Inventory Segment | 2 | NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable. |
| Specific Group/Generic Code | 0 | Medical Materiel |
| Weapons Systems/End Item or Homogeneous Group | 00 | DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item |
| Accounting Requirements Code | X | Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items. |
| Source of Supply | S9I | Defense Industrial Supply Center Philadelphia, PA 19111 |
| Agency | DA | Department of the Army |
| Service Organization | A | U.S. Army |
| Reparability | Z | This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item. |
| Acquisition Advice Codes | Y | TERMINAL ITEM #(NON-STOCKED ITEMS) Future procurement is not authorized. No wholesale stock is available for issue. 1. Requisitions will not be processed to the wholesale manager. 2. Internal Service/agency requisitioning may be continued in accordance with the Service/agency requisitioning policies. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
Q EA : Each |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9Z | Navy-owned stocks of defense industrial material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | S9I | Defense Industrial Supply Center Philadelphia, PA 19111 |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Y | TERMINAL ITEM #(NON-STOCKED ITEMS) Future procurement is not authorized. No wholesale stock is available for issue. 1. Requisitions will not be processed to the wholesale manager. 2. Internal Service/agency requisitioning may be continued in accordance with the Service/agency requisitioning policies. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
Q EA : Each |
