NSN 5325-00-159-4341 CA2044, 885C836P0022, 885C836P22
Product Details | TURNLOCK FASTENER RECEPTACLE
5325-00-159-4341 A threaded or tempered item used to secure the STUD, TURNLOCK FASTENER or STUD ASSEMBLY, TURNLOCK FASTENER by engaging with the cross pin, cam lead threads, or eared nut of the STUD, TURNLOCK FASTENER and securing it by means of its thread locking or spring action.
Part Alternates: CA2044, 885C836P0022, 885C836P22, 5325-00-159-4341, 00-159-4341, 5325001594341, 001594341
Hardware and Abrasives | Fastening Devices
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 18 OCT 1971 | 00-159-4341 | 18485 ( RECEPTACLE, TURNLOCK FASTENER ) |

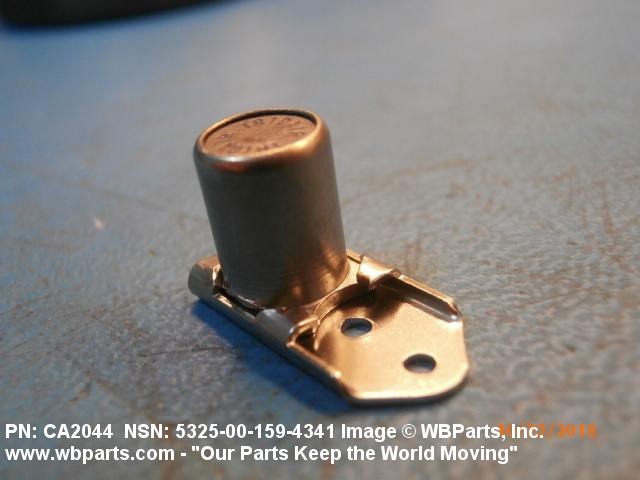

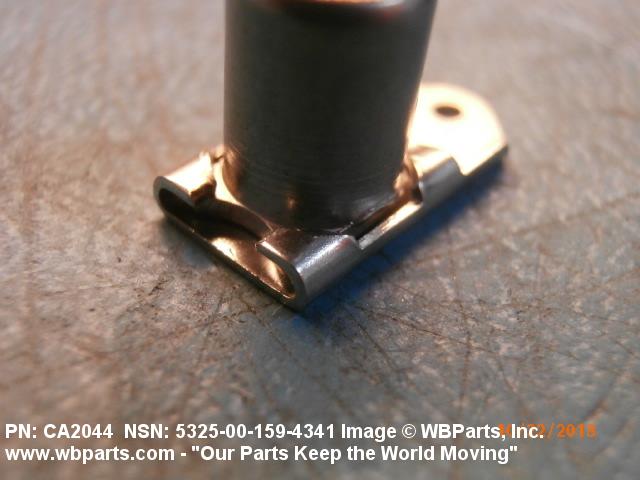

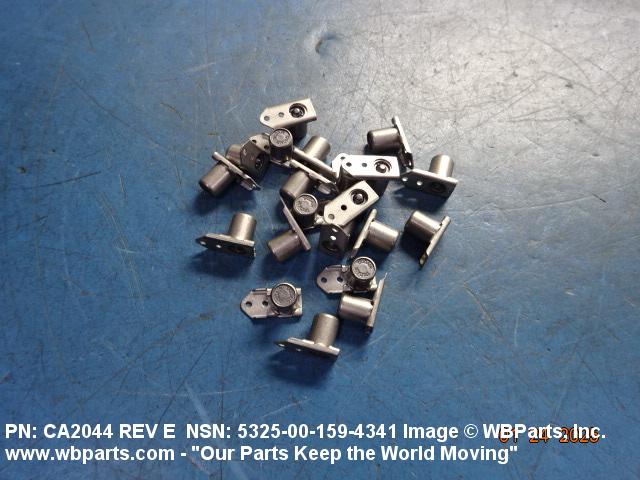

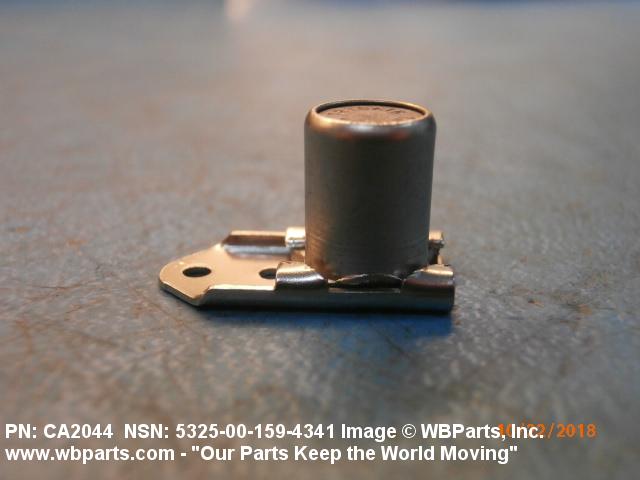

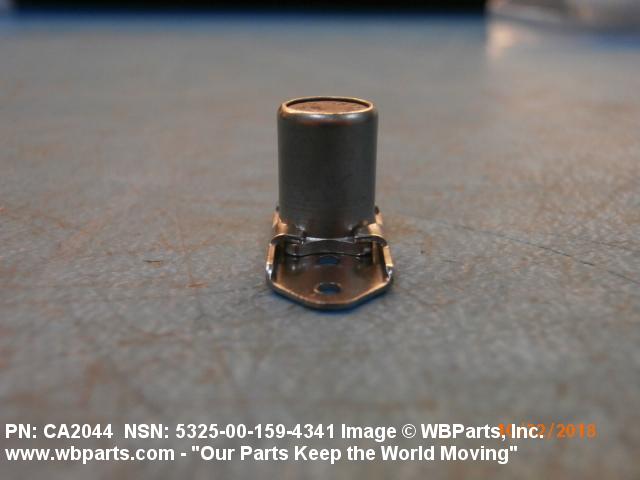

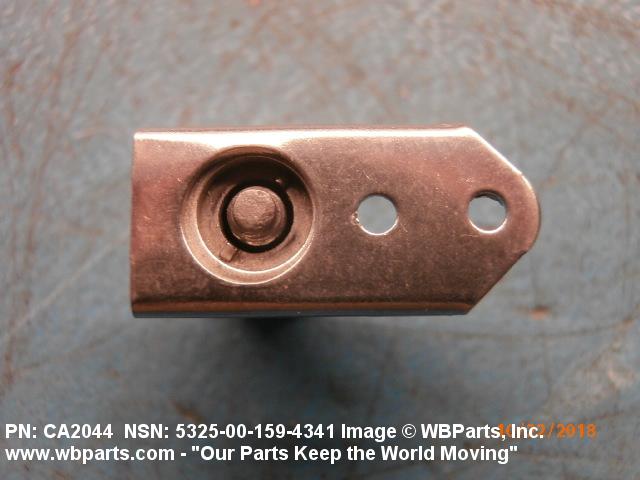

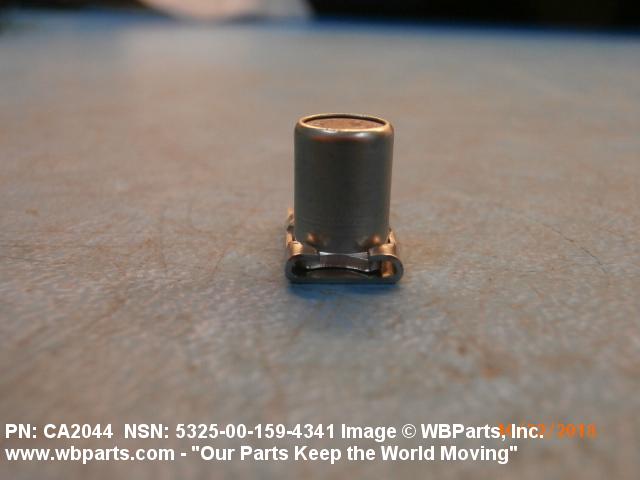

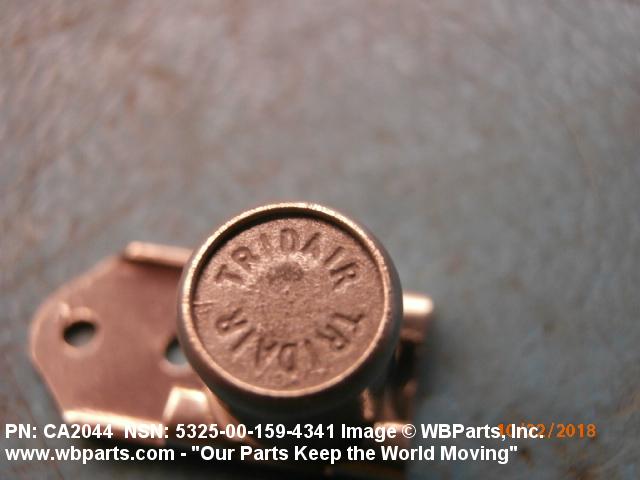

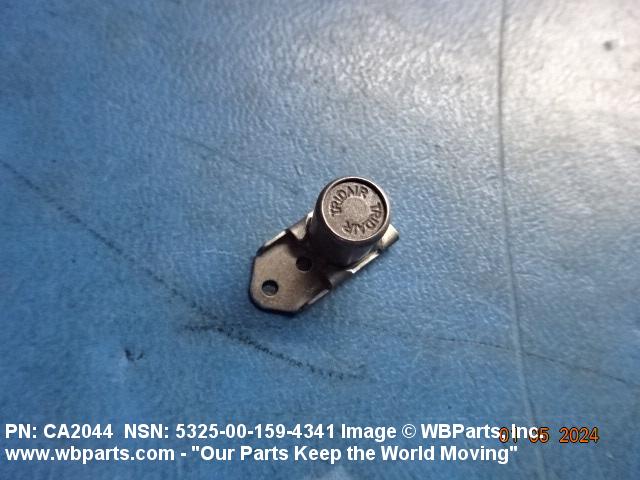

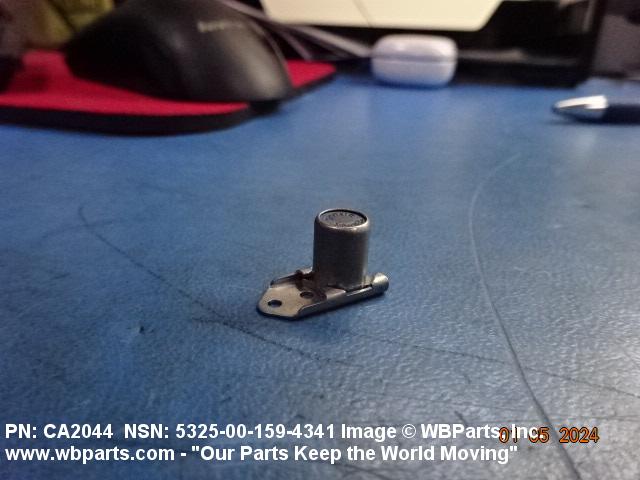

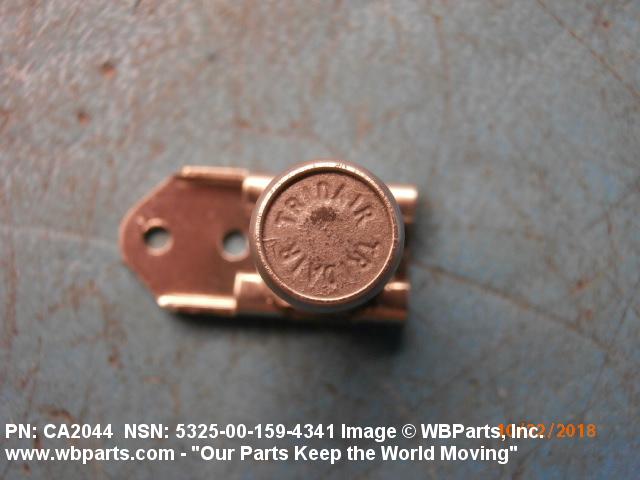

Drawings & Photos | NSN 5325-00-159-4341
Demand History | NSN 5325-00-159-4341
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5325-00-159-4341 | 2024-08-228 | 25 | United States |
| 5325-00-159-4341 | 2024-08-228 | 50 | United States |
| 5325-00-159-4341 | 2024-01-02 | 1 | United States |
| 5325-00-159-4341 | 2024-01-02 | 3 | United States |
| 5325-00-159-4341 | 2024-01-02 | 10 | United States |
| CA2044 | 2018-10-282 | 20 | us |
| 5325-00-159-4341 | 2018-04-101 | 195 | DIBBS |
| 5325-00-159-4341 | 2018-02-44 | 200 | DIBBS |
| 5325-00-159-4341 | 2017-12-344 | 146 | DIBBS |
| CA2044 | 2014-11-314 | 3 | IN |
| CA2044 | 2011-02-52 | 70 | US |
Cross Reference | NSN 5325-00-159-4341
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 885C836P0022 | 99971 | LOCKHEED MARTIN CORP NAVAL ELECTRONICS & SURVEILLANCE |
| 885C836P22 | 99971 | LOCKHEED MARTIN CORP NAVAL ELECTRONICS & SURVEILLANCE |
| CA2044 | 29372 | ALCOA GLOBAL FASTENERS, INC. DBA ALCOA FASTENING SYSTEMS |
| CA2044 | D0680 | ALCOA FASTENING SYSTEMS FAIRCHILDFASTENERS EUROPE - CAMLOC |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5325-00-159-4341
Related Products | NSN 5325-00-159-4341
Technical Data | NSN 5325-00-159-4341
| Characteristic | Specifications |
|---|---|
| MATERIAL | IRON ALLOY 660 RECEPTACLE MECHANISM STEEL COMP 301 RECEPTACLE PLATE STEEL COMP 303SE HOUSING |
| MATERIAL DOCUMENT AND CLASSIFICATION | AMS 5731 ASSN STD 2ND MATERIAL RESPONSE RECEPTACLE MECHANISM MIL-S-5059 MIL SPEC 1ST MATERIAL RESPONSE RECEPTACLE PLATE AMS 5640 ASSN STD 3RD MATERIAL RESPONSE HOUSING |
| SURFACE TREATMENT | PASSIVATE RECEPTACLE PLATE PASSIVATE HOUSING |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | QQ-P-35 FED SPEC 1ST TREATMENT RESPONSE RECEPTACLE PLATE QQ-P-35 FED SPEC 2ND TREATMENT RESPONSE HOUSING |
| TURNLOCK RECEPTACLE STYLE | 28 FLOATING |

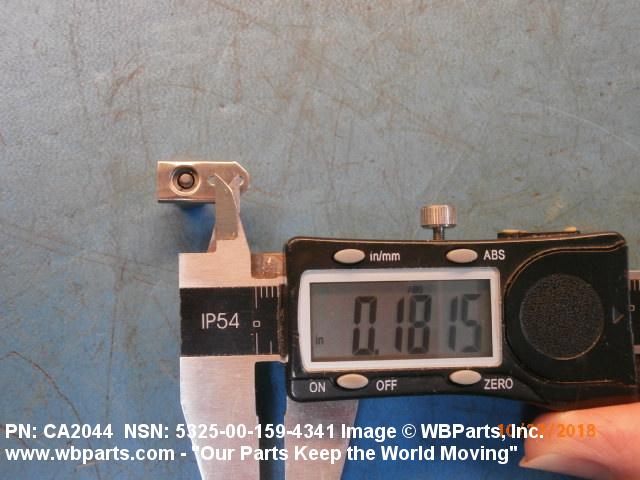

| CENTER TO CENTER DISTANCE BETWEEN MOUNTING HOLES | 0.182 INCHES MINIMUM AND 0.192 INCHES MAXIMUM |

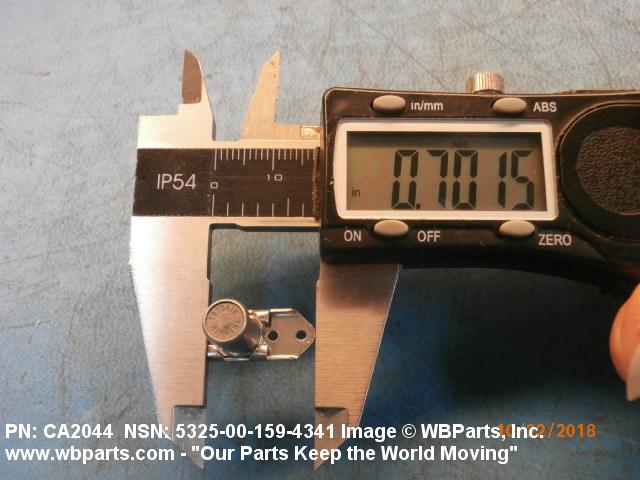

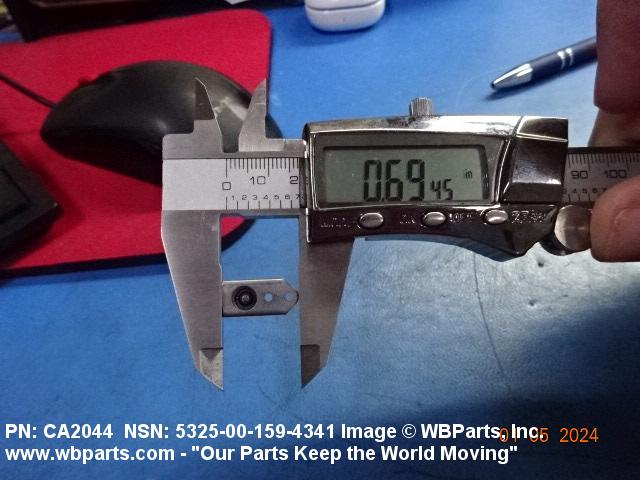

| RECEPTACLE OVERALL LENGTH | 0.675 INCHES MINIMUM AND 0.705 INCHES MAXIMUM |

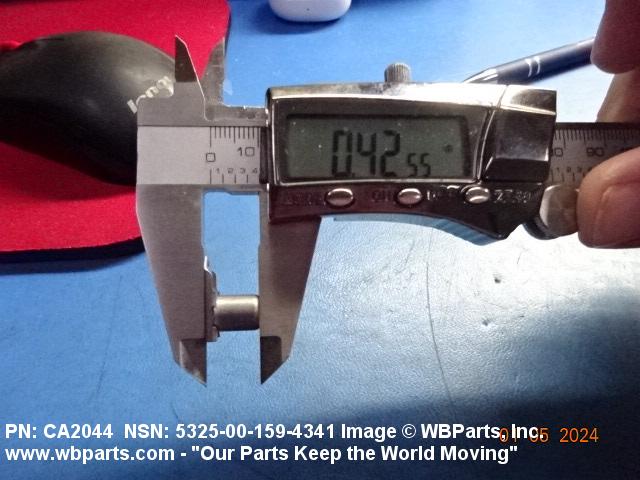

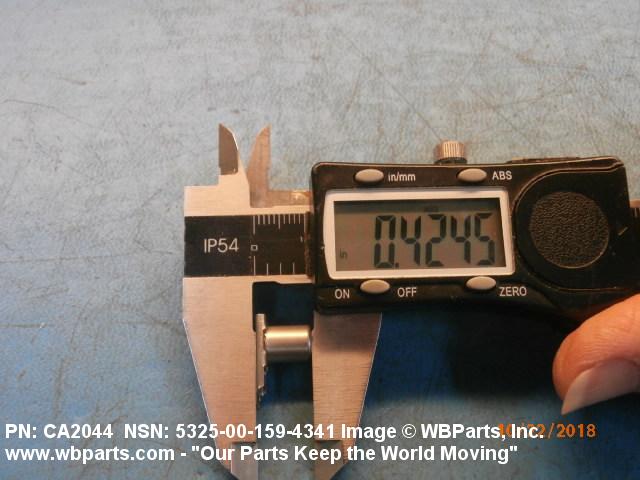

| RECEPTACLE HEIGHT | 0.425 INCHES MINIMUM AND 0.455 INCHES MAXIMUM |

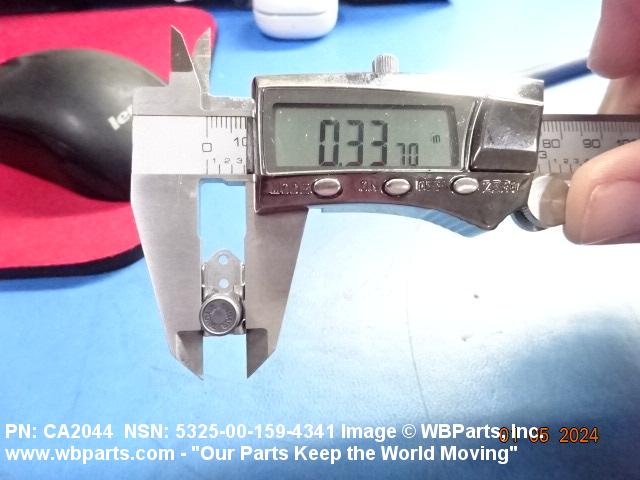

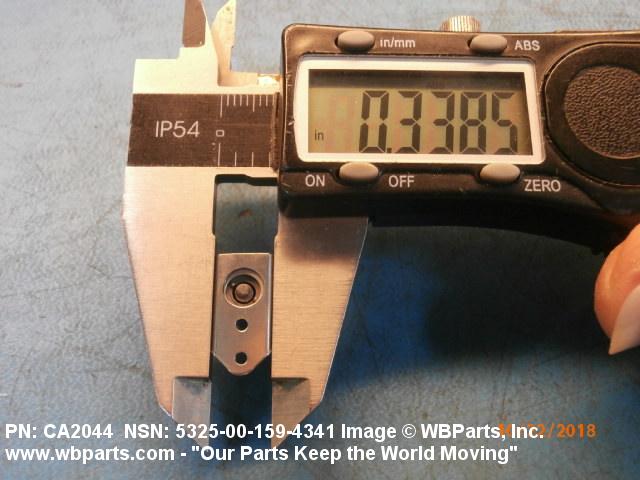

| RECEPTACLE WIDTH | 0.315 INCHES MINIMUM AND 0.345 INCHES MAXIMUM |
| MOUNTING STYLE | 2 PLAIN W/MOUNTING HOLE |

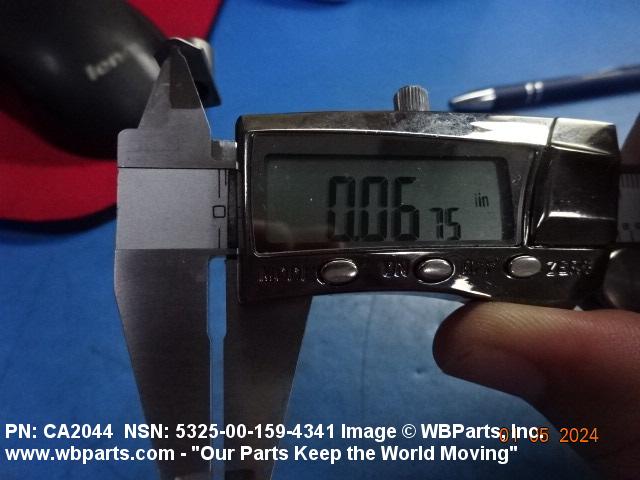

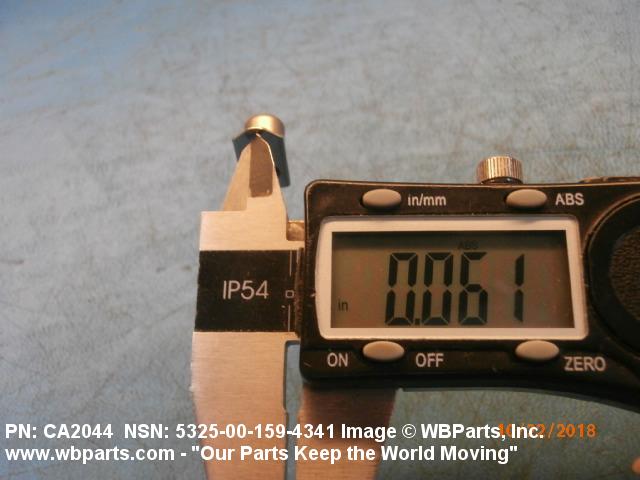

| TURNLOCK MOUNTING HOLE DIAMETER | 0.061 INCHES MINIMUM AND 0.071 INCHES MAXIMUM |
| MOUNTING FACILITY THREAD SIZE AND SERIES/TYPE DESIGNATOR | 0.112-40 UNC |
| FEATURES PROVIDED | PROTECTIVE CAP |
| III END ITEM IDENTIFICATION | AN/ALQ-119 |
Restrictions/Controls & Freight Information | NSN 5325-00-159-4341
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 095190 | HARDWARE, NOI |
| Less than car load rating | Q | 70 |
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 713 | unknown |
| Originating Activity Code | SE | San Antonio Air Logistics Center Kelly AFB, TX 78241-5000 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | ||
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | Z | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5325-00-159-4341
Air Force
Navy| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Materiel Management Aggregation Code | EW | TG:AIRBORNE ELECTRONIC WARFARE EQUIPMENT |
| Price Validation | N | The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
|
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
