NSN 5325-00-067-5716 BACS21EE6FR, BACS21Y6FR, HE12800286106
Product Details | TURNLOCK FASTENER STUD ASSEMBLY
5325-00-067-5716 A STUD, TURNLOCK FASTENER over which may be assembled an EYELET, TURNLOCK FASTENER. Stud(s) without cam slots or cam lead threads are provided with a crosspin or eared nut for locking with the mating RECEPTACLE, TURNLOCK FASTENER. May be spring loaded. For like items having a threaded fastener, see SCREW ASSEMBLY, PANEL or SCREW, PANEL FASTENER.
Part Alternates: BACS21EE6FR, BACS21Y6FR, HE12800286106, HE128-0028-6106, 18509574-6, 27036, 2703-6, 27536, 2753-6, 27S306, 27S3-06, 27S36, 27S3-6, 5320025, 532002-5, 11270046, 1127004-6, 721632-356, 810AS22752, 810AS2275-2, 5325-00-067-5716, 00-067-5716, 5325000675716, 000675716, 185095746, 721632356
Hardware and Abrasives | Fastening Devices
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 01 JAN 1963 | 00-067-5716 | 18484 ( STUD ASSEMBLY, TURNLOCK FASTENER ) |

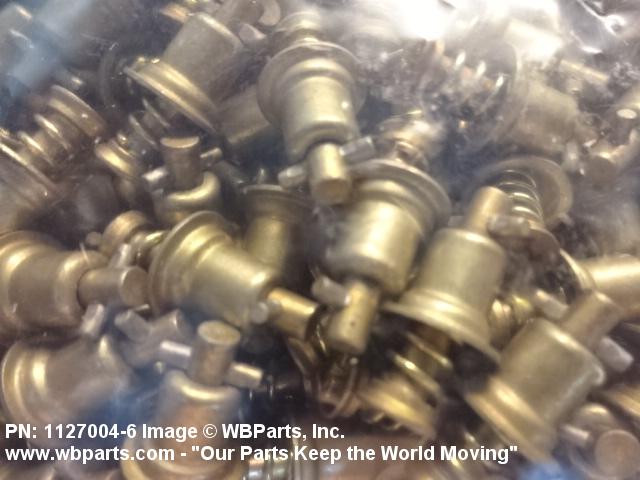

Drawings & Photos | NSN 5325-00-067-5716
Demand History | NSN 5325-00-067-5716
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 11270046 | 2023-12-352 | 468 | United States |
| 11270046 | 2023-06-180 | 20 | United States |
| 11270046 | 2023-06-160 | 100 | United States |
| 5325-00-067-5716 | 2019-12-350 | 32 | US |
| 11270046 | 2019-12-350 | 32 | US |
| 11270046 | 2019-03-66 | 10 | United States |
| 27S36 | 2019-02-52 | 4 | TH |
| 5325-00-067-5716 | 2018-12-339 | 2227 | DIBBS |
| 5325-00-067-5716 | 2018-08-239 | 1622 | DIBBS |
| 5325-00-067-5716 | 2018-08-231 | 1622 | DIBBS |
| 5325-00-067-5716 | 2018-08-230 | 1622 | DIBBS |
| 1127004-6 | 2014-06-157 | 50 | United States |
| 27S3-6 | 2013-09-263 | 40 | US |
| 11270046 | 2009-12-344 | 100 | Canada |
| 27S36 | 2009-06-170 | 50 | United States |
| 721632356 | 2008-10-298 | 75 | US |
| 27536 | 2007-08-221 | 4 | Canada |
Cross Reference | NSN 5325-00-067-5716
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 1127004-6 | 60119 | MONADNOCK COMPANY THE DBA LISI AEROSPACE |
| 18509574-6 | F6151 | SAFRAN |
| 2703-6 | 71286 | ALCOA GLOBAL FASTENERS, INC. DBA ALCOA FASTENING SYSTEMS |
| 2753-6 | 71286 | ALCOA GLOBAL FASTENERS, INC. DBA ALCOA FASTENING SYSTEMS |
| 27S3-06 | 71286 | ALCOA GLOBAL FASTENERS, INC. DBA ALCOA FASTENING SYSTEMS |
| 27S3-6 | 71286 | ALCOA GLOBAL FASTENERS, INC. DBA ALCOA FASTENING SYSTEMS |
| 27S3-6 | D0680 | ALCOA FASTENING SYSTEMS FAIRCHILDFASTENERS EUROPE - CAMLOC |
| 532002-5 | 96214 | RAYTHEON COMPANY DBA RAYTHEON |
| 721632-356 | D9182 | BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT |
| 810AS2275-2 | 30003 | NAVAL AIR SYSTEMS COMMAND |
| BACS21EE6FR | 81205 | THE BOEING COMPANY DBA BOEING |
| BACS21Y6FR | 81205 | THE BOEING COMPANY DBA BOEING |
| HE128-0028-6106 | 89372 | ROCKWELL INTERNATIONAL CORP NORTH AMERICAN AIRCRAFT OPNS |
