NSN 5325-00-067-8319 MS166291050, MS16629-1050, N500150MD
Product Details | RETAINING RING
5325-00-067-8319 A resilient metal item, circular or nearly circular, which is designed to be inserted into an internal or external groove and retained by its own spring action, or it may have external prongs or projections designed to be inserted into a hole and retained by spring action of the prongs which grip by imbedding into the material. For items having internal prongs which perform the same function, see PUSH ON NUT. It is used to keep and/or lock a part(s) in position, as a ball bearing on a shaft or in a housing. See also CLIP, RETAINING and PIN, LOCK. Excludes RING, CONNECTING, ROUND.
Part Alternates: MS166291050, MS16629-1050, N500150MD, N5001-50MD , N500150SMD, N5001-50-S-MD, 3001X50S7CD, 3001-X50-S7-CD, 3621013P6, 362-1013P6, 5325-00-067-8319, 00-067-8319, 5325000678319, 000678319
Hardware and Abrasives | Fastening Devices
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 01 JAN 1963 | 00-067-8319 | 07623 ( RING, RETAINING ) |
Drawings & Photos | NSN 5325-00-067-8319
Demand History | NSN 5325-00-067-8319
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5325-00-067-8319 | 2020-10-287 | 2396 | DIBBS |
| 5325-00-067-8319 | 2019-06-170 | 477 | DIBBS |
| 5325-00-067-8319 | 2017-08-215 | 1000 | DIBBS |
Cross Reference | NSN 5325-00-067-8319
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 3001-X50-S7-CD | 07382 | ROTOR CLIP COMPANY INC. DBA ROTOR CLAMP |
| 3001-X50-S7-CD | 97464 | TRUARC CO LLC |
| 362-1013P6 | 49956 | RAYTHEON COMPANY DBA RAYTHEON |
| MS16629-1050 | 96906 | MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS |
| N5001-50-S-MD | 07382 | ROTOR CLIP COMPANY INC. DBA ROTOR CLAMP |
| N5001-50-S-MD | 79136 | TRUARC COMPANY LLC DBA WALDES TRUARC |
| N5001-50MD | 07382 | ROTOR CLIP COMPANY INC. DBA ROTOR CLAMP |
| N5001-50MD | 79136 | TRUARC COMPANY LLC DBA WALDES TRUARC |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5325-00-067-8319
Related Products | NSN 5325-00-067-8319
Technical Data | NSN 5325-00-067-8319
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL,FED STD 66B,AISI C1066 THRU C1090 OR SAE 1070 THRU 1090 |
| SURFACE TREATMENT | CADMIUM AND CHROMATE |
| STRENGTH RATING | NOT RATED |
| MATERIAL HARDNESS RATING | 69.5 ROCKWELL SUPERFICIAL 30-N MINIMUM AND 73.0 ROCKWELL SUPERFICIAL 30-N MAXIMUM |
| CASEHARDENING INDICATOR | NOT CASEHARDENED |

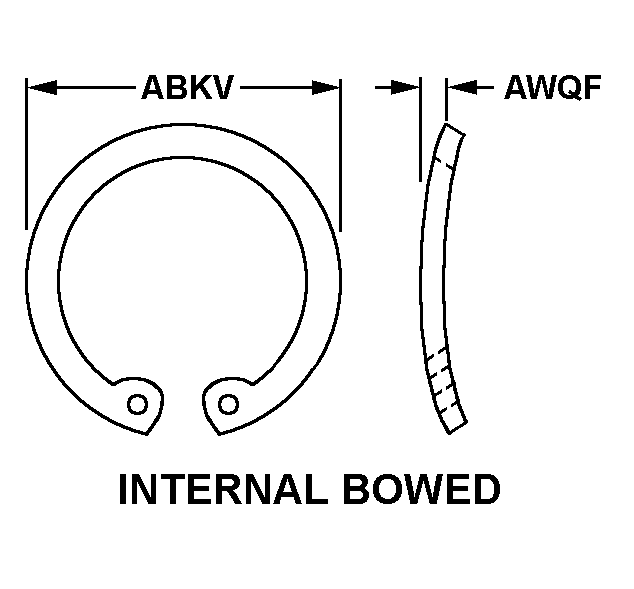

| RING STYLE | A39 INTERNAL BOWED |
