NSN 5325-00-020-6689 MS2798027B, MS27980-27B, 00-020-6689
Product Details | SNAP FASTENER STUD
5325-00-020-6689 A component of a FASTENER, SNAP; which is designed for insertion into a SOCKET, SNAP FASTENER. It may be furnished with POST, SNAP FASTENER or CLINCH PLATE, SNAP FASTENER. Excludes STUD, SNAPSLIDE FASTENER.
Part Alternates: MS2798027B, MS27980-27B, 5325-00-020-6689, 00-020-6689, 5325000206689, 000206689
Hardware and Abrasives | Fastening Devices
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 17 OCT 1972 | 00-020-6689 | 16550 ( STUD, SNAP FASTENER ) |

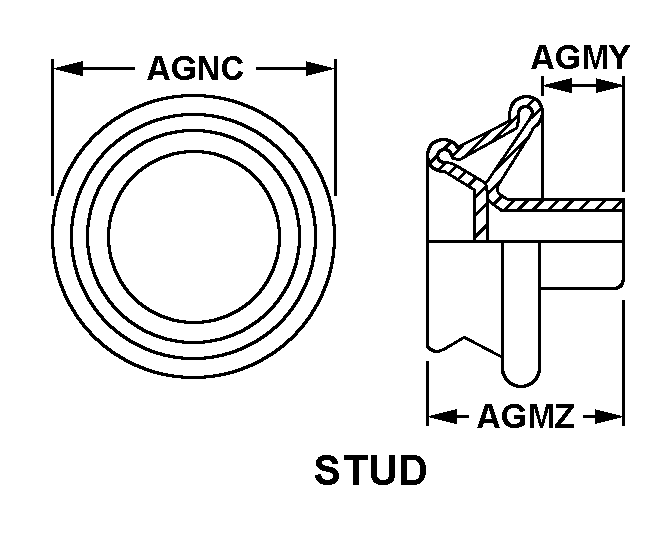

Drawings & Photos | NSN 5325-00-020-6689
Demand History | NSN 5325-00-020-6689
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5325-00-020-6689 | 2021-04-105 | 1000 | CO |
| 5325-00-020-6689 | 2019-05-134 | 1000 | Colombia |
| 5325-00-020-6689 | 2018-10-282 | 770 | DIBBS |
| 5325-00-020-6689 | 2017-04-102 | 5 | US |
Cross Reference | NSN 5325-00-020-6689
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| MS27980-27B | 96906 | MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5325-00-020-6689
Related Products | NSN 5325-00-020-6689
Technical Data | NSN 5325-00-020-6689
| Characteristic | Specifications |
|---|---|
| MATERIAL | COPPER ALLOY 260 OVERALL |
| SURFACE TREATMENT | OXIDE FILM OVERALL |
| SNAP FASTENER STUD STYLE | 23 STUD |
| STUD SHANK LENGTH | 0.172 INCHES NOMINAL |
| STUD OVERALL LENGTH | 0.391 INCHES NOMINAL |
| STUD BASE DIAMETER | 0.562 INCHES NOMINAL |
| STUD RETENTION METHOD | EYELET |
| MANUFACTURERS CODE | 96906 |
| DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | MS27980-27B |
