Product Details | TUBULAR RIVET

5320-01-432-8993 A headed fastening device having a smooth shank which is hollow or having a cavity at its end and designed to have the shank clinched after insertion.

Part Alternates: JK5516C08N06B, 5320-01-432-8993, 01-432-8993, 5320014328993, 014328993

Hardware and Abrasives | Rivets

Supply Group (FSG) NSN Assign. NIIN
53 17 JUN 1996 01-432-8993

Drawings & Photos | NSN 5320-01-432-8993


Cross Reference | NSN 5320-01-432-8993

Part Number Cage Code Manufacturer
JK5516C08N06B 24973 J.O. KING INCORPORATED

Request a Quote

What Our Customers Say

Compare

NSNs for Compare ( up to 4 ): Add 5320-01-432-8993

Technical Data | NSN 5320-01-432-8993

Characteristic Specifications
MATERIAL IRON ALLOY 660 OVERALL
SURFACE TREATMENT PASSIVATE OVERALL
SURFACE TREATMENT DOCUMENT AND CLASSIFICATION QQ-P-35 FED SPEC SINGLE TREATMENT RESPONSE OVERALL
HEAD STYLE C47 COUNTERSUNK
HEAD MAJOR DIAMETER 0.505 INCHES NOMINAL
COUNTERSINK ANGLE 100.0 DEGREES NOMINAL

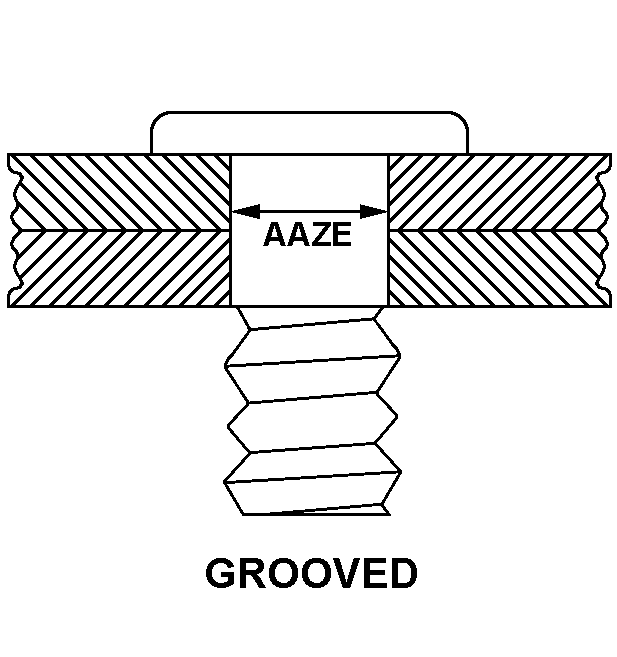

SHANK STYLE D48 GROOVED
FASTENER LENGTH 0.375 INCHES NOMINAL
SHANK DIAMETER 0.250 INCHES NOMINAL
III END ITEM IDENTIFICATION HELICOPTER, MODEL MK41

Restrictions/Controls & Freight Information | NSN 5320-01-432-8993

Category Code Description
Hazardous Material Indicator CodeNThere is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials
Demilitarization Code:ANon-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Electro-static Discharge Susceptible:ANo known Electrostatic Discharge (ESD) or Electromagnetic Interference (EMI) sensitivity
Precious Metals Indicator Code:AItem does not contain precious metal
Criticality Code:X The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.
Automatic Data Processing Equipment:0Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9)
Category Code Description
No Freight Information
