NSN 5320-00-950-4524 MS16535134, MS16535-134, AN450C8B6
Product Details | TUBULAR RIVET
5320-00-950-4524 A headed fastening device having a smooth shank which is hollow or having a cavity at its end and designed to have the shank clinched after insertion.
Part Alternates: MS16535134, MS16535-134, AN450C8B6, 109955, 20196X7/32, 20196X732, 3270X0188, 3270X0-188, 380A, 8599236208, 8599236-208, 5320-00-950-4524, 00-950-4524, 5320009504524, 009504524
Hardware and Abrasives | Rivets
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 01 JAN 1962 | 00-950-4524 | 00863 ( RIVET, TUBULAR ) |
Drawings & Photos | NSN 5320-00-950-4524
Demand History | NSN 5320-00-950-4524
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5320-00-950-4524 | 2014-10-279 | 16667 | DIBBS |
| 5320-00-950-4524 | 2014-09-268 | 16667 | DIBBS |
| 5320-00-950-4524 | 2007-02-52 | 50 | US |
| 5320-00-950-4524 | 2007-02-52 | 50 | US |
Cross Reference | NSN 5320-00-950-4524
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 109955 | 12204 | DAIMLER CHRYSLER |
| 109955 | 24617 | GENERAL MOTORS CORP |
| 20196X7/32 | 61007 | TEXTRON INC TOWNSEND DIV |
| 3270X0-188 | 61007 | TEXTRON INC TOWNSEND DIV |
| 380A | 70650 | WALBRO CORP AUTOMOTIVE PRODUCTS GROUP |
| 8599236-208 | 09691 | L-3 COMMUNICATIONS ELECTRONIC SYSTEMS INC |
| 8599236-208 | 24617 | GENERAL MOTORS CORP |
| 8599236-208 | 99974 | DELCO ELECTRONICS CORP DELCO SYSTEMS OPNS |
| AN450C8B6 | 88044 | AERONAUTICAL STANDARDS GROUP DEPT OF NAVY AND AIR FORCE |
| MS16535-134 | 96906 | MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5320-00-950-4524
Related Products | NSN 5320-00-950-4524
Technical Data | NSN 5320-00-950-4524
| Characteristic | Specifications |
|---|---|
| MATERIAL | COPPER ALLOY 270 OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | QQ-W-321 FED SPEC SINGLE MATERIAL RESPONSE OVERALL |
| SHEAR STRENGTH | 36000 DOUBLE POUNDS PER SQUARE INCH |

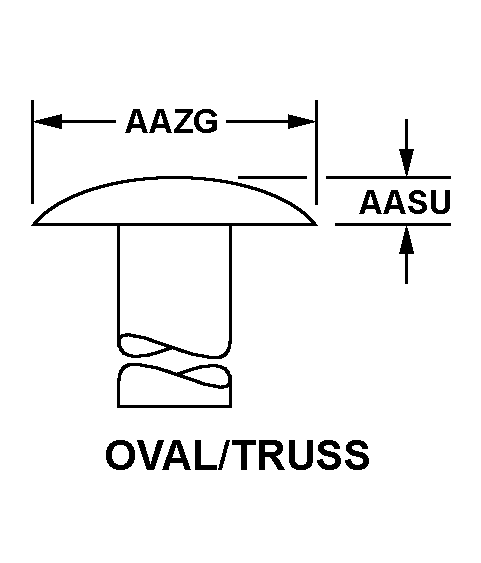

| HEAD STYLE | C19 OVAL/TRUSS |
