NSN 5320-01-432-8800 NAS16715L14, NAS1671-5L14, 01-432-8800
Product Details | BLIND RIVET
5320-01-432-8800 An item consisting of two or more of the following components: stem, rivet body, sleeve, expander, bolt, and collar. It is a headed fastening device with the shank designed to be expanded by means of a separate or integral stem or mandrel, or bolt and expander. It is designed to be installed or expanded from one side only. Excludes NUT, BLIND ASSEMBLY.
Part Alternates: NAS16715L14, NAS1671-5L14, 5320-01-432-8800, 01-432-8800, 5320014328800, 014328800
Hardware and Abrasives | Rivets
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 17 JUN 1996 | 01-432-8800 | 00864 ( RIVET, BLIND ) |

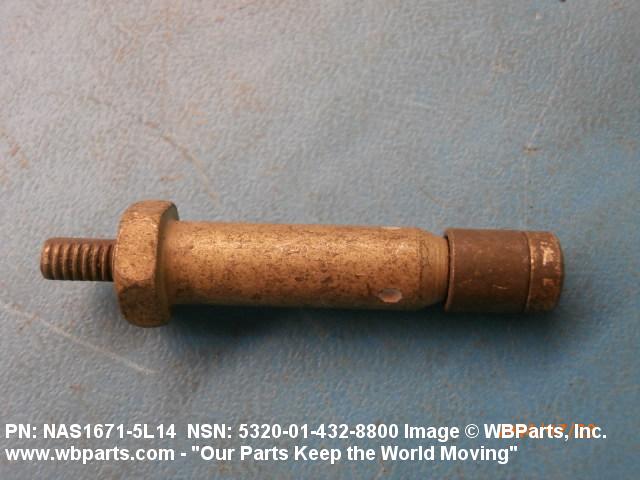

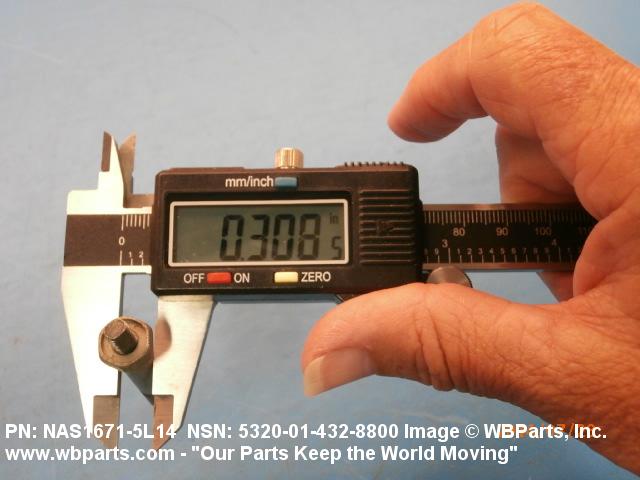

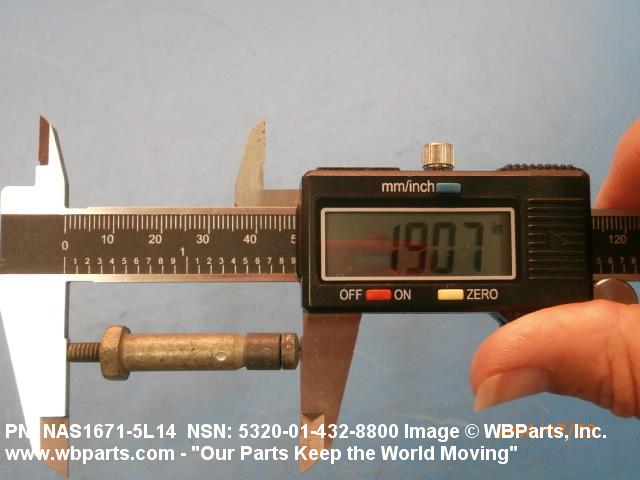

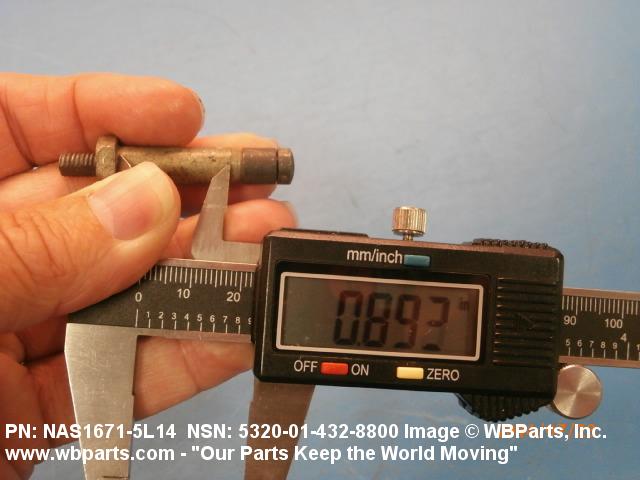

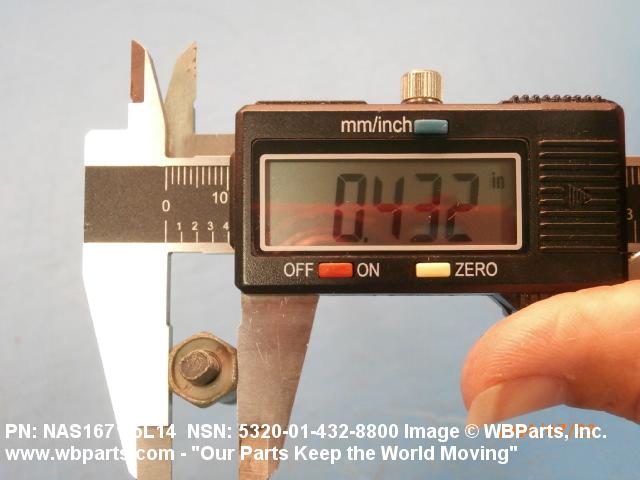

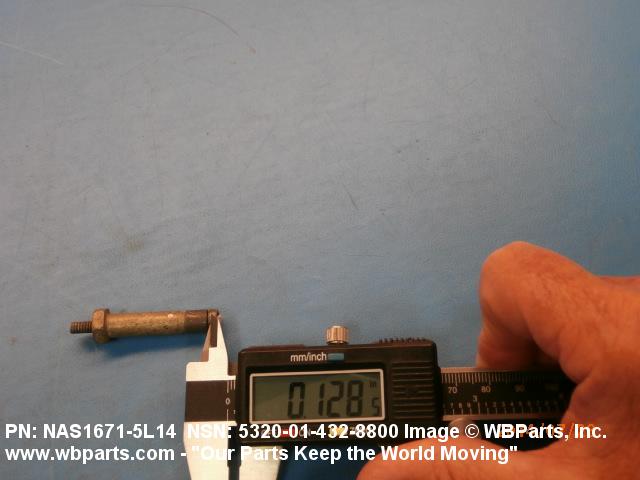

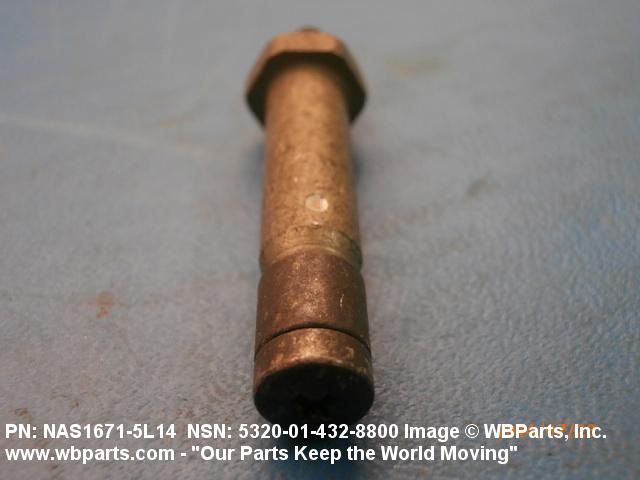

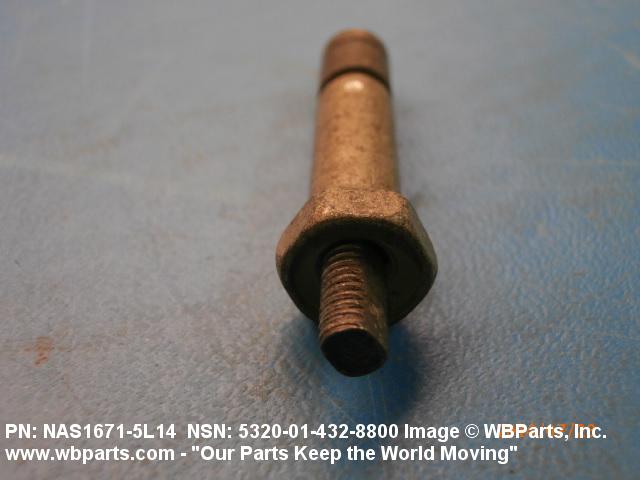

Drawings & Photos | NSN 5320-01-432-8800
