NSN 5320-01-349-5650 CSR90433518, CSR90433-5-18, 5320008518
Product Details | TUBULAR RIVET
5320-01-349-5650 A headed fastening device having a smooth shank which is hollow or having a cavity at its end and designed to have the shank clinched after insertion.
Part Alternates: CSR90433518, CSR90433-5-18, 5320008518, 5320-008-5-18, 5320-01-349-5650, 01-349-5650, 5320013495650, 013495650
Hardware and Abrasives | Rivets
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 29 NOV 1991 | 01-349-5650 | 00863 ( RIVET, TUBULAR ) |
Drawings & Photos | NSN 5320-01-349-5650
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5320-01-349-5650
Technical Data | NSN 5320-01-349-5650
| Characteristic | Specifications |
|---|---|
| MATERIAL | TITANIUM ALLOY UNS R58450 OVERALL |
| HEAD STYLE | C9 FLUSH COUNTERSUNK |
| HEAD MAJOR DIAMETER | 0.215 INCHES MINIMUM AND 0.235 INCHES MAXIMUM |
| COUNTERSINK ANGLE | 99.0 DEGREES MINIMUM AND 101.0 DEGREES MAXIMUM |

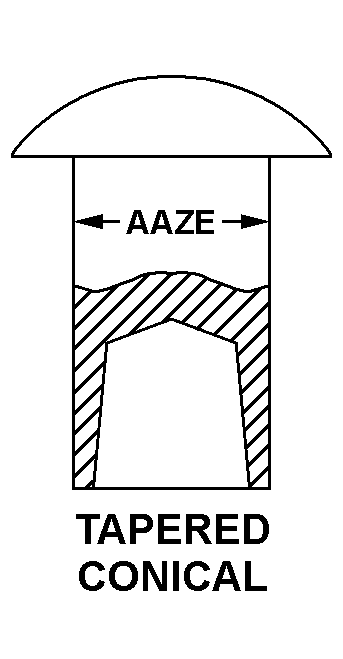

| SHANK STYLE | D45 TAPERED CONICAL |
| FASTENER LENGTH | 0.588 INCHES MINIMUM AND 0.598 INCHES MAXIMUM |
| SHANK DIAMETER | 0.155 INCHES MINIMUM AND 0.159 INCHES MAXIMUM |
Restrictions/Controls & Freight Information | NSN 5320-01-349-5650
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
