NSN 5320-01-340-0261 BACC30BL8, HST79CY8, HST79CY-8
Product Details | PIN-RIVET COLLAR
5320-01-340-0261 A soft metal or nonmetal sleeve, designed to mate with a PIN-RIVET. It may include an external wrenching facility which breaks off at a perdetermined torque to form a head.
Part Alternates: BACC30BL8, HST79CY8, HST79CY-8, HST9798, HST979-8, 5320-01-340-0261, 01-340-0261, 5320013400261, 013400261
Hardware and Abrasives | Rivets
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 06 JUN 1991 | 01-340-0261 | 67166 ( COLLAR, PIN-RIVET ) |

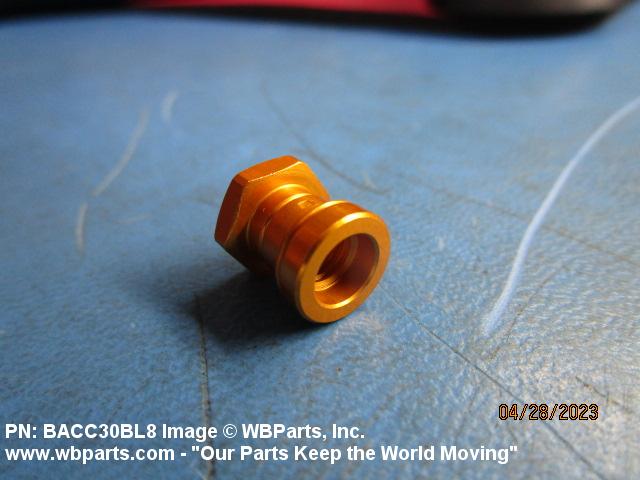

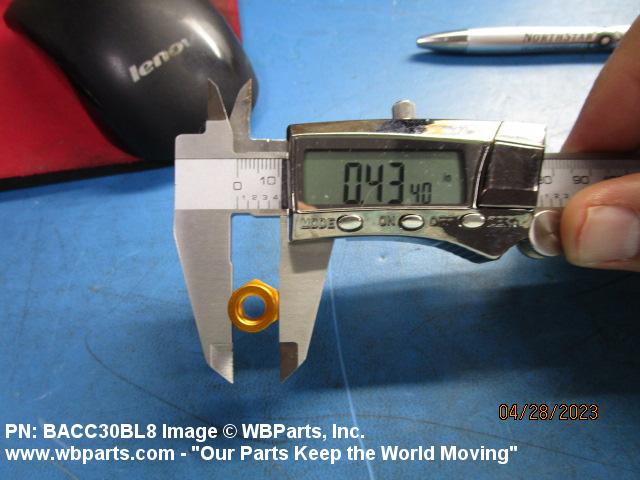

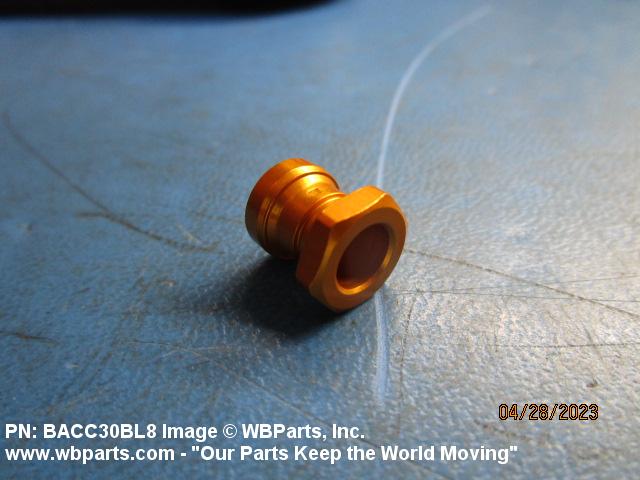

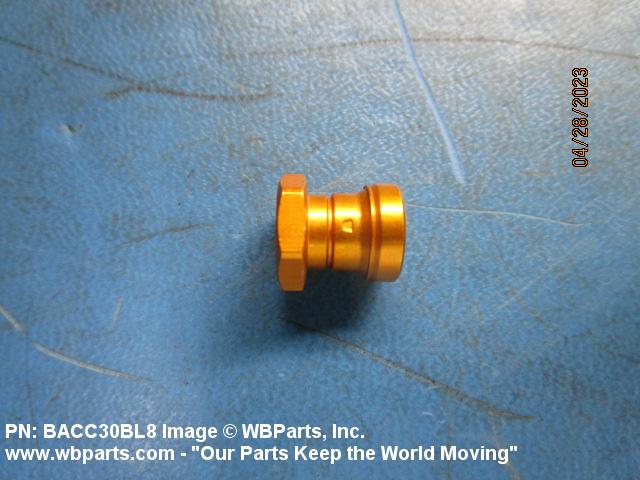

Drawings & Photos | NSN 5320-01-340-0261
Demand History | NSN 5320-01-340-0261
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5320-01-340-0261 | 2024-04-103 | 1000 | United States |
| BACC30BL8 | 2024-03-73 | 340 | IN |
| BACC30BL8 | 2023-04-116 | 1000 | United States |
| 5320-01-340-0261 | 2023-03-74 | 1000 | United States |
| HST79CY8 | 2022-08-213 | 200 | United States |
| HST79CY8 | 2022-05-147 | 370 | United States |
| 5320-01-340-0261 | 2022-05-131 | 30 | United States |
| HST79CY8 | 2022-01-31 | 100 | United States |
| HST79CY8 | 2022-01-28 | 1000 | United States |
| 5320-01-340-0261 | 2020-08-225 | 60 | US |
| HST79CY8 | 2014-04-120 | 1276 | US |
| 5320-01-340-0261 | 2013-11-328 | 118 | DIBBS |
| HST79CY8 | 2013-06-161 | 120 | US |
| HST79CY8 | 2012-08-227 | 20550 | US |
| HST79CY8 | 2011-12-356 | 3480 | CN |
| BACC30BL8 | 2010-11-313 | 100 | US |
| 5320-01-340-0261 | 2009-03-86 | 239 | DIBBS |
| 5320-01-340-0261 | 2008-10-282 | 252 | DIBBS |
| 5320-01-340-0261 | 2008-03-70 | 240 | DIBBS |
| HST79CY8 | 2007-10-278 | 100000 | Brazil |
| HST79CY8 | 2007-09-264 | 200000 | Brazil |
Cross Reference | NSN 5320-01-340-0261
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| BACC30BL8 | 81205 | THE BOEING COMPANY DBA BOEING |
| BACC30BL8 | 92215 | ALCOA GLOBAL FASTENERS, INC. DBA ALCOA FASTENING SYSTEMS |
| BACC30BL8 | Z03F0 | BOEING DEFENCE AUSTRALIA LTD |
| BACC30BL8 | Z8T75 | BOEING DEFENCE AUSTRALIA LTD |
| HST79CY-8 | 56878 | SPS TECHNOLOGIES, LLC DBA AEROSPACE DIVISION |
| HST79CY-8 | 73197 | HI-SHEAR CORPORATION |
| HST79CY-8 | 92215 | ALCOA GLOBAL FASTENERS, INC. DBA ALCOA FASTENING SYSTEMS |
| HST979-8 | 56878 | SPS TECHNOLOGIES, LLC DBA AEROSPACE DIVISION |
| HST979-8 | 73197 | HI-SHEAR CORPORATION |
| HST979-8 | L4528 | LISI AEROSPACE CANADA CORP |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5320-01-340-0261
Related Products | NSN 5320-01-340-0261
Technical Data | NSN 5320-01-340-0261
| Characteristic | Specifications |
|---|---|
| MATERIAL | ALUMINUM ALLOY 7075 OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | QQ-A-225/9 FED SPEC SINGLE MATERIAL RESPONSE OVERALL |
| SURFACE TREATMENT | ANODIZE OVERALL |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | MIL-A-8625 MIL SPEC SINGLE TREATMENT RESPONSE OVERALL |
| HEAT TREATMENT | T-73 SOLUTION HEAT TREATED OVERALL |
| COLLAR STYLE | A3 THREADED (BREAK OFF) TYPE |

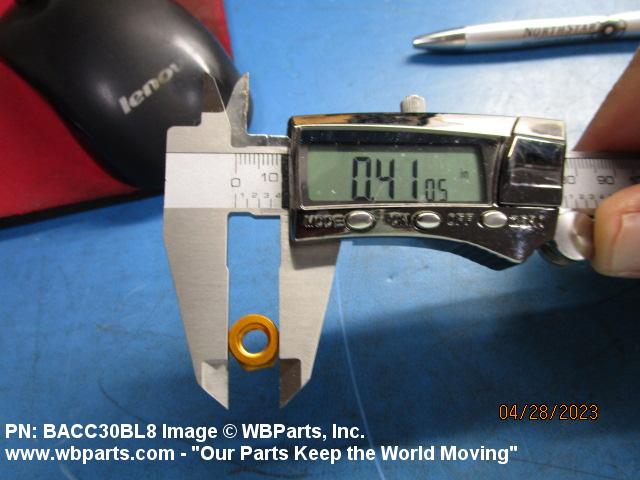

| COLLAR OUTSIDE DIAMETER | 0.405 INCHES MINIMUM AND 0.412 INCHES MAXIMUM |

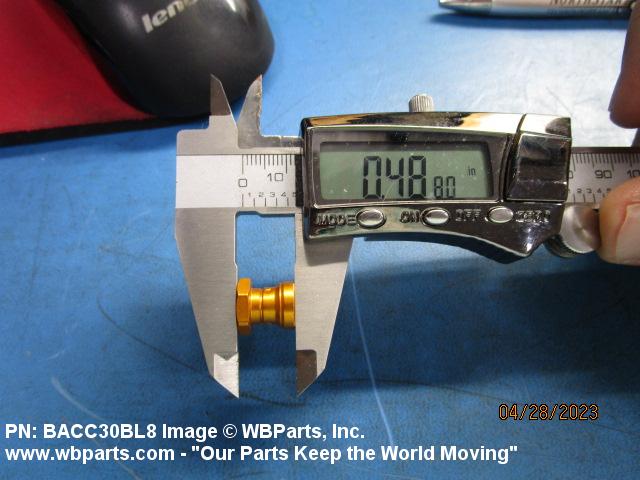

| COLLAR OVERALL HEIGHT | 0.455 INCHES MINIMUM AND 0.476 INCHES MAXIMUM |

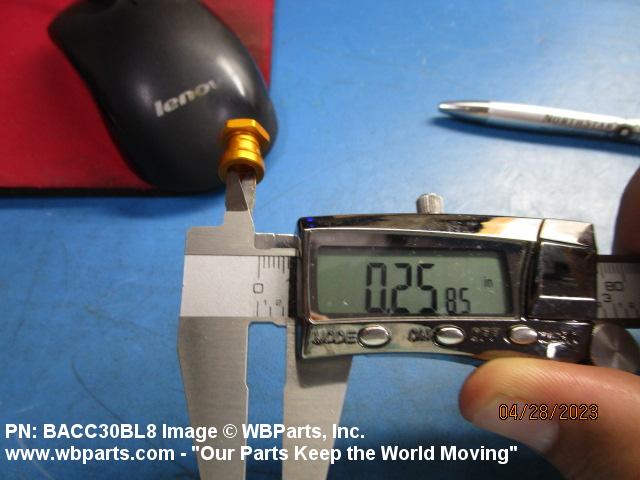

| COLLAR INSIDE DIAMETER | 0.257 INCHES MINIMUM AND 0.261 INCHES MAXIMUM |
| THREAD SERIES DESIGNATOR | UNJF |
| NOMINAL THREAD SIZE | 0.250 INCHES |
| THREAD CLASS | 3B |
| THREAD QUANTITY PER INCH | 28 |
| THREAD DIRECTION | RIGHT-HAND |
| LUBRICATION | CETYL ALCOHOL |
| SPECIAL FEATURES | COLOR ORANGE |
Restrictions/Controls & Freight Information | NSN 5320-01-340-0261
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 096320 | RIVETS I/S NICKEL PLATED BUFFED |
| Less than car load rating | ||
| Less than truck load rating | P | 77.5 |
| Water commodity Code | 713 | unknown |
| Originating Activity Code | KZ | Defense Supply Center Philadelphia Philadelphia, PA 19101 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5320-01-340-0261
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
