NSN 5320-01-273-1677 HL1087ATW6, HL1087ATW-6, 01-273-1677

Product Details | PIN-RIVET COLLAR

5320-01-273-1677 A soft metal or nonmetal sleeve, designed to mate with a PIN-RIVET. It may include an external wrenching facility which breaks off at a perdetermined torque to form a head.

Part Alternates: HL1087ATW6, HL1087ATW-6, 5320-01-273-1677, 01-273-1677, 5320012731677, 012731677

Hardware and Abrasives | Rivets

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
53	21 FEB 1988	01-273-1677	67166 ( COLLAR, PIN-RIVET )

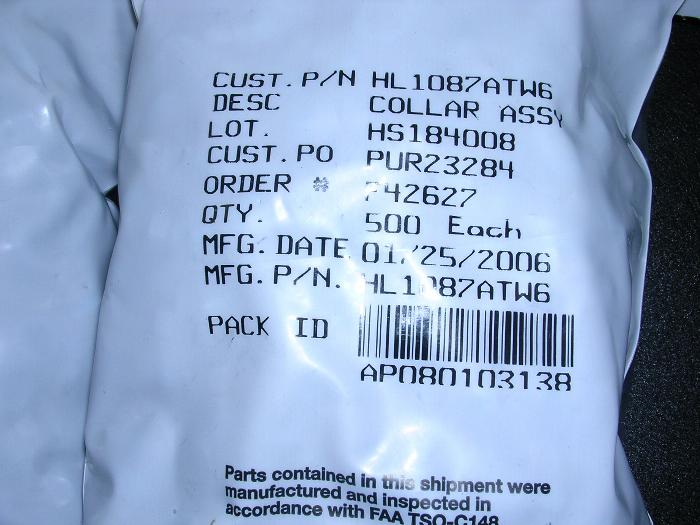

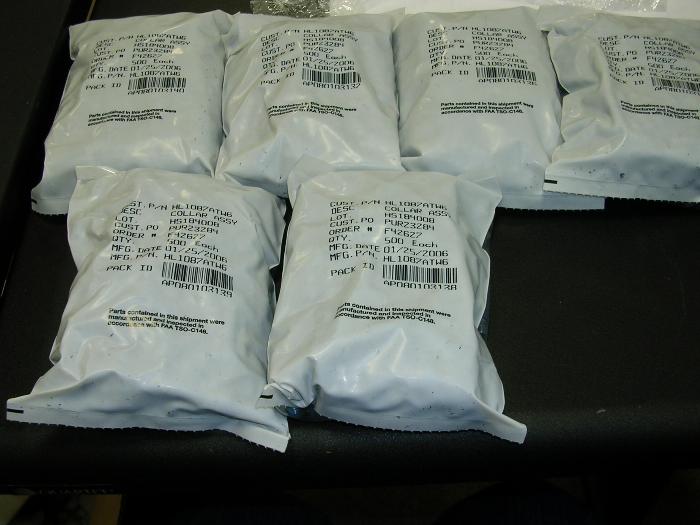

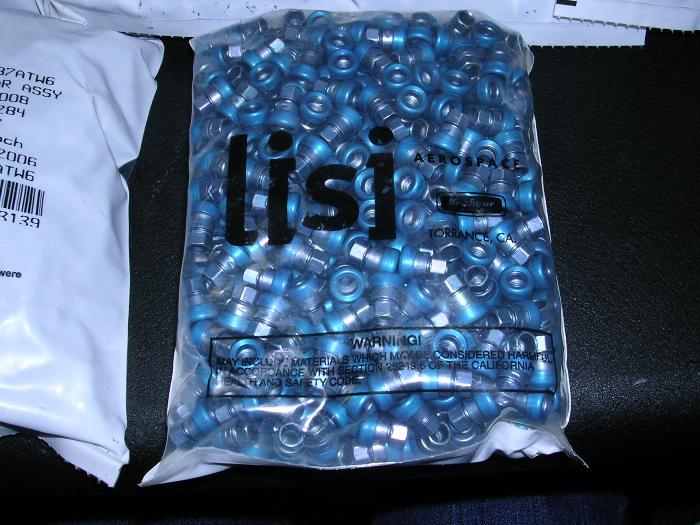

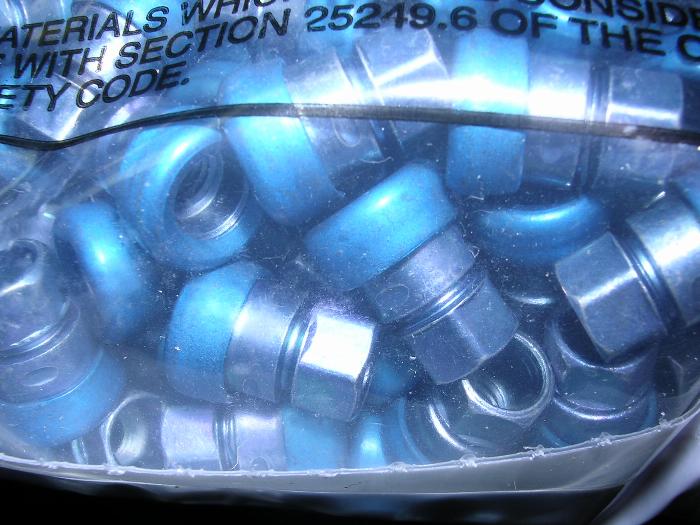

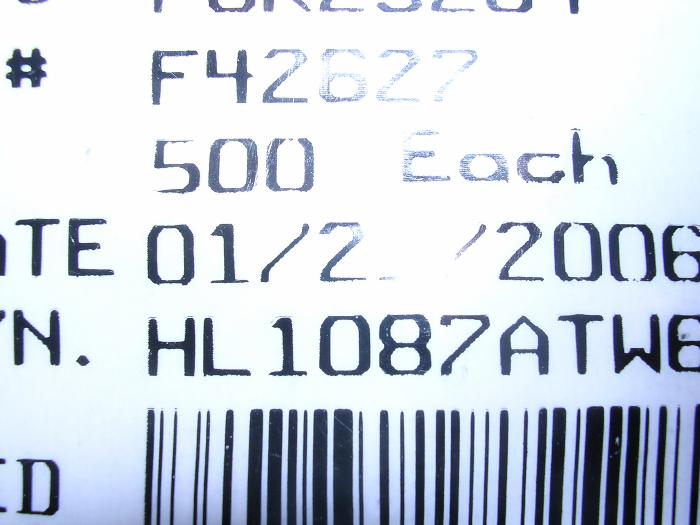

Drawings & Photos | NSN 5320-01-273-1677

Part Number	Request Date	QTY	Origin
HL1087ATW6	2024-11-318	100631	DIBBS
HL1087ATW6	2024-09-259	99484	DIBBS
HL1087ATW6	2024-07-207	17139	DIBBS
HL1087ATW6	2024-07-199	17139	DIBBS
5320-01-273-1677	2024-03-64	50000	US
HL1087ATW6	2024-02-38	1000	United States
HL1087ATW6	2024-01-31	35875	DIBBS
5320-01-273-1677	2024-01-23	35875	US
HL1087ATW6	2024-01-23	35875	DIBBS
HL1087ATW6	2024-01-15	35875	DIBBS
HL1087ATW6	2023-09-263	17139	DIBBS
HL1087ATW6	2023-09-255	17139	DIBBS
HL1087ATW6	2023-09-247	17139	DIBBS
HL1087ATW6	2023-08-220	83231	DIBBS
HL1087ATW6	2023-07-211	83231	DIBBS
HL1087ATW6	2023-07-200	83231	DIBBS
5320-01-273-1677	2023-07-194	1134	US
HL1087ATW6	2023-06-152	13441	DIBBS
5320-01-273-1677	2023-01-20	10900	US
HL1087ATW6	2022-07-200	5	United States
HL1087ATW6	2022-07-182	100	Singapore
012731677	2022-05-125	44561	US
HL1087ATW-6	2019-08-226	22344	DIBBS
HL1087ATW-6	2019-08-218	150000	DIBBS
HL1087ATW-6	2019-07-206	150000	DIBBS
HL1087ATW-6	2019-06-170	73676	DIBBS
5320-01-273-1677	2019-01-25	1	DIBBS-RFPs
5320-01-273-1677	2015-11-317	5000	United States
5320-01-273-1677	2015-11-312	5000	DIBBS
5320-01-273-1677	2015-09-272	79347	DIBBS
5320-01-273-1677	2015-08-221	40000	DIBBS
5320-01-273-1677	2015-07-194	14578	DIBBS
5320-01-273-1677	2015-06-168	15069	DIBBS
5320-01-273-1677	2015-06-160	8086	United States
5320-01-273-1677	2015-05-148	8086	DIBBS
5320-01-273-1677	2015-04-92	15383	DIBBS
5320-01-273-1677	2015-02-57	16739	DIBBS
5320-01-273-1677	2013-10-274	28100	United States
HL1087ATW6	2013-09-268	200	United States
5320-01-273-1677	2013-09-246	1	DIBBS-RFPs
HL1087ATW6	2011-04-105	200	CO
HL1087ATW6	2009-03-77	100	United States
HL1087ATW6	2009-03-77	100	Australia
5320-01-273-1677	2008-10-297	11134	DIBBS
5320-01-273-1677	2008-09-248	11806	DIBBS
5320-01-273-1677	2008-08-219	50485	DIBBS
5320-01-273-1677	2008-06-157	146	South Korea
HL1087ATW6	2008-03-70	3000	United States
5320-01-273-1677	2007-11-320	5000	United States

Cross Reference | NSN 5320-01-273-1677

Part Number	Cage Code	Manufacturer
HL1087ATW-6	06725	SPS TECHNOLOGIES LLC DBA AIR INDUSTRIES
HL1087ATW-6	06950	ALCOA GLOBAL FASTENERS, INC. DBA ALCOA FASTENING SYSTEMS
HL1087ATW-6	17446	HUCK INTERNATIONAL, INC. DBA ALCOA FASTENING SYSTEMS
HL1087ATW-6	56878	SPS TECHNOLOGIES, LLC DBA AEROSPACE DIVISION
HL1087ATW-6	60516	WEST COAST AEROSPACE INC
HL1087ATW-6	73197	HI-SHEAR CORPORATION
HL1087ATW-6	92215	ALCOA GLOBAL FASTENERS, INC. DBA ALCOA FASTENING SYSTEMS
HL1087ATW-6	97928	HUCK INTL INC
HL1087ATW-6	L4528	LISI AEROSPACE CANADA CORP

Request a Quote

What Our Customers Say

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

Compare

NSNs for Compare ( up to 4 ): Add 5320-01-273-1677

Compare

Related Products | NSN 5320-01-273-1677

5320-01-273-1678, 5320-01-273-2021, 5320-01-273-2022, 5320-01-273-2064, 5320-01-273-2326

Technical Data | NSN 5320-01-273-1677

Characteristic	Specifications
MATERIAL	STEEL COMP XM-13 OR STEEL COMP 305 OVERALL
MATERIAL DOCUMENT AND CLASSIFICATION	ASTM A493 ASSN STD 1ST MATERIAL RESPONSE OR QQ-S-763 FED SPEC 2ND MATERIAL RESPONSE OR ASTM A5686 ASSN STD 2ND MATERIAL RESPONSE OVERALL
SURFACE TREATMENT	CADMIUM AND CHROMATE OVERALL
SURFACE TREATMENT DOCUMENT AND CLASSIFICATION	QQ-P-416,TY 2,CL 2 FED SPEC SINGLE TREATMENT RESPONSE OVERALL
COLLAR STYLE	A3 THREADED (BREAK OFF) TYPE
COLLAR OUTSIDE DIAMETER	0.303 INCHES MINIMUM AND 0.307 INCHES MAXIMUM
COLLAR OVERALL HEIGHT	0.430 INCHES MINIMUM AND 0.450 INCHES MAXIMUM
COLLAR INSIDE DIAMETER	0.208 INCHES MINIMUM AND 0.212 INCHES MAXIMUM
THREAD SERIES DESIGNATOR	UNJF
NOMINAL THREAD SIZE	0.190 INCHES
THREAD CLASS	3B
THREAD QUANTITY PER INCH	32
THREAD DIRECTION	RIGHT-HAND
LUBRICATION	CETYL ALCOHOL, SPEC 305, HI-SHEAR CORP
IDENTIFICATION CODE COLOR	BLUE

Restrictions/Controls & Freight Information | NSN 5320-01-273-1677

Restrictions
Freight

Category	Code	Description
Shelf-Life Code:	0	Nondeteriorative
Hazardous Material Indicator Code	N	There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials
Demilitarization Code:	A	Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:	U	UNCLASSIFIED
Precious Metals Indicator Code:	A	Item does not contain precious metal
Criticality Code:	X	The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.

Category	Code	Description
NMF Description	106510	RIVETS I/S PLAIN/GALVANIZED ETC
Less than car load rating
Less than truck load rating	U	50.0
Water commodity Code	713	unknown
Originating Activity Code	KH	Defense Industrial Supply Center Philadelphia, PA 19111
Air Dimension Code	A	Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity	B	Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials.
Air Special Handling	Z	No special handling required.
Special Handling Code	9	unknonwn
HAZMAT
Type of Cargo	Z	No special type of cargo code applicable

Management | NSN 5320-01-273-1677

Category	Code	Description
Materiel Category and Inventory Manager	T	Industrial Supplies (DLA/GSA Items)
Appropriation and Budget Activity	2	Stock Fund Secondary Items
Management Inventory Segment	2	NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable.
Specific Group/Generic Code	0	Medical Materiel
Weapons Systems/End Item or Homogeneous Group	00	DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item
Accounting Requirements Code	X	Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DA	Department of the Army
Service Organization	A	U.S. Army
Reparability	Z	This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item.
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	Q EA : Each

Category	Code	Description
Budget Code	9	General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors.
Price Validation	N	The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM. The price has not been analyzed or reviewed for accuracy. ZOP or Standard price challenges are permissible, but must be supported with adequate justification. However, if coded for Local Purchase (LP) or Fabrication/Manufacture as indicated with an (LM) Acquisition Advice Code of ?L? or?F?,the case must be evaluated locally where purchased or fabricated.
Fund Code	SF	Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point.
Materiel Management Aggregation Code	SX	SX:AF SICA RESIDUAL MMAC-OC-ALC
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DF	Department of the Air Force
Service Organization	F	U.S. Air Force
Reparability	N	Stock Fund (except Munitions)
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	Q EA : Each

Category	Code	Description
Cognizance Codes	9B	Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DN	Department of the Navy
Service Organization	N	U.S. Navy
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	Q EA : Each
