NSN 5320-01-176-2030 HL825ADW, HL82-5ADW, 01-176-2030
Product Details | PIN-RIVET COLLAR
5320-01-176-2030 A soft metal or nonmetal sleeve, designed to mate with a PIN-RIVET. It may include an external wrenching facility which breaks off at a perdetermined torque to form a head.
Part Alternates: HL825ADW, HL82-5ADW, 5320-01-176-2030, 01-176-2030, 5320011762030, 011762030
Hardware and Abrasives | Rivets
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 09 APR 1984 | 01-176-2030 | 67166 ( COLLAR, PIN-RIVET ) |

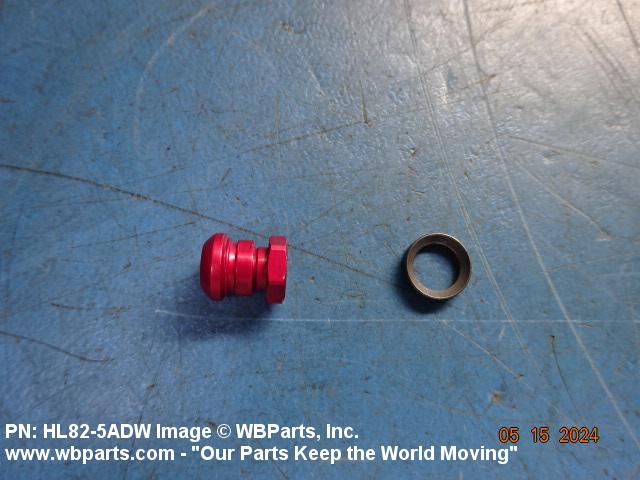

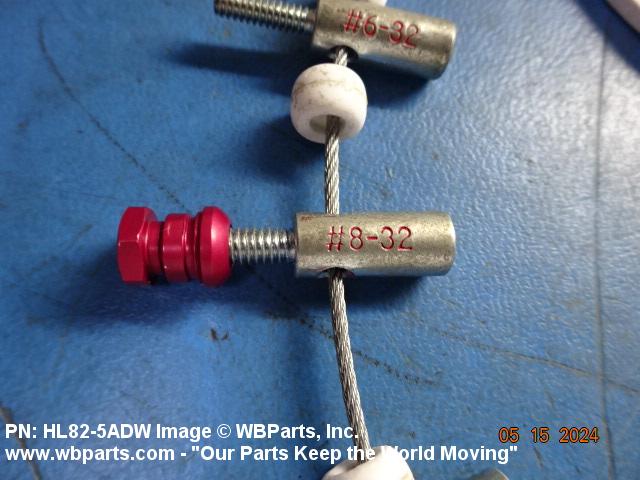

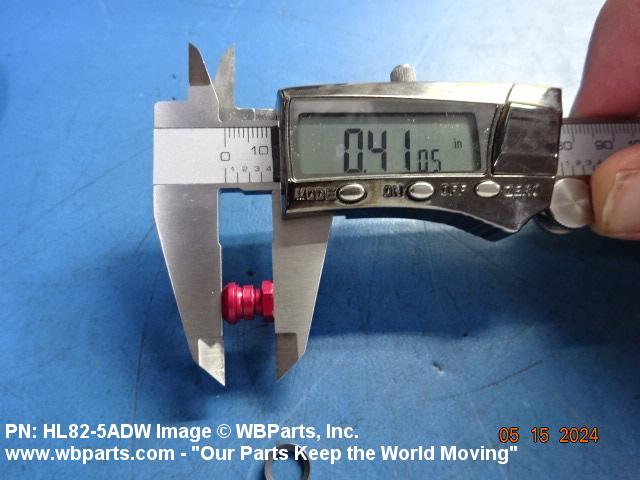

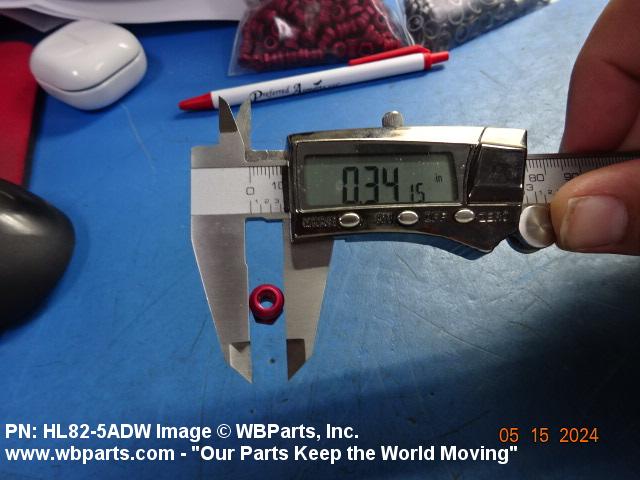

Drawings & Photos | NSN 5320-01-176-2030
Demand History | NSN 5320-01-176-2030
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| HL82-5ADW | 2024-04-105 | 221 | DIBBS |
| HL825ADW | 2024-04-99 | 125 | United States |
| HL825ADW | 2024-04-99 | 125 | United States |
| 5320-01-176-2030 | 2020-06-157 | 1 | DIBBS-RFPs |
| HL82-5ADW | 2019-03-70 | 604 | DIBBS |
| 5320-01-176-2030 | 2018-03-87 | 638 | DIBBS |
| 5320-01-176-2030 | 2017-04-100 | 100 | DIBBS |
| 5320-01-176-2030 | 2017-02-32 | 100 | DIBBS |
| 5320-01-176-2030 | 2009-04-103 | 120 | DIBBS |
| 5320-01-176-2030 | 2009-04-103 | 150 | DIBBS |
| 5320-01-176-2030 | 2009-03-81 | 20 | DIBBS |
| 5320-01-176-2030 | 2009-03-81 | 36 | DIBBS |
| 5320-01-176-2030 | 2008-08-219 | 50 | DIBBS |
Cross Reference | NSN 5320-01-176-2030
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| HL82-5ADW | 17446 | HUCK INTERNATIONAL, INC. DBA ALCOA FASTENING SYSTEMS |
| HL82-5ADW | 56878 | SPS TECHNOLOGIES, LLC DBA AEROSPACE DIVISION |
| HL82-5ADW | 73197 | HI-SHEAR CORPORATION |
| HL82-5ADW | 92215 | ALCOA GLOBAL FASTENERS, INC. DBA ALCOA FASTENING SYSTEMS |
| HL82-5ADW | 97928 | HUCK INTL INC |
| HL82-5ADW | L4528 | LISI AEROSPACE CANADA CORP |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5320-01-176-2030
Related Products | NSN 5320-01-176-2030
Technical Data | NSN 5320-01-176-2030
| Characteristic | Specifications |
|---|---|
| MATERIAL | ALUMINUM ALLOY 2024 OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | QQ-A-430 FED SPEC SINGLE MATERIAL RESPONSE OR QQ-A-225/6 ASSN STD SINGLE MATERIAL RESPONSE OVERALL |
| SURFACE TREATMENT | ANODIZE OVERALL |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | MIL-A-8625 MIL SPEC SINGLE TREATMENT RESPONSE OVERALL |
| HEAT TREATMENT | T-6 SOLUTION HEAT TREATED OVERALL |
| COLLAR STYLE | A3 THREADED (BREAK OFF) TYPE |
| COLLAR OUTSIDE DIAMETER | 0.355 INCHES MINIMUM AND 0.365 INCHES MAXIMUM |
| COLLAR OVERALL HEIGHT | 0.445 INCHES NOMINAL |
| COLLAR INSIDE DIAMETER | 0.235 INCHES NOMINAL |
| THREAD SERIES DESIGNATOR | UNJC |
| NOMINAL THREAD SIZE | 0.164 INCHES |
| THREAD CLASS | 3B |
| THREAD QUANTITY PER INCH | 32 |
| THREAD DIRECTION | RIGHT-HAND |
| LUBRICATION | CETYL ALCOHOL, SPEC 305, HI-SHEAR CORP |
| IDENTIFICATION CODE COLOR | RED |
| FEATURES PROVIDED | WASHER |
Restrictions/Controls & Freight Information | NSN 5320-01-176-2030
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 013630 | ALUM RIVETS |
| Less than car load rating | ||
| Less than truck load rating | Q | 70.0 |
| Water commodity Code | 713 | unknown |
| Originating Activity Code | KZ | Defense Supply Center Philadelphia Philadelphia, PA 19101 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5320-01-176-2030
Army
Air Force
Navy| Category | Code | Description |
|---|---|---|
| Materiel Category and Inventory Manager | T | Industrial Supplies (DLA/GSA Items) |
| Appropriation and Budget Activity | 2 | Stock Fund Secondary Items |
| Management Inventory Segment | 2 | NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable. |
| Specific Group/Generic Code | 0 | Medical Materiel |
| Weapons Systems/End Item or Homogeneous Group | 00 | DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item |
| Accounting Requirements Code | X | Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DA | Department of the Army |
| Service Organization | A | U.S. Army |
| Reparability | Z | This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item. |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Price Validation | N | The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
|
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
