NSN 5320-01-160-2862 HL97DU4, HL97DU-4, ST218504
Product Details | PIN-RIVET COLLAR
5320-01-160-2862 A soft metal or nonmetal sleeve, designed to mate with a PIN-RIVET. It may include an external wrenching facility which breaks off at a perdetermined torque to form a head.
Part Alternates: HL97DU4, HL97DU-4, ST218504, ST2185-04, 5320-01-160-2862, 01-160-2862, 5320011602862, 011602862
Hardware and Abrasives | Rivets
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 19 AUG 1983 | 01-160-2862 | 67166 ( COLLAR, PIN-RIVET ) |
Drawings & Photos | NSN 5320-01-160-2862
Demand History | NSN 5320-01-160-2862
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| HL97DU4 | 2024-11-311 | 328 | United States |
| 5320-01-160-2862 | 2018-05-128 | 1597 | DIBBS |
| 5320-01-160-2862 | 2017-12-341 | 6 | US |
| 5320-01-160-2862 | 2017-02-53 | 33 | MANUAL |
| 5320-01-160-2862 | 2016-12-355 | 993 | DIBBS |
| HL97DU4 | 2014-01-27 | 126 | US |
| 5320-01-160-2862 | 2011-05-151 | 1313 | DIBBS |
| 5320-01-160-2862 | 2010-12-356 | 3007 | DIBBS |
| 5320-01-160-2862 | 2009-07-188 | 2404 | US |
| HL97DU4 | 2008-06-156 | 1000 | us |
Cross Reference | NSN 5320-01-160-2862
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| HL97DU-4 | 56878 | SPS TECHNOLOGIES, LLC DBA AEROSPACE DIVISION |
| HL97DU-4 | 73197 | HI-SHEAR CORPORATION |
| HL97DU-4 | 92215 | ALCOA GLOBAL FASTENERS, INC. DBA ALCOA FASTENING SYSTEMS |
| HL97DU-4 | L4528 | LISI AEROSPACE CANADA CORP |
| ST2185-04 | 77445 | UNITED TECHNOLOGIES CORPORATION DBA PRATT WHITNEY-SPARE PARTS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5320-01-160-2862
Related Products | NSN 5320-01-160-2862
Technical Data | NSN 5320-01-160-2862
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | AMS 5731 ASSN STD 1ST MATERIAL RESPONSE OR AMS 5734 ASSN STD 2ND MATERIAL RESPONSE OR AMS 5736 ASSN STD 3RD MATERIAL RESPONSE OVERALL |

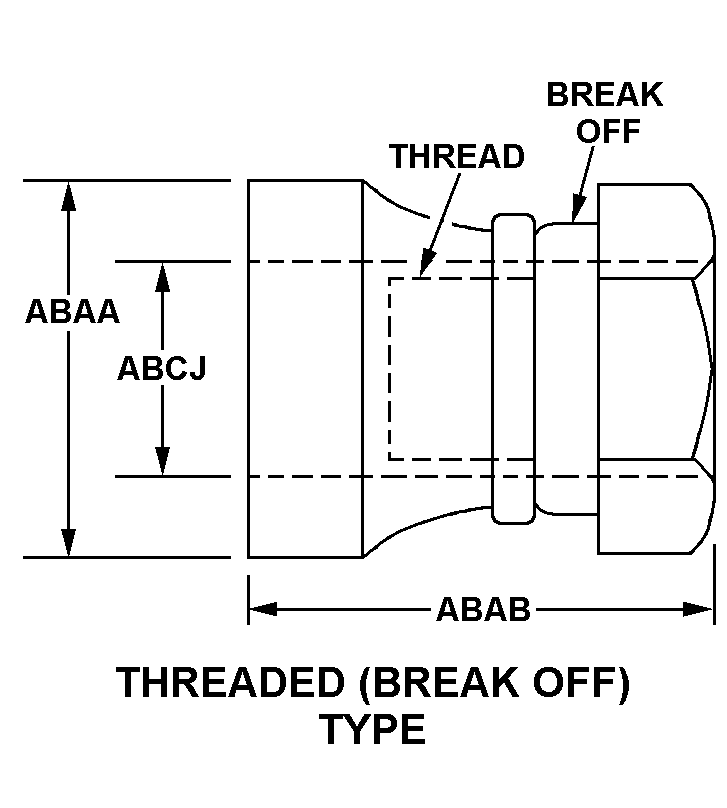

| COLLAR STYLE | A3 THREADED (BREAK OFF) TYPE |
