NSN 5320-01-152-8680 CR3523601, CR3523-6-01, CR352361
Product Details | BLIND RIVET
5320-01-152-8680 An item consisting of two or more of the following components: stem, rivet body, sleeve, expander, bolt, and collar. It is a headed fastening device with the shank designed to be expanded by means of a separate or integral stem or mandrel, or bolt and expander. It is designed to be installed or expanded from one side only. Excludes NUT, BLIND ASSEMBLY.
Part Alternates: CR3523601, CR3523-6-01, CR352361, CR3523-6-1, 5320-01-152-8680, 01-152-8680, 5320011528680, 011528680
Hardware and Abrasives | Rivets
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 10 MAY 1983 | 01-152-8680 | 00864 ( RIVET, BLIND ) |

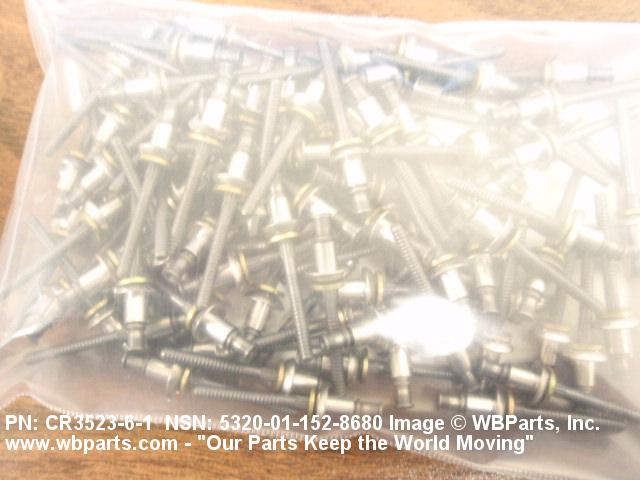

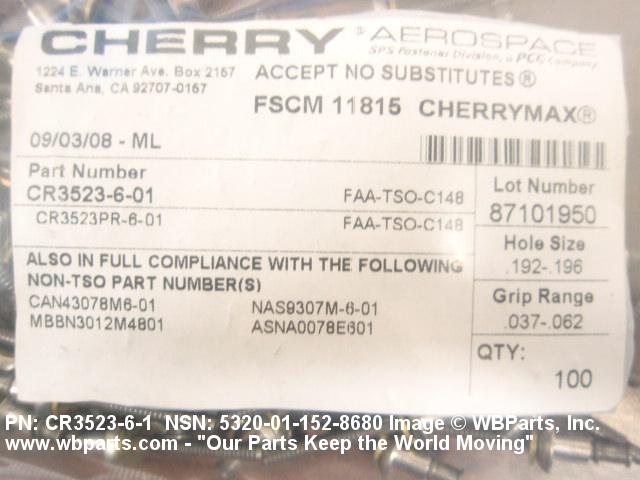

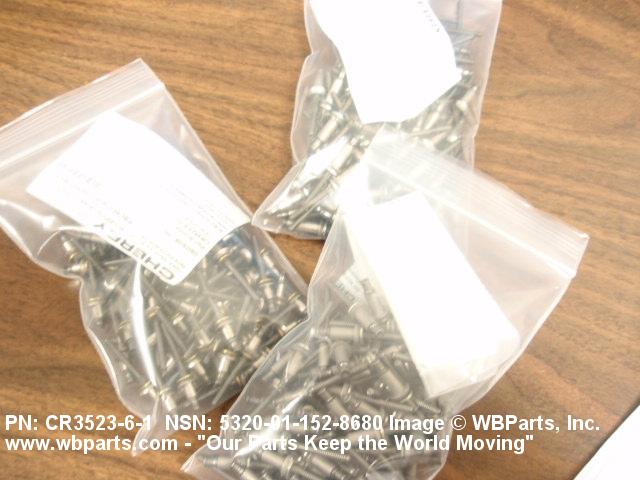

Drawings & Photos | NSN 5320-01-152-8680
Demand History | NSN 5320-01-152-8680
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| CR3523-6-01 | 2022-05-123 | 1229 | DIBBS |
| CR3523-6-01 | 2021-03-83 | 486 | DIBBS |
| CR3523-6-01 | 2020-11-317 | 348 | DIBBS |
| CR3523-6-01 | 2020-05-141 | 149 | DIBBS |
| CR3523-6-01 | 2020-04-107 | 76 | DIBBS |
| CR3523-6-01 | 2020-04-99 | 62 | DIBBS |
| CR3523-6-01 | 2020-03-61 | 74 | DIBBS |
| CR3523-6-01 | 2020-02-49 | 46 | DIBBS |
| CR3523-6-01 | 2019-11-318 | 20 | DIBBS |
| CR3523-6-01 | 2019-09-265 | 30 | DIBBS |
| CR3523-6-01 | 2019-01-06 | 14 | DIBBS |
| 5320-01-152-8680 | 2018-12-339 | 16 | DIBBS |
| 5320-01-152-8680 | 2018-10-298 | 13 | DIBBS |
| CR3523-6-01 | 2014-06-157 | 50 | United States |
| CR352361 | 2010-11-323 | 400 | Hong Kong |
| 5320-01-152-8680 | 2010-09-258 | 5 | Hong Kong |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5320-01-152-8680
Technical Data | NSN 5320-01-152-8680
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL CORROSION RESISTING LOCKING RING NICKEL ALLOY SLEEVE STEEL CORROSION RESISTING STEM |
| MATERIAL DOCUMENT AND CLASSIFICATION | AMS5731 ASSN STD 1ST MATERIAL RESPONSE LOCKING RING QQ-N-281 FED SPEC 2ND MATERIAL RESPONSE SLEEVE AMS5657 ASSN STD 3RD MATERIAL RESPONSE STEM |
| HEAD STYLE | C28 UNIVERSAL |
| HEAD HEIGHT | 0.080 INCHES NOMINAL |
| HEAD MAJOR DIAMETER | 0.375 INCHES NOMINAL |
| SHANK STYLE | D29 SELF-PLUGGING HIGH CLINCH SHANK |
| FASTENER LENGTH | 0.470 INCHES NOMINAL |
| SHANK DIAMETER | 0.189 INCHES NOMINAL |
| GRIP LENGTH | 0.025 INCHES MINIMUM AND 0.062 INCHES MAXIMUM |
| EXPANSION DEVICE | SERRATED STEM-TYPE W |
| LUBRICATION | DRY FILM |
| MANUFACTURERS CODE | 11815 |
| DESIGN CONTROL REFERENCE | CR3523-6-01 |
Restrictions/Controls & Freight Information | NSN 5320-01-152-8680
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
