NSN 5320-01-152-8684 M7885/4-6-05, M78854605, AF3523605
Product Details | BLIND RIVET
5320-01-152-8684 An item consisting of two or more of the following components: stem, rivet body, sleeve, expander, bolt, and collar. It is a headed fastening device with the shank designed to be expanded by means of a separate or integral stem or mandrel, or bolt and expander. It is designed to be installed or expanded from one side only. Excludes NUT, BLIND ASSEMBLY.
Part Alternates: M7885/4-6-05, M78854605, AF3523605, AF3523-6-05, AF352365, AF3523-6-5, NAS9307M605, NAS9307M-6-05, CR3523605, CR3523-6-05, CR352365, CR3523-6-5, MIL-R-7885/4, MILR78854, 5320-01-152-8684, 01-152-8684, 5320011528684, 011528684
Hardware and Abrasives | Rivets
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 10 MAY 1983 | 01-152-8684 | 00864 ( RIVET, BLIND ) |

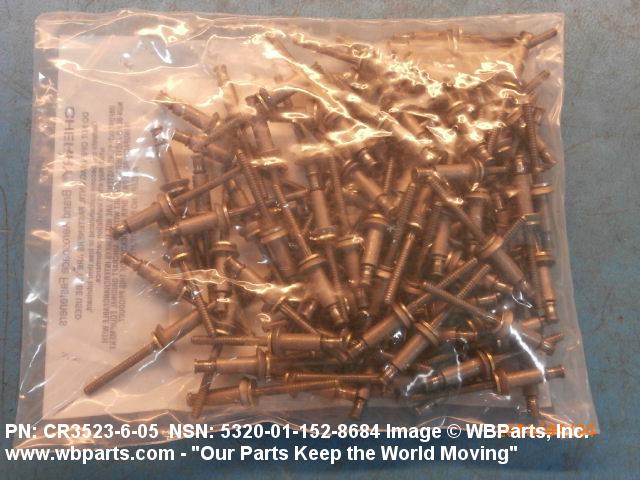

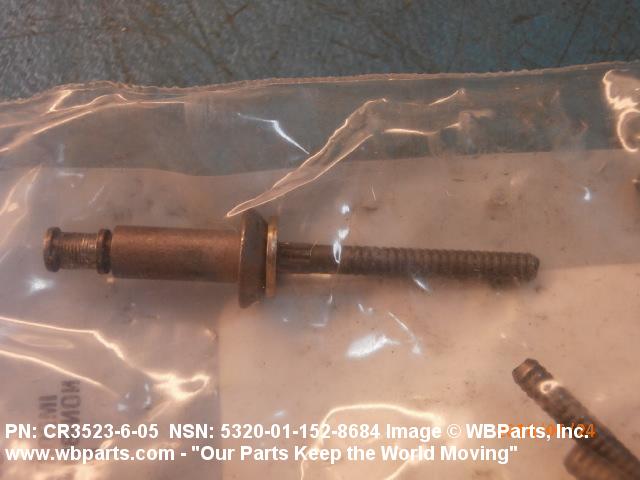

Drawings & Photos | NSN 5320-01-152-8684
Demand History | NSN 5320-01-152-8684
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| NAS9307M605 | 2024-05-143 | 18 | United States |
| CR3523605 | 2018-06-171 | 100 | United States |
| 5320-01-152-8684 | 2018-02-52 | 1 | DIBBS-RFPs |
| CR3523-6-05 | 2014-06-157 | 50 | United States |
Cross Reference | NSN 5320-01-152-8684
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| AF3523-6-05 | 53551 | ALLFAST FASTENING SYSTEMS, LLC |
| AF3523-6-5 | 53551 | ALLFAST FASTENING SYSTEMS, LLC |
| CR3523-6-05 | 11815 | SPS TECHNOLOGIES, LLC DBA CHERRY AEROSPACE DIV |
| CR3523-6-5 | 11815 | SPS TECHNOLOGIES, LLC DBA CHERRY AEROSPACE DIV |
| CR3523-6-5 | F7652 | B E AEROSPACE CONSUMABLESMANAGEMENT DEUX SAS |
| M7885/4-6-05 | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| MIL-R-7885/4 | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| NAS9307M-6-05 | 80205 | NATIONAL AEROSPACE STANDARDS COMMITTEE AEROSPACE INDUSTRIES |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5320-01-152-8684
Related Products | NSN 5320-01-152-8684
Technical Data | NSN 5320-01-152-8684
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL CORROSION RESISTING LOCKING RING NICKEL ALLOY SLEEVE STEEL CORROSION RESISTING STEM |
| MATERIAL DOCUMENT AND CLASSIFICATION | AMS5731 ASSN STD 1ST MATERIAL RESPONSE LOCKING RING QQ-N-281 FED SPEC 2ND MATERIAL RESPONSE SLEEVE AMS5657 ASSN STD 3RD MATERIAL RESPONSE STEM |
| HEAD STYLE | C28 UNIVERSAL |
| HEAD HEIGHT | 0.080 INCHES NOMINAL |
| HEAD MAJOR DIAMETER | 0.375 INCHES NOMINAL |
| SHANK STYLE | D29 SELF-PLUGGING HIGH CLINCH SHANK |
| FASTENER LENGTH | 0.700 INCHES NOMINAL |
| SHANK DIAMETER | 0.189 INCHES NOMINAL |
| GRIP LENGTH | 0.251 INCHES MINIMUM AND 0.312 INCHES MAXIMUM |
| EXPANSION DEVICE | SERRATED STEM-TYPE W |
| LUBRICATION | DRY FILM |
| III END ITEM IDENTIFICATION | W/S: AIRCRAFT, F-16; AIRCRAFT, THUNDERBOLT II, A-10; GLOBAL HAWK HIGH ALTITUDE-LONG ENDURANCE UNMANNED AERIAL |
Restrictions/Controls & Freight Information | NSN 5320-01-152-8684
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 106510 | RIVETS I/S PLAIN/GALVANIZED ETC |
| Less than car load rating | ||
| Less than truck load rating | U | 50.0 |
| Water commodity Code | 713 | unknown |
| Originating Activity Code | ZA | Australia ZB ZC |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5320-01-152-8684
Army
Air Force
Navy| Category | Code | Description |
|---|---|---|
| Materiel Category and Inventory Manager | T | Industrial Supplies (DLA/GSA Items) |
| Appropriation and Budget Activity | 2 | Stock Fund Secondary Items |
| Management Inventory Segment | 2 | NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable. |
| Specific Group/Generic Code | 0 | Medical Materiel |
| Weapons Systems/End Item or Homogeneous Group | 00 | DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item |
| Accounting Requirements Code | X | Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DA | Department of the Army |
| Service Organization | A | U.S. Army |
| Reparability | Z | This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item. |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
Q EA : Each |
| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Price Validation | N | The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
|
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Materiel Management Aggregation Code | SX | SX:AF SICA RESIDUAL MMAC-OC-ALC |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
Q EA : Each |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
Q EA : Each |
