NSN 5320-01-152-8665 MBBN3013M3205, NAS9308M405, NAS9308M-4-05

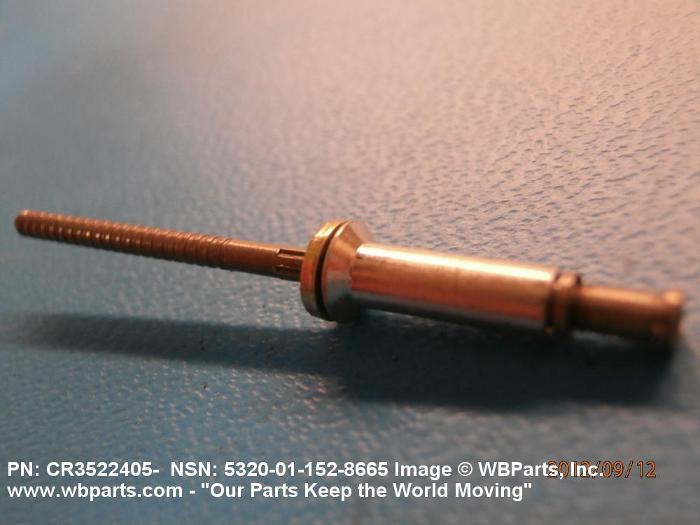

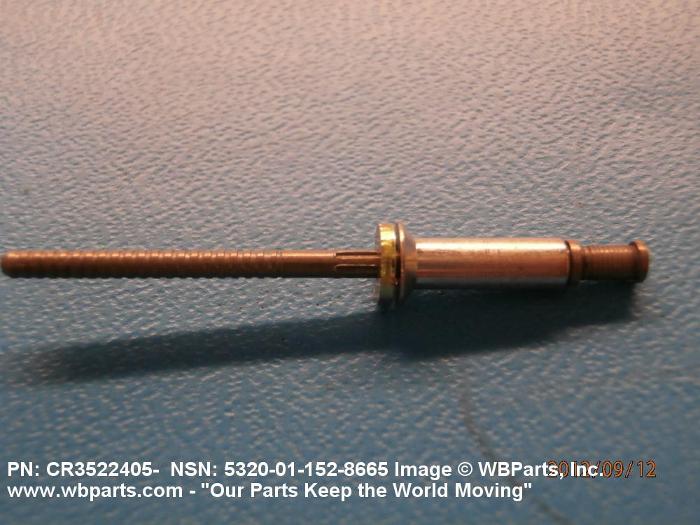

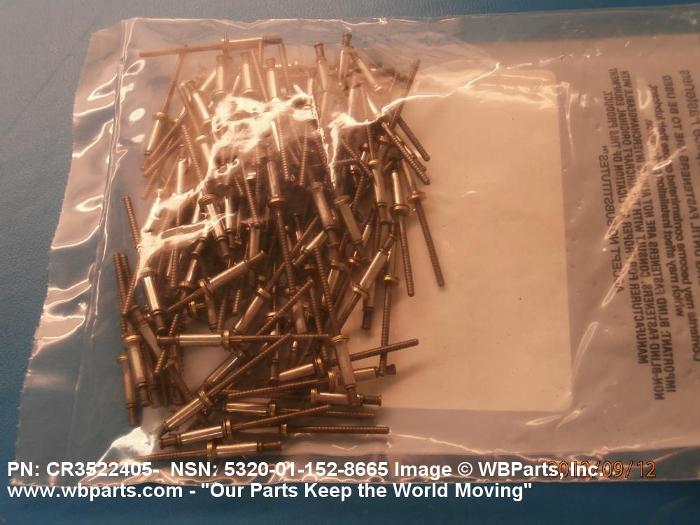

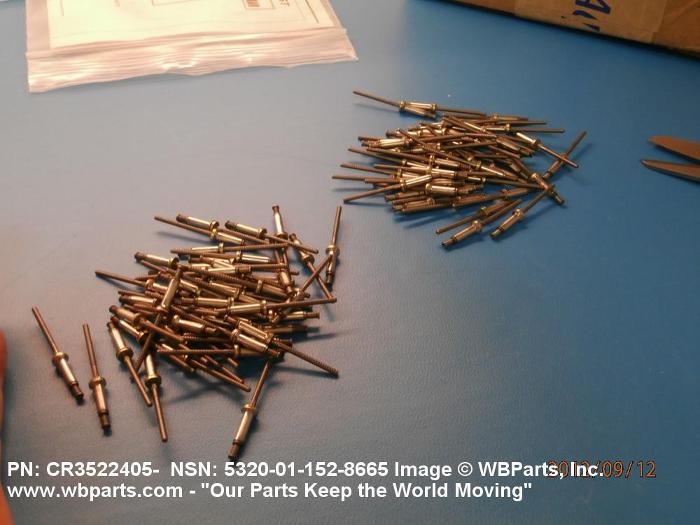

Product Details | BLIND RIVET
5320-01-152-8665 An item consisting of two or more of the following components: stem, rivet body, sleeve, expander, bolt, and collar. It is a headed fastening device with the shank designed to be expanded by means of a separate or integral stem or mandrel, or bolt and expander. It is designed to be installed or expanded from one side only. Excludes NUT, BLIND ASSEMBLY.
Part Alternates: MBBN3013M3205, NAS9308M405, NAS9308M-4-05, AF352245, AF3522-4-5, CR3522405, CR3522-4-05, CR352245, CR3522-4-5, MIL-R-7885/5, MILR78855, 5320-01-152-8665, 01-152-8665, 5320011528665, 011528665
Hardware and Abrasives | Rivets
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 10 MAY 1983 | 01-152-8665 | 00864 ( RIVET, BLIND ) |
Drawings & Photos | NSN 5320-01-152-8665
Demand History | NSN 5320-01-152-8665
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| CR352245 | 2020-06-157 | 300 | US |
| CR352245 | 2015-06-166 | 12 | US |
| CR352245 | 2013-07-200 | 100 | US |
| CR352245 | 2013-03-70 | 1528 | US |
| CR3522405 | 2012-09-255 | 100 | United States |
| CR352245 | 2009-10-293 | 1000 | United Kingdom |
| MBBN3013M3205 | 2009-10-293 | 1000 | United Kingdom |
| CR3522405 | 2009-08-217 | 120 | US |
| 5320-01-152-8665 | 2009-05-150 | 13287 | DIBBS |
| 5320-01-152-8665 | 2009-04-105 | 13228 | DIBBS |
| CR3522405 | 2009-03-79 | 500 | US |
| 5320-01-152-8665 | 2009-02-42 | 500 | Singapore |
Cross Reference | NSN 5320-01-152-8665
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| AF3522-4-5 | 53551 | ALLFAST FASTENING SYSTEMS, LLC |
| CR3522-4-05 | 11815 | SPS TECHNOLOGIES, LLC DBA CHERRY AEROSPACE DIV |
| CR3522-4-5 | 11815 | SPS TECHNOLOGIES, LLC DBA CHERRY AEROSPACE DIV |
| CR3522-4-5 | F7652 | B E AEROSPACE CONSUMABLESMANAGEMENT DEUX SAS |
| CR3522-4-5 | R1120 | SATAIR A/S |
| MBBN3013M3205 | C0418 | AIRBUS HELICOPTERS DEUTSCHLAND GMBH- ENTWICKLUNG |
| MIL-R-7885/5 | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| NAS9308M-4-05 | 80205 | NATIONAL AEROSPACE STANDARDS COMMITTEE AEROSPACE INDUSTRIES |
