NSN 5320-01-152-8668 MS21140S0607 , M7885/4-4-04, M78854404

Product Details | BLIND RIVET

5320-01-152-8668 An item consisting of two or more of the following components: stem, rivet body, sleeve, expander, bolt, and collar. It is a headed fastening device with the shank designed to be expanded by means of a separate or integral stem or mandrel, or bolt and expander. It is designed to be installed or expanded from one side only. Excludes NUT, BLIND ASSEMBLY.

Part Alternates: MS21140S0607 , M7885/4-4-04, M78854404, MBBN3012M3204, NAS9307M404, NAS9307M-4-04, NAS9307M4-04, AF3523404, AF3523-4-04, AF352344, AF3523-4-4, CR3523404, CR3523-4-04, CR352344, CR3523-4-4, HR3523404, HR3523-4-04, SB100EU0607, SB100-EU06-07 , SB100EU67, SB100-EU6-7 , 5320-01-152-8668, 01-152-8668, 5320011528668, 011528668

Hardware and Abrasives | Rivets

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
53	10 MAY 1983	01-152-8668	00864 ( RIVET, BLIND )

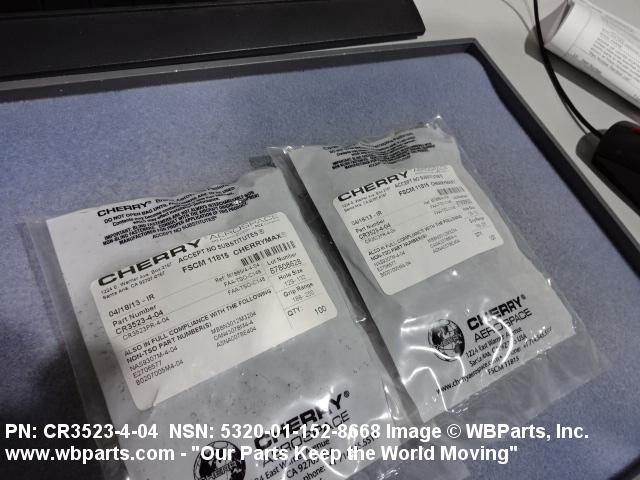

Drawings & Photos | NSN 5320-01-152-8668

Part Number	Request Date	QTY	Origin
5320-01-152-8668	2023-06-173	3484	DIBBS
CR3523404	2021-11-322	200	United States
CR3523404	2020-11-315	38	United States
MS21140S0607	2020-09-261	80	US
5320-01-152-8668	2018-02-52	1	DIBBS-RFPs
CR3523404	2017-05-122	2	United States
CR352344	2016-04-95	200	Egypt
NAS9307M404	2016-03-62	50	United States
5320-01-152-8668	2015-06-155	100	US
CR3523-4-4	2013-11-315	200	Canada
5320-01-152-8668	2013-09-246	1	DIBBS-RFPs
5320-01-152-8668	2013-05-145	0	DIBBS
CR352344	2012-10-283	800	United States
NAS9307M404	2012-09-269	70	US
CR352344	2012-04-95	25	SR
MBBN3012M3204	2012-03-74	5000	DE
5320-01-152-8668	2011-12-349	2000	US
5320-01-152-8668	2011-06-169	150	US
NAS9307M404	2011-06-160	200	US
CR3523404	2011-02-52	6	United States
CR3523404	2010-11-327	100	FR
NAS9307M404	2010-11-327	100	FR
5320-01-152-8668	2010-06-175	800	United States
CR352344	2009-08-236	20	US
5320-01-152-8668	2009-02-42	500	Singapore

Cross Reference | NSN 5320-01-152-8668

Part Number	Cage Code	Manufacturer
AF3523-4-04	53551	ALLFAST FASTENING SYSTEMS, LLC
AF3523-4-4	53551	ALLFAST FASTENING SYSTEMS, LLC
CR3523-4-04	11815	SPS TECHNOLOGIES, LLC DBA CHERRY AEROSPACE DIV
CR3523-4-4	F7652	B E AEROSPACE CONSUMABLESMANAGEMENT DEUX SAS
CR3523-4-4	R1120	SATAIR A/S
HR3523-4-04	0HDW7	HUCK INTERNATIONAL, INC. DBA ALCOA FASTENING SYSTEMS
M7885/4-4-04	53551	ALLFAST FASTENING SYSTEMS, LLC
MBBN3012M3204	C0418	AIRBUS HELICOPTERS DEUTSCHLAND GMBH- ENTWICKLUNG
NAS9307M-4-04	53551	ALLFAST FASTENING SYSTEMS, LLC
NAS9307M4-04	80205	NATIONAL AEROSPACE STANDARDS COMMITTEE AEROSPACE INDUSTRIES

Request a Quote

What Our Customers Say

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

Compare

NSNs for Compare ( up to 4 ): Add 5320-01-152-8668

Compare

Related Products | NSN 5320-01-152-8668

5320-01-152-8669, 5320-01-152-8670, 5320-01-152-8671, 5320-01-152-8672, 5320-01-152-8673

Technical Data | NSN 5320-01-152-8668

Characteristic	Specifications
MATERIAL	STEEL CORROSION RESISTING LOCKING RING NICKEL ALLOY SLEEVE STEEL CORROSION RESISTING STEM
MATERIAL DOCUMENT AND CLASSIFICATION	AMS5731 ASSN STD 1ST MATERIAL RESPONSE LOCKING RING QQ-N-281 FED SPEC 2ND MATERIAL RESPONSE SLEEVE AMS5657 ASSN STD 3RD MATERIAL RESPONSE STEM
HEAD STYLE	C28 UNIVERSAL
HEAD HEIGHT	0.054 INCHES NOMINAL
HEAD MAJOR DIAMETER	0.250 INCHES NOMINAL
SHANK STYLE	D29 SELF-PLUGGING HIGH CLINCH SHANK
FASTENER LENGTH	0.570 INCHES NOMINAL
SHANK DIAMETER	0.126 INCHES NOMINAL
GRIP LENGTH	0.188 INCHES MINIMUM AND 0.250 INCHES MAXIMUM
EXPANSION DEVICE	SERRATED STEM-TYPE W
LUBRICATION	DRY FILM

Restrictions/Controls & Freight Information | NSN 5320-01-152-8668

Restrictions
Freight

Category	Code	Description
Shelf-Life Code:	0	Nondeteriorative
Hazardous Material Indicator Code	N	There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials
Demilitarization Code:	A	Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:	U	UNCLASSIFIED
Precious Metals Indicator Code:	A	Item does not contain precious metal
Criticality Code:	X	The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.

Category	Code	Description
NMF Description	106510	RIVETS I/S PLAIN/GALVANIZED ETC
Less than car load rating
Less than truck load rating	U	50.0
Water commodity Code	713	unknown
Originating Activity Code	ZS	Denmark ZT ZU
Air Dimension Code	A	Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity	B	Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials.
Air Special Handling	Z	No special handling required.
Special Handling Code	9	unknonwn
HAZMAT
Type of Cargo	Z	No special type of cargo code applicable
NMF Description	106510	RIVETS I/S PLAIN/GALVANIZED ETC
Less than car load rating
Less than truck load rating	U	50.0
Water commodity Code	713	unknown
Originating Activity Code	ZA	Australia ZB ZC
Air Dimension Code	A	Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity	B	Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials.
Air Special Handling	Z	No special handling required.
Special Handling Code	9	unknonwn
HAZMAT
Type of Cargo	Z	No special type of cargo code applicable

Management | NSN 5320-01-152-8668

Category	Code	Description
Materiel Category and Inventory Manager	T	Industrial Supplies (DLA/GSA Items)
Appropriation and Budget Activity	2	Stock Fund Secondary Items
Management Inventory Segment	2	NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable.
Specific Group/Generic Code	0	Medical Materiel
Weapons Systems/End Item or Homogeneous Group	00	DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item
Accounting Requirements Code	X	Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DA	Department of the Army
Service Organization	A	U.S. Army
Reparability	Z	This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item.
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	Q EA : Each

Category	Code	Description
Budget Code	9	General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors.
Price Validation	N	The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM. The price has not been analyzed or reviewed for accuracy. ZOP or Standard price challenges are permissible, but must be supported with adequate justification. However, if coded for Local Purchase (LP) or Fabrication/Manufacture as indicated with an (LM) Acquisition Advice Code of ?L? or?F?,the case must be evaluated locally where purchased or fabricated.
Fund Code	SF	Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point.
Materiel Management Aggregation Code	SX	SX:AF SICA RESIDUAL MMAC-OC-ALC
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DF	Department of the Air Force
Service Organization	F	U.S. Air Force
Reparability	N	Stock Fund (except Munitions)
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	Q EA : Each

Category	Code	Description
Cognizance Codes	9Z	Navy-owned stocks of defense industrial material Naval Inventory Control Point, Mechanicsburg
Cognizance Codes	9B	Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg
Source of Supply	S9I	Defense Industrial Supply Center Philadelphia, PA 19111
Agency	DN	Department of the Navy
Service Organization	N	U.S. Navy
Acquisition Advice Codes	V	TERMINAL ITEM # Identifies items in stock, but future procurement is not authorized. Requisitions may continue to be submitted until stocks are exhausted. Preferred item National Stock Number is normally provided by application of the phrase: When Exhausted Use (NSN). Requisitions will be submitted in accordance with IMM/Service requisitioning procedures as applicable.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DN	Department of the Navy
Service Organization	N	U.S. Navy
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	Q EA : Each
