NSN 5320-01-105-7294 ST3M526C8M, SW100016M, SW1000-16M
Product Details | PIN-RIVET COLLAR

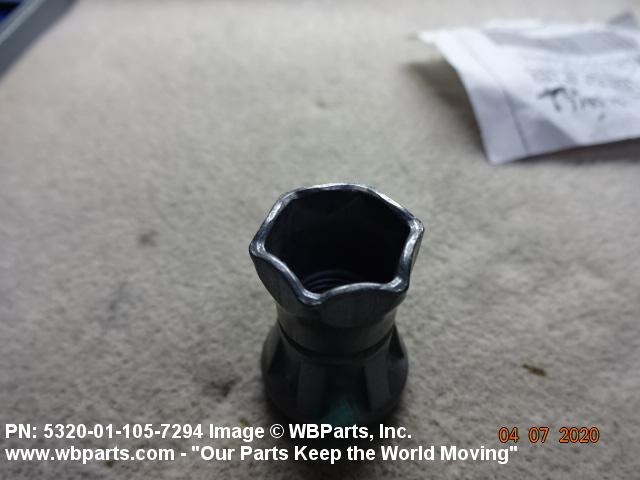

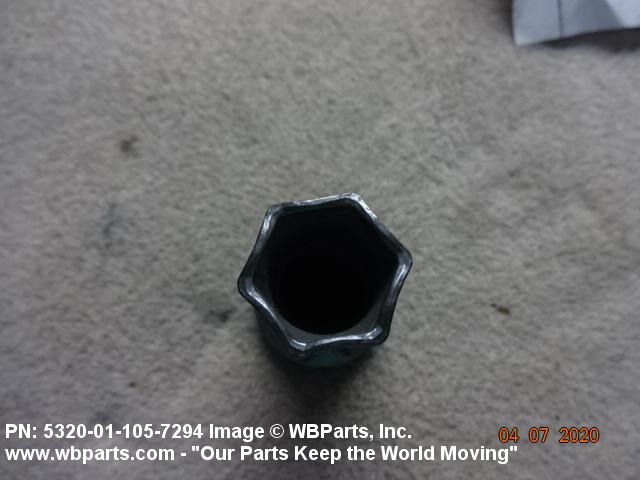

5320-01-105-7294 A soft metal or nonmetal sleeve, designed to mate with a PIN-RIVET. It may include an external wrenching facility which breaks off at a perdetermined torque to form a head.
Part Alternates: ST3M526C8M, SW100016M, SW1000-16M, 5320-01-105-7294, 01-105-7294, 5320011057294, 011057294
Hardware and Abrasives | Rivets
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 03 JAN 1981 | 01-105-7294 | 67166 ( COLLAR, PIN-RIVET ) |

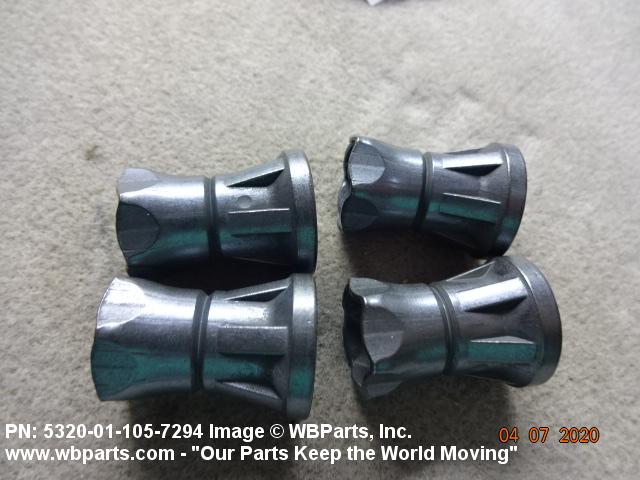

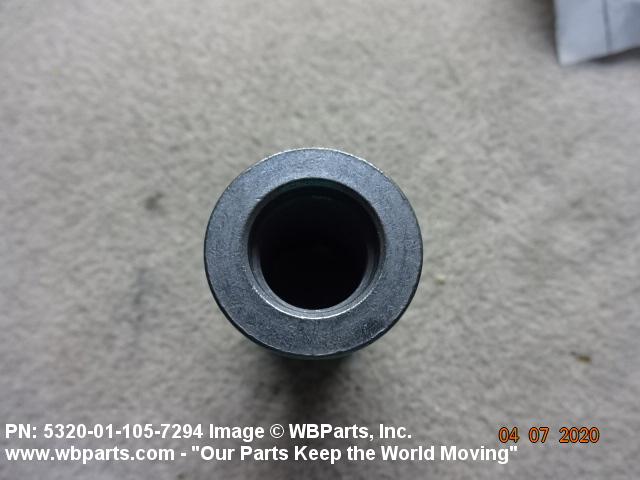

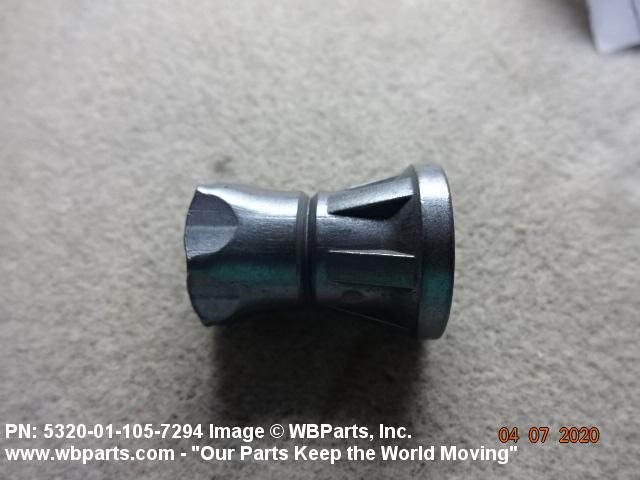

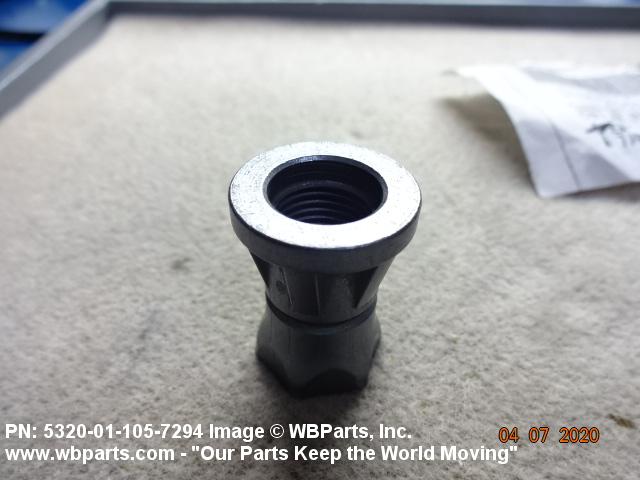

Drawings & Photos | NSN 5320-01-105-7294
Demand History | NSN 5320-01-105-7294
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5320-01-105-7294 | 2021-11-334 | 7 | United States |
| ST3M526C8M | 2021-11-307 | 360 | DIBBS |
| SW1000-16M | 2021-11-307 | 360 | DIBBS |
| ST3M526C8M | 2021-10-290 | 49 | DIBBS |
| ST3M526C8M | 2021-10-290 | 44 | DIBBS |
| SW1000-16M | 2021-10-290 | 49 | DIBBS |
| SW1000-16M | 2021-10-290 | 44 | DIBBS |
| ST3M526C8M | 2021-09-249 | 72 | DIBBS |
| SW1000-16M | 2021-09-249 | 72 | DIBBS |
| ST3M526C8M | 2021-09-244 | 192 | DIBBS |
| SW1000-16M | 2021-09-244 | 192 | DIBBS |
| ST3M526C8M | 2021-04-105 | 23 | DIBBS |
| SW1000-16M | 2021-04-105 | 23 | DIBBS |
| ST3M526C8M | 2021-04-94 | 23 | DIBBS |
| SW1000-16M | 2021-04-94 | 23 | DIBBS |
| ST3M526C8M | 2021-04-92 | 103 | DIBBS |
| SW1000-16M | 2021-04-92 | 103 | DIBBS |
| ST3M526C8M | 2021-03-81 | 103 | DIBBS |
| SW1000-16M | 2021-03-81 | 103 | DIBBS |
| ST3M526C8M | 2021-03-74 | 271 | DIBBS |
| SW1000-16M | 2021-03-74 | 271 | DIBBS |
| ST3M526C8M | 2021-03-62 | 271 | DIBBS |
| SW1000-16M | 2021-03-62 | 271 | DIBBS |
| 5320-01-105-7294 | 2021-02-53 | 4 | United States |
| 5320-01-105-7294 | 2020-03-87 | 4 | United States |
| ST3M526C8M | 2020-03-77 | 130 | DIBBS |
| SW1000-16M | 2020-03-77 | 130 | DIBBS |
| ST3M526C8M | 2019-12-339 | 130 | DIBBS |
| SW1000-16M | 2019-12-339 | 130 | DIBBS |
| ST3M526C8M | 2019-11-307 | 333 | DIBBS |
| SW1000-16M | 2019-11-307 | 333 | DIBBS |
| ST3M526C8M | 2019-06-170 | 130 | DIBBS |
| SW1000-16M | 2019-06-170 | 130 | DIBBS |
| ST3M526C8M | 2019-01-15 | 274 | DIBBS |
| SW1000-16M | 2019-01-15 | 274 | DIBBS |
| 5320-01-105-7294 | 2018-12-353 | 274 | DIBBS |
| 5320-01-105-7294 | 2018-11-332 | 155 | DIBBS |
| 5320-01-105-7294 | 2018-05-126 | 274 | DIBBS |
| 5320-01-105-7294 | 2015-10-287 | 110 | DIBBS |
| 5320-01-105-7294 | 2015-09-257 | 143 | DIBBS |
| 5320-01-105-7294 | 2015-08-242 | 110 | DIBBS |
| 5320-01-105-7294 | 2010-08-224 | 385 | DIBBS |
| 5320-01-105-7294 | 2010-04-116 | 90 | DIBBS |
Cross Reference | NSN 5320-01-105-7294
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| ST3M526C8M | 5M902 | ALCOA GLOBAL FASTENERS, INC. DBA ALCOA FASTENING SYSTEMS |
| ST3M526C8M | 76301 | BOEING COMPANY, THE DBA BOEING |
| SW1000-16M | 56878 | SPS TECHNOLOGIES, LLC DBA AEROSPACE DIVISION |
| SW1000-16M | 73197 | HI-SHEAR CORPORATION |
| SW1000-16M | 92215 | ALCOA GLOBAL FASTENERS, INC. DBA ALCOA FASTENING SYSTEMS |
| SW1000-16M | L4528 | LISI AEROSPACE CANADA CORP |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5320-01-105-7294
Related Products | NSN 5320-01-105-7294
Technical Data | NSN 5320-01-105-7294
| Characteristic | Specifications |
|---|---|
| MATERIAL | IRON ALLOY 660 OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | AMS 5731 ASSN STD SINGLE MATERIAL RESPONSE OR AMS 5732 ASSN STD SINGLE MATERIAL RESPONSE OR AMS 5734 ASSN STD SINGLE MATERIAL RESPONSE OR AMS 5737 ASSN STD SINGLE MATERIAL RESPONSE OVERALL |
| COLLAR STYLE | A3 THREADED (BREAK OFF) TYPE |

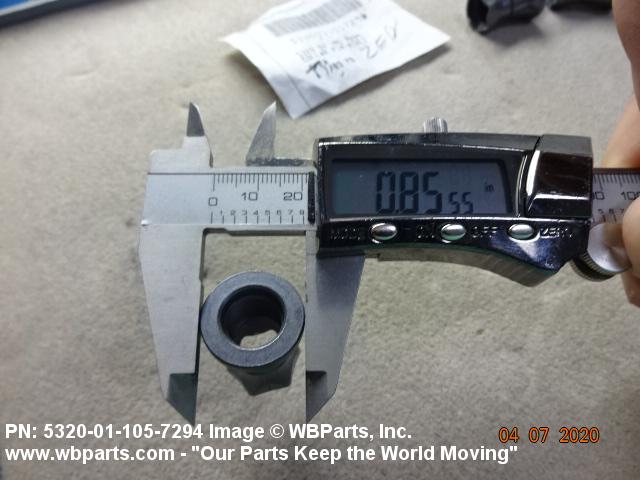

| COLLAR OUTSIDE DIAMETER | 0.850 INCHES MINIMUM AND 0.860 INCHES MAXIMUM |

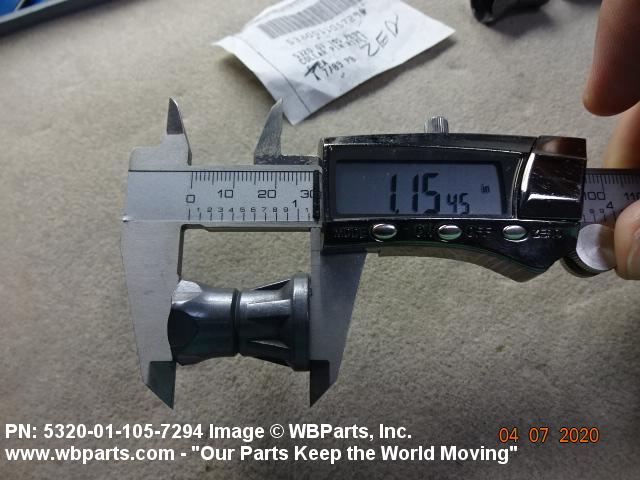

| COLLAR OVERALL HEIGHT | 1.110 INCHES MINIMUM AND 1.150 INCHES MAXIMUM |

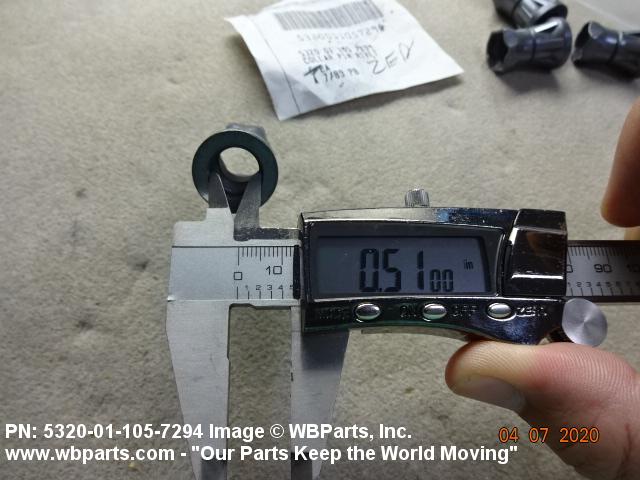

| COLLAR INSIDE DIAMETER | 0.507 INCHES MINIMUM AND 0.515 INCHES MAXIMUM |

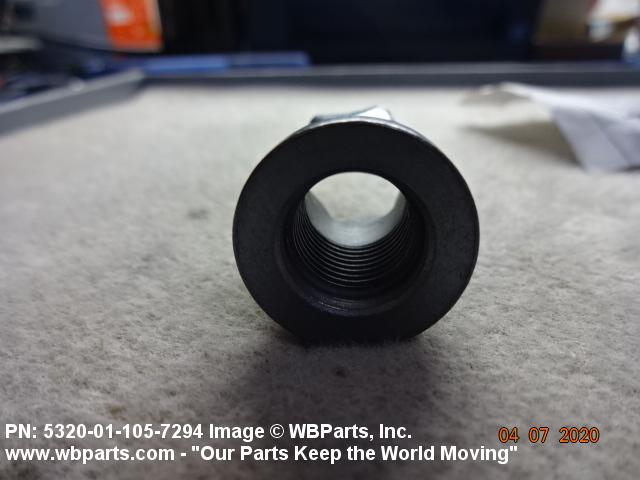

| THREAD SERIES DESIGNATOR | UNJF |
| NOMINAL THREAD SIZE | 0.500 INCHES |
| THREAD CLASS | 3B |
| THREAD QUANTITY PER INCH | 20 |
| THREAD DIRECTION | RIGHT-HAND |
| LUBRICATION | DRY FILM |
Restrictions/Controls & Freight Information | NSN 5320-01-105-7294
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 106510 | RIVETS I/S PLAIN/GALVANIZED ETC |
| Less than car load rating | ||
| Less than truck load rating | U | 50.0 |
| Water commodity Code | 713 | unknown |
| Originating Activity Code | KZ | Defense Supply Center Philadelphia Philadelphia, PA 19101 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5320-01-105-7294
Air Force
Navy| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Price Validation | N | The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
|
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Materiel Management Aggregation Code | SX | SX:AF SICA RESIDUAL MMAC-OC-ALC |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
