NSN 5320-01-105-4525 MS211410811, MS21141-0811, 01-105-4525

Product Details | BLIND RIVET

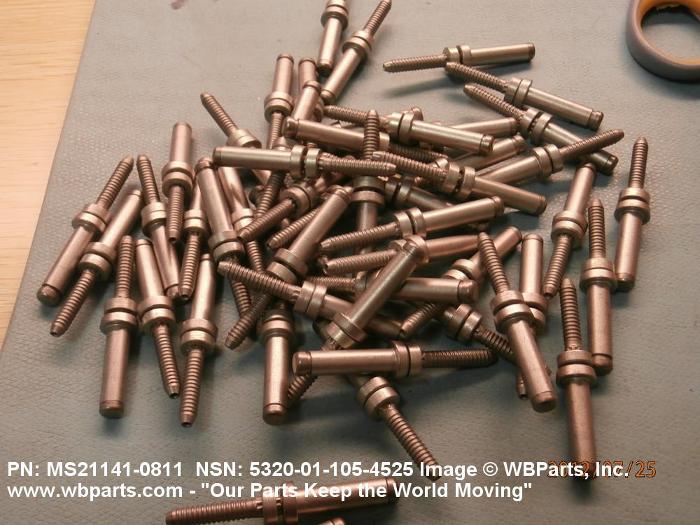

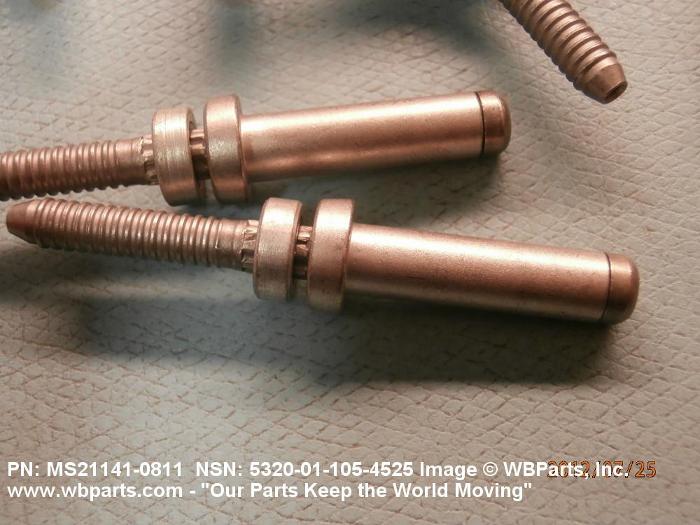

5320-01-105-4525 An item consisting of two or more of the following components: stem, rivet body, sleeve, expander, bolt, and collar. It is a headed fastening device with the shank designed to be expanded by means of a separate or integral stem or mandrel, or bolt and expander. It is designed to be installed or expanded from one side only. Excludes NUT, BLIND ASSEMBLY.

Part Alternates: MS211410811, MS21141-0811, 5320-01-105-4525, 01-105-4525, 5320011054525, 011054525

Hardware and Abrasives | Rivets

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
53	23 DEC 1980	01-105-4525	00864 ( RIVET, BLIND )

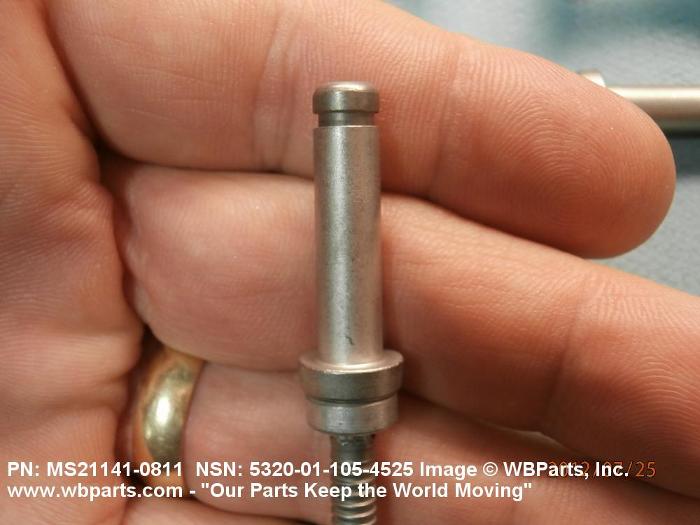

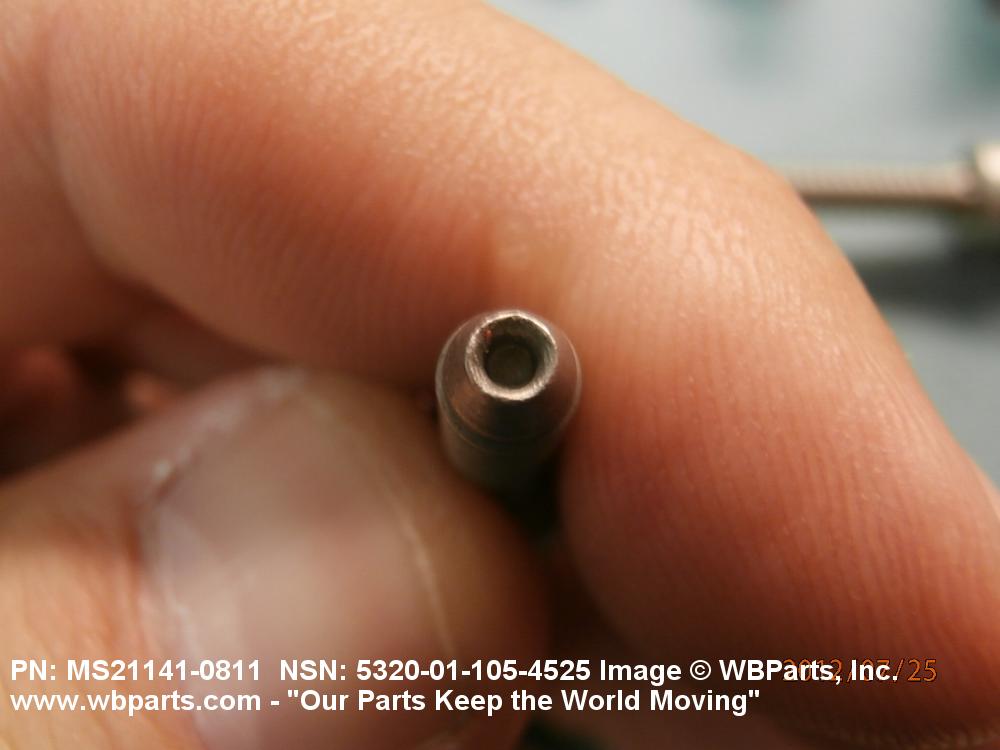

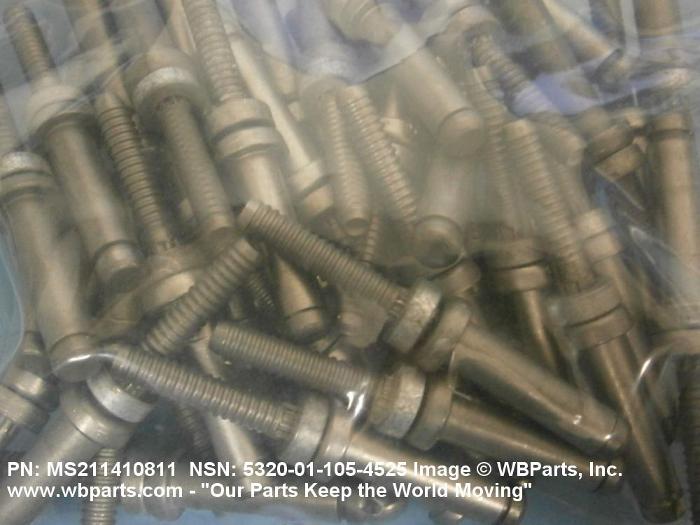

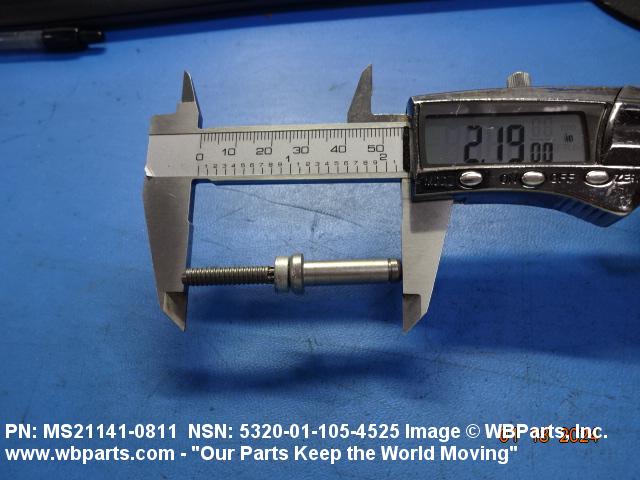

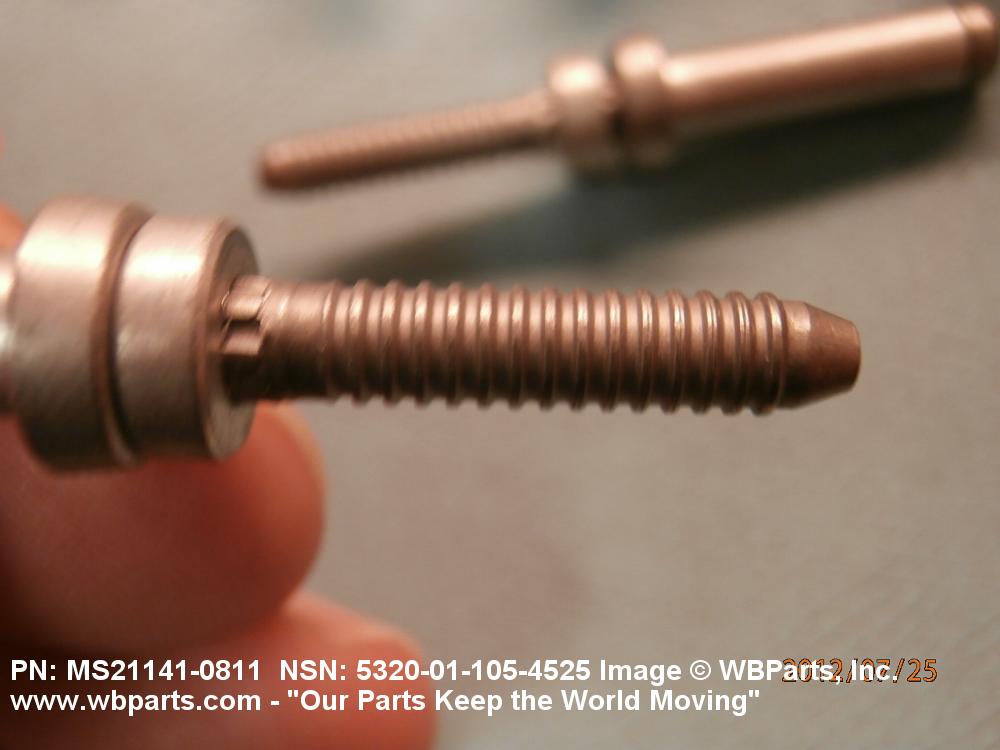

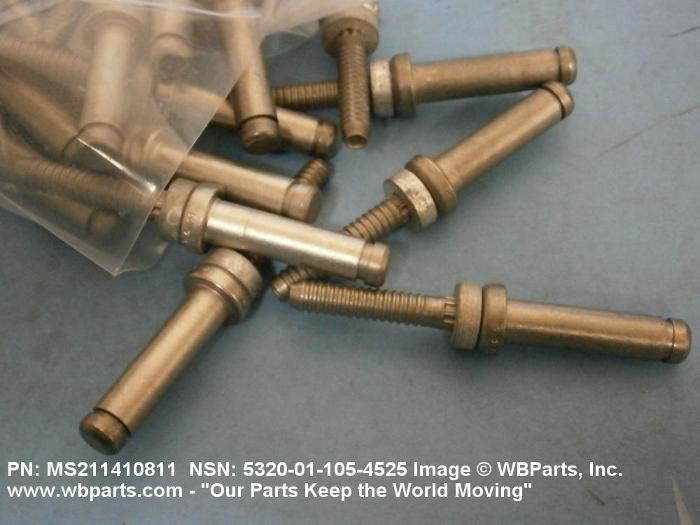

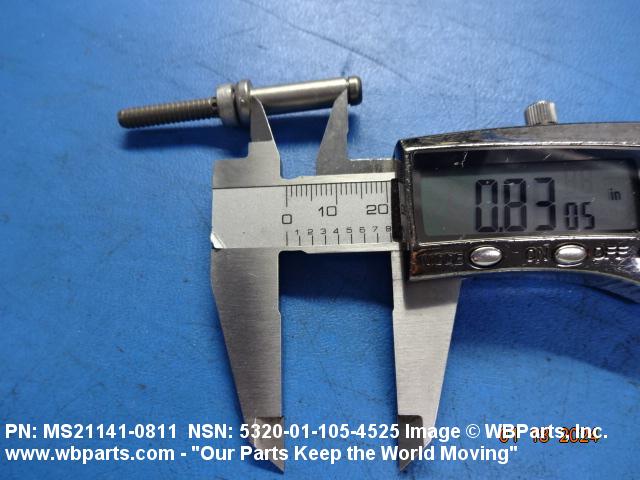

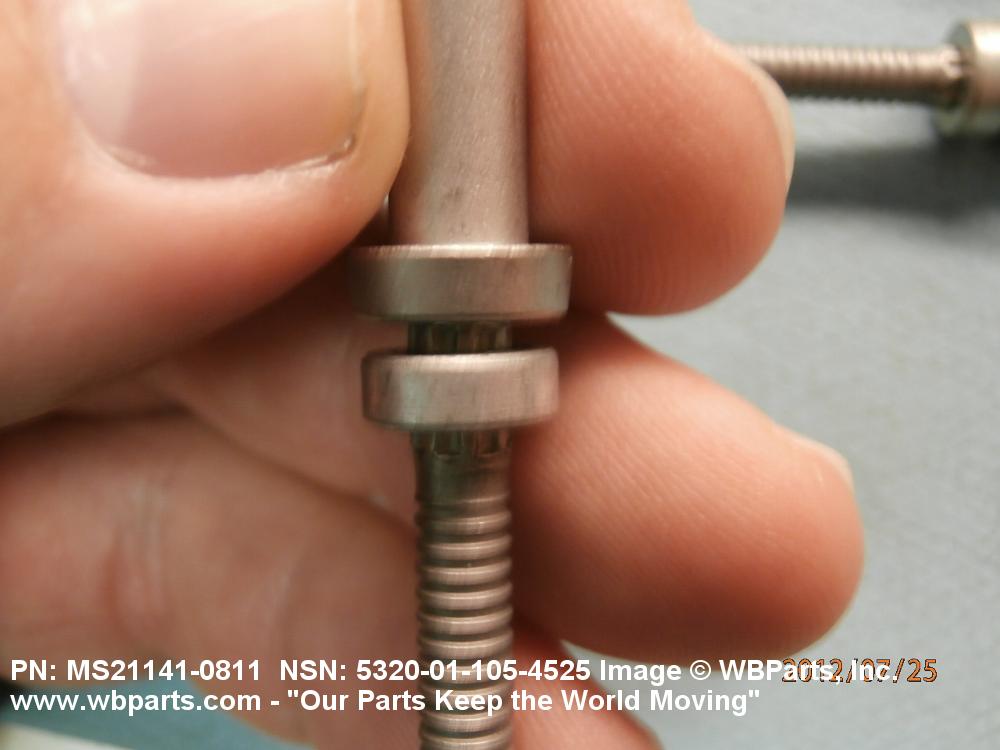

Drawings & Photos | NSN 5320-01-105-4525

Part Number	Request Date	QTY	Origin
5320-01-105-4525	2024-07-206	1504	DIBBS
5320-01-105-4525	2024-07-198	1504	DIBBS
5320-01-105-4525	2024-02-56	1758	DIBBS
5320-01-105-4525	2024-01-05	776	United States
5320-01-105-4525	2024-01-04	320	United States
5320-01-105-4525	2023-12-347	107	DIBBS
5320-01-105-4525	2020-05-140	224	DIBBS
5320-01-105-4525	2020-04-99	427	DIBBS
5320-01-105-4525	2020-04-94	427	US
5320-01-105-4525	2020-03-91	427	DIBBS
MS211410811	2016-03-90	60	US
MS211410811	2014-09-252	320	United States
MS211410811	2012-07-200	700	United States
MS211410811	2012-07-200	700	United States
MS211410811	2012-06-160	624	United States
MS211410811	2011-12-336	780	United States
MS211410811	2011-12-335	800	United States
MS211410811	2011-09-262	520	United States
MS211410811	2011-09-245	520	United States
MS211410811	2011-09-244	520	United States
5320-01-105-4525	2009-01-05	1200	DIBBS

Cross Reference | NSN 5320-01-105-4525

Part Number	Cage Code	Manufacturer
MS21141-0811	96906	MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS

Request a Quote

What Our Customers Say

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

Compare

NSNs for Compare ( up to 4 ): Add 5320-01-105-4525

Compare

Related Products | NSN 5320-01-105-4525

5320-01-105-4526, 5320-01-105-4527, 5320-01-105-4528, 5320-01-105-4529, 5320-01-105-5625

Technical Data | NSN 5320-01-105-4525

Characteristic	Specifications
MATERIAL	IRON ALLOY 660 OVERALL
SURFACE TREATMENT	PASSIVATE OVERALL
HEAD STYLE	C21 STRAIGHT PAN
HEAD HEIGHT	0.130 INCHES MINIMUM AND 0.140 INCHES MAXIMUM

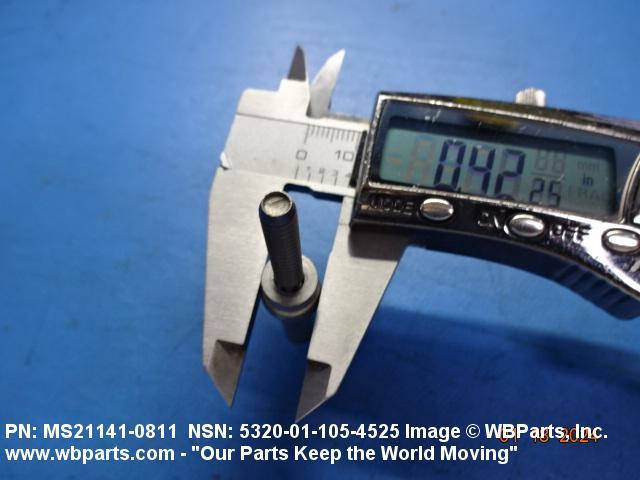

HEAD MAJOR DIAMETER	0.400 INCHES MINIMUM AND 0.432 INCHES MAXIMUM
SHANK STYLE	D32 SELF-PLUGGING MECHANICALLY LOCKED STEM
FASTENER LENGTH	ANY ACCEPTABLE

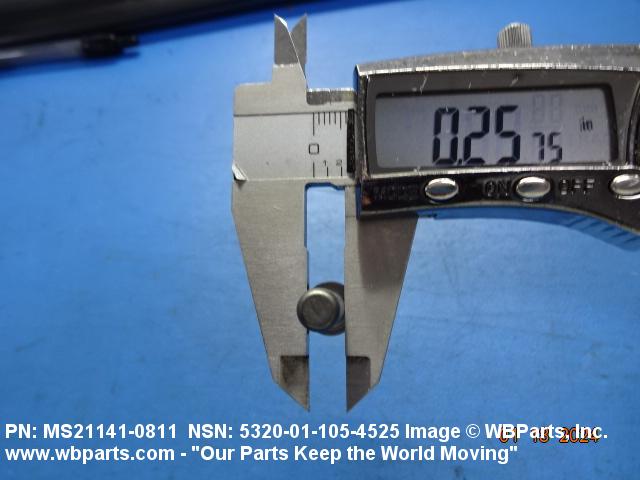

SHANK DIAMETER	0.258 INCHES MINIMUM AND 0.260 INCHES MAXIMUM
GRIP LENGTH	0.656 INCHES MINIMUM AND 0.720 INCHES MAXIMUM
EXPANSION DEVICE	SERRATED STEM-TYPE W
LUBRICATION	DRY FILM
SPECIFICATION/STANDARD DATA	96906-MS21141-0811 GOVERNMENT SPECIFICATION
MANUFACTURERS CODE	96906
DEFINITIVE GOVERNMENT SPEC/STD REFERENCE	MS21141-0811

Restrictions/Controls & Freight Information | NSN 5320-01-105-4525

Restrictions
Freight

Category	Code	Description
Shelf-Life Code:	0	Nondeteriorative
Hazardous Material Indicator Code	N	There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials
Demilitarization Code:	A	Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:	U	UNCLASSIFIED
Precious Metals Indicator Code:	A	Item does not contain precious metal
Criticality Code:	X	The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.

Category	Code	Description
NMF Description	106510	RIVETS I/S PLAIN/GALVANIZED ETC
Less than car load rating
Less than truck load rating	U	50.0
Water commodity Code	713	unknown
Originating Activity Code	ZN	Netherlands ZO ZP
Air Dimension Code	A	Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity	B	Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials.
Air Special Handling	Z	No special handling required.
Special Handling Code	9	unknonwn
HAZMAT
Type of Cargo	Z	No special type of cargo code applicable

Management | NSN 5320-01-105-4525

Air Force
Navy

Category	Code	Description
Budget Code	9	General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors.
Price Validation	N	The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM. The price has not been analyzed or reviewed for accuracy. ZOP or Standard price challenges are permissible, but must be supported with adequate justification. However, if coded for Local Purchase (LP) or Fabrication/Manufacture as indicated with an (LM) Acquisition Advice Code of ?L? or?F?,the case must be evaluated locally where purchased or fabricated.
Fund Code	SF	Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point.
Materiel Management Aggregation Code	SX	SX:AF SICA RESIDUAL MMAC-OC-ALC
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DF	Department of the Air Force
Service Organization	F	U.S. Air Force
Reparability	N	Stock Fund (except Munitions)
Acquisition Advice Codes	H	DIRECT DELIVERY UNDER A CENTRAL CONTRACT # (VENDOR STOCKED) Issue, transfer or shipment is not subject to specialized controls other than those imposed by IMM/Service/Agency supply policy. 1. The item is centrally managed and procured. 2. Normal issue is by direct shipment from the vendor to the user at the order of the ICP or IMM. However, orders may be shipped from stock by ICP or IMM distribution facilities when the vendor's minimum order quantity is not met, or when stocks are being drawn down. 3. Requisitions and fund citations will be submitted in accordance with IMM/Service/Agency Requisitioning Procedures. 4. Generally delivery will be made within applicable Service/Agency guidelines addressing customer required timeframe.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each

Category	Code	Description
Cognizance Codes	9B	Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DN	Department of the Navy
Service Organization	N	U.S. Navy
Acquisition Advice Codes	H	DIRECT DELIVERY UNDER A CENTRAL CONTRACT # (VENDOR STOCKED) Issue, transfer or shipment is not subject to specialized controls other than those imposed by IMM/Service/Agency supply policy. 1. The item is centrally managed and procured. 2. Normal issue is by direct shipment from the vendor to the user at the order of the ICP or IMM. However, orders may be shipped from stock by ICP or IMM distribution facilities when the vendor's minimum order quantity is not met, or when stocks are being drawn down. 3. Requisitions and fund citations will be submitted in accordance with IMM/Service/Agency Requisitioning Procedures. 4. Generally delivery will be made within applicable Service/Agency guidelines addressing customer required timeframe.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each
