NSN 5320-01-105-4526 MS211410812, MS21141-0812, 01-105-4526
Product Details | BLIND RIVET
5320-01-105-4526 An item consisting of two or more of the following components: stem, rivet body, sleeve, expander, bolt, and collar. It is a headed fastening device with the shank designed to be expanded by means of a separate or integral stem or mandrel, or bolt and expander. It is designed to be installed or expanded from one side only. Excludes NUT, BLIND ASSEMBLY.
Part Alternates: MS211410812, MS21141-0812, 5320-01-105-4526, 01-105-4526, 5320011054526, 011054526
Hardware and Abrasives | Rivets
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 23 DEC 1980 | 01-105-4526 | 00864 ( RIVET, BLIND ) |

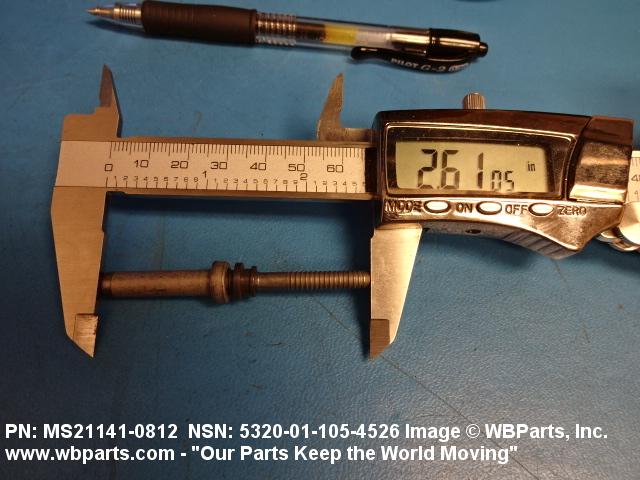

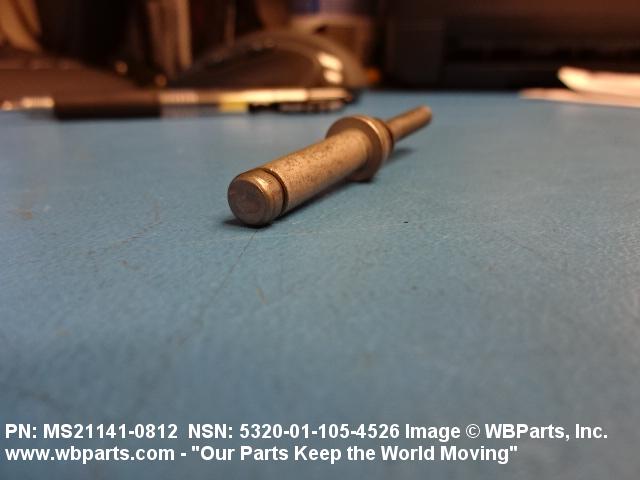

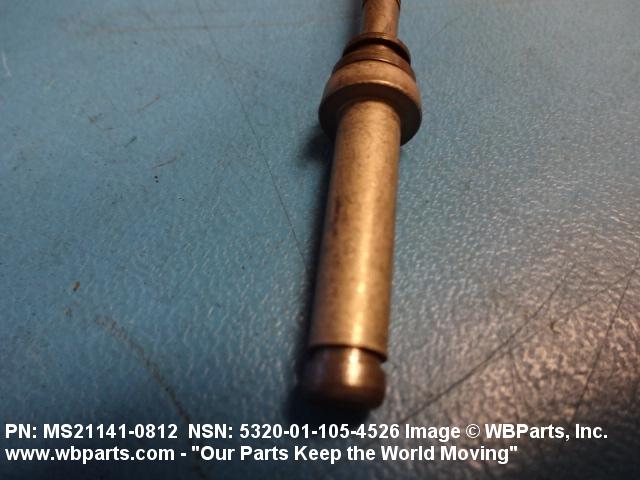

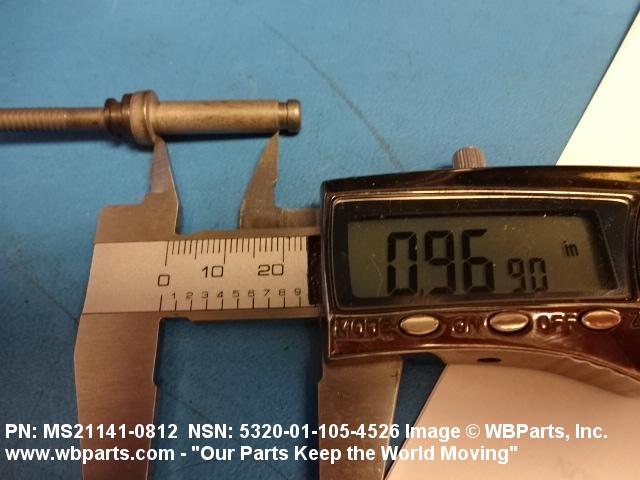

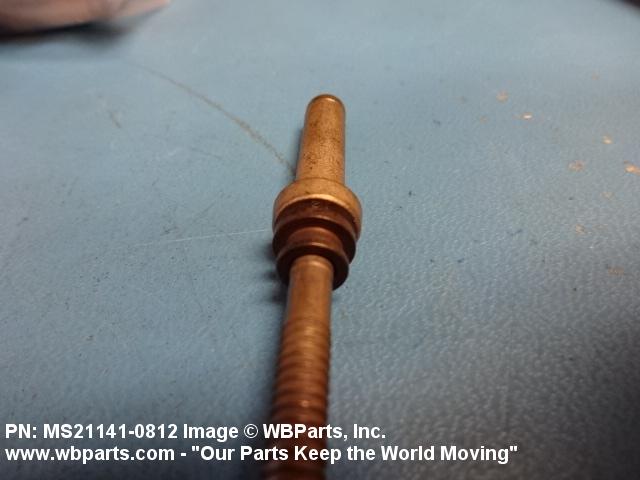

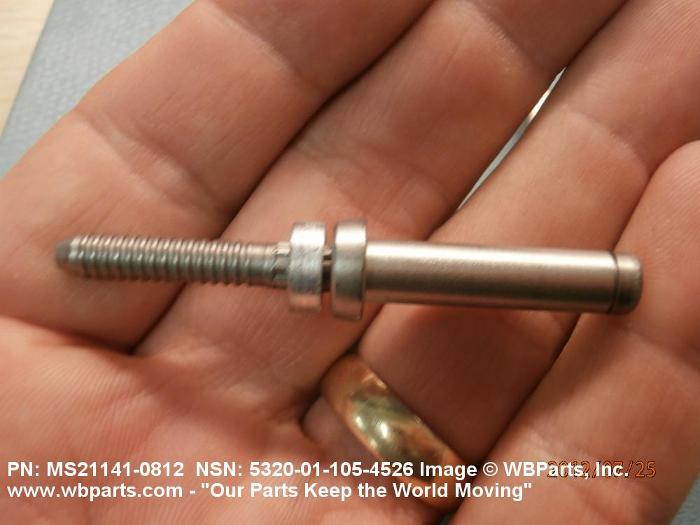

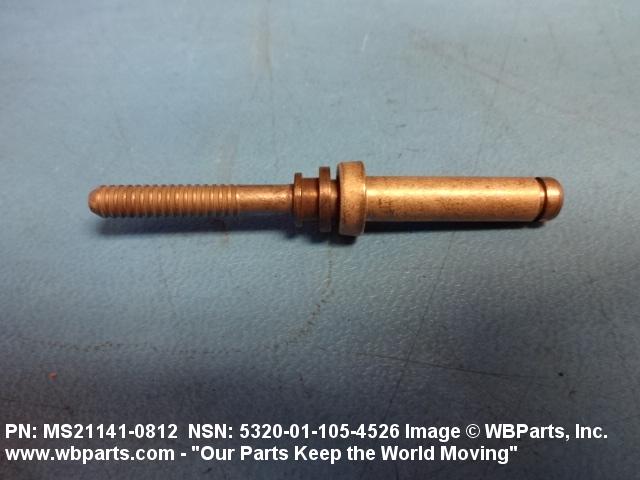

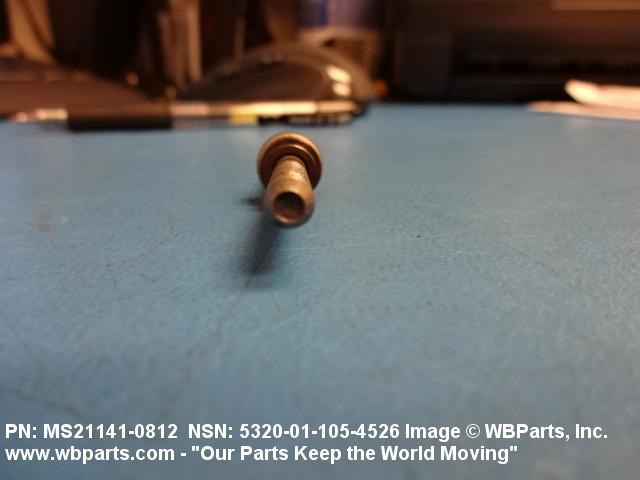

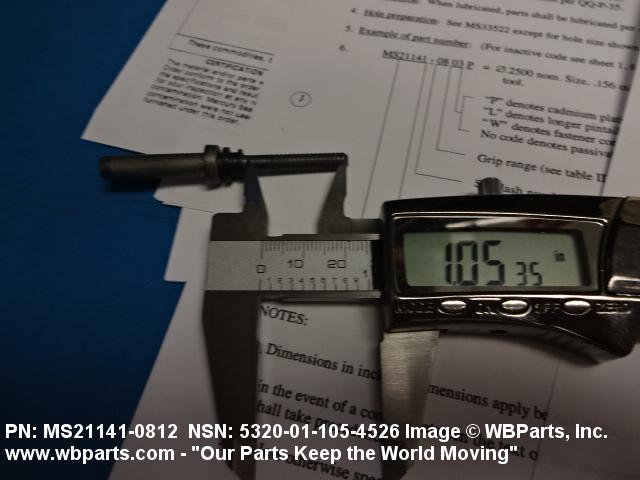

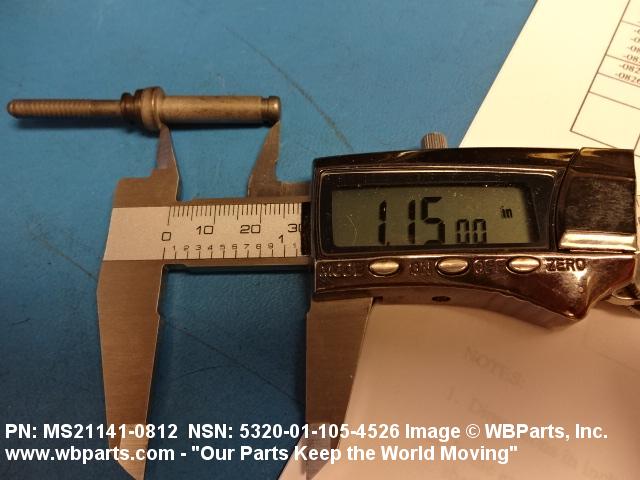

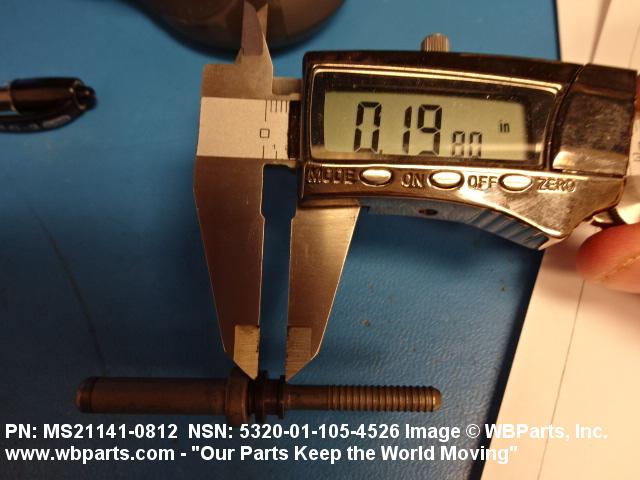

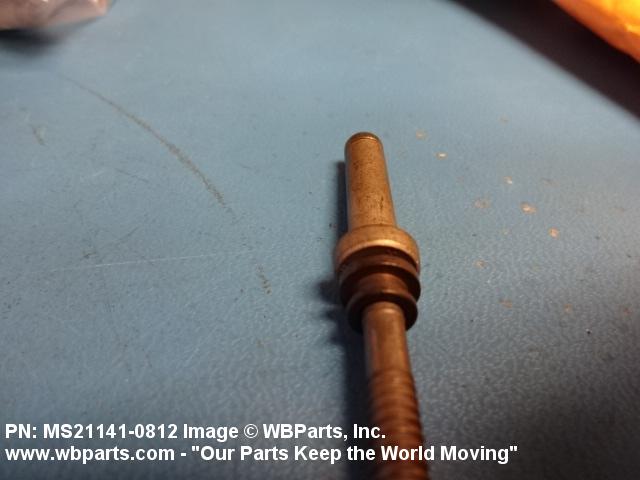

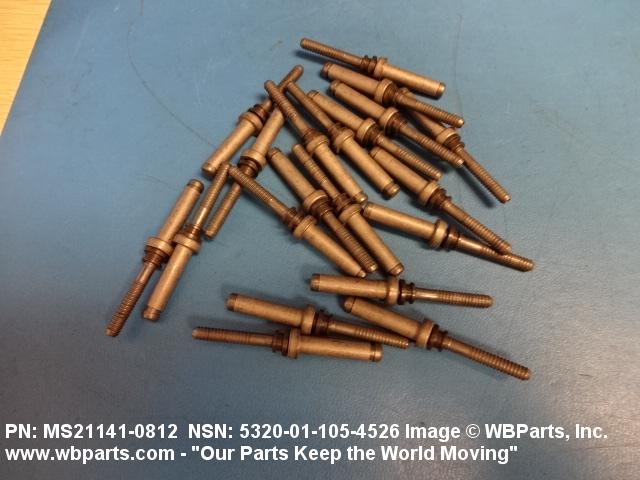

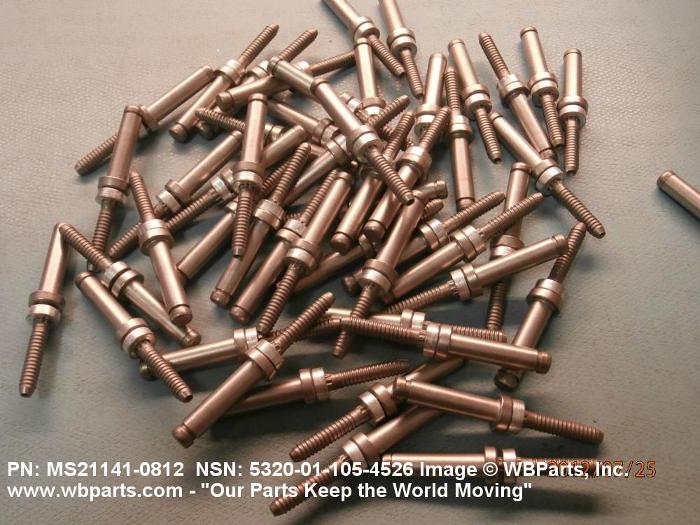

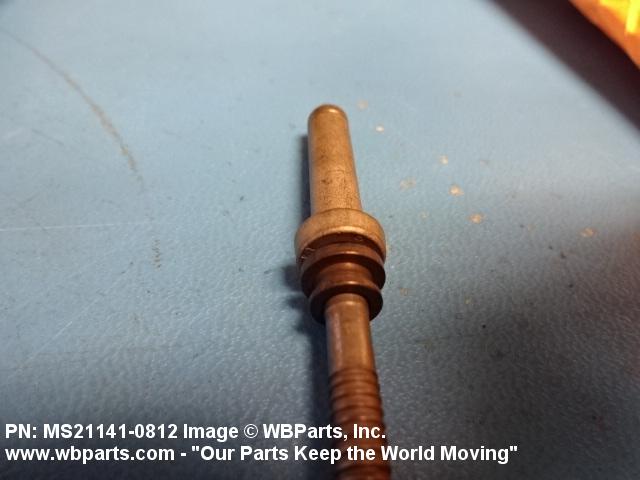

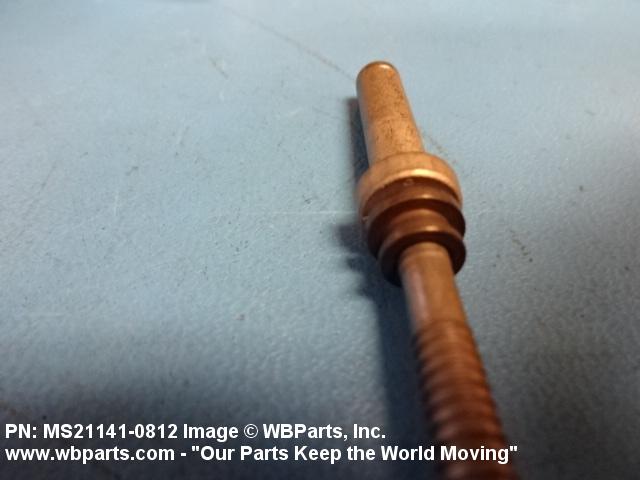

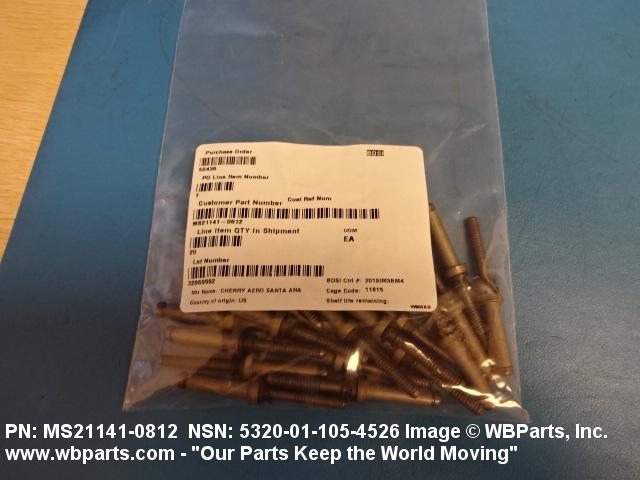

Drawings & Photos | NSN 5320-01-105-4526
Demand History | NSN 5320-01-105-4526
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| MS211410812 | 2024-03-82 | 2000 | UK |
| 5320-01-105-4526 | 2021-11-322 | 50 | United States |
| MS211410812 | 2020-08-218 | 20 | United States |
| MS211410812 | 2019-06-176 | 342 | Taiwan |
| 5320-01-105-4526 | 2018-10-297 | 700 | US |
| MS211410812 | 2018-10-282 | 700 | United States |
| MS211410812 | 2016-03-90 | 100 | US |
| MS211410812 | 2012-07-200 | 600 | United States |
| MS211410812 | 2012-06-160 | 300 | United States |
| MS211410812 | 2012-04-117 | 1400 | United States |
| MS211410812 | 2012-04-116 | 1400 | United States |
| MS211410812 | 2011-12-336 | 360 | United States |
| MS211410812 | 2011-12-336 | 450 | United States |
| MS211410812 | 2011-12-335 | 1300 | United States |
| MS211410812 | 2011-09-262 | 840 | United States |
| MS211410812 | 2011-09-259 | 840 | United States |
| MS211410812 | 2011-09-245 | 840 | United States |
| MS211410812 | 2010-12-356 | 1 | Italy |
| MS211410812 | 2009-12-350 | 2066 | Italy |
Cross Reference | NSN 5320-01-105-4526
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| MS21141-0812 | 96906 | MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5320-01-105-4526
Related Products | NSN 5320-01-105-4526
Technical Data | NSN 5320-01-105-4526
| Characteristic | Specifications |
|---|---|
| MATERIAL | IRON ALLOY 660 OVERALL |
| SURFACE TREATMENT | PASSIVATE OVERALL |
| HEAD STYLE | C21 STRAIGHT PAN |

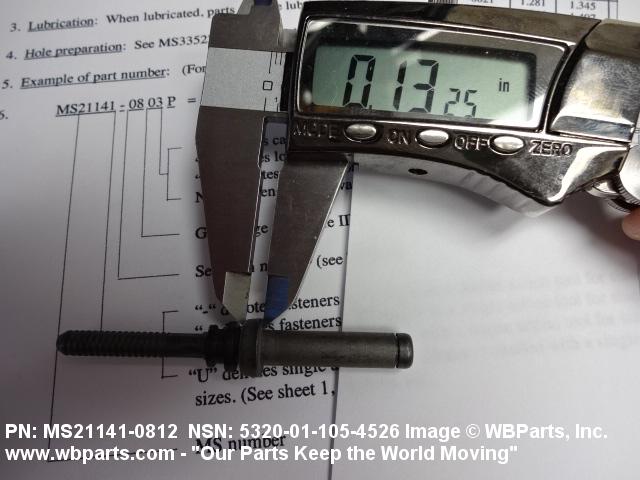

| HEAD HEIGHT | 0.130 INCHES MINIMUM AND 0.140 INCHES MAXIMUM |

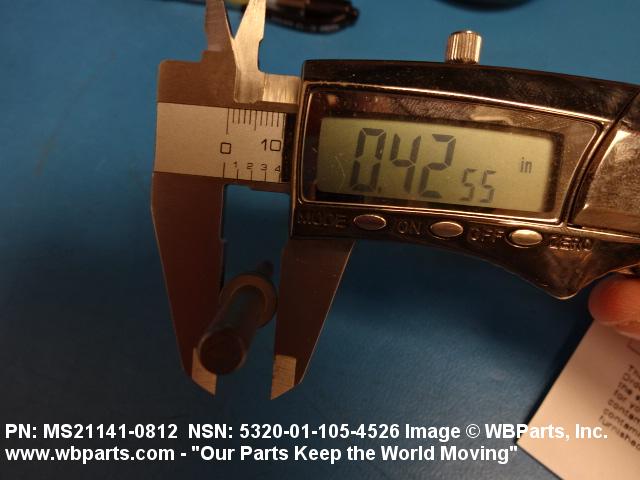

| HEAD MAJOR DIAMETER | 0.400 INCHES MINIMUM AND 0.432 INCHES MAXIMUM |
| SHANK STYLE | D32 SELF-PLUGGING MECHANICALLY LOCKED STEM |
| FASTENER LENGTH | ANY ACCEPTABLE |

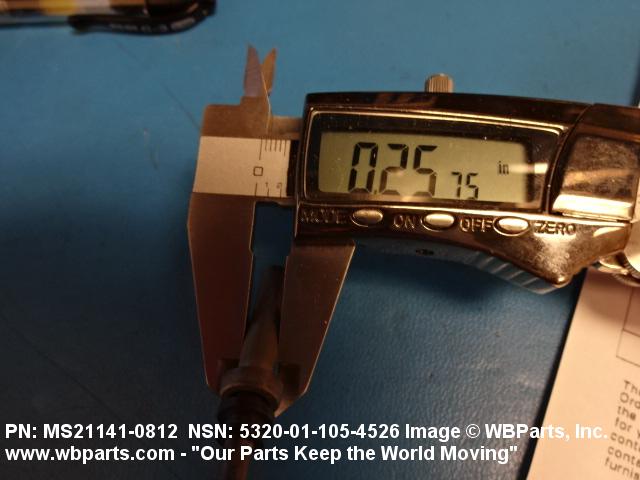

| SHANK DIAMETER | 0.258 INCHES MINIMUM AND 0.260 INCHES MAXIMUM |
| GRIP LENGTH | 0.719 INCHES MINIMUM AND 0.782 INCHES MAXIMUM |
| EXPANSION DEVICE | SERRATED STEM-TYPE W |
| LUBRICATION | DRY FILM |
| SPECIFICATION/STANDARD DATA | 96906-MS21141-0812 GOVERNMENT SPECIFICATION |
| MANUFACTURERS CODE | 96906 |
| DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | MS21141-0812 |
Restrictions/Controls & Freight Information | NSN 5320-01-105-4526
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 106510 | RIVETS I/S PLAIN/GALVANIZED ETC |
| Less than car load rating | ||
| Less than truck load rating | U | 50.0 |
| Water commodity Code | 713 | unknown |
| Originating Activity Code | ZN | Netherlands ZO ZP |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5320-01-105-4526
Army| Category | Code | Description |
|---|---|---|
| Materiel Category and Inventory Manager | T | Industrial Supplies (DLA/GSA Items) |
| Appropriation and Budget Activity | 2 | Stock Fund Secondary Items |
| Management Inventory Segment | 2 | NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable. |
| Specific Group/Generic Code | 0 | Medical Materiel |
| Weapons Systems/End Item or Homogeneous Group | 00 | DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item |
| Accounting Requirements Code | X | Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DA | Department of the Army |
| Service Organization | A | U.S. Army |
| Reparability | Z | This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item. |
| Acquisition Advice Codes | Y | TERMINAL ITEM #(NON-STOCKED ITEMS) Future procurement is not authorized. No wholesale stock is available for issue. 1. Requisitions will not be processed to the wholesale manager. 2. Internal Service/agency requisitioning may be continued in accordance with the Service/agency requisitioning policies. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
