NSN 5320-01-097-5739 RA120748, RA12074-8, 1087478
Product Details | TUBULAR RIVET
5320-01-097-5739 A headed fastening device having a smooth shank which is hollow or having a cavity at its end and designed to have the shank clinched after insertion.
Part Alternates: RA120748, RA12074-8, 1087478, 108747-8, 5320-01-097-5739, 01-097-5739, 5320010975739, 010975739
Hardware and Abrasives | Rivets
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 16 JUL 1980 | 01-097-5739 | 00863 ( RIVET, TUBULAR ) |
Drawings & Photos | NSN 5320-01-097-5739
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5320-01-097-5739
Related Products | NSN 5320-01-097-5739
Technical Data | NSN 5320-01-097-5739

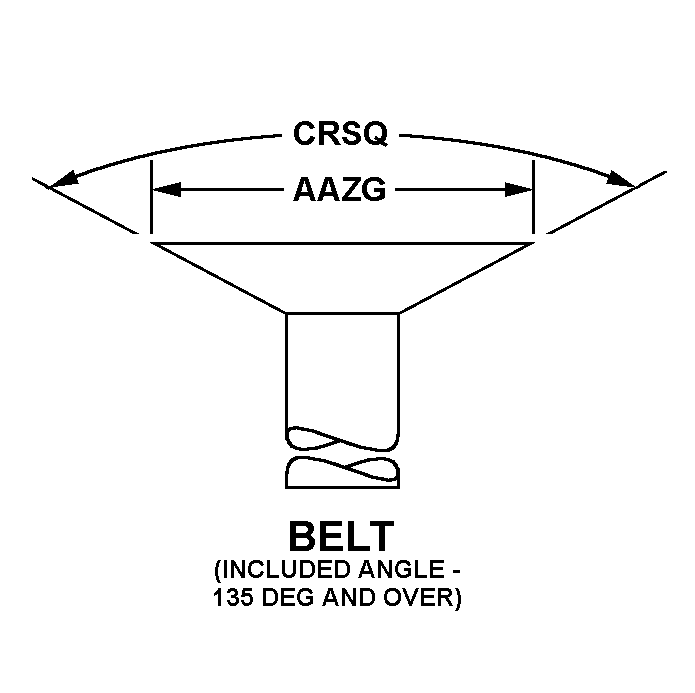

| Characteristic | Specifications |
|---|---|
| MATERIAL | NICKEL ALLOY OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | QQ-W-321 FED SPEC SINGLE MATERIAL RESPONSE OVERALL |
| SURFACE TREATMENT | CADMIUM OVERALL |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | QQ-P-416,TYPE 2 FED SPEC SINGLE TREATMENT RESPONSE OVERALL |
| HEAD STYLE | C1 BELT |
| HEAD MAJOR DIAMETER | 0.096 INCHES MINIMUM AND 0.106 INCHES MAXIMUM |
| COUNTERSINK ANGLE | 90.0 DEGREES NOMINAL |
| SHANK STYLE | D6 TUBULAR |
| FASTENER LENGTH | 0.182 INCHES MINIMUM AND 0.192 INCHES MAXIMUM |
| HOLE DIAMETER | 0.028 INCHES MINIMUM AND 0.038 INCHES MAXIMUM |
| SHANK DIAMETER | 0.058 INCHES MINIMUM AND 0.061 INCHES MAXIMUM |
| HOLE DEPTH | 0.040 INCHES MINIMUM AND 0.050 INCHES MAXIMUM |
| MANUFACTURERS CODE | 12014 |
| DESIGN CONTROL REFERENCE | RA12074-8 |
Restrictions/Controls & Freight Information | NSN 5320-01-097-5739
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 106510 | RIVETS I/S PLAIN/GALVANIZED ETC |
| Less than car load rating | D | 200 |
| Less than truck load rating | U | 50.0 |
| Water commodity Code | 738 | unknown |
| Originating Activity Code | TG | Warner-Robins Air Logistics Center Robins AFB, GA 31098-5609 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | 3 | Electrostatic Sensitive Device (ESD), subject to damage caused by electrostatic discharge. (See DoD 4500.32-R, Volume 1, Appendix A, Section I for additional information on ESD devices). |
