NSN 5320-01-084-6101 M7885/3-6-03, M78853603, M81934/2-10A016

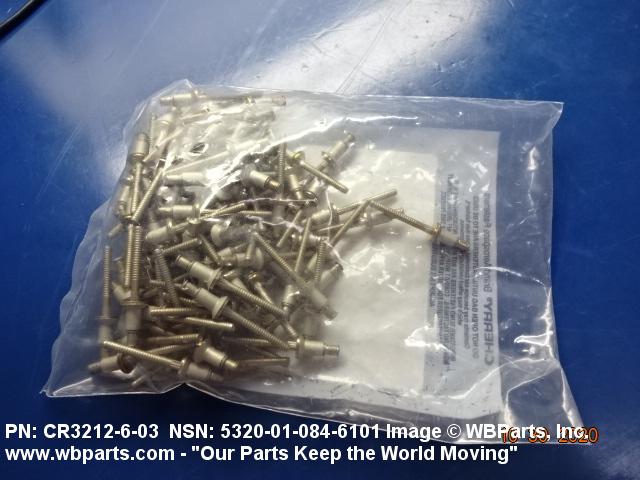

Product Details | BLIND RIVET

5320-01-084-6101 An item consisting of two or more of the following components: stem, rivet body, sleeve, expander, bolt, and collar. It is a headed fastening device with the shank designed to be expanded by means of a separate or integral stem or mandrel, or bolt and expander. It is designed to be installed or expanded from one side only. Excludes NUT, BLIND ASSEMBLY.

Part Alternates: M7885/3-6-03, M78853603, M81934/2-10A016 , M81934210A016, NAS9302BNS603, NAS9302BNS-6-03, A19847, AF3212603, AF3212-6-03, AF321263, AF3212-6-3, CR21263, CR-212-6-3, CR3212603, CR3212-6-03, CR321263, CR3212-6-3, HC3212603, HC3212-6-03, ST3M827B63, ST3M827B6-3, MIL-R-7885/3, MILR78853, 0738210A016, 07-382-10A016 , 10124031 , 1230210A016, 123-0210A016 , 5320PL0786856 , 5320-01-084-6101, 01-084-6101, 5320010846101, 010846101

Hardware and Abrasives | Rivets

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
53	23 OCT 1979	01-084-6101	00864 ( RIVET, BLIND )

Drawings & Photos | NSN 5320-01-084-6101

Part Number	Request Date	QTY	Origin
CR321263	2022-10-283	100	Malaysia
CR321263	2021-05-125	100	United States
5320-01-084-6101	2020-10-283	15	United States
CR3212-6-3	2018-08-222	69	United Kingdom
CR3212603	2017-07-209	100	United States
M81934210A016	2015-03-70	20	United States
AF3212-6-03	2013-08-238	5000	US
5320-01-084-6101	2013-03-84	97444	DIBBS
5320-01-084-6101	2012-10-296	72066	DIBBS
CR321263	2012-05-122	200	ID
5320-01-084-6101	2011-06-181	54030	DIBBS
CR321263	2011-03-77	100	US
CR321263	2011-02-34	200	US

Cross Reference | NSN 5320-01-084-6101

Part Number	Cage Code	Manufacturer
5320PL0786856	9009H	INSPEKTORAT WSPARCIA SIL ZBROJNYCH
A19847	K0967	MBDA UK LTD
AF3212-6-03	53551	ALLFAST FASTENING SYSTEMS, LLC
AF3212-6-3	53551	ALLFAST FASTENING SYSTEMS, LLC
CR-212-6-3	11815	SPS TECHNOLOGIES, LLC DBA CHERRY AEROSPACE DIV
CR3212-6-03	06950	ALCOA GLOBAL FASTENERS, INC. DBA ALCOA FASTENING SYSTEMS
CR3212-6-03	11815	SPS TECHNOLOGIES, LLC DBA CHERRY AEROSPACE DIV
CR3212-6-3	06950	ALCOA GLOBAL FASTENERS, INC. DBA ALCOA FASTENING SYSTEMS
CR3212-6-3	11815	SPS TECHNOLOGIES, LLC DBA CHERRY AEROSPACE DIV
CR3212-6-3	92215	ALCOA GLOBAL FASTENERS, INC. DBA ALCOA FASTENING SYSTEMS
CR3212-6-3	C4293	ALCOA FASTENING SYSTEMS FAIRCHILDFASTENERS EUROPE - VSD GMBH
CR3212-6-3	F7652	B E AEROSPACE CONSUMABLESMANAGEMENT DEUX SAS
HC3212-6-03	0HDW7	HUCK INTERNATIONAL, INC. DBA ALCOA FASTENING SYSTEMS
HC3212-6-03	17446	HUCK INTERNATIONAL, INC. DBA ALCOA FASTENING SYSTEMS
M7885/3-6-03	81349	MILITARY SPECIFICATIONS PROMULGATED BY MILITARY
MIL-R-7885/3	81349	MILITARY SPECIFICATIONS PROMULGATED BY MILITARY
NAS9302BNS-6-03	80205	NATIONAL AEROSPACE STANDARDS COMMITTEE AEROSPACE INDUSTRIES
ST3M827B6-3	76301	BOEING COMPANY, THE DBA BOEING

Request a Quote

What Our Customers Say

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

Compare

NSNs for Compare ( up to 4 ): Add 5320-01-084-6101

Compare

Related Products | NSN 5320-01-084-6101

5320-01-084-8289, 5320-01-084-8290, 5320-01-084-9232, 5320-01-084-9233, 5320-01-084-9234

Technical Data | NSN 5320-01-084-6101

Characteristic	Specifications
MATERIAL	ALUMINUM ALLOY 5056 SLEEVE STEEL COMP 8740 STEM
MATERIAL DOCUMENT AND CLASSIFICATION	QQ-A-430 FED SPEC SINGLE MATERIAL RESPONSE SLEEVE AMS 6322 ASSN STD SINGLE MATERIAL RESPONSE STEM
SURFACE TREATMENT	CHROMATE SLEEVE CADMIUM AND CHROMATE STEM
SURFACE TREATMENT DOCUMENT AND CLASSIFICATION	MIL-C-5541 MIL SPEC SINGLE TREATMENT RESPONSE SLEEVE QQ-P-416,TYPE 2,CLASS 2 FED SPEC ALL TREATMENT RESPONSES STEM
HEAD STYLE	C9 FLUSH COUNTERSUNK
HEAD MAJOR DIAMETER	0.357 INCHES MAXIMUM
COUNTERSINK ANGLE	99.0 DEGREES MINIMUM AND 101.0 DEGREES MAXIMUM
SHANK STYLE	D32 SELF-PLUGGING MECHANICALLY LOCKED STEM
FASTENER LENGTH	0.315 INCHES MINIMUM AND 0.335 INCHES MAXIMUM
SHANK DIAMETER	0.188 INCHES MINIMUM AND 0.192 INCHES MAXIMUM
GRIP LENGTH	0.126 INCHES MINIMUM AND 0.187 INCHES MAXIMUM
EXPANSION DEVICE	SERRATED STEM-TYPE W
SPECIAL FEATURES	"NS" LETTERS AFTER THE MATERIAL CODE "B" INDICATE NO PREFERENCE TO LOCK TYPE (MAY BE VISIBLE OR INTERNAL). RIVETS WITH NO LETTER CODE (INDICATING VISIBLE LOCK TYPE) AND RIVETS WITH THE LETTER "H" AFTER THE MATERIAL CODE (INDICATING INTERNAL LOCK TYPE) ARE BOTH ACCEPTABLE FOR THIS ITEM OF SUPPLY.
