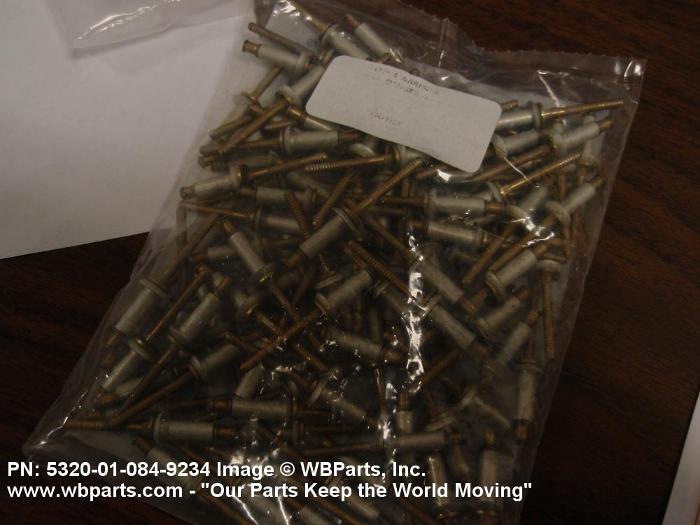

Product Details | BLIND RIVET

5320-01-084-9234 An item consisting of two or more of the following components: stem, rivet body, sleeve, expander, bolt, and collar. It is a headed fastening device with the shank designed to be expanded by means of a separate or integral stem or mandrel, or bolt and expander. It is designed to be installed or expanded from one side only. Excludes NUT, BLIND ASSEMBLY.

Part Alternates: M7885/2-6-06, M7885/3-6-03, M7885/3-6-04, M7885/3-6-06, M7885/3-6-07, M7885/3-6-08, M7885/3-6-09, M7885/3-6-10, M7885/3-6-11, M7885/3-6-12, M78852606, M78853603, M78853604, M78853606, M78853607, M78853608, M78853609, M78853610, M78853611, M78853612, AF3213606, AF3213-6-06, AF321366, AF3213-6-6, NAS9301BNS606, NAS9301BNS-6-06, ST3M826B66, ST3M826B6-6, CR21366, CR-213-6-6, CR3213606, CR3213-6-06, CR321366, CR3213-6-6, HC3213606, HC3213-6-06, MIL-R-7885/2, MILR78852, 10124032 , 5575961, 8D00116 PIECE 101, 8D00116PIECE101, 5320-01-084-9234, 01-084-9234, 5320010849234, 010849234

Hardware and Abrasives | Rivets

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
53	26 OCT 1979	01-084-9234	00864 ( RIVET, BLIND )

Drawings & Photos | NSN 5320-01-084-9234

Part Number	Request Date	QTY	Origin
CR321366	2022-10-278	100	Malaysia
5320-01-084-9234	2021-09-260	3530	US
CR321366	2021-04-119	1000	GR
5320-01-084-9234	2021-04-116	10	GR
CR3213606	2020-07-210	200	United States
5320-01-084-9234	2015-12-335	100	US
M78852606	2014-11-323	100	US
M78853607	2014-11-323	100	US
CR321366	2013-09-256	25	UK
NAS9301BNS606	2013-09-253	150	US
5320-01-084-9234	2013-09-246	1	DIBBS-RFPs
AF3213-6-06	2013-08-238	5000	US
CR321366	2012-05-122	200	ID
5320-01-084-9234	2012-03-80	250	US
NAS9301BNS606	2011-02-59	100	United States
CR321366	2011-02-34	200	US
CR3213606	2010-09-270	1000	IN
CR3213606	2010-07-182	100	Italy
CR321366	2009-10-279	279	DE
5320-01-084-9234	2009-02-49	1000	United States
M78852606	2007-11-333	710	Taiwan

Cross Reference | NSN 5320-01-084-9234

Part Number	Cage Code	Manufacturer
5575961	34623	AM GENERAL, LLC
8D00116 PIECE 101	21439	ENGINEERED ARRESTING SYSTEMS CORPORATION
8D00116 PIECE 101	D2638	EME ELEKTRO-METALL EXPORT GMBH
AF3213-6-06	53551	ALLFAST FASTENING SYSTEMS, LLC
AF3213-6-6	53551	ALLFAST FASTENING SYSTEMS, LLC
CR-213-6-6	11815	SPS TECHNOLOGIES, LLC DBA CHERRY AEROSPACE DIV
CR3213-6-06	06950	ALCOA GLOBAL FASTENERS, INC. DBA ALCOA FASTENING SYSTEMS
CR3213-6-06	11815	SPS TECHNOLOGIES, LLC DBA CHERRY AEROSPACE DIV
CR3213-6-6	06950	ALCOA GLOBAL FASTENERS, INC. DBA ALCOA FASTENING SYSTEMS
CR3213-6-6	11815	SPS TECHNOLOGIES, LLC DBA CHERRY AEROSPACE DIV
CR3213-6-6	92215	ALCOA GLOBAL FASTENERS, INC. DBA ALCOA FASTENING SYSTEMS
CR3213-6-6	C4293	ALCOA FASTENING SYSTEMS FAIRCHILDFASTENERS EUROPE - VSD GMBH
CR3213-6-6	F7652	B E AEROSPACE CONSUMABLESMANAGEMENT DEUX SAS
HC3213-6-06	0HDW7	HUCK INTERNATIONAL, INC. DBA ALCOA FASTENING SYSTEMS
HC3213-6-06	17446	HUCK INTERNATIONAL, INC. DBA ALCOA FASTENING SYSTEMS
M7885/2-6-06	81349	MILITARY SPECIFICATIONS PROMULGATED BY MILITARY
M7885/3-6-03	D9182	BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT
M7885/3-6-04	D9182	BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT
M7885/3-6-06	D9182	BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT
M7885/3-6-07	D9182	BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT
M7885/3-6-08	D9182	BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT
M7885/3-6-09	D9182	BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT
M7885/3-6-10	D9182	BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT
M7885/3-6-11	D9182	BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT
M7885/3-6-12	D9182	BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT
MIL-R-7885/2	81349	MILITARY SPECIFICATIONS PROMULGATED BY MILITARY
NAS9301BNS-6-06	80205	NATIONAL AEROSPACE STANDARDS COMMITTEE AEROSPACE INDUSTRIES
ST3M826B6-6	76301	BOEING COMPANY, THE DBA BOEING
