NSN 5320-01-084-6098 AHJF10A016 , AS81934/2 , AS819342
Product Details | BLIND RIVET
5320-01-084-6098 An item consisting of two or more of the following components: stem, rivet body, sleeve, expander, bolt, and collar. It is a headed fastening device with the shank designed to be expanded by means of a separate or integral stem or mandrel, or bolt and expander. It is designed to be installed or expanded from one side only. Excludes NUT, BLIND ASSEMBLY.
Part Alternates: AHJF10A016 , AS81934/2 , AS819342, CR3212507, CR3212-5-07, CR321257, CR3212-5-7, FBJW20TF10A016 , FBJW20TF-10A016 , FBRR10A016, FBRR-10A016 , KDJ10A016342, KDJ10A016-342 , KRJ10HDYB10A016M, KRJ10HDYB-10A016M , MIL-B-81934/2 , MILB819342, 5320-01-084-6098, 01-084-6098, 5320010846098, 010846098
Hardware and Abrasives | Rivets
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 23 OCT 1979 | 01-084-6098 | 00864 ( RIVET, BLIND ) |

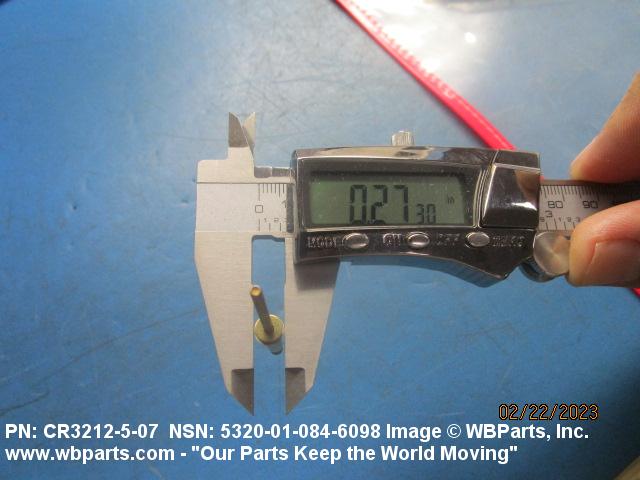

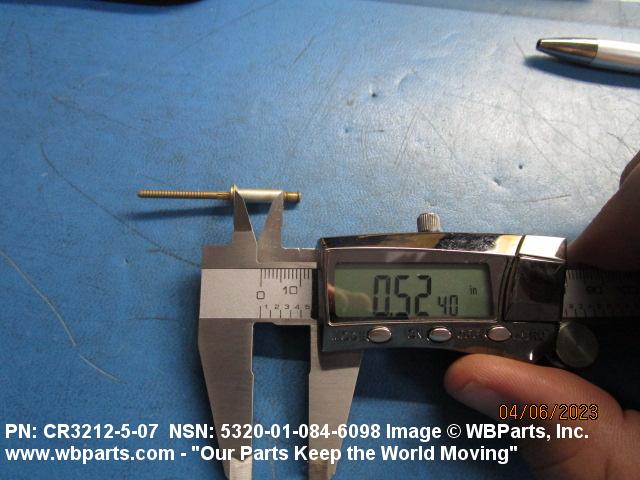

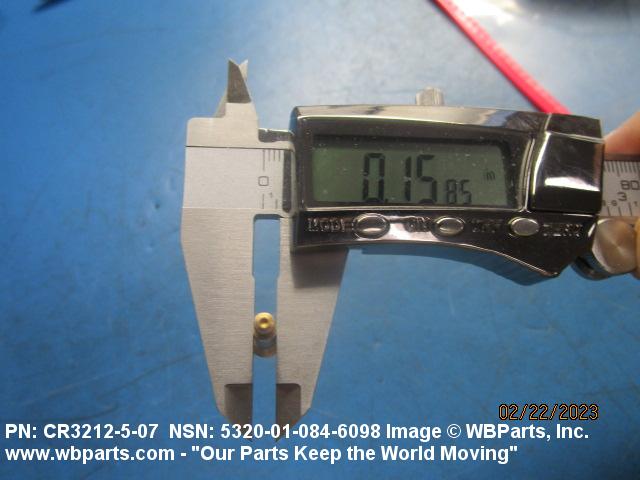

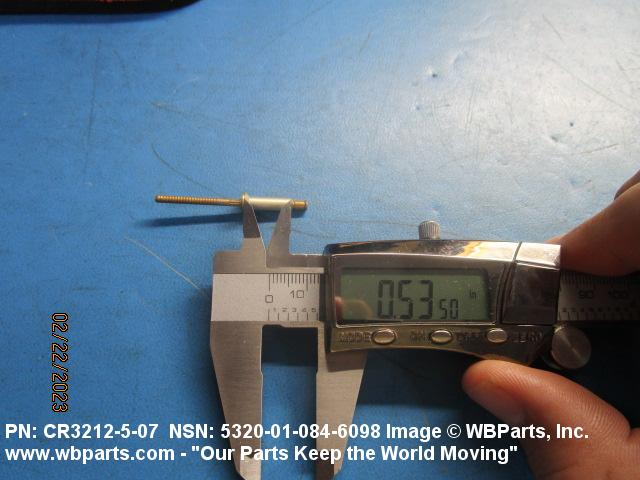

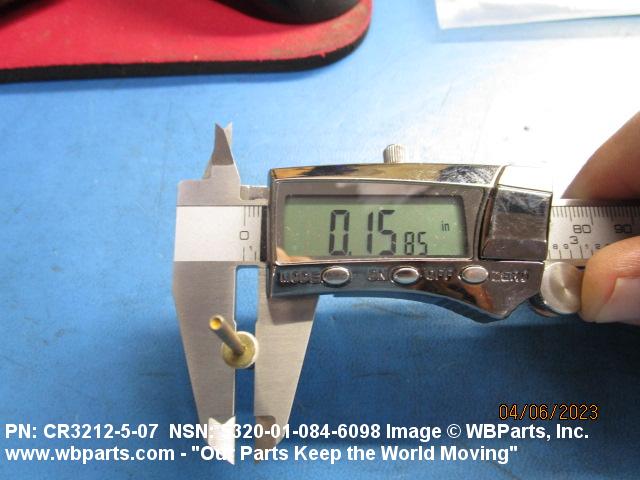

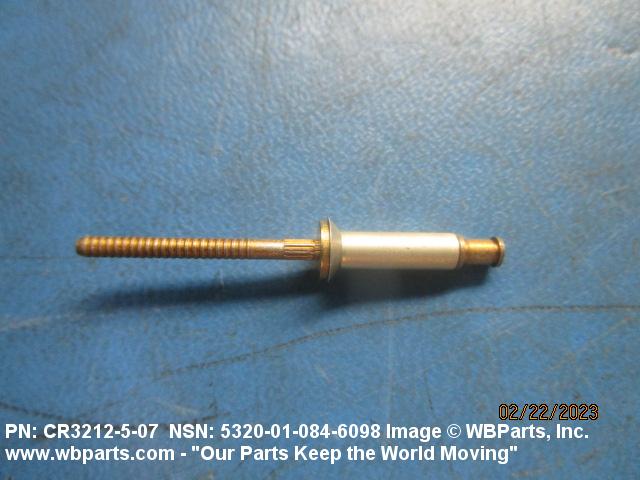

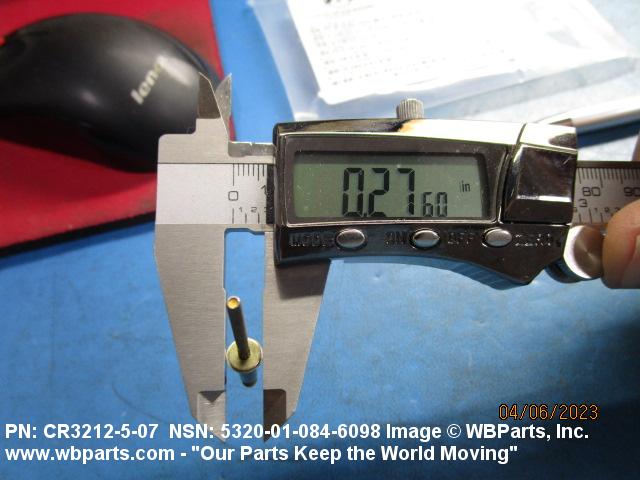

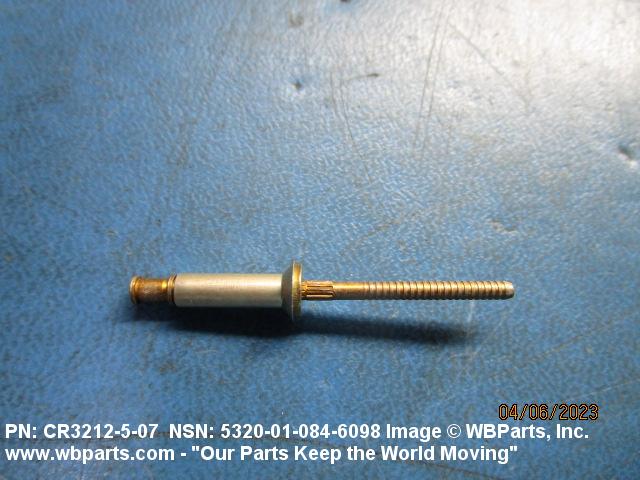

Drawings & Photos | NSN 5320-01-084-6098
Demand History | NSN 5320-01-084-6098
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5320-01-084-6098 | 2024-01-17 | 100 | United States |
| 5320-01-084-6098 | 2024-01-16 | 100 | United States |
| CR321257 | 2022-10-283 | 100 | Malaysia |
| CR321257 | 2022-10-278 | 100 | us |
| AS819342 | 2020-09-262 | 12 | US |
| AS819342 | 2019-09-248 | 36 | United States |
| AS819342 | 2013-06-171 | 2 | AU |
| CR321257 | 2012-05-122 | 200 | ID |
| AS819342 | 2011-08-231 | 2 | us |
| CR321257 | 2011-06-154 | 200 | US |
| CR321257 | 2011-02-34 | 200 | US |
| AS819342 | 2009-10-296 | 550 | us |
| MILB819342 | 2007-11-320 | 200 | US |
| MILB819342 | 2007-09-264 | 4 | US |
Cross Reference | NSN 5320-01-084-6098
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| CR3212-5-07 | 11815 | SPS TECHNOLOGIES, LLC DBA CHERRY AEROSPACE DIV |
| CR3212-5-7 | 11815 | SPS TECHNOLOGIES, LLC DBA CHERRY AEROSPACE DIV |
| CR3212-5-7 | 92215 | ALCOA GLOBAL FASTENERS, INC. DBA ALCOA FASTENING SYSTEMS |
| CR3212-5-7 | C4293 | ALCOA FASTENING SYSTEMS FAIRCHILDFASTENERS EUROPE - VSD GMBH |
| CR3212-5-7 | R1120 | SATAIR A/S |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5320-01-084-6098
Related Products | NSN 5320-01-084-6098
Technical Data | NSN 5320-01-084-6098
| Characteristic | Specifications |
|---|---|
| MATERIAL | ALUMINUM ALLOY 5056 SLEEVE STEEL COMP 8740 STEM |
| MATERIAL DOCUMENT AND CLASSIFICATION | QQ-A-430 FED SPEC SINGLE MATERIAL RESPONSE SLEEVE AMS 6322 ASSN STD SINGLE MATERIAL RESPONSE STEM |
| SURFACE TREATMENT | CHROMATE SLEEVE CADMIUM AND CHROMATE STEM |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | MIL-C-5541 MIL SPEC SINGLE TREATMENT RESPONSE SLEEVE QQ-P-416,TYPE 2,CLASS 2 FED SPEC ALL TREATMENT RESPONSES STEM |
| HEAD STYLE | C9 FLUSH COUNTERSUNK |
| HEAD MAJOR DIAMETER | 0.290 INCHES MAXIMUM |
| COUNTERSINK ANGLE | 99.0 DEGREES MINIMUM AND 101.0 DEGREES MAXIMUM |
| SHANK STYLE | D32 SELF-PLUGGING MECHANICALLY LOCKED STEM |
| FASTENER LENGTH | 0.533 INCHES MINIMUM AND 0.553 INCHES MAXIMUM |
| SHANK DIAMETER | 0.156 INCHES MINIMUM AND 0.160 INCHES MAXIMUM |
| GRIP LENGTH | 0.376 INCHES MINIMUM AND 0.437 INCHES MAXIMUM |
| EXPANSION DEVICE | SERRATED STEM-TYPE W |
Restrictions/Controls & Freight Information | NSN 5320-01-084-6098
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 013630 | ALUM RIVETS |
| Less than car load rating | ||
| Less than truck load rating | Q | 70.0 |
| Water commodity Code | 713 | unknown |
| Originating Activity Code | KZ | Defense Supply Center Philadelphia Philadelphia, PA 19101 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5320-01-084-6098
Army
Navy| Category | Code | Description |
|---|---|---|
| Materiel Category and Inventory Manager | T | Industrial Supplies (DLA/GSA Items) |
| Appropriation and Budget Activity | 2 | Stock Fund Secondary Items |
| Management Inventory Segment | 2 | NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable. |
| Specific Group/Generic Code | 0 | Medical Materiel |
| Weapons Systems/End Item or Homogeneous Group | 00 | DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item |
| Accounting Requirements Code | X | Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items. |
| Source of Supply | S9I | Defense Industrial Supply Center Philadelphia, PA 19111 |
| Agency | DA | Department of the Army |
| Service Organization | A | U.S. Army |
| Reparability | Z | This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item. |
| Acquisition Advice Codes | V | TERMINAL ITEM # Identifies items in stock, but future procurement is not authorized. Requisitions may continue to be submitted until stocks are exhausted. Preferred item National Stock Number is normally provided by application of the phrase: When Exhausted Use (NSN). Requisitions will be submitted in accordance with IMM/Service requisitioning procedures as applicable. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
H EA : Each |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9Z | Navy-owned stocks of defense industrial material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | S9I | Defense Industrial Supply Center Philadelphia, PA 19111 |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Y | TERMINAL ITEM #(NON-STOCKED ITEMS) Future procurement is not authorized. No wholesale stock is available for issue. 1. Requisitions will not be processed to the wholesale manager. 2. Internal Service/agency requisitioning may be continued in accordance with the Service/agency requisitioning policies. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
