NSN 5320-01-084-6093 M7885/3-4-06, M7885/3-4-6, M78853406

Product Details | BLIND RIVET

5320-01-084-6093 An item consisting of two or more of the following components: stem, rivet body, sleeve, expander, bolt, and collar. It is a headed fastening device with the shank designed to be expanded by means of a separate or integral stem or mandrel, or bolt and expander. It is designed to be installed or expanded from one side only. Excludes NUT, BLIND ASSEMBLY.

Part Alternates: M7885/3-4-06, M7885/3-4-6, M78853406, M7885346, MBBN3013L3206, A0077A406, AF3212406, AF3212-4-06, AF321246, AF3212-4-6, NAS9302BNS406, NAS9302BNS-4-06, ST9M5823, ST9M582-3 , ST9M582C1 , CR3212406, CR3212-4-06, CR321246, CR3212-4-6, HC3212406, HC3212-4-06, MIL-R-7885/3, MILR78853, 10117603 , 5320-01-084-6093, 01-084-6093, 5320010846093, 010846093

Hardware and Abrasives | Rivets

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
53	23 OCT 1979	01-084-6093	00864 ( RIVET, BLIND )

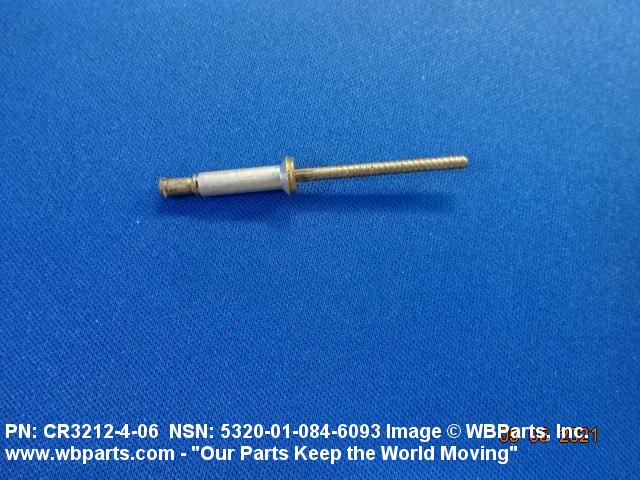

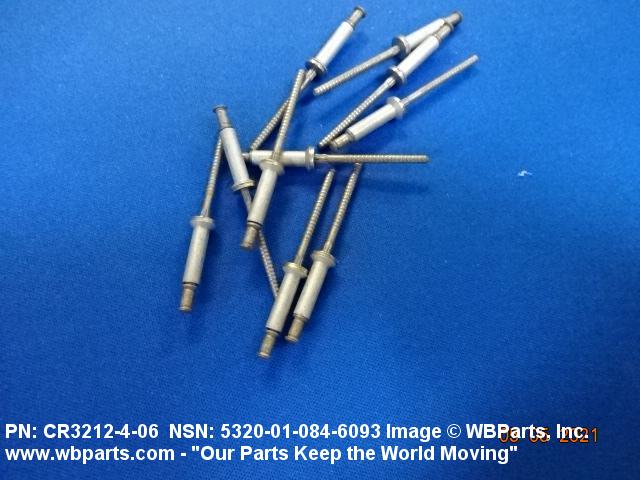

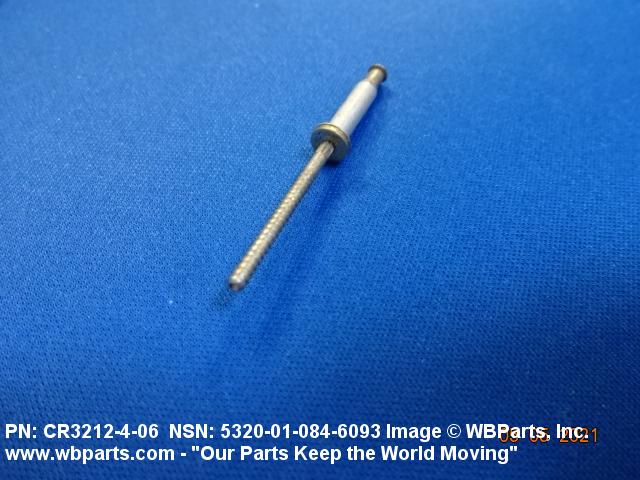

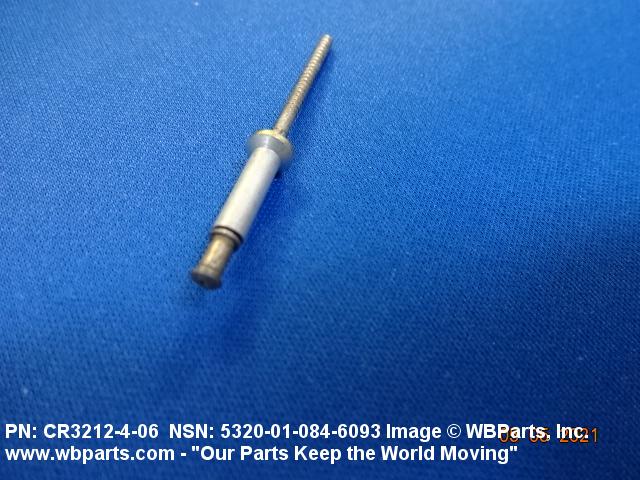

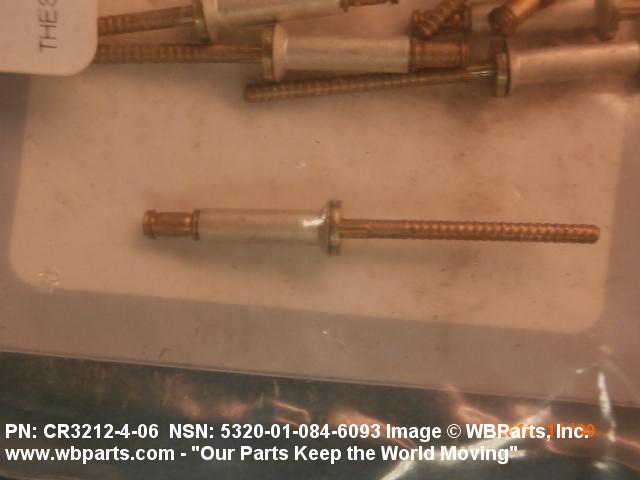

Drawings & Photos | NSN 5320-01-084-6093

Part Number	Request Date	QTY	Origin
CR3212406	2024-11-309	100	AU
CR321246	2024-10-288	870	Malaysia
5320-01-084-6093	2024-10-276	96	Spain
5320-01-084-6093	2024-08-241	90	MY
5320-01-084-6093	2024-08-240	90	Malaysia
CR3212406	2024-08-214	400	United States
5320-01-084-6093	2024-05-122	90	Malaysia
CR3212406	2024-03-73	500	IQ
M78853406	2022-10-283	500	United States
M78853406	2022-10-283	500	Saudi Arabia
5320-01-084-6093	2021-09-259	14	KR
CR321246	2021-04-119	200	GR
5320-01-084-6093	2021-04-116	2	GR
CR321246	2020-09-266	100	Malaysia
5320-01-084-6093	2018-02-52	1	DIBBS-RFPs
CR321246	2017-07-209	200	Italy
CR321246	2016-08-228	200	PH
CR3212-4-6	2015-07-201	1000
CR3212-4-06	2015-06-156	15	United States
CR321246	2015-01-28	200	Thailand
CR3212-4-06	2014-02-58	500	Thailand
CR3212406	2013-12-350	1000	Israel
AF3212-4-06	2013-08-238	5000	US
5320-01-084-6093	2013-02-43	23227	DIBBS
5320-01-084-6093	2012-10-277	15098	DIBBS
CR321246	2012-05-122	200	ID
CR3212406	2011-05-144	100	US
CR321246	2011-02-34	200	US
CR3212406	2010-03-89	235	US
M7885346	2009-03-64	600	us
CR321246	2006-04-98	400	United States

Cross Reference | NSN 5320-01-084-6093

Part Number	Cage Code	Manufacturer
A0077A406	F0210	AIRBUS HELICOPTERS (ETS DEMARIGNANE)
AF3212-4-06	53551	ALLFAST FASTENING SYSTEMS, LLC
AF3212-4-6	53551	ALLFAST FASTENING SYSTEMS, LLC
CR3212-4-06	11815	SPS TECHNOLOGIES, LLC DBA CHERRY AEROSPACE DIV
CR3212-4-06	F7652	B E AEROSPACE CONSUMABLESMANAGEMENT DEUX SAS
CR3212-4-6	06950	ALCOA GLOBAL FASTENERS, INC. DBA ALCOA FASTENING SYSTEMS
CR3212-4-6	11815	SPS TECHNOLOGIES, LLC DBA CHERRY AEROSPACE DIV
CR3212-4-6	92215	ALCOA GLOBAL FASTENERS, INC. DBA ALCOA FASTENING SYSTEMS
CR3212-4-6	C4293	ALCOA FASTENING SYSTEMS FAIRCHILDFASTENERS EUROPE - VSD GMBH
CR3212-4-6	F7652	B E AEROSPACE CONSUMABLESMANAGEMENT DEUX SAS
HC3212-4-06	0HDW7	HUCK INTERNATIONAL, INC. DBA ALCOA FASTENING SYSTEMS
HC3212-4-06	17446	HUCK INTERNATIONAL, INC. DBA ALCOA FASTENING SYSTEMS
M7885/3-4-06	81349	MILITARY SPECIFICATIONS PROMULGATED BY MILITARY
M7885/3-4-6	81349	MILITARY SPECIFICATIONS PROMULGATED BY MILITARY
MBBN3013L3206	C0418	AIRBUS HELICOPTERS DEUTSCHLAND GMBH- ENTWICKLUNG
MIL-R-7885/3	81349	MILITARY SPECIFICATIONS PROMULGATED BY MILITARY
NAS9302BNS-4-06	80205	NATIONAL AEROSPACE STANDARDS COMMITTEE AEROSPACE INDUSTRIES

Request a Quote

What Our Customers Say

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

Compare

NSNs for Compare ( up to 4 ): Add 5320-01-084-6093

Compare

Related Products | NSN 5320-01-084-6093

5320-01-084-6094, 5320-01-084-6095, 5320-01-084-6096, 5320-01-084-6097, 5320-01-084-6098

Technical Data | NSN 5320-01-084-6093

Characteristic	Specifications
MATERIAL	ALUMINUM ALLOY 5056 SLEEVE STEEL COMP 8740 STEM
MATERIAL DOCUMENT AND CLASSIFICATION	QQ-A-430 FED SPEC SINGLE MATERIAL RESPONSE SLEEVE AMS 6322 ASSN STD SINGLE MATERIAL RESPONSE STEM
SURFACE TREATMENT	CHROMATE SLEEVE CADMIUM AND CHROMATE STEM
SURFACE TREATMENT DOCUMENT AND CLASSIFICATION	MIL-C-5541 MIL SPEC SINGLE TREATMENT RESPONSE SLEEVE QQ-P-416,TYPE 2,CLASS 2 FED SPEC ALL TREATMENT RESPONSES STEM
HEAD STYLE	C9 FLUSH COUNTERSUNK
HEAD MAJOR DIAMETER	0.229 INCHES MAXIMUM
COUNTERSINK ANGLE	99.0 DEGREES MINIMUM AND 101.0 DEGREES MAXIMUM
SHANK STYLE	D32 SELF-PLUGGING MECHANICALLY LOCKED STEM
FASTENER LENGTH	0.439 INCHES MINIMUM AND 0.459 INCHES MAXIMUM
SHANK DIAMETER	0.125 INCHES MINIMUM AND 0.129 INCHES MAXIMUM
GRIP LENGTH	0.313 INCHES MINIMUM AND 0.375 INCHES MAXIMUM
EXPANSION DEVICE	SERRATED STEM-TYPE W
SPECIAL FEATURES	"NS" LETTERS AFTER THE MATERIAL CODE "B" INDICATE NO PREFERENCE TO LOCK TYPE (MAY BE VISIBLE OR INTERNAL). RIVETS WITH NO LETTER CODE (INDICATING VISIBLE LOCK TYPE) AND RIVETS WITH THE LETTER "H" AFTER THE MATERIAL CODE (INDICATING INTERNAL LOCK TYPE) ARE BOTH ACCEPTABLE FOR THIS ITEM OF SUPPLY.

Restrictions/Controls & Freight Information | NSN 5320-01-084-6093

Restrictions
Freight

Category	Code	Description
Shelf-Life Code:	0	Nondeteriorative
Hazardous Material Indicator Code	N	There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials
Demilitarization Code:	A	Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:	U	UNCLASSIFIED
Precious Metals Indicator Code:	A	Item does not contain precious metal
Criticality Code:	X	The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.
Automatic Data Processing Equipment:	0	Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9)

Category	Code	Description
NMF Description	013120	ALUMINUM ARTICLE NOI SUB 6
Less than car load rating
Less than truck load rating	J	100.2
Water commodity Code	713	unknown
Originating Activity Code	KZ	Defense Supply Center Philadelphia Philadelphia, PA 19101
Air Dimension Code	A	Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity	B	Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials.
Air Special Handling	Z	No special handling required.
Special Handling Code	9	unknonwn
HAZMAT
Type of Cargo	Z	No special type of cargo code applicable

Management | NSN 5320-01-084-6093

Air Force
Navy

Category	Code	Description
Budget Code	9	General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors.
Fund Code	SF	Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point.
Materiel Management Aggregation Code	SX	SX:AF SICA RESIDUAL MMAC-OC-ALC
Price Validation	V	The current standard price has been validated. The item has been analyzed in conjunction with the Zero Overpricing Program and is in the accepted price range. The item was procured under open competition and under the competitive arena the price is considered fair and reasonable. ZOP or Standard price challenges are permissible but must be supported by adequate justification.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DF	Department of the Air Force
Service Organization	F	U.S. Air Force
Reparability	N	Stock Fund (except Munitions)
Acquisition Advice Codes	Z	INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each

Category	Code	Description
Cognizance Codes	9B	Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DN	Department of the Navy
Service Organization	N	U.S. Navy
Acquisition Advice Codes	Z	INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each
