NSN 5320-01-048-5411 HL755AW, HL75-5AW , HS55805
Product Details | PIN-RIVET COLLAR
5320-01-048-5411 A soft metal or nonmetal sleeve, designed to mate with a PIN-RIVET. It may include an external wrenching facility which breaks off at a perdetermined torque to form a head.
Part Alternates: HL755AW, HL75-5AW , HS55805, HS5580-5, 301395, 30-139-5, 5320-01-048-5411, 01-048-5411, 5320010485411, 010485411
Hardware and Abrasives | Rivets
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 28 SEP 1977 | 01-048-5411 | 67166 ( COLLAR, PIN-RIVET ) |

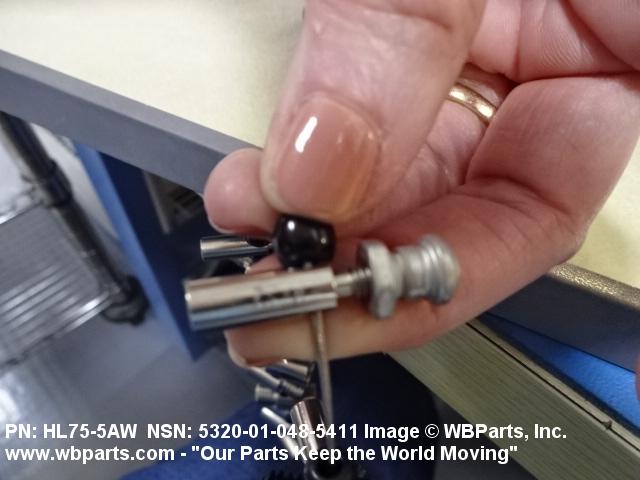

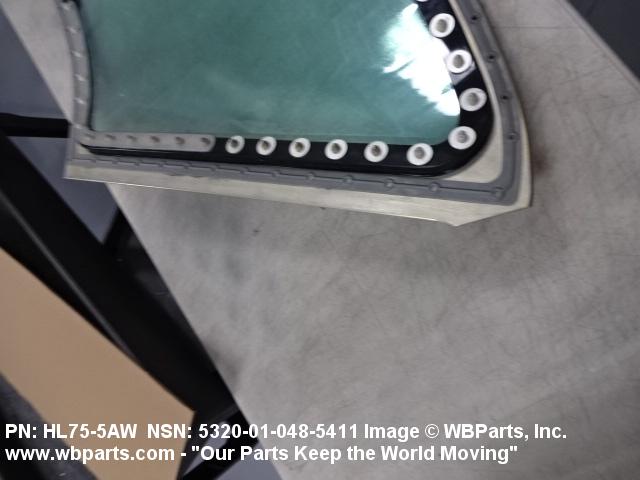

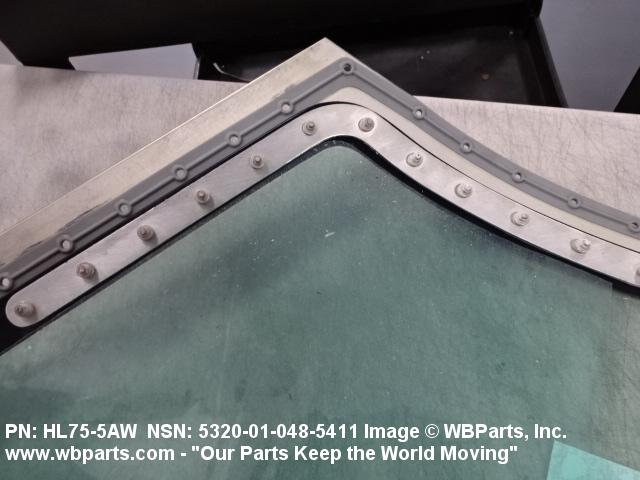

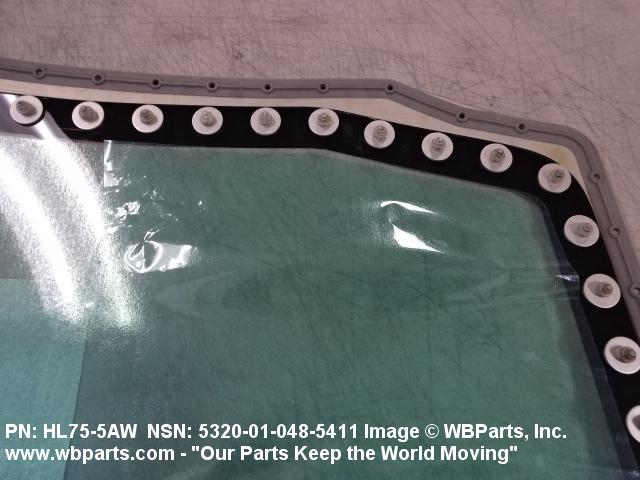

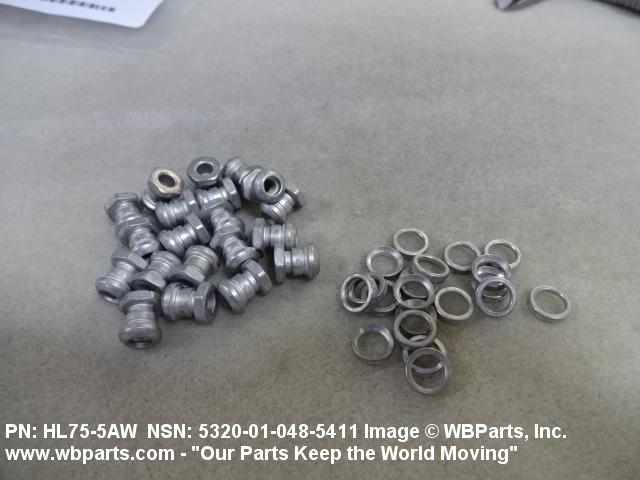

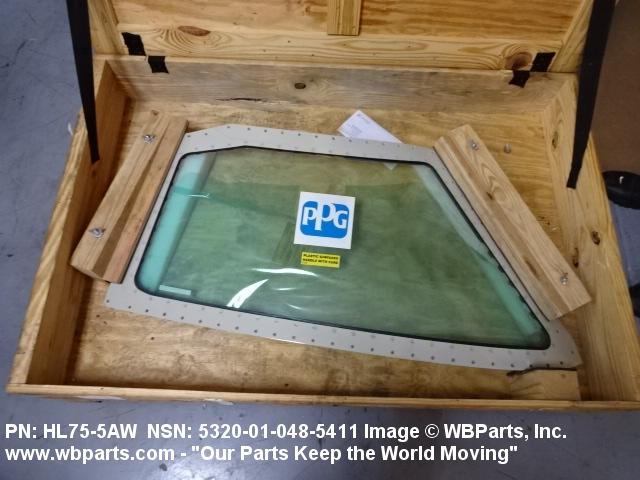

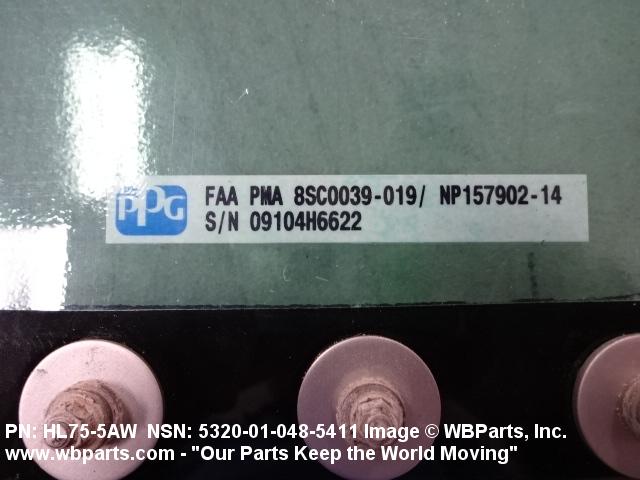

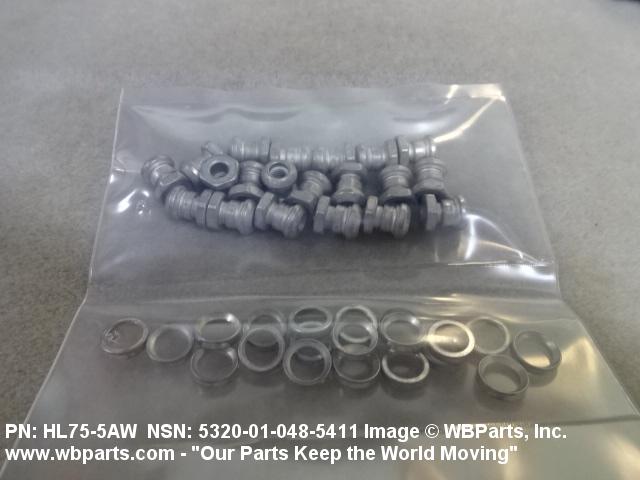

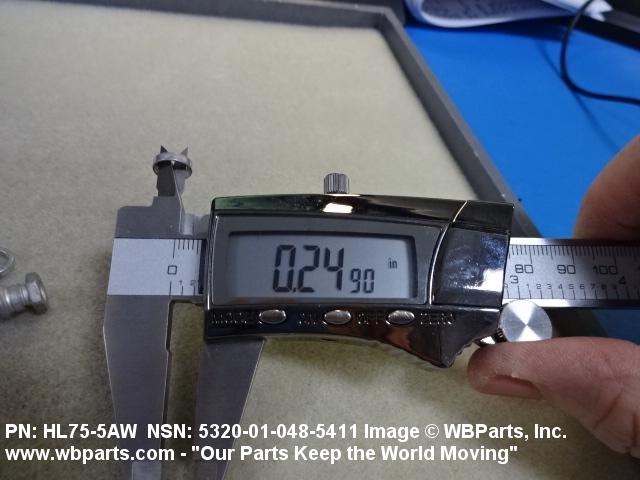

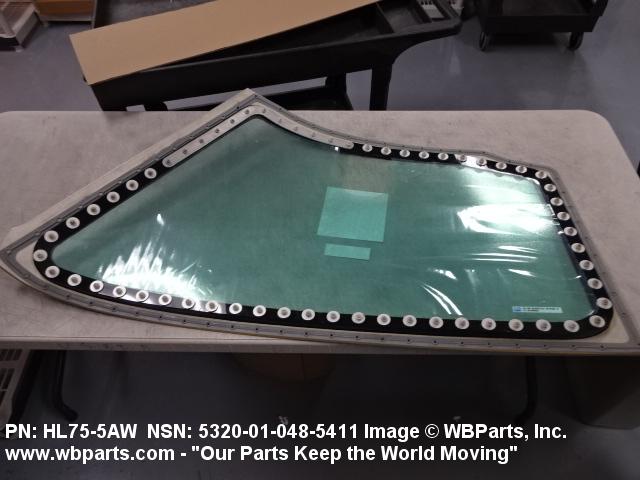

Drawings & Photos | NSN 5320-01-048-5411
Demand History | NSN 5320-01-048-5411
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 301395 | 2024-05-150 | 20 | United States |
| 301395 | 2024-01-02 | 10 | United States |
| 301395 | 2023-08-241 | 8 | United States |
| 5320-01-048-5411 | 2015-05-131 | 5432 | US |
| 5320-01-048-5411 | 2014-10-301 | 2415 | DIBBS |
| 5320-01-048-5411 | 2014-08-216 | 2415 | DIBBS |
| 5320-01-048-5411 | 2014-06-166 | 2727 | DIBBS |
| 5320-01-048-5411 | 2013-06-157 | 864 | DIBBS |
| 5320-01-048-5411 | 2010-09-251 | 400 | US |
| HS55805 | 2009-05-133 | 111 | US |
| HS55805 | 2008-01-22 | 300 | US |
Cross Reference | NSN 5320-01-048-5411
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 30-139-5 | 97499 | BELL HELICOPTER TEXTRON INC. |
| HL75-5AW | 06950 | ALCOA GLOBAL FASTENERS, INC. DBA ALCOA FASTENING SYSTEMS |
| HL75-5AW | 17446 | HUCK INTERNATIONAL, INC. DBA ALCOA FASTENING SYSTEMS |
| HL75-5AW | 56878 | SPS TECHNOLOGIES, LLC DBA AEROSPACE DIVISION |
| HL75-5AW | 73197 | HI-SHEAR CORPORATION |
| HL75-5AW | 92215 | ALCOA GLOBAL FASTENERS, INC. DBA ALCOA FASTENING SYSTEMS |
| HL75-5AW | C4293 | ALCOA FASTENING SYSTEMS FAIRCHILDFASTENERS EUROPE - VSD GMBH |
| HL75-5AW | L4528 | LISI AEROSPACE CANADA CORP |
| HS5580-5 | 02731 | MCDONNELL DOUGLAS HELICOPTER CO INC |
| HS5580-5 | 8V613 | BOEING COMPANY, THE DBA BOEING |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5320-01-048-5411
Related Products | NSN 5320-01-048-5411
Technical Data | NSN 5320-01-048-5411
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL OVERALL |
| SURFACE TREATMENT | CADMIUM OVERALL |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | QQ-P-416,TYPE 1,CLASS 2 FED SPEC SINGLE TREATMENT RESPONSE OVERALL |

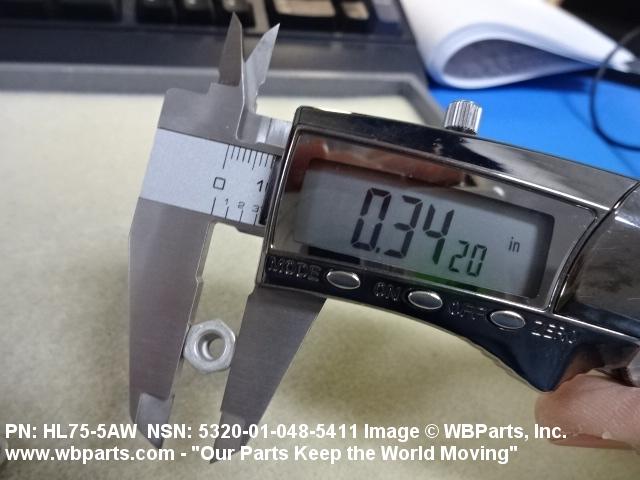

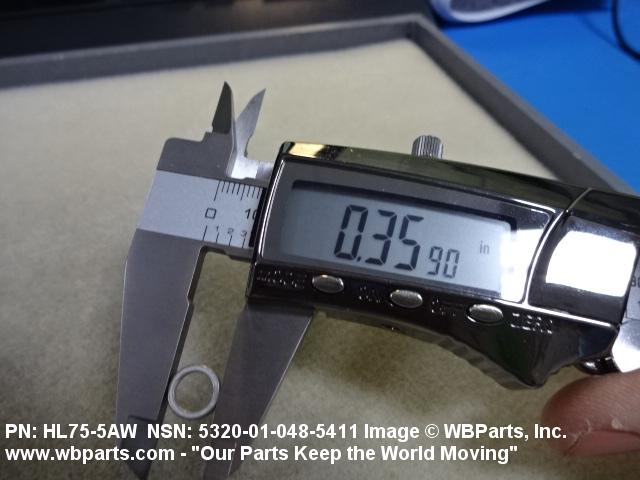

| COLLAR OUTSIDE DIAMETER | 0.355 INCHES MINIMUM AND 0.365 INCHES MAXIMUM |

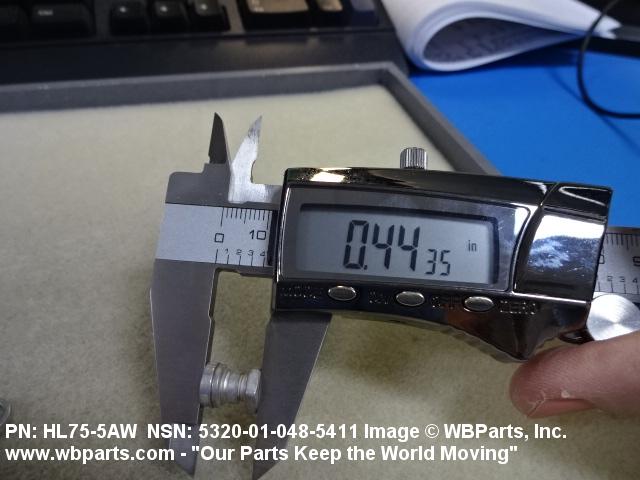

| COLLAR OVERALL HEIGHT | 0.427 INCHES MINIMUM AND 0.457 INCHES MAXIMUM |
| COLLAR INSIDE DIAMETER | 0.235 INCHES NOMINAL |
| THREAD SERIES DESIGNATOR | UNJC |
| NOMINAL THREAD SIZE | 0.164 INCHES |
| THREAD CLASS | 3B |
| THREAD QUANTITY PER INCH | 32 |
| THREAD DIRECTION | RIGHT-HAND |
| LUBRICATION | CETYL ALCOHOL, SPEC 305, HI-SHEAR CORP |
| FEATURES PROVIDED | WASHER |
Restrictions/Controls & Freight Information | NSN 5320-01-048-5411
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 106510 | RIVETS I/S PLAIN/GALVANIZED ETC |
| Less than car load rating | ||
| Less than truck load rating | U | 50.0 |
| Water commodity Code | 713 | unknown |
| Originating Activity Code | KZ | Defense Supply Center Philadelphia Philadelphia, PA 19101 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
