NSN 5320-01-018-5690 NAS1080AG02, NAS1080AG05, ST3M414A5
Product Details | PIN-RIVET COLLAR
5320-01-018-5690 A soft metal or nonmetal sleeve, designed to mate with a PIN-RIVET. It may include an external wrenching facility which breaks off at a perdetermined torque to form a head.
Part Alternates: NAS1080AG02, NAS1080AG05, ST3M414A5, 2DC2AC05, 2DC-2AC05, 2DC2AC5, 2DC-2AC5, 5320-01-018-5690, 01-018-5690, 5320010185690, 010185690
Hardware and Abrasives | Rivets
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 29 MAR 1976 | 01-018-5690 | 67166 ( COLLAR, PIN-RIVET ) |

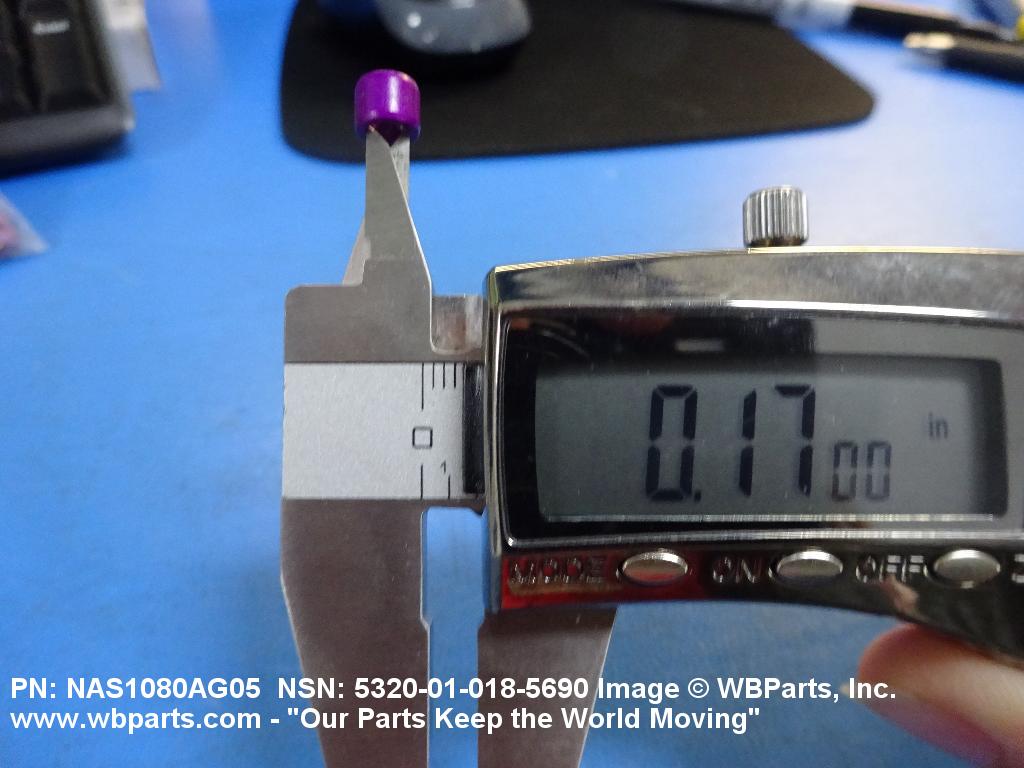

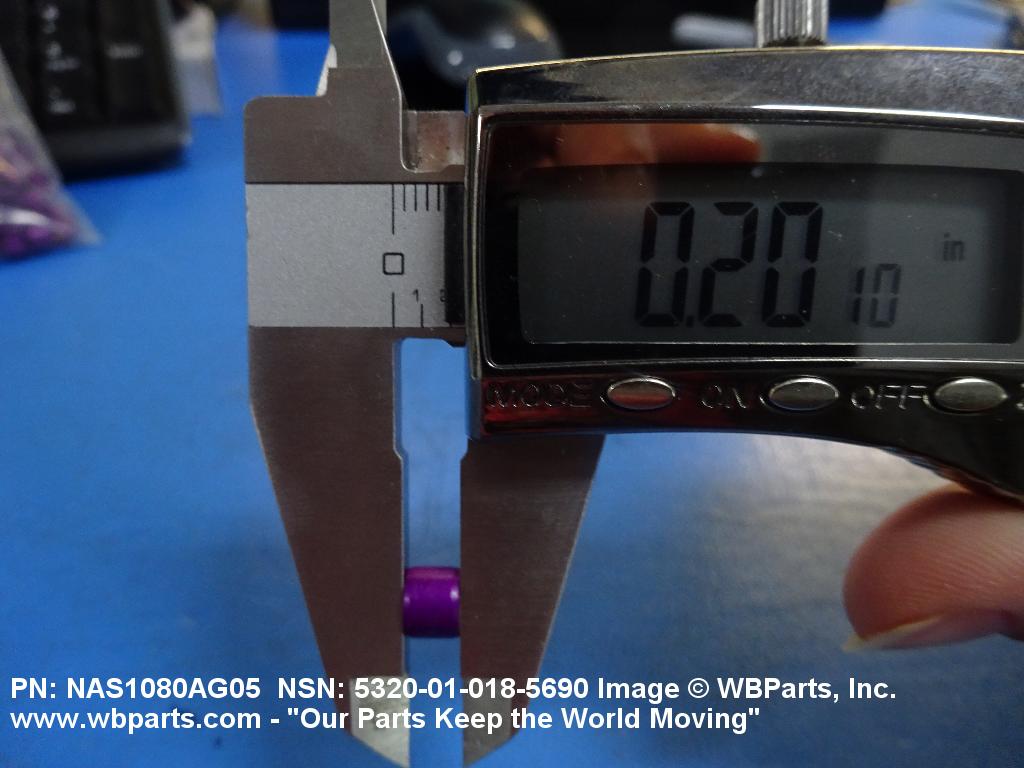

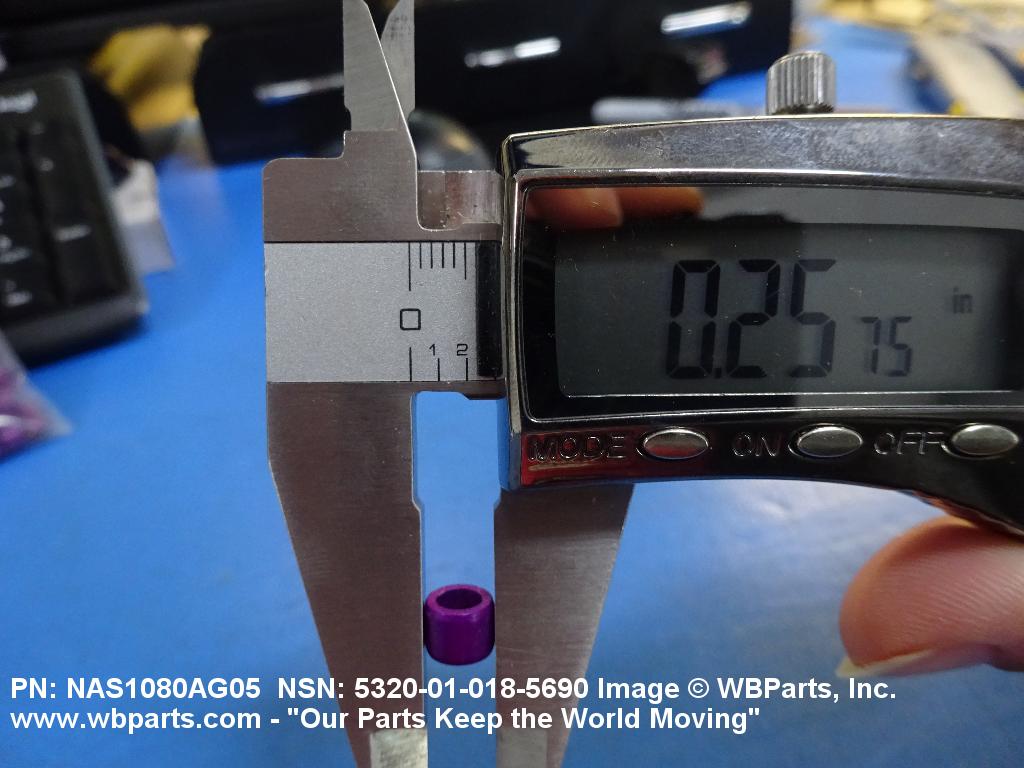

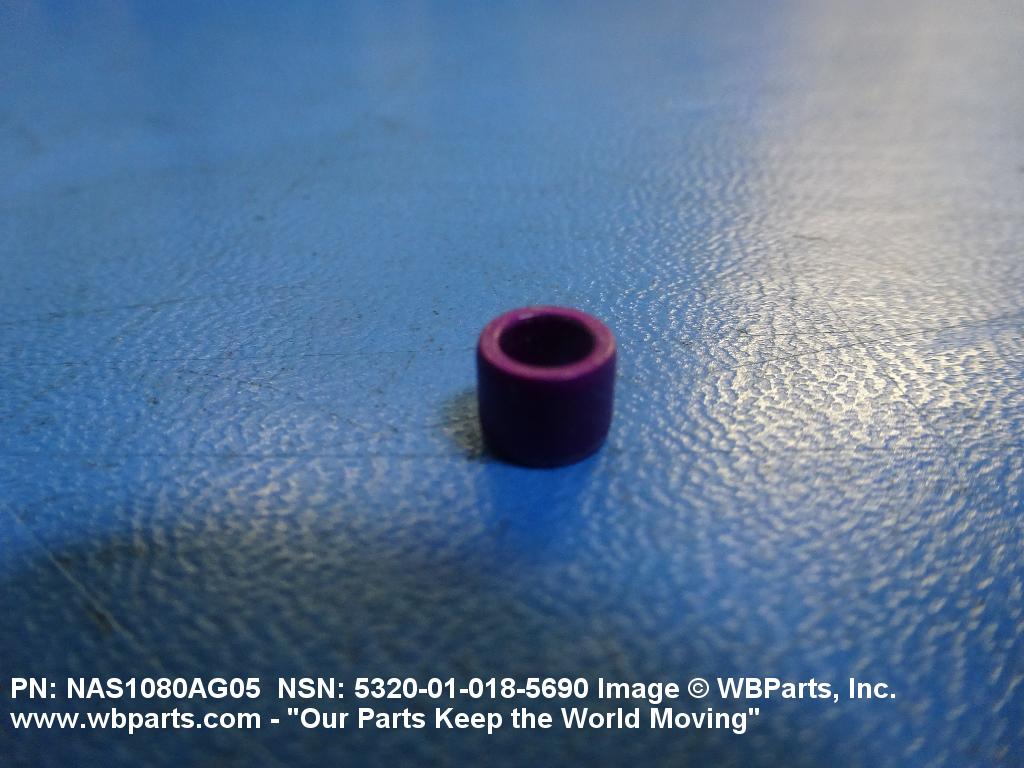

Drawings & Photos | NSN 5320-01-018-5690
Demand History | NSN 5320-01-018-5690
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5320-01-018-5690 | 2024-09-267 | 10050 | United States |
| 5320-01-018-5690 | 2023-04-117 | 2 | United States |
| NAS1080AG05 | 2022-05-123 | 50 | US |
| 5320-01-018-5690 | 2022-02-45 | 435 | South Korea |
| 5320-01-018-5690 | 2017-12-354 | 1 | DIBBS-RFPs |
| NAS1080AG05 | 2015-02-54 | 100 | US |
| NAS1080AG05 | 2012-04-96 | 2 | US |
| 5320-01-018-5690 | 2011-09-263 | 375 | US |
| NAS1080AG05 | 2011-04-102 | 60 | United States |
| NAS1080AG05 | 2010-07-204 | 10 | US |
| 5320-01-018-5690 | 2009-08-215 | 6 | US |
| 5320-01-018-5690 | 2008-11-310 | 14377 | DIBBS |
Cross Reference | NSN 5320-01-018-5690
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 2DC-2AC05 | 17446 | HUCK INTERNATIONAL, INC. DBA ALCOA FASTENING SYSTEMS |
| 2DC-2AC5 | 29666 | HUCK MFG CO |
| 2DC2AC5 | 5M902 | ALCOA GLOBAL FASTENERS, INC. DBA ALCOA FASTENING SYSTEMS |
| 2DC2AC5 | 92215 | ALCOA GLOBAL FASTENERS, INC. DBA ALCOA FASTENING SYSTEMS |
| NAS1080AG02 | 80205 | NATIONAL AEROSPACE STANDARDS COMMITTEE AEROSPACE INDUSTRIES |
| NAS1080AG05 | 17446 | HUCK INTERNATIONAL, INC. DBA ALCOA FASTENING SYSTEMS |
| NAS1080AG05 | 29666 | HUCK MFG CO |
| NAS1080AG05 | 80205 | NATIONAL AEROSPACE STANDARDS COMMITTEE AEROSPACE INDUSTRIES |
| ST3M414A5 | 76301 | BOEING COMPANY, THE DBA BOEING |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5320-01-018-5690
Related Products | NSN 5320-01-018-5690
Technical Data | NSN 5320-01-018-5690
| Characteristic | Specifications |
|---|---|
| MATERIAL | ALUMINUM ALLOY 2219 OVERALL |
| SURFACE TREATMENT | ANODIZE OVERALL |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | MIL-A-8625,TYPE 2 MIL SPEC SINGLE TREATMENT RESPONSE OVERALL |
| HEAT TREATMENT | T-6 SOLUTION HEAT TREATED OVERALL |

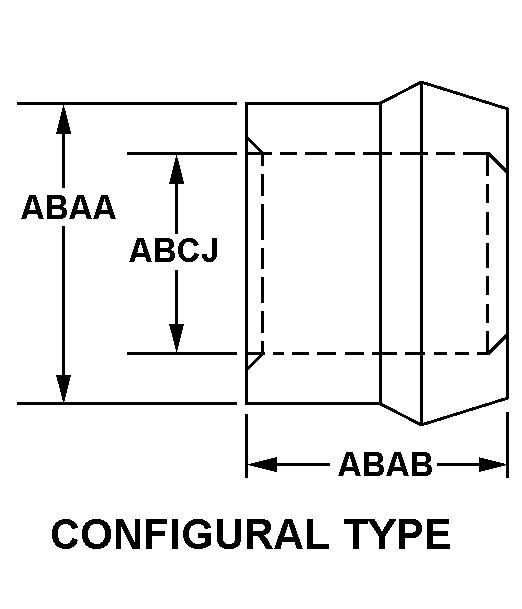

| COLLAR STYLE | A2 CONFIGURAL TYPE |
