NSN 5320-00-866-4988 MS903540504, MS90354-0504, BPT0504

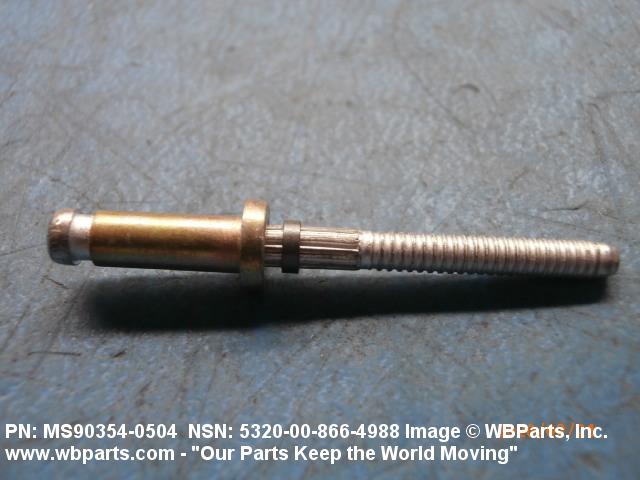

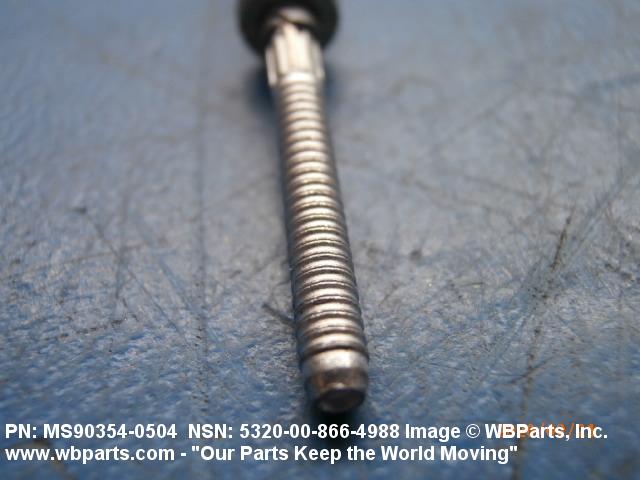

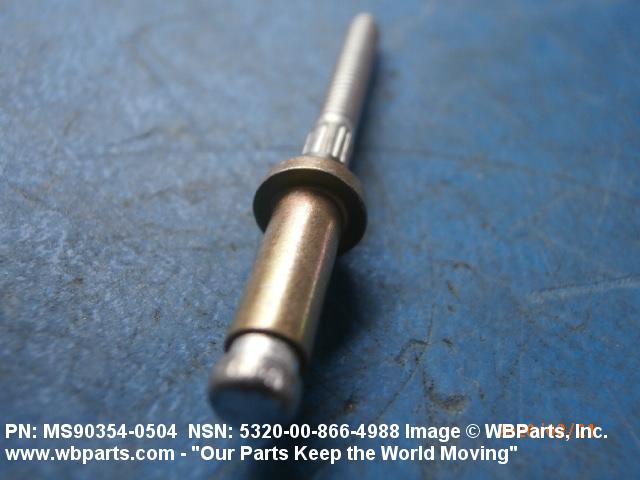

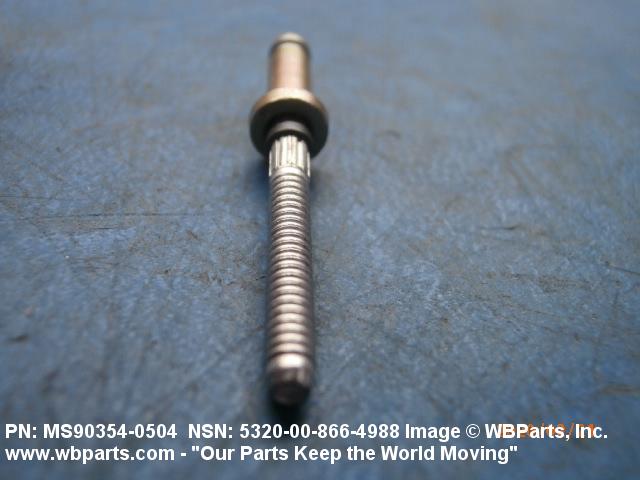

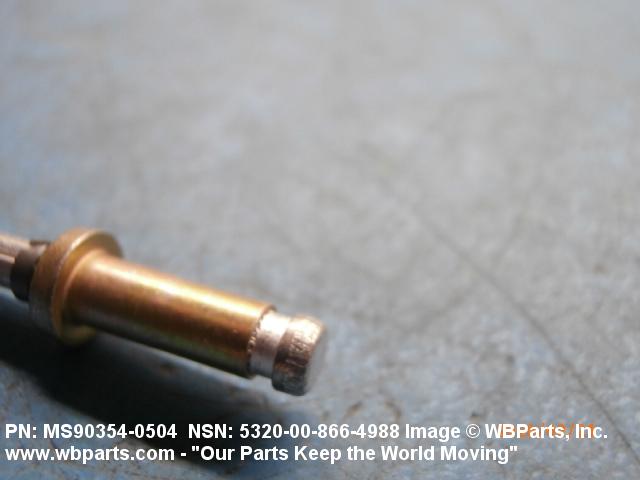

Product Details | BLIND RIVET
5320-00-866-4988 An item consisting of two or more of the following components: stem, rivet body, sleeve, expander, bolt, and collar. It is a headed fastening device with the shank designed to be expanded by means of a separate or integral stem or mandrel, or bolt and expander. It is designed to be installed or expanded from one side only. Excludes NUT, BLIND ASSEMBLY.
Part Alternates: MS903540504, MS90354-0504, BPT0504, BP-T05-04, BPT54, BPT5-4, CR7311504, CR7311-5-04, 73755-05-04, 5320-00-866-4988, 00-866-4988, 5320008664988, 737550504, 008664988
Hardware and Abrasives | Rivets
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 01 JAN 1962 | 00-866-4988 | 00864 ( RIVET, BLIND ) |
Drawings & Photos | NSN 5320-00-866-4988
Demand History | NSN 5320-00-866-4988
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| MS903540504 | 2023-01-03 | 1424 | IN |
| 5320-00-866-4988 | 2022-11-329 | 1500 | IN |
| MS903540504 | 2020-02-41 | 50 | United Arab Emirates |
| MS90354-0504 | 2014-06-157 | 50 | United States |
| MS903540504 | 2008-01-03 | 25 | MX |
Cross Reference | NSN 5320-00-866-4988
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 73755-05-04 | 56878 | SPS TECHNOLOGIES, LLC DBA AEROSPACE DIVISION |
| BP-T05-04 | 0HDW7 | HUCK INTERNATIONAL, INC. DBA ALCOA FASTENING SYSTEMS |
| BP-T05-04 | 17446 | HUCK INTERNATIONAL, INC. DBA ALCOA FASTENING SYSTEMS |
| BP-T05-04 | F6167 | HUCK |
| BPT5-4 | F0188 | BLANC AERO INDUSTRIES - GROUPE LISIAEROSPACE |
| BPT5-4 | F0236 | SAINT CHAMOND GRANAT SA |
| CR7311-5-04 | 11815 | SPS TECHNOLOGIES, LLC DBA CHERRY AEROSPACE DIV |
| CR7311-5-04 | F7652 | B E AEROSPACE CONSUMABLESMANAGEMENT DEUX SAS |
| CR7311-5-04 | R1120 | SATAIR A/S |
| MS90354-0504 | 96906 | MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5320-00-866-4988
Related Products | NSN 5320-00-866-4988
Technical Data | NSN 5320-00-866-4988
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL COMP 4027 OR STEEL COMP 4037 OR STEEL COMP 4130 SLEEVE STEEL COMP 8740 STEM |
| MATERIAL DOCUMENT AND CLASSIFICATION | 66 FED STD 1ST MATERIAL RESPONSE OR ASTM A547 ASSN STD 2ND MATERIAL RESPONSE OR 66 FED STD 3RD MATERIAL RESPONSE OR MIL-S-6758 MIL SPEC 3RD MATERIAL RESPONSE SLEEVE MIL-S-6049 MIL SPEC SINGLE MATERIAL RESPONSE OR ASTM A547 ASSN STD SINGLE MATERIAL RESPONSE STEM |
| SURFACE TREATMENT | CADMIUM AND CHROMATE SLEEVE CADMIUM STEM |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | QQ-P-416,TY 2,CL 2 FED SPEC SINGLE TREATMENT RESPONSE SLEEVE QQ-P-416,TY 1,CL 3 FED SPEC SINGLE TREATMENT RESPONSE STEM |
| HARDNESS RATING | 48.0 ROCKWELL C MINIMUM AND 53.0 ROCKWELL C MAXIMUM STEM |
| MINIMUM TENSILE STRENGTH | 112000 POUNDS PER SQUARE INCH |
| HEAD STYLE | C20 SMALL PAN |

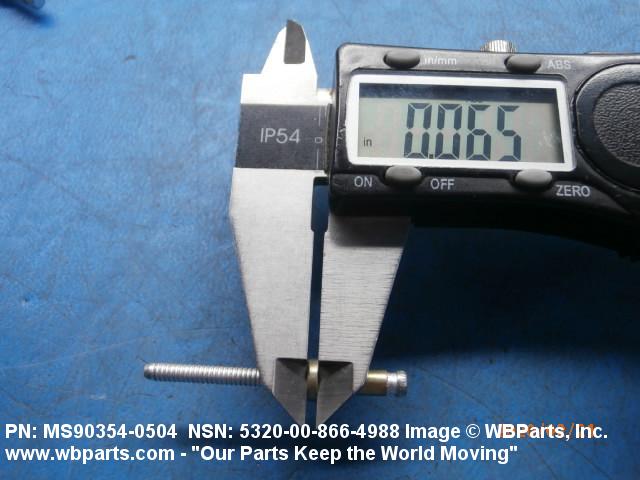

| HEAD HEIGHT | 0.062 INCHES MINIMUM AND 0.070 INCHES MAXIMUM |

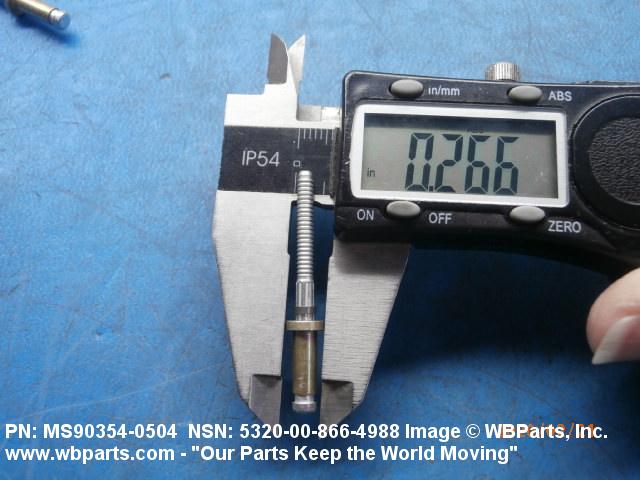

| HEAD MAJOR DIAMETER | 0.250 INCHES MINIMUM AND 0.272 INCHES MAXIMUM |
| SHANK STYLE | D32 SELF-PLUGGING MECHANICALLY LOCKED STEM |

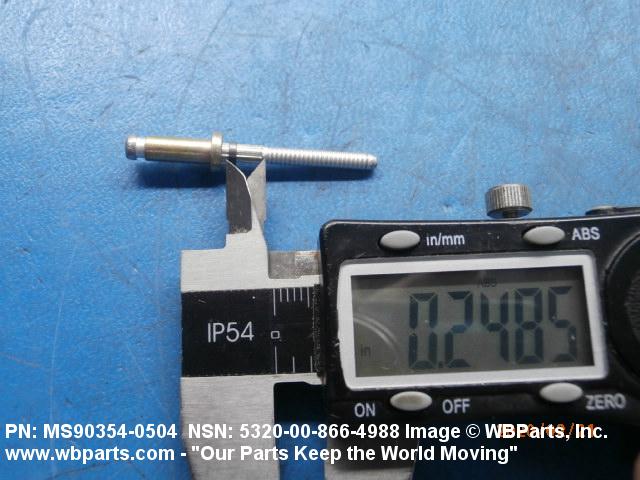

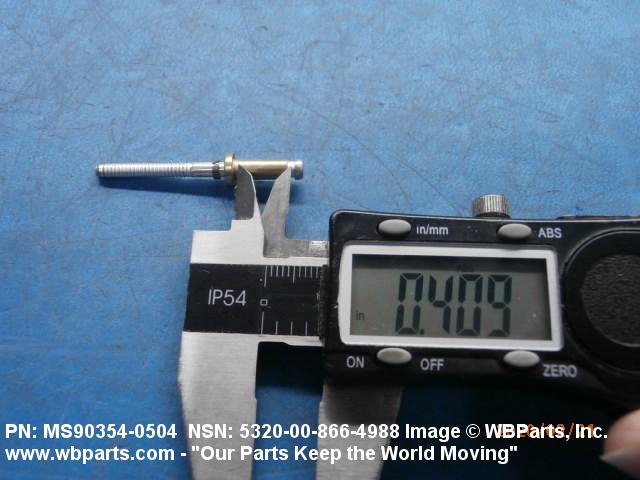

| FASTENER LENGTH | 0.405 INCHES NOMINAL |
