Product Details | BLIND RIVET

5320-00-866-4994 An item consisting of two or more of the following components: stem, rivet body, sleeve, expander, bolt, and collar. It is a headed fastening device with the shank designed to be expanded by means of a separate or integral stem or mandrel, or bolt and expander. It is designed to be installed or expanded from one side only. Excludes NUT, BLIND ASSEMBLY.

Part Alternates: MS903540503, MS90354-0503, ASNA0027SB0503, ASNA027SB0503, BPT0503, BP-T05-03, BPT503, BP-T5-03, BPT53, BP-T5-3, BPT5-3, 73755-05-03, 5320-00-866-4994, 00-866-4994, 5320008664994, 737550503, 008664994

Hardware and Abrasives | Rivets

Supply Group (FSG) NSN Assign. NIIN
53 01 JAN 1962 00-866-4994

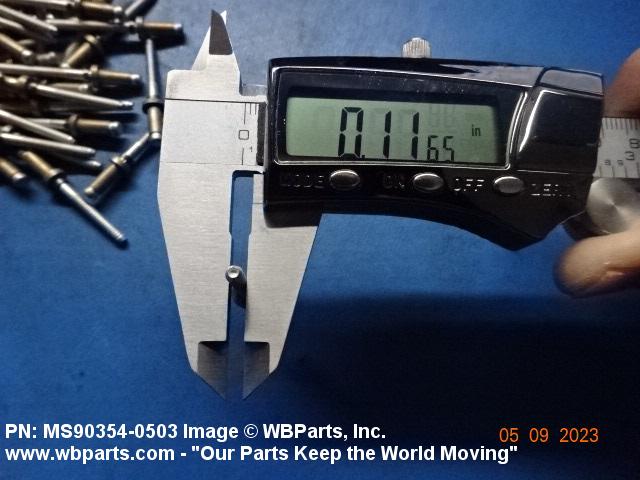

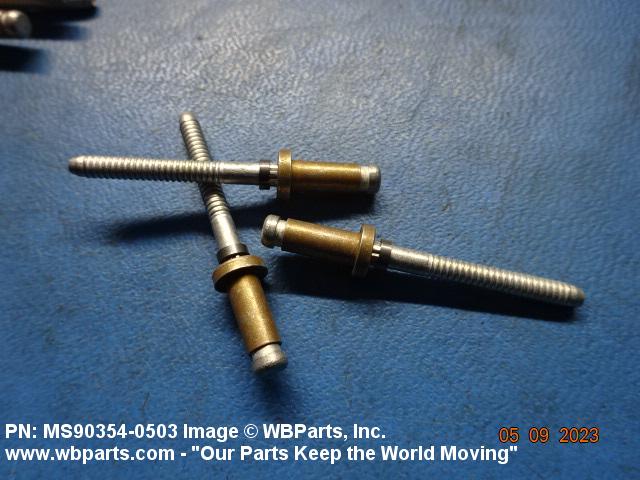

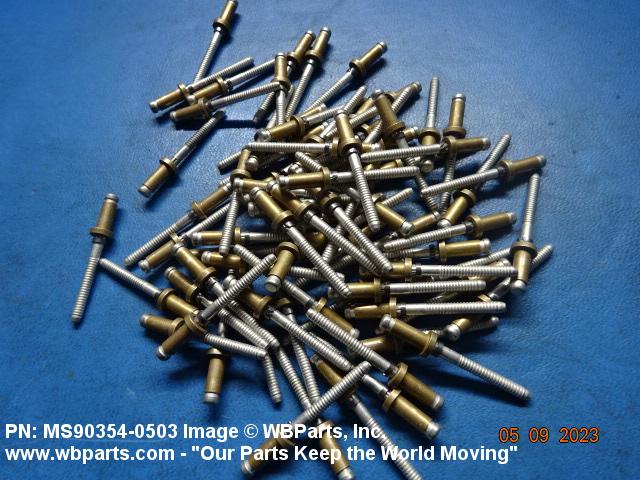

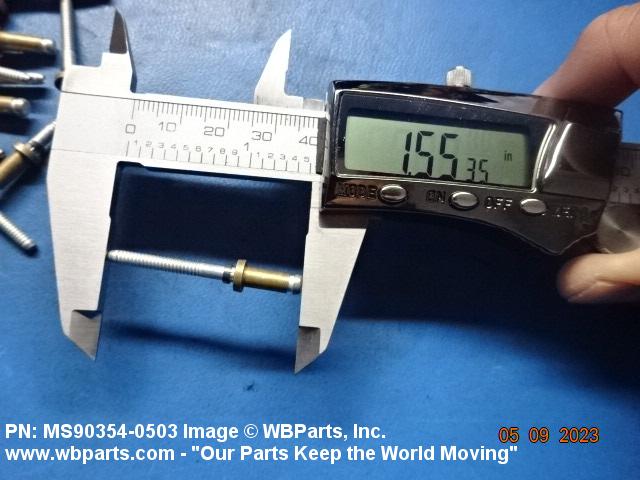

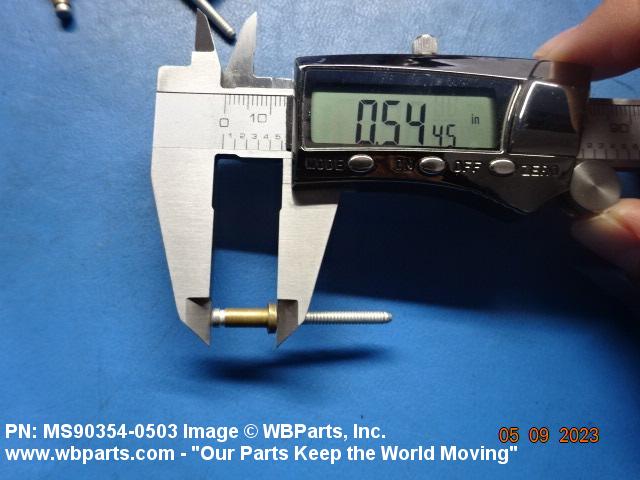

Drawings & Photos | NSN 5320-00-866-4994


Demand History | NSN 5320-00-866-4994

Part Number Request Date QTY Origin
MS903540503 2023-05-123 77 us
ASNA0027SB0503 2017-04-111 8 Australia
MS90354-0503 2014-06-157 50 United States
MS903540503 2010-10-281 100 Thailand
BPT503 2010-08-224 100 US
5320-00-866-4994 2010-08-222 50 US
MS903540503 2008-10-276 1600 us

Cross Reference | NSN 5320-00-866-4994

Part Number Cage Code Manufacturer
73755-05-03 56878 SPS TECHNOLOGIES, LLC DBA AEROSPACE DIVISION
ASNA0027SB0503 F0210 AIRBUS HELICOPTERS (ETS DEMARIGNANE)
ASNA027SB0503 F0210 AIRBUS HELICOPTERS (ETS DEMARIGNANE)
BP-T05-03 0HDW7 HUCK INTERNATIONAL, INC. DBA ALCOA FASTENING SYSTEMS
BP-T05-03 17446 HUCK INTERNATIONAL, INC. DBA ALCOA FASTENING SYSTEMS
BP-T05-03 F6167 HUCK
BP-T5-03 17446 HUCK INTERNATIONAL, INC. DBA ALCOA FASTENING SYSTEMS
BP-T5-3 17446 HUCK INTERNATIONAL, INC. DBA ALCOA FASTENING SYSTEMS
BPT5-3 F0188 BLANC AERO INDUSTRIES - GROUPE LISIAEROSPACE
BPT5-3 F0236 SAINT CHAMOND GRANAT SA
MS90354-0503 96906 MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS

Request a Quote

What Our Customers Say

Compare

NSNs for Compare ( up to 4 ): Add 5320-00-866-4994

Technical Data | NSN 5320-00-866-4994

Characteristic Specifications
MATERIAL STEEL COMP 4027 OR STEEL COMP 4037 OR STEEL COMP 4130 SLEEVE STEEL COMP 8740 STEM
MATERIAL DOCUMENT AND CLASSIFICATION 66 FED STD 1ST MATERIAL RESPONSE OR ASTM A547 ASSN STD 2ND MATERIAL RESPONSE OR 66 FED STD 3RD MATERIAL RESPONSE OR MIL-S-6758 MIL SPEC 3RD MATERIAL RESPONSE SLEEVE ASTM A547 ASSN STD SINGLE MATERIAL RESPONSE OR MIL-S-6049 MIL SPEC SINGLE MATERIAL RESPONSE STEM
SURFACE TREATMENT CADMIUM OR CADMIUM AND CHROMATE STEM
SURFACE TREATMENT DOCUMENT AND CLASSIFICATION QQ-P-416 TY 1 CL 3 FED SPEC SINGLE TREATMENT RESPONSE OR QQ-P-416 TY 2 CL 3 FED SPEC SINGLE TREATMENT RESPONSE STEM
HARDNESS RATING 32.0 ROCKWELL C MINIMUM AND 40.0 ROCKWELL C MAXIMUM BODY 48.0 ROCKWELL C MINIMUM AND 53.0 ROCKWELL C MAXIMUM STEM
MINIMUM TENSILE STRENGTH 112000 POUNDS PER SQUARE INCH
HEAD STYLE C20 SMALL PAN
HEAD HEIGHT 0.062 INCHES MINIMUM AND 0.070 INCHES MAXIMUM
HEAD MAJOR DIAMETER 0.250 INCHES MINIMUM AND 0.272 INCHES MAXIMUM
SHANK STYLE D32 SELF-PLUGGING MECHANICALLY LOCKED STEM
FASTENER LENGTH 0.342 INCHES NOMINAL
SHANK DIAMETER 0.162 INCHES MINIMUM AND 0.164 INCHES MAXIMUM
GRIP LENGTH 0.156 INCHES MINIMUM AND 0.220 INCHES MAXIMUM
EXPANSION DEVICE SERRATED STEM-TYPE W
MANUFACTURERS CODE 96906
DEFINITIVE GOVERNMENT SPEC/STD REFERENCE MS90354-0503

Restrictions/Controls & Freight Information | NSN 5320-00-866-4994

Category Code Description
Shelf-Life Code:0Nondeteriorative
Hazardous Material Indicator CodeNThere is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials
Demilitarization Code:ANon-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:UUNCLASSIFIED
Precious Metals Indicator Code:UPrecious metal type is unknown
Criticality Code:X The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.
Category Code Description
No Freight Information
