NSN 5320-00-771-3629 HL73W10 , 3001710, 30-017-10

Product Details | PIN-RIVET COLLAR

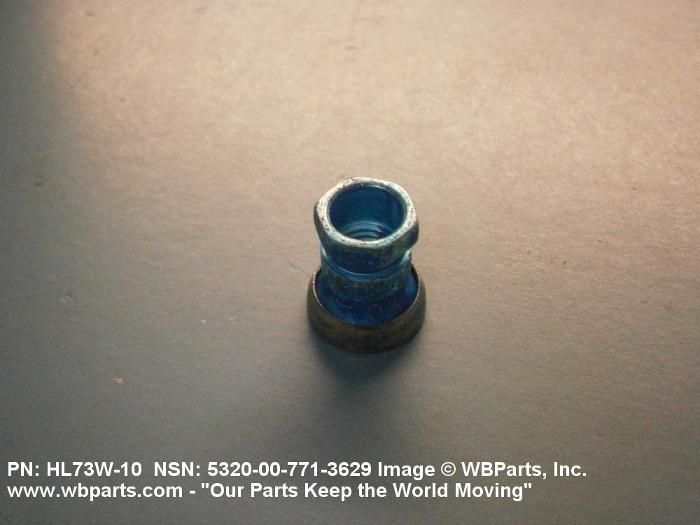

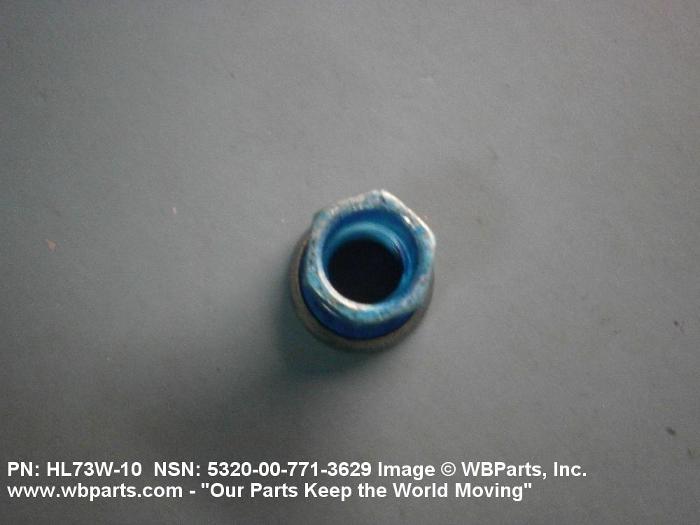

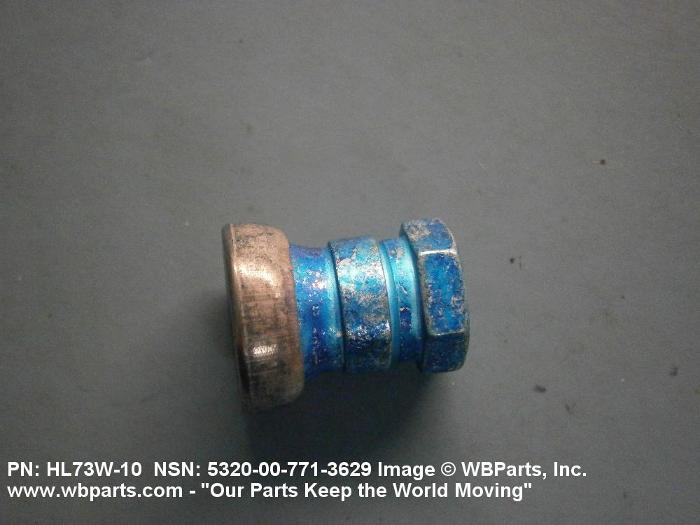

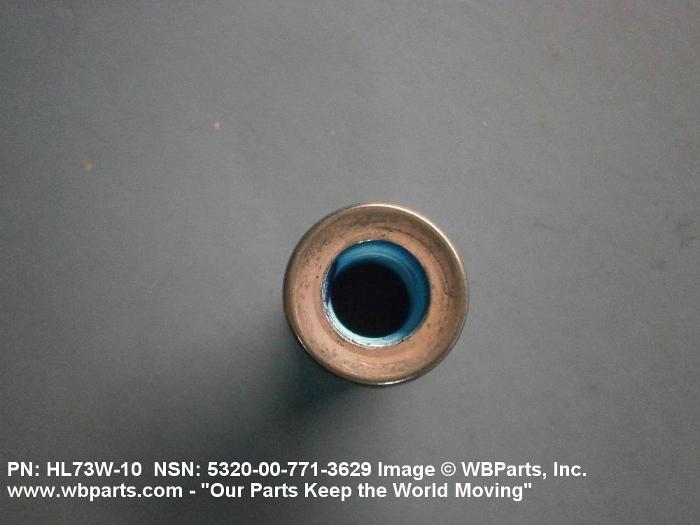

5320-00-771-3629 A soft metal or nonmetal sleeve, designed to mate with a PIN-RIVET. It may include an external wrenching facility which breaks off at a perdetermined torque to form a head.

Part Alternates: HL73W10 , 3001710, 30-017-10, 5320-00-771-3629, 00-771-3629, 5320007713629, 007713629

Hardware and Abrasives | Rivets

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
53	09 APR 1972	00-771-3629	67166 ( COLLAR, PIN-RIVET )

Drawings & Photos | NSN 5320-00-771-3629

Part Number	Request Date	QTY	Origin
5320-00-771-3629	2012-06-177	100	China
3001710	2012-04-108	100	MY
3001710	2012-03-68	100	US
5320-00-771-3629	2008-09-273	55	DIBBS
5320-00-771-3629	2008-09-252	50	DIBBS
5320-00-771-3629	2008-07-212	189	DIBBS
5320-00-771-3629	2008-05-133	37	DIBBS

Cross Reference | NSN 5320-00-771-3629

Part Number	Cage Code	Manufacturer
30-017-10	06950	ALCOA GLOBAL FASTENERS, INC. DBA ALCOA FASTENING SYSTEMS
30-017-10	97499	BELL HELICOPTER TEXTRON INC.
HL73W10	17446	HUCK INTERNATIONAL, INC. DBA ALCOA FASTENING SYSTEMS
HL73W10	56878	SPS TECHNOLOGIES, LLC DBA AEROSPACE DIVISION
HL73W10	5M902	ALCOA GLOBAL FASTENERS, INC. DBA ALCOA FASTENING SYSTEMS
HL73W10	60516	WEST COAST AEROSPACE INC
HL73W10	73197	HI-SHEAR CORPORATION
HL73W10	92215	ALCOA GLOBAL FASTENERS, INC. DBA ALCOA FASTENING SYSTEMS
HL73W10	L4528	LISI AEROSPACE CANADA CORP

Request a Quote

What Our Customers Say

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

Compare

NSNs for Compare ( up to 4 ): Add 5320-00-771-3629

Compare

Related Products | NSN 5320-00-771-3629

5320-00-771-3942, 5320-00-771-5290, 5320-00-771-7524, 5320-00-771-7525, 5320-00-771-7526

Technical Data | NSN 5320-00-771-3629

Characteristic	Specifications
MATERIAL	STEEL COMP 630 BODY STEEL COMP 301 OR STEEL COMP 302 OR STEEL COMP 303 OR STEEL COMP 304 OR STEEL COMP 305 OR STEEL COMP 316 OR STEEL COMP 317 OR STEEL COMP 321 OR STEEL COMP 347 OR STEEL COMP 348 OR STEEL COMP 384 OR STEEL COMP 385 OR STEEL COMP 302B OR STEEL COMP 303SE OR STEEL COMP 304L OR STEEL COMP 308 OR STEEL COMP 309S OR STEEL COMP 310S OR STEEL COMP 314 OR STEEL COMP 316L WASHER
SURFACE TREATMENT	SILVER COLLAR PASSIVATE WASHER
COLLAR STYLE	A3 THREADED (BREAK OFF) TYPE
COLLAR OUTSIDE DIAMETER	0.512 INCHES MINIMUM AND 0.518 INCHES MAXIMUM
COLLAR OVERALL HEIGHT	0.652 INCHES MINIMUM AND 0.672 INCHES MAXIMUM
COLLAR INSIDE DIAMETER	0.314 INCHES MINIMUM AND 0.330 INCHES MAXIMUM
THREAD SERIES DESIGNATOR	UNJF
NOMINAL THREAD SIZE	0.312 INCHES
THREAD CLASS	3B
THREAD QUANTITY PER INCH	24
THREAD DIRECTION	RIGHT-HAND
LUBRICATION	CETYL ALCOHOL, SPEC 305, HI-SHEAR CORP
IDENTIFICATION CODE COLOR	BLUE
PRECIOUS MATERIAL	SILVER
MANUFACTURERS CODE	73197
DESIGN CONTROL REFERENCE	HL73W10
