Product Details | TUBULAR RIVET

5320-00-740-7266 A headed fastening device having a smooth shank which is hollow or having a cavity at its end and designed to have the shank clinched after insertion.

Part Alternates: 400776, 5320-00-740-7266, 00-740-7266, 5320007407266, 007407266

Hardware and Abrasives | Rivets

Supply Group (FSG) NSN Assign. NIIN
53 01 JAN 1963 00-740-7266

Drawings & Photos | NSN 5320-00-740-7266


Cross Reference | NSN 5320-00-740-7266

Part Number Cage Code Manufacturer
400776 77445 UNITED TECHNOLOGIES CORPORATION DBA PRATT WHITNEY-SPARE PARTS
400776 80539 SPS TECHNOLOGIES, LLC DBA AEROSPACE FASTENERS GROUP
400776 82224 JOHN HASSALL, INC. DIV JOHN HASSALL INC.

Request a Quote

What Our Customers Say

Compare

NSNs for Compare ( up to 4 ): Add 5320-00-740-7266

Technical Data | NSN 5320-00-740-7266

Characteristic Specifications
MATERIAL NICKEL ALLOY 600 OVERALL
MATERIAL DOCUMENT AND CLASSIFICATION AMS 7232 ASSN STD SINGLE MATERIAL RESPONSE OVERALL
HEAD STYLE C28 UNIVERSAL
HEAD HEIGHT 0.054 INCHES MINIMUM AND 0.064 INCHES MAXIMUM
HEAD MAJOR DIAMETER 0.238 INCHES MINIMUM AND 0.262 INCHES MAXIMUM

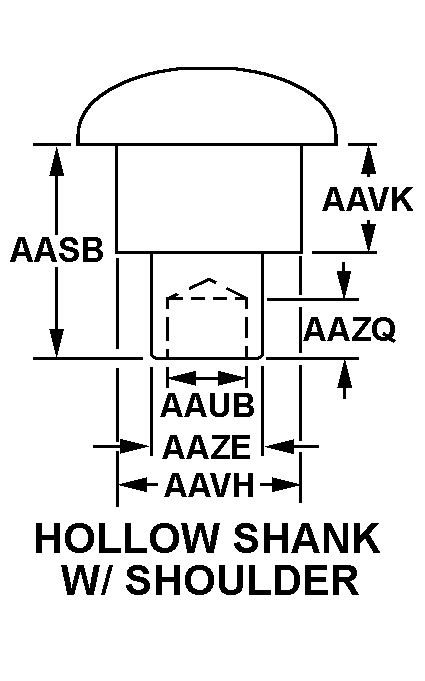

SHANK STYLE D7 HOLLOW SHANK WITH SHOULDER
FASTENER LENGTH 0.280 INCHES MINIMUM AND 0.300 INCHES MAXIMUM
HOLE DIAMETER 0.045 INCHES MINIMUM AND 0.050 INCHES MAXIMUM
SHOULDER DIAMETER 0.138 INCHES MINIMUM AND 0.142 INCHES MAXIMUM
SHOULDER LENGTH 0.135 INCHES MINIMUM AND 0.145 INCHES MAXIMUM
SHANK DIAMETER 0.093 INCHES MINIMUM AND 0.095 INCHES MAXIMUM
HOLE DEPTH 0.110 INCHES NOMINAL
