Product Details | PIN-RIVET COLLAR

5320-00-579-8247 A soft metal or nonmetal sleeve, designed to mate with a PIN-RIVET. It may include an external wrenching facility which breaks off at a perdetermined torque to form a head.

Part Alternates: HS60M4, HS60M-4, 3M87M4, 5320-00-579-8247, 00-579-8247, 5320005798247, 005798247

Hardware and Abrasives | Rivets

Supply Group (FSG) NSN Assign. NIIN
53 01 JAN 1963 00-579-8247

Drawings & Photos | NSN 5320-00-579-8247


Demand History | NSN 5320-00-579-8247

Part Number Request Date QTY Origin
5320-00-579-8247 2017-01-17 17 DIBBS
5320-00-579-8247 2016-10-301 17 DIBBS
5320-00-579-8247 2015-10-302 17 DIBBS
5320-00-579-8247 2015-09-258 32 DIBBS
5320-00-579-8247 2015-08-221 32 DIBBS
5320-00-579-8247 2013-04-112 4 DIBBS
5320-00-579-8247 2010-08-236 38 DIBBS

Cross Reference | NSN 5320-00-579-8247

Part Number Cage Code Manufacturer
3M87M4 76301 BOEING COMPANY, THE DBA BOEING
HS60M-4 73197 HI-SHEAR CORPORATION
HS60M-4 C4293 ALCOA FASTENING SYSTEMS FAIRCHILDFASTENERS EUROPE - VSD GMBH
HS60M-4 R1120 SATAIR A/S
HS60M4 92215 ALCOA GLOBAL FASTENERS, INC. DBA ALCOA FASTENING SYSTEMS

Request a Quote

What Our Customers Say

Compare

NSNs for Compare ( up to 4 ): Add 5320-00-579-8247

Technical Data | NSN 5320-00-579-8247

Characteristic Specifications
MATERIAL NICKEL ALLOY R-405 OVERALL

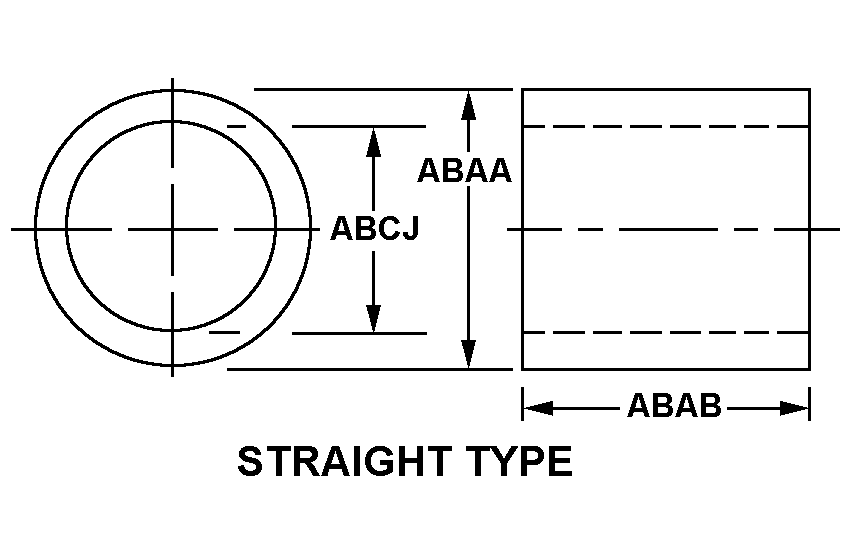

COLLAR STYLE A1 STRAIGHT TYPE
COLLAR OUTSIDE DIAMETER 0.171 INCHES MINIMUM AND 0.181 INCHES MAXIMUM
COLLAR OVERALL HEIGHT 0.157 INCHES MINIMUM AND 0.167 INCHES MAXIMUM
COLLAR INSIDE DIAMETER 0.124 INCHES MINIMUM AND 0.128 INCHES MAXIMUM
MANUFACTURERS CODE 73197
DESIGN CONTROL REFERENCE HS60M-4
