NSN 5320-00-438-9470 HL9410, HL94-10 , STSAE023HP10
Product Details | PIN-RIVET COLLAR
5320-00-438-9470 A soft metal or nonmetal sleeve, designed to mate with a PIN-RIVET. It may include an external wrenching facility which breaks off at a perdetermined torque to form a head.
Part Alternates: HL9410, HL94-10 , STSAE023HP10, 1213AS6304, 1213AS630-4, 5320-00-438-9470, 00-438-9470, 5320004389470, 004389470
Hardware and Abrasives | Rivets
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 05 DEC 1969 | 00-438-9470 | 67166 ( COLLAR, PIN-RIVET ) |

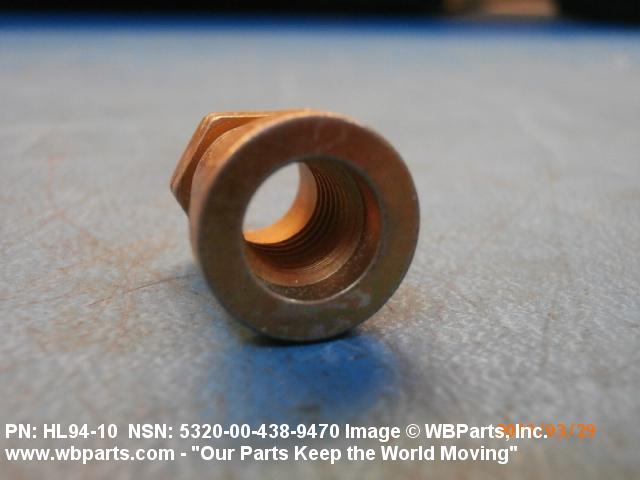

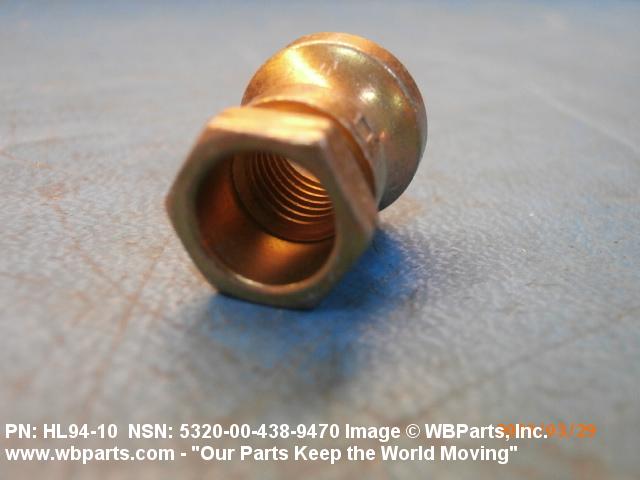

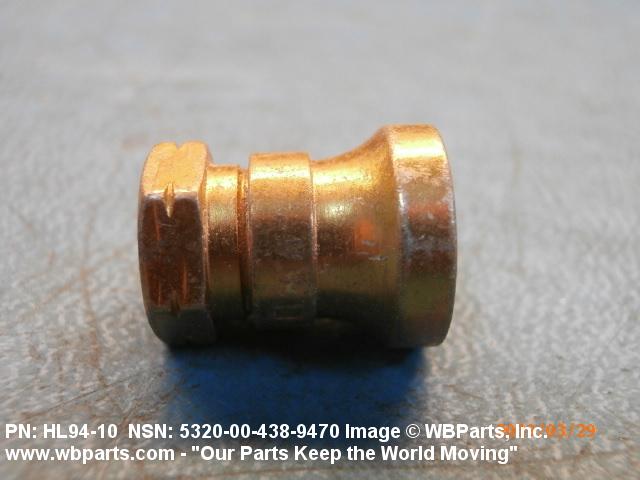

Drawings & Photos | NSN 5320-00-438-9470
Demand History | NSN 5320-00-438-9470
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| HL9410 | 2022-01-11 | 1 | US |
| HL9410 | 2021-03-82 | 50 | US |
| HL9410 | 2020-05-126 | 706 | US |
| HL94-10 | 2019-06-176 | 2340 | DIBBS |
| HL94-10 | 2019-06-168 | 3000 | DIBBS |
| 5320-00-438-9470 | 2019-03-80 | 182 | United States |
| 5320-00-438-9470 | 2018-11-317 | 815 | DIBBS |
| 5320-00-438-9470 | 2018-11-308 | 815 | DIBBS |
| 5320-00-438-9470 | 2018-05-133 | 1267 | DIBBS |
| 5320-00-438-9470 | 2017-03-68 | 1981 | DIBBS |
| 5320-00-438-9470 | 2017-03-60 | 1981 | DIBBS |
| 5320-00-438-9470 | 2017-01-18 | 1334 | DIBBS |
| 5320-00-438-9470 | 2014-09-265 | 1057 | DIBBS |
| 5320-00-438-9470 | 2013-05-141 | 1188 | DIBBS |
| 5320-00-438-9470 | 2012-05-146 | 326 | DIBBS |
| 5320-00-438-9470 | 2011-12-348 | 357 | DIBBS |
| 5320-00-438-9470 | 2011-11-321 | 696 | DIBBS |
| HL9410 | 2010-08-222 | 864 | United States |
| 5320-00-438-9470 | 2008-10-282 | 450 | DIBBS |
| 5320-00-438-9470 | 2008-09-254 | 620 | DIBBS |
| 5320-00-438-9470 | 2008-08-231 | 564 | DIBBS |
Cross Reference | NSN 5320-00-438-9470
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 1213AS630-4 | 30003 | NAVAL AIR SYSTEMS COMMAND |
| HL94-10 | 06725 | SPS TECHNOLOGIES LLC DBA AIR INDUSTRIES |
| HL94-10 | 17446 | HUCK INTERNATIONAL, INC. DBA ALCOA FASTENING SYSTEMS |
| HL94-10 | 56878 | SPS TECHNOLOGIES, LLC DBA AEROSPACE DIVISION |
| HL94-10 | 60516 | WEST COAST AEROSPACE INC |
| HL94-10 | 73197 | HI-SHEAR CORPORATION |
| HL94-10 | 92215 | ALCOA GLOBAL FASTENERS, INC. DBA ALCOA FASTENING SYSTEMS |
| HL94-10 | L4528 | LISI AEROSPACE CANADA CORP |
| STSAE023HP10 | 98897 | LOCKHEED MARTIN CORPORATION DBA LOCKHEED MARTIN AERONAUTICS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5320-00-438-9470
Related Products | NSN 5320-00-438-9470
Technical Data | NSN 5320-00-438-9470
| Characteristic | Specifications |
|---|---|
| MATERIAL | TITANIUM ALLOY OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | AMS4971 ASSN STD SINGLE MATERIAL RESPONSE OVERALL |
| COLLAR STYLE | A3 THREADED (BREAK OFF) TYPE |

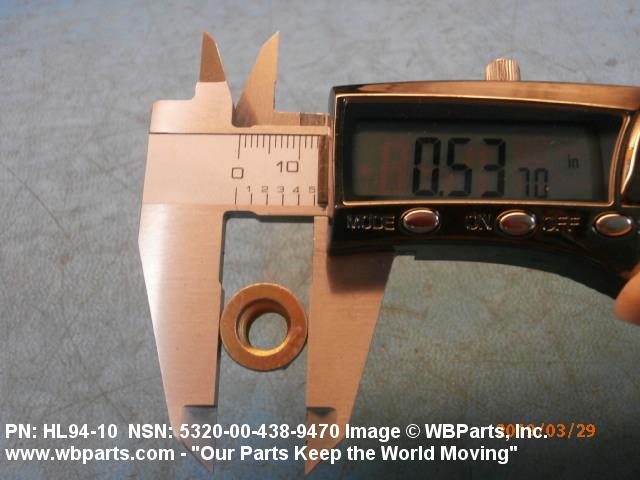

| COLLAR OUTSIDE DIAMETER | 0.532 INCHES MINIMUM AND 0.538 INCHES MAXIMUM |

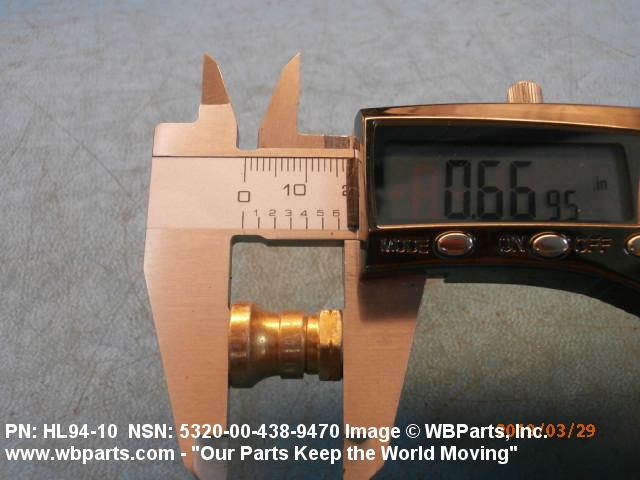

| COLLAR OVERALL HEIGHT | 0.652 INCHES MINIMUM AND 0.672 INCHES MAXIMUM |

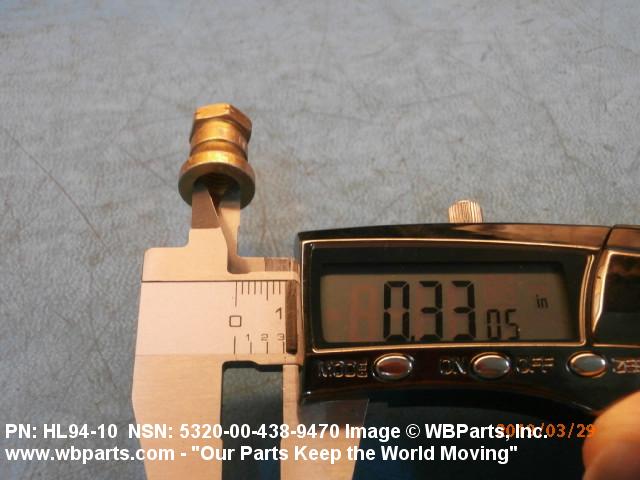

| COLLAR INSIDE DIAMETER | 0.330 INCHES MINIMUM AND 0.336 INCHES MAXIMUM |
| THREAD SERIES DESIGNATOR | UNJF |

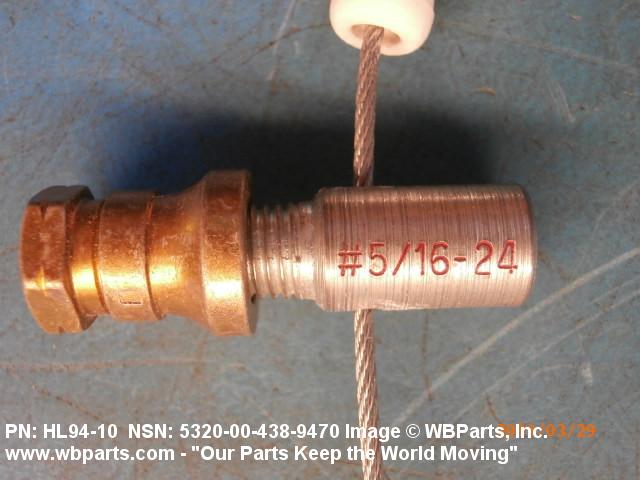

| NOMINAL THREAD SIZE | 0.3125 INCHES |
| THREAD CLASS | 3B |
| THREAD QUANTITY PER INCH | 24 |
| THREAD DIRECTION | RIGHT-HAND |
| CRITICALITY CODE JUSTIFICATION | CQJX |
Restrictions/Controls & Freight Information | NSN 5320-00-438-9470
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | Y | The item does not have a nuclear hardened feature but does have other critical feature(s) such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 094380 | COTTER PINS/SPRING COTTERS IRON |
| Less than car load rating | U | 50 |
| Less than truck load rating | U | 50.0 |
| Water commodity Code | 713 | unknown |
| Originating Activity Code | SG | 403 SCMS/GUED 5215 Thurlow St, Suite 5, Bldg 70C Wright-Patterson AFB OH 45433 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | Z | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5320-00-438-9470
Air Force
Navy| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Price Validation | N | The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
|
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Materiel Management Aggregation Code | SX | SX:AF SICA RESIDUAL MMAC-OC-ALC |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
Q EA : Each |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
Q EA : Each |
